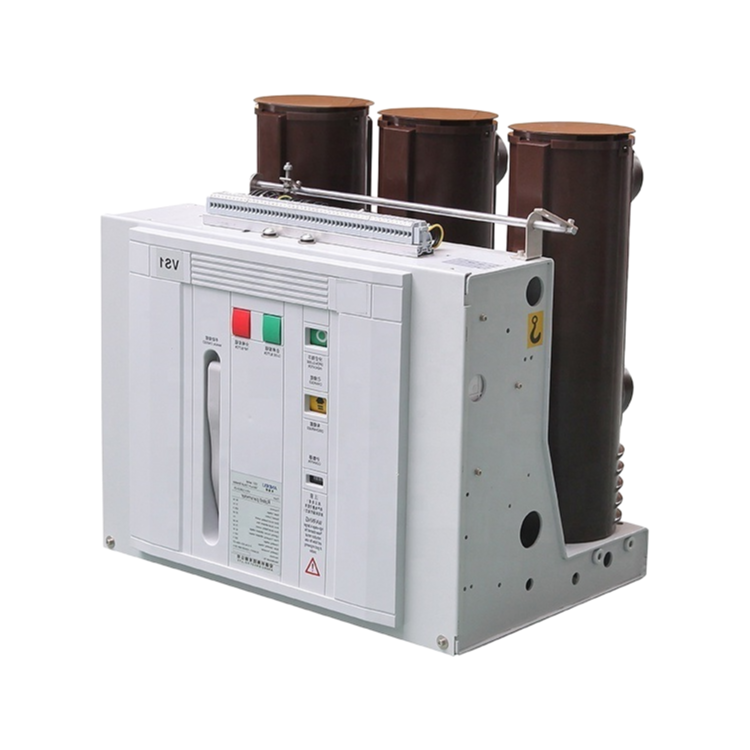

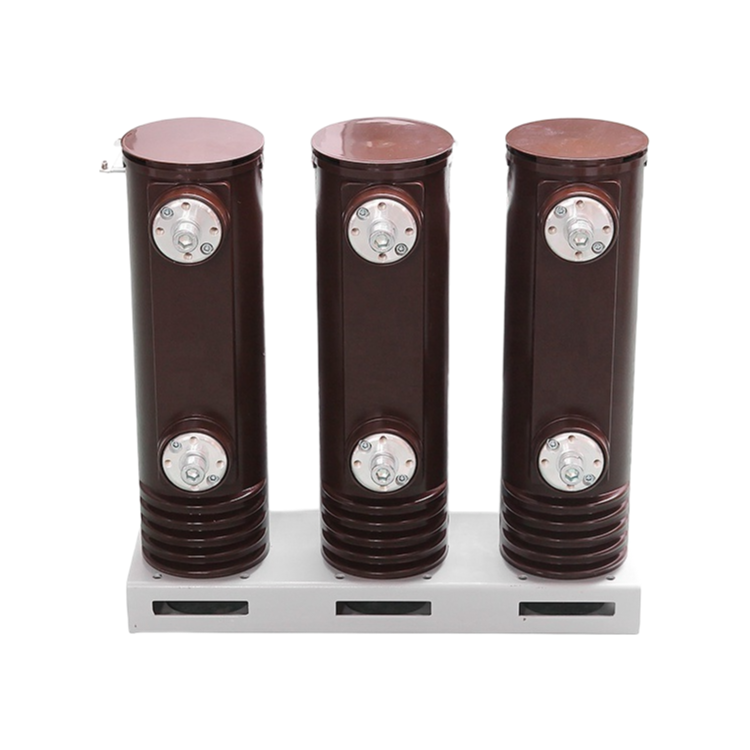

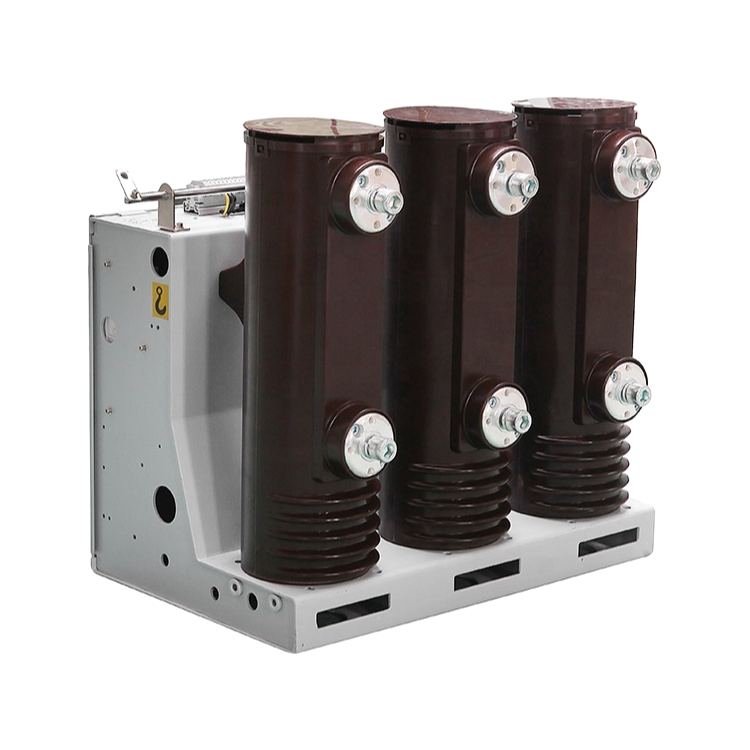

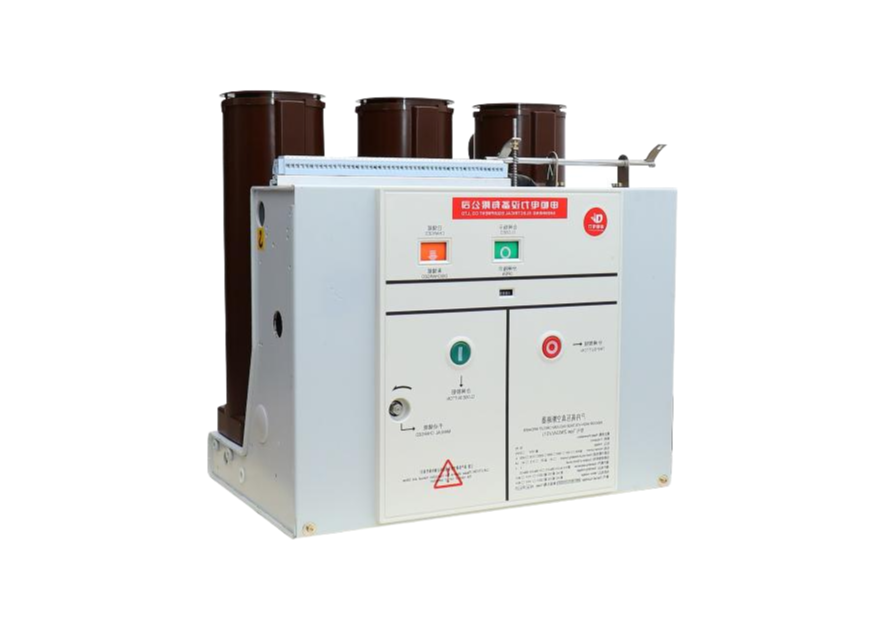

We've been shiping these VS1-12 units for years now, and what most buyers don't realize is that the 630A version is actually most popular for substation retrofits—it's easier to handle than the 4000A model and usually has stock ready in 20 days or so, though the larger ones need a lead time of about 6-8 weeks form order.
The 12kV rating at 50Hz is pretty standard for Chinese power plants and mining operations, and the vacuum arc-extinguishing medium means you don't have to worry about oil leaks or gas pressure checks, which is a big deal for maintenance crews who'd rather not deal with that mess, but honestly, it's not suited for outdoor use without an enclosure since the IP rating isn't built for rain.
10000 mechancial cycles is what we guarantee, but in practice most units go well beyond that if the ambient temperature doesn't exceed +40°C or dip below -10°C—we've had customers report 15000 operations before any contact wear showed up on the COA, and the IEC60898 standard compliance gives them peace of mind with CCC cerification.
What it does is fit into standard switchgear cabinets via an insert installation, and the three-pole manual operation is straightforward, though some buyers ask about motorized versions for remote control, which our company can do but you'll need to specify at ordering since the base model is manual type only, roughly $1200-1800 per unit depending on the rated current (630A to 4000A) and bulk discounts kick in at 50 units or so.
Actually, one thing buyers often miss is that the BCD curve is D, which means it's designed for inductive loads like transformers and motors, not for general distribution where a C curve would be better, so if you're using it for lighting circuits, you might see nuisance tripping—just something to keep in mind when spec'ing out your project.
MOQ is typically 1 unit for standard configurations, but we can discuss larger volume discounts if you need more than 50 pieces.
Standard units ship in 15-20 working days. Custom orders with specific rating or accessory changes usually take 25-30 days.
Yes, every unit ships with ISO9001-2000 and CE certificates. CCC certification is also available on request for domestic Chinese projects.
Absolutely. The VS1-12 supports any rated current from 630A up to 4000A in 100A increments. Just specify your target when ordering.
Each breaker is packed in a plywood case lined with foam, sized to the 310*681*638mm dimensions. We can add extra bracing or waterproofing if you need.
