Custom 12kV VS1 Vacuum Circuit Breaker Supplier - 3 Pole High Voltage Switchgear Component

US$ 900.00 ~ 3000.00
Min.Order: 1
Product origin: Wenzhou, Zhejiang, China
Category: Electrical Equipment & Supplies
Product Name: Electrical Equipment & Supplies
Availability:In Stock
Product Review : 19 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : VS1-12
  • Rated Voltage : 12kV
  • Rated Current : 630A-3150A
  • Rated Frequency : 50/60Hz
  • Breaking Capacity : Up to 40kA
  • Operation Type : Energy-storage
  • Arc-extinguishing Medium : Vacuum
  • Installation Type : Fixed/Withdrawable
  • Poles Number : 3
  • Mechanical Endurance : 10,000 operations
  • Phase Distance : 150mm/210mm/275mm
  • Closing Time : 30-70ms
  • Opening Time : 20-50ms
  • Contact Stroke : 9±1mm
  • Over-travel : 3.5±0.5mm
  • Certification : ISO9001, CE
  • Ambient Temperature : -10°C to +40°C
  • Relative Humidity : ≤95% daily
  • Earthquake Resistance : 8 degree intensity

The VS1-12 vacuum circuit breaker is a high-performance electrical protection device designed for 12kV power systems. This 3-pole breaker features advanced vacuum arc-extinguishing technology and robust construction for reliable operation in demanding industrial environments.

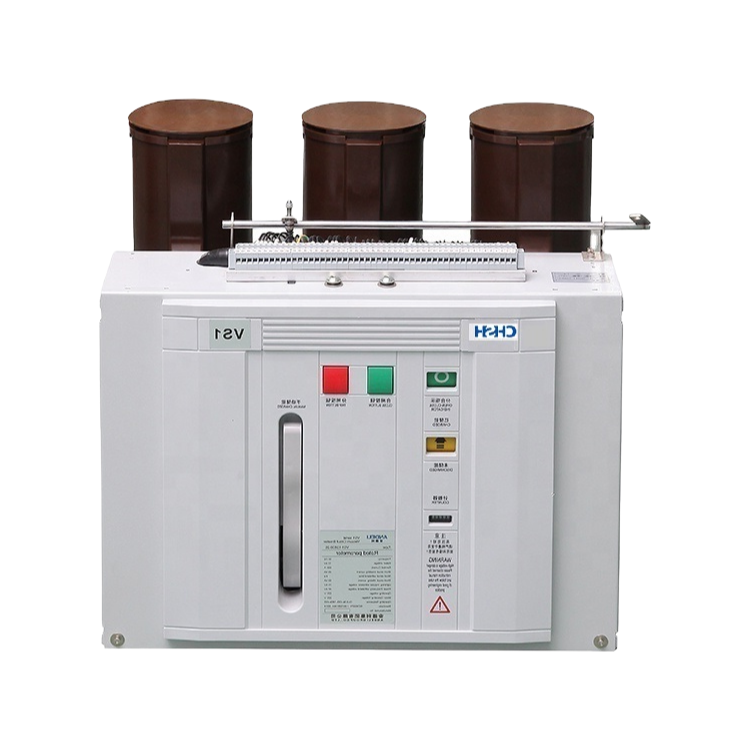

VS1-12 Vacuum Circuit Breaker Front View

With its integrated design combining the operating mechanism and VCB body, this circuit breaker offers excellent protection for power grids and industrial equipment. The vertical insulation housing provides superior weather resistance, making it suitable for various installation conditions.

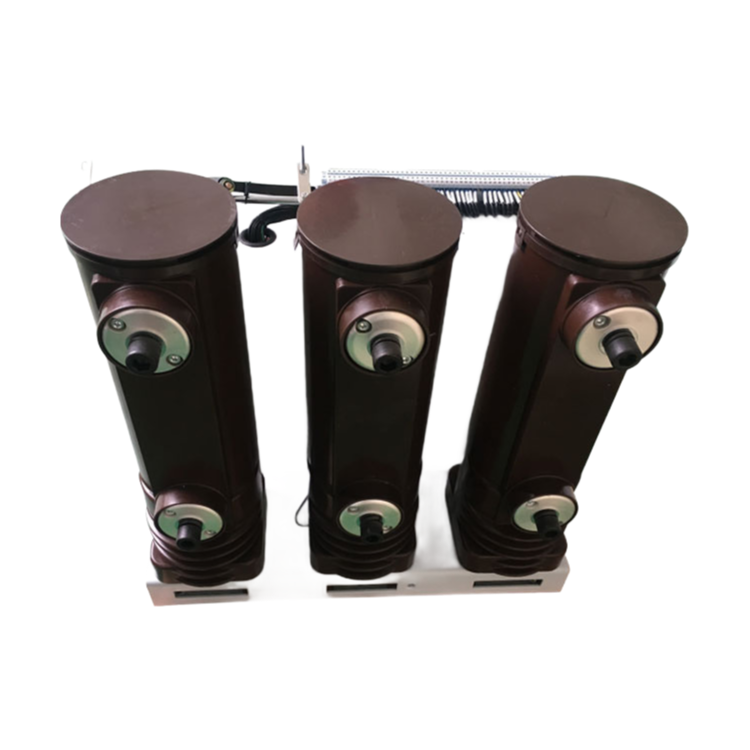

VS1-12 Circuit Breaker Side View

The breaker is available in both fixed type and withdrawable type configurations, offering flexibility for different switchgear panel requirements. It is compatible with common switchgear panels including KYN28(GZS1), XGN, and GG-1A types.

Key technical specifications include a rated short circuit breaking current up to 40kA, mechanical endurance of 10,000 operations, and rated breaking operations of 20,000 times at rated current. The compact design features phase distances of 150mm, 210mm, or 275mm to accommodate various installation requirements.

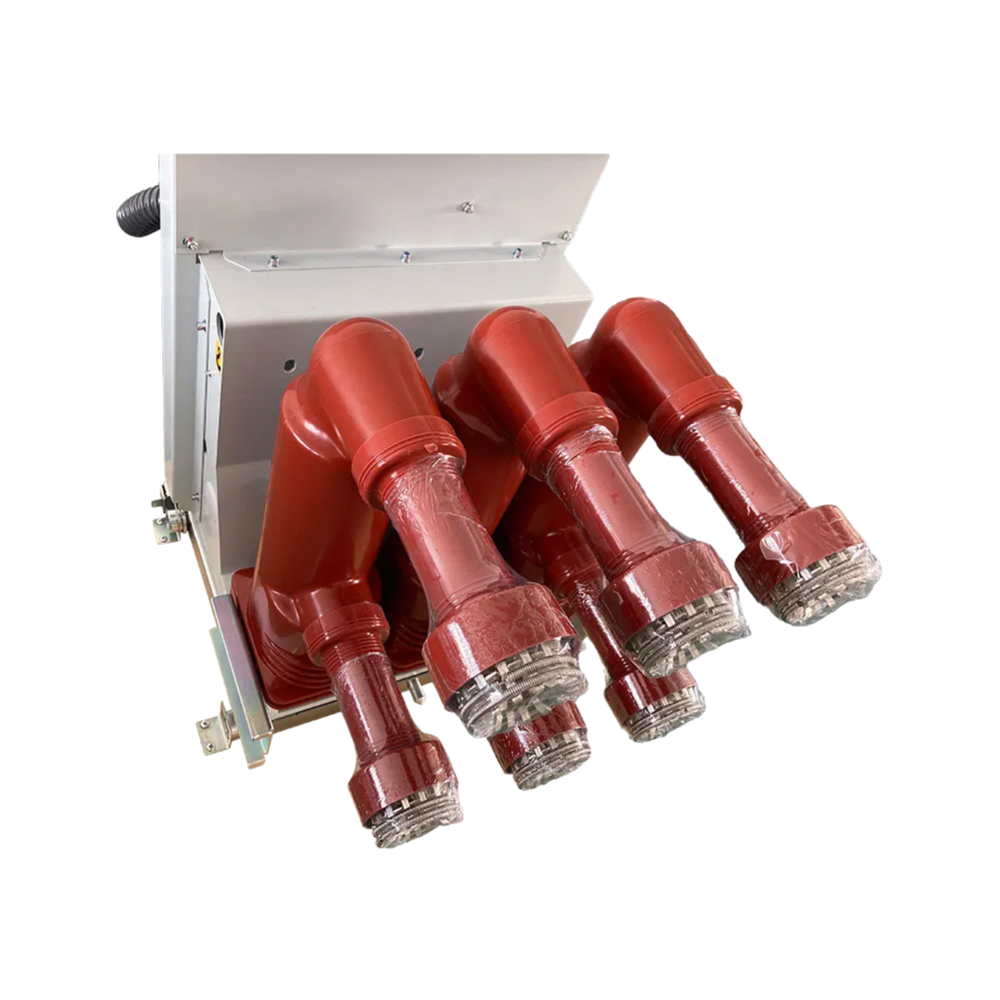

VS1-12 Circuit Breaker Internal Components

The VS1-12 maintains stable performance across a wide range of ambient conditions, operating reliably at temperatures from -10°C to +40°C and relative humidity up to 95%. Its robust construction withstands earthquake intensities up to 8 degrees.

This vacuum circuit breaker is certified to ISO9001 and CE standards, ensuring quality and safety compliance. The energy-storage type operation mechanism provides consistent performance while the vacuum arc-extinguishing medium offers maintenance-free operation.

VS1-12 Circuit Breaker Installation Diagram
