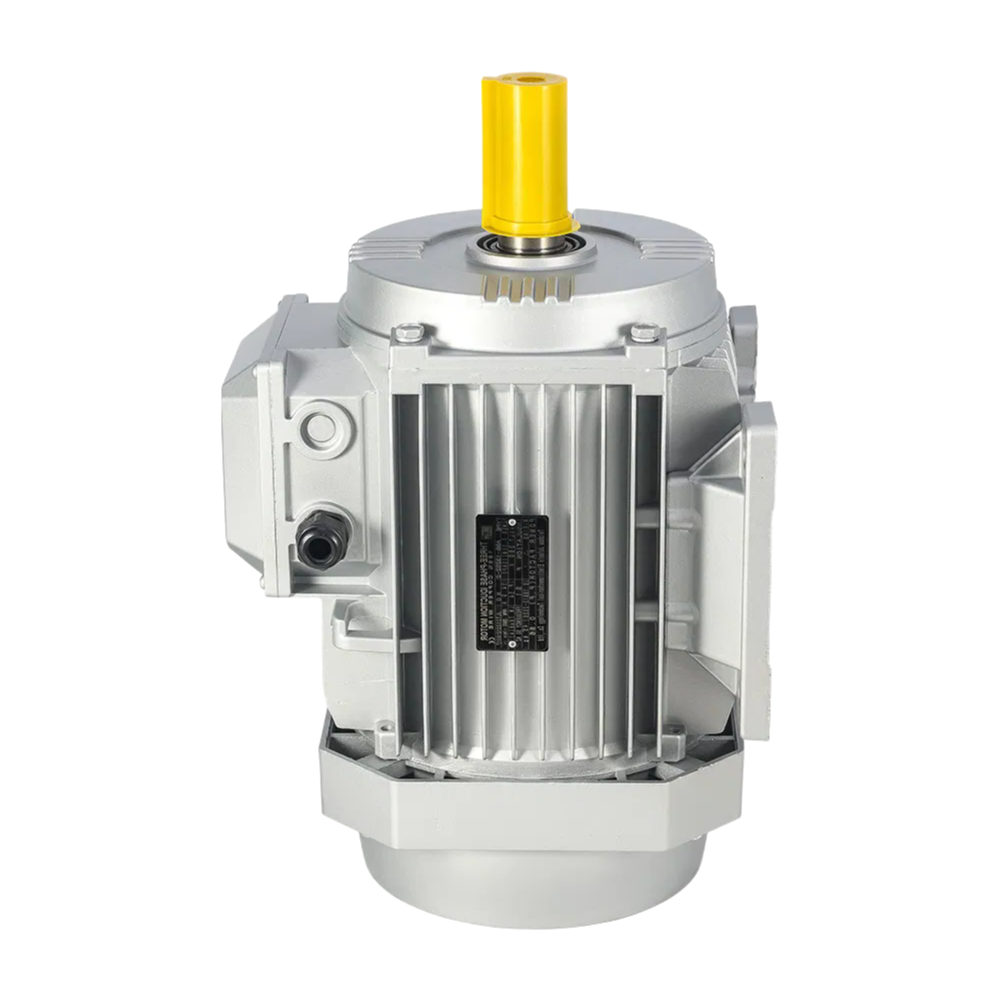

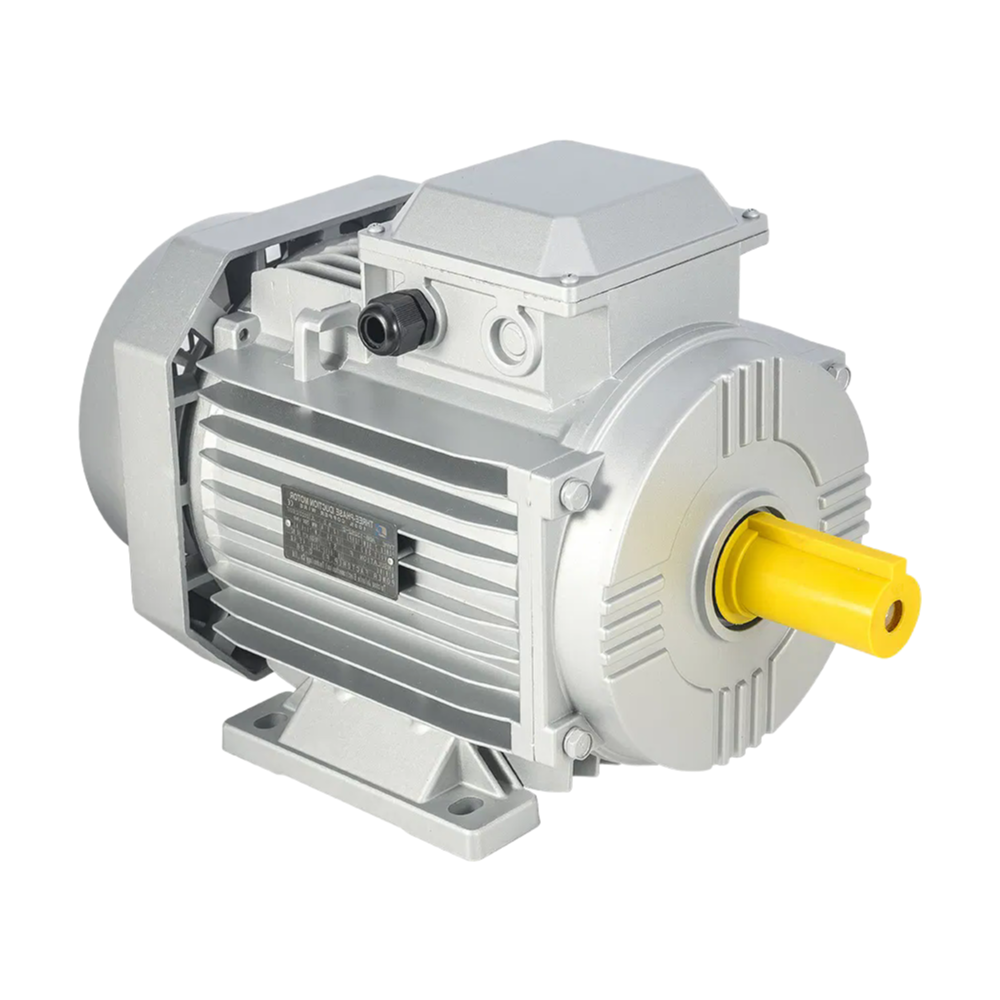

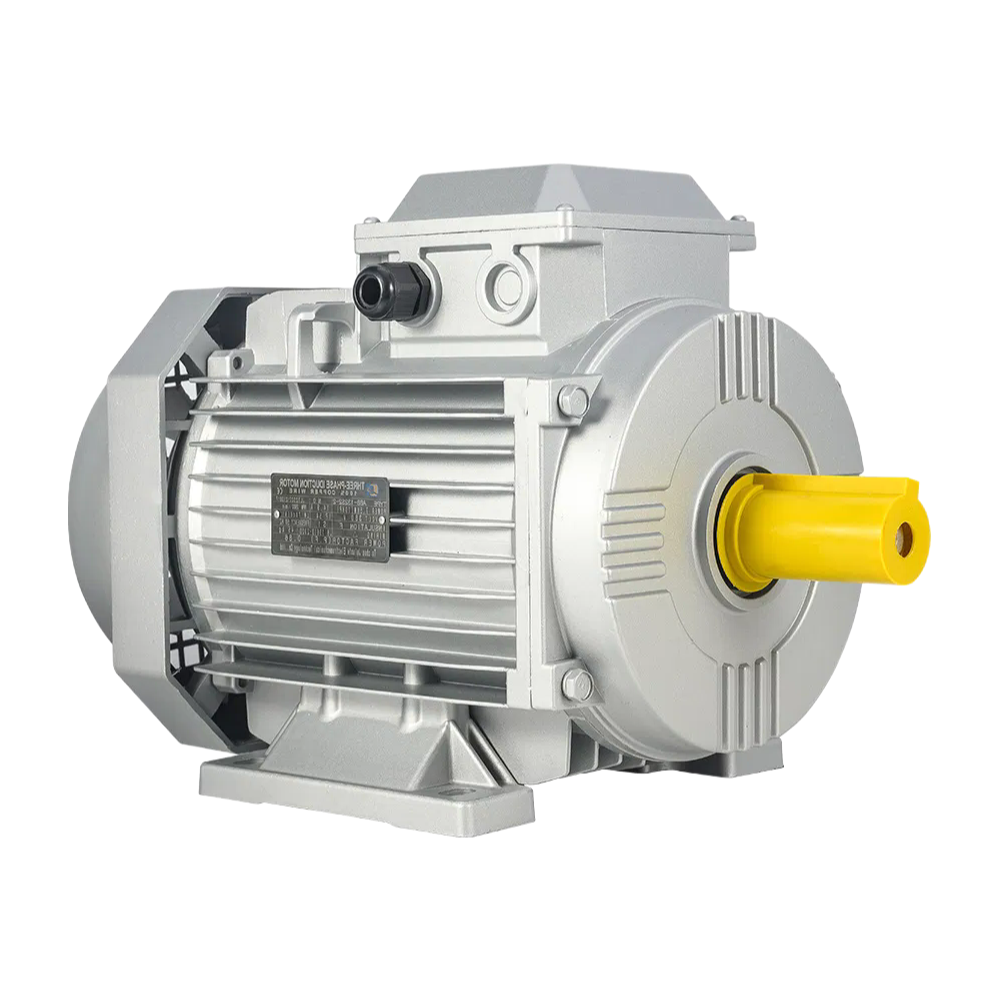

The Y2 series three-phase AC induction motor is engineered for superior performance in industrial environments. Constructed with high-grade cast iron, this motor features an optimized design that ensures structural rigidity and durability. The stator and rotor cores utilize premium silicon steel plates with excellent surface insulation properties, delivering low energy loss and high operational efficiency.
Our motors incorporate F-class insulation materials that create a complete insulation system without gaps. This design enhances winding end rigidity, making the motor capable of withstanding frequent switching and reversing operations. The advanced insulation system provides exceptional heat stability, significantly extending the motor's service life.
The rotor is manufactured using precision die-casting technology, ensuring consistent quality and smooth operation. Our bearing system is carefully designed considering motor type, operational forces, speed requirements, and lubrication needs. For frame sizes up to 250, we employ closed bearings, while larger frames utilize open-type bearings that allow for regreasing during operation.
These motors operate reliably within power supply variations of ±5% voltage and ±2% frequency. We offer numerous customization options including IP56 protection class, space heaters, heat protectors, vibration detectors, and specialized mounting configurations. Additional features like low vibration operation, PT100 bearing thermometers (for H180+ frames), and custom paint finishes are available upon request.
Every motor undergoes comprehensive quality control including 100% testing after each manufacturing stage. Our production process includes precision lamination stamping, rotor die-casting, manual and semi-automatic winding insertion, vacuum varnishing, and meticulous component machining. Final assembly includes thorough balancing, high-quality painting (wet or powder coating), and rigorous final testing before packaging.
