CE Certified 5.5KW AC Servo Motor with 8000RPM Max Speed for Milling Machines CE Certified 5.5KW AC Servo Motor with 8000RPM Max Speed for Milling Machines
CE Certified 5.5KW AC Servo Motor with 8000RPM Max Speed for Milling Machines CE Certified 5.5KW AC Servo Motor with 8000RPM Max Speed for Milling Machines
CE Certified 5.5KW AC Servo Motor with 8000RPM Max Speed for Milling Machines CE Certified 5.5KW AC Servo Motor with 8000RPM Max Speed for Milling Machines
CE Certified 5.5KW AC Servo Motor with 8000RPM Max Speed for Milling Machines CE Certified 5.5KW AC Servo Motor with 8000RPM Max Speed for Milling Machines

CE Certified 5.5KW AC Servo Motor with 8000RPM Max Speed for Milling Machines

US$ 1039.00 ~ 999.00
Min.Order: 1
Product origin: Shenzhen, Guangdong, China
Category: Electrical Equipment & Supplies
Product Name: Electrical Equipment & Supplies
Availability:In Stock
Product Review : 16 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : SZGH10-2-35-5.5/7.5-4-1500
  • Rated Power : 5.5KW
  • Rated Torque : 35NM
  • Rated Speed : 1500RPM
  • Maximum Speed : 8000RPM
  • Encoder Resolution : 1024PPR
  • Frequency Range : 50-60Hz
  • Rated Current : 13A
  • Mounting Options : B3/B5/B35
  • Motor Weight : 66kg
  • Pole Number : 4
  • Certification : CE, ISO9001
  • Warranty Period : 1 Year
  • Control Modes : Speed/Position/Torque
  • Encoder Types : Photoelectric/Sincos/BISS
  • Driver Model : SZGH-S4T5P5
  • Driver Input : 3 Phase 380VAC
  • Driver Output : 8.6KVA
  • Dimensions : 560×320×410mm

A buyer's custmer runs a small CNC job shop doing mold work, and they've got a milling spindle that needs to hold 35NM of torque steady at low RPM for roughing passes — this motor handles that without breaking a sweat, and it can also spin up to 8000RPM for fine finishing cuts (the encoder resolution is 1024PPR, which is fine for most positioning tasks).

5.5KW AC Spindle Motor

We've been shipping these SZGH spindle setups for about three years now, and the kit includes the motor, driver, control cables, encoder cables, and feedback cables — everything plugs together with the SZGH-S4T5P5 driver that runs on three-phase 380VAC, outputting 8.6KVA. The motor itself is 66kg and comes in a closed-type housing, so it's pretty much sealed against chips and coolant in a typical machine enclosure.

AC Spindle Motor Components

Speed control is decent — rated 1500RPM continuous, but you can push peak speed to 8000RPM for short cycles, and it'll handle rigid tapping up to 3000RPM or so. driver supports three control modes — speed, position, torque — and teh encoder options we usually stock are photoelectric, though Sincos and BISS are avaliable if you special order them (lead time adds maybe 2 weeks).

CE and ISO9001 certs are on file with each shipment — you get a scanned copy with the invoice, and the phyiscal COA is packed with the motor. We've got a standard 1-year warranty against manufacturing defects, and payment terms are typically T/T with 30% deposit and 70% before shipping, but our company can discuss L/C for repeat orders over 5 units.

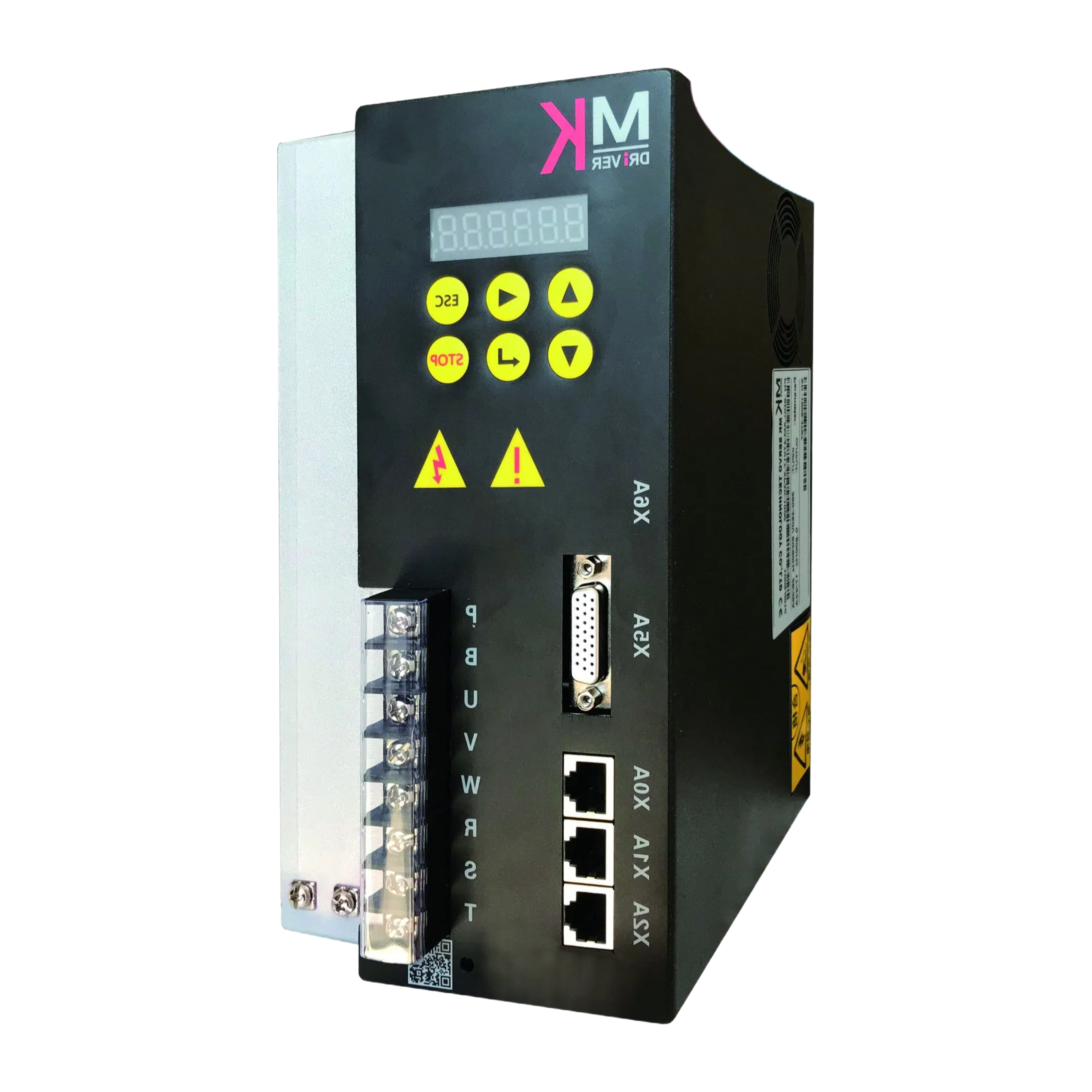

Spindle Motor Driver

Mounting options are B3, B5, or B35 — the flange pattern is what you'd expect for a 4-pole frame of this size, but double-check your spindle housing bore because the dimnesions are 560×320×410mm and it's not a drop-in for every mill.

AC Spindle Motor Application

Also, this combo isn't really suited for high-speed engraving spindles or tiny tool changers where you need 20,000+ RPM — the 8.6KVA driver output limits sustained high-RPM torque, and the 1024PPR encoder won't give you the fine positioning for sub-micron work, so know your application before ordering.

Frequently Asked Questions

What is the lead time for the SZGH10-2-35-5.5/7.5-4-1500 servo motor if I order 10 units?

Lead time is typically 15-20 working days for orders up to 20 units, but we can adjust based on current stock. Just reach out with your quantity for a more precise timeline.

Do you provide ISO9001 or CE certification documents with the shipment?

Yes, we include both CE and ISO9001 certification copies with every order. Just let us know if you need any additional documentation for your compliance records.

Can this motor be paired with a different driver model, or does it require the SZGH-S4T5P5 specifically?

It's designed to work best with the SZGH-S4T5P5 driver, but it can also run with other compatible drives that match its 8.6KVA output and 13A rated current. We recommend sticking with our driver for full performance.

What's the difference between the B3, B5, and B35 mounting options for this motor?

B3 is foot-mounted, B5 is flange-mounted, and B35 combines both foot and flange. You pick the one that fits your milling machine's installation setup—they all work with this motor.

How should I store this motor if I'm not installing it right away?

Keep it in a dry, clean environment with temperatures between -20°C and 60°C, and avoid direct moisture or dust. The closed protection class helps, but storage in its original packaging is best.
