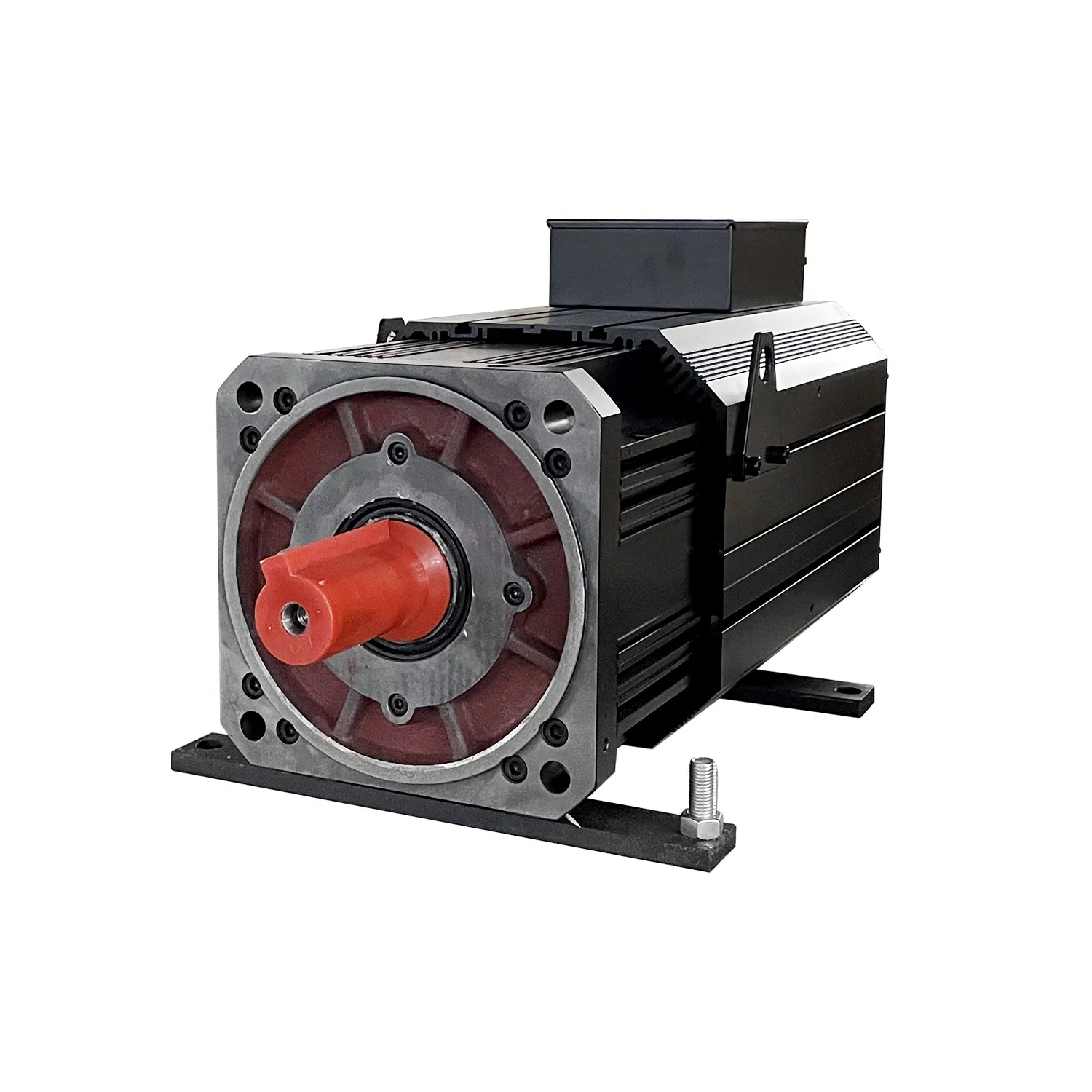

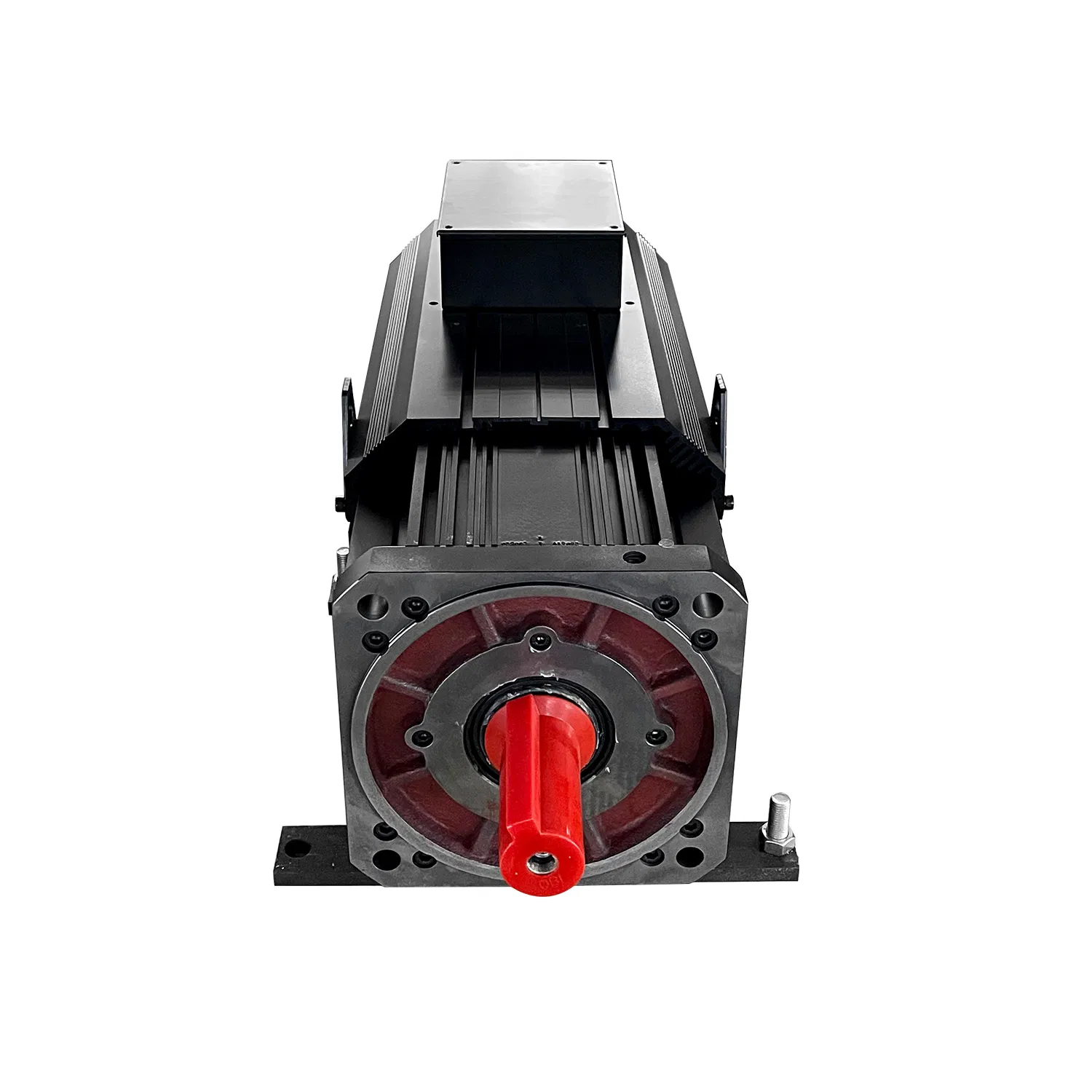

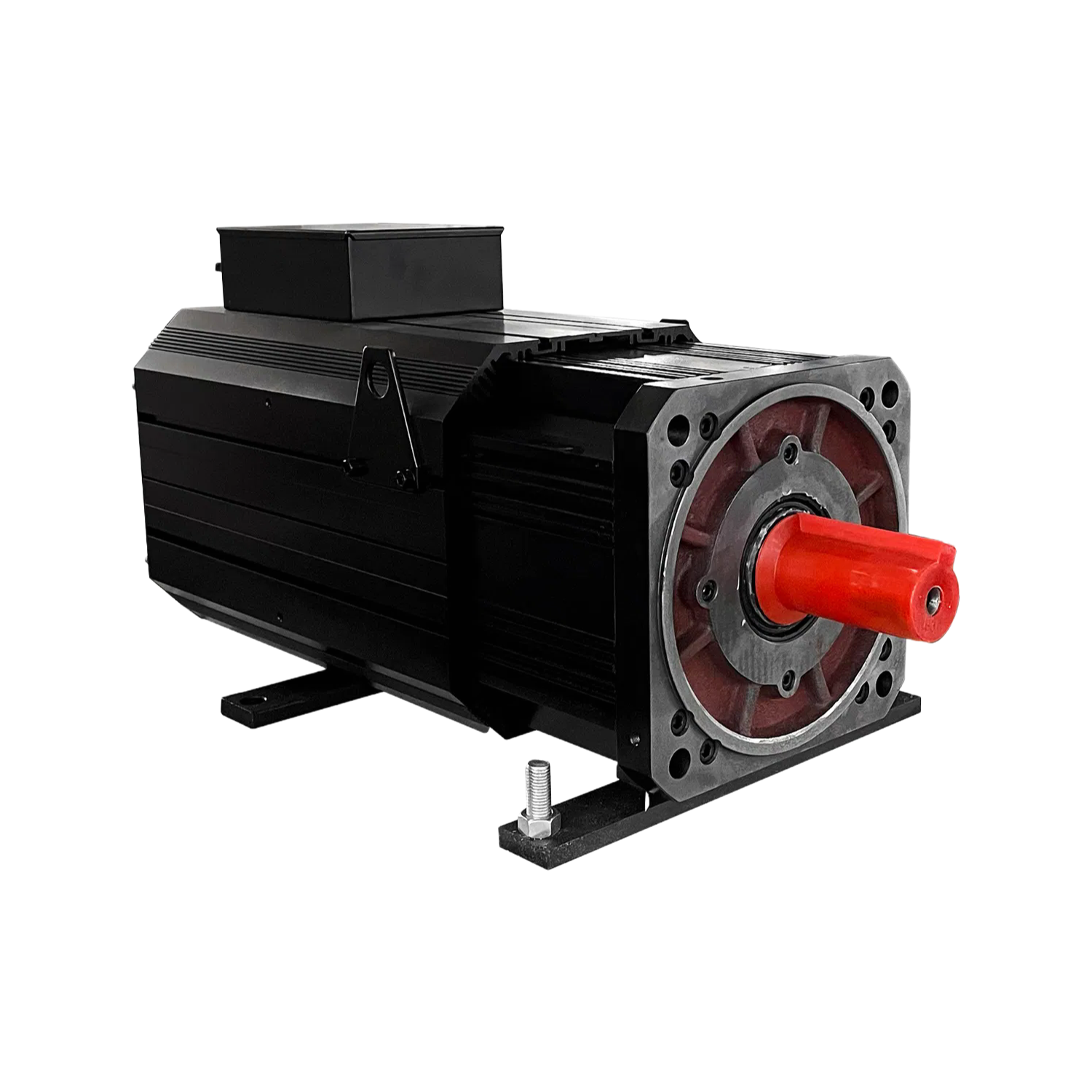

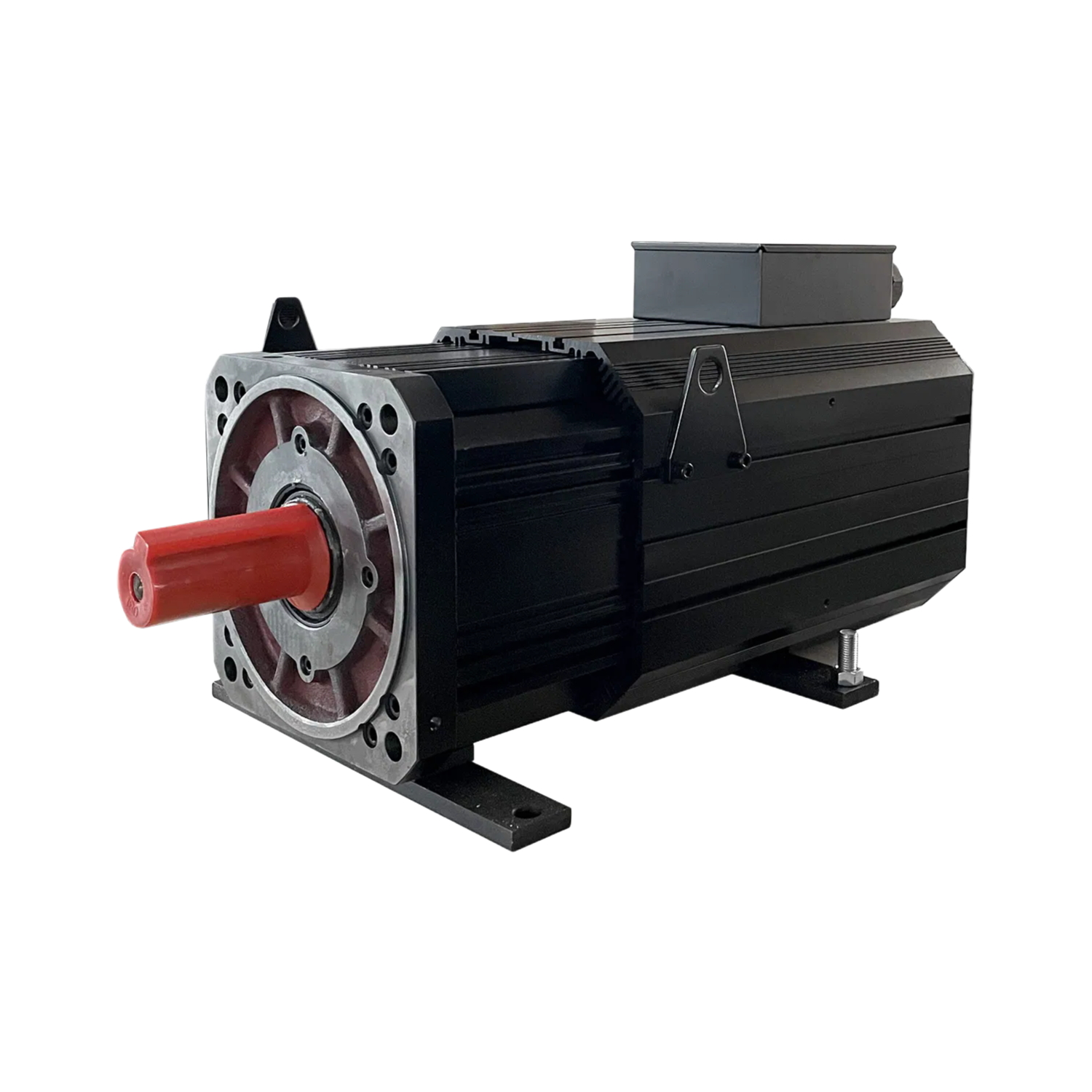

We’ve got these in stock right now, roughly 15 units avaliable for immediate dispatch — shiping timeline is typically 3-5 business days for domestic orders, but international may need 10-14 days depending on customs. The ZE252075D4360L3 is an 8-pole servo drive motor running at 133.33Hz, and it’s built for heavy industrial automation where you need consistent torque at higher speeds without drive bogging down.
Rated at 75.4kW with 360N.m continuous torque and a peak of 605N.m, it’s actually better than most comparable units in this power class for handling sudden load spikes — the 2000rpm rated speed jumps to 2600rpm max, which matters when you’re cycling pick-and-place or conveyor systems. Rotor inertia sits at 630kg·cm², so it’s not for ultra-light servo applications; you’ll want this on gantries or large rotary tables where mass is already part of the equation.
The IP67 protection level is a real differentiator here — most servo motors in this range top out at IP54, so this one handles washdown environments or dusty floors without needing an extra enclosure. We usually stock these with the standard connector variant, but if you need a specific cable exit orientation or M23 vs M17, just flag it at order time (check lead time for custom configs).
Line resisance is 0.0409Ω with Ld at 1.01mH and Lq at 2.02mH — that asymmetry is intentional for torque ripple reduction at low speeds, so don’t assume it’s a winding error. The 143A rated current draws 255A peak, and you’ll need a drive capable of handling that inrush without tripping; we’ve seen buyers pair it with Yaskawa or Siemens drives successfully.
Also, it’s not suited for high-speed spindle work — the 2600rpm ceiling is low compared to dedicated spindle motors, so stick to positioning or speed-controlled automation where torque matters more than RPM. Packaging is standard plywood crate for bulk orders, and our company can do mixed pallets if you’re combining with other ZE series units.
MOQ for this model is typically 10 units. If you need less, let us know and we can check stock or schedule a smaller batch.
Lead time is around 25–35 working days for an order of 50 units, depending on current production load. We can give a tighter estimate once you confirm quantity.
Yes, the whole ZE25 series is ISO9001 certified, and we can provide a copy of the certificate with your shipment. Just request it in your order notes.
That inertia value tells you how much resistance the motor rotor has to speed changes. For high-torque applications like your automation equipment, it helps with load matching and smooth acceleration—just make sure your load inertia is within a 3:1 ratio for best performance.
Each motor is packed individually in a reinforced cardboard box with foam inserts, then palletized and shrink-wrapped for container shipping. We can add export-grade wooden crates if requested.
