ISO9001 & CE Certified 750W Servo Motor with Explosion-Proof Casing

The SZGH-09075DC is a high-performance 750W AC servo motor designed for industrial automation applications. With its compact design and optimized performance, this motor is ideal for CNC machinery, heavy duty sewing machines, and various machine tool applications.

This servo motor features a rated speed of 3000RPM and delivers a continuous torque of 2.4N.m (7.1N.m peak torque). The motor comes with a high-resolution 2500PPR encoder for precise position control and feedback. The explosion-proof casing ensures safe operation in demanding industrial environments.

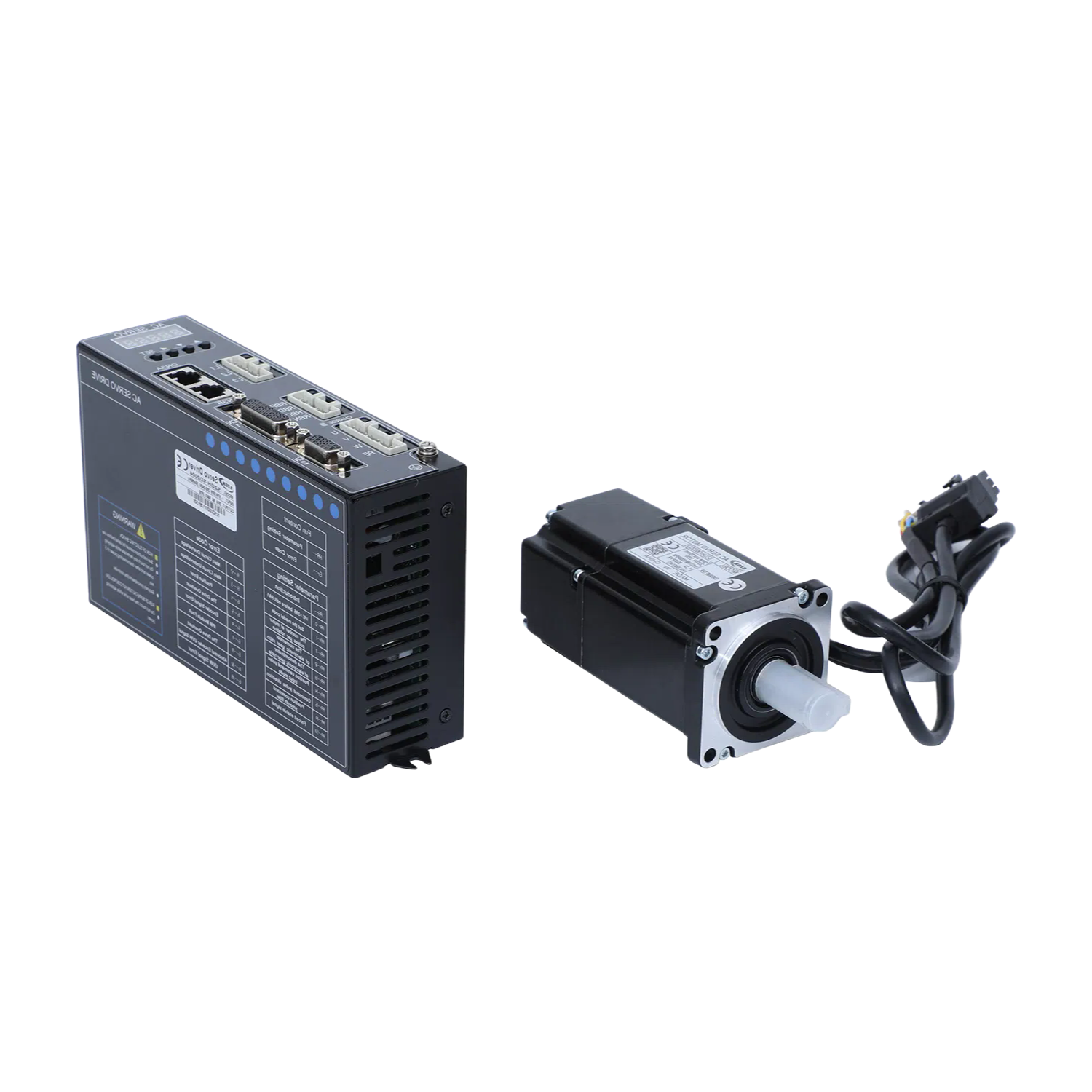

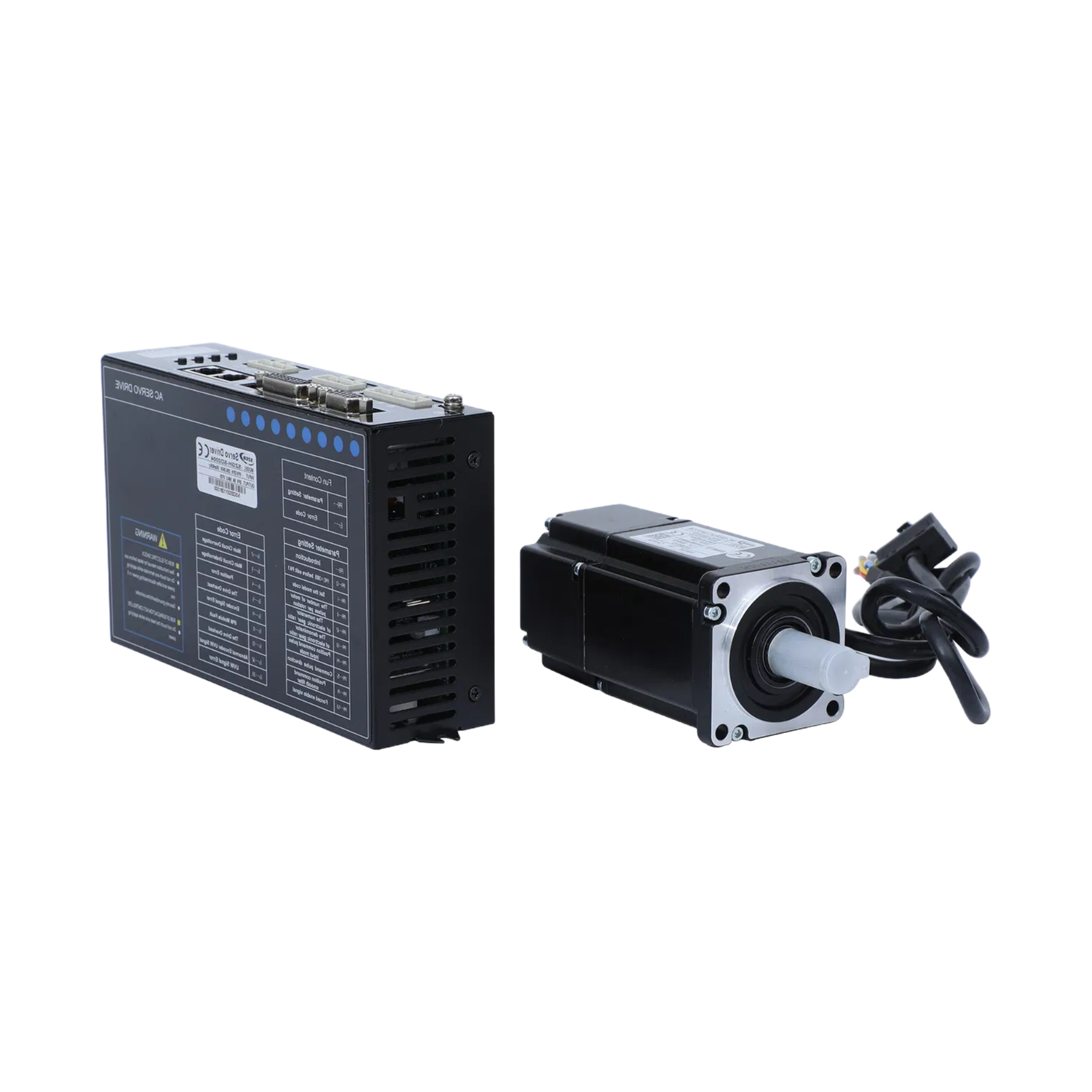

The package includes the SZGH-09075DC 750W servo motor, SZGH-SD2010 220V servo driver, 5-meter motor cables, 5-meter encoder cables, and a comprehensive manual. Optional configurations include brake motor, absolute encoder, and custom cable lengths.

The matched servo driver supports multiple control modes including position control, speed control, and torque control. It features comprehensive protection functions against over-speed, over-voltage, under-voltage, over-current, and overload conditions.

With ISO9001 and CE certifications, this servo motor system meets international quality and safety standards. The compact design (150mm length, 3.1kg weight) makes it suitable for space-constrained installations while delivering reliable performance for long-term continuous operation.
