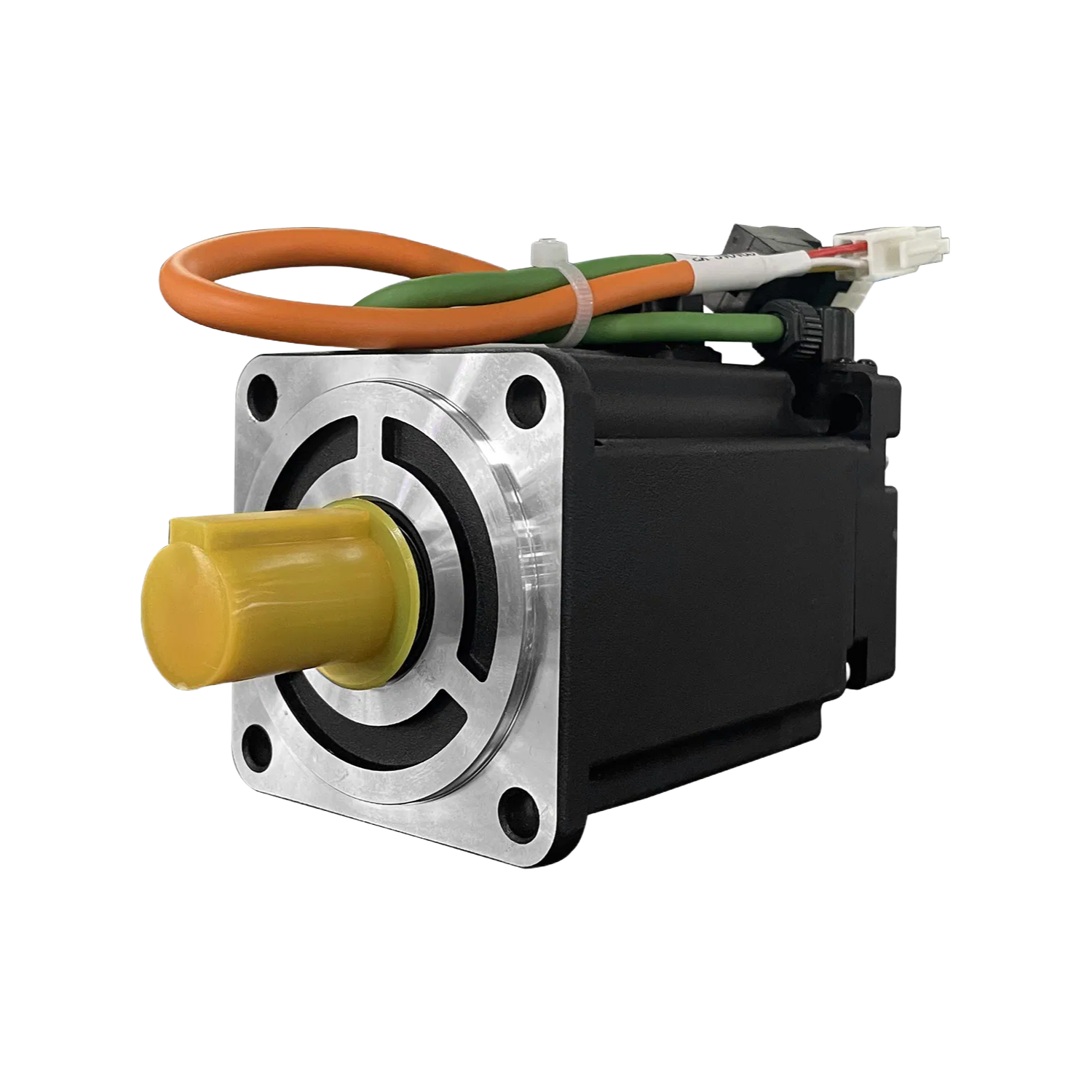

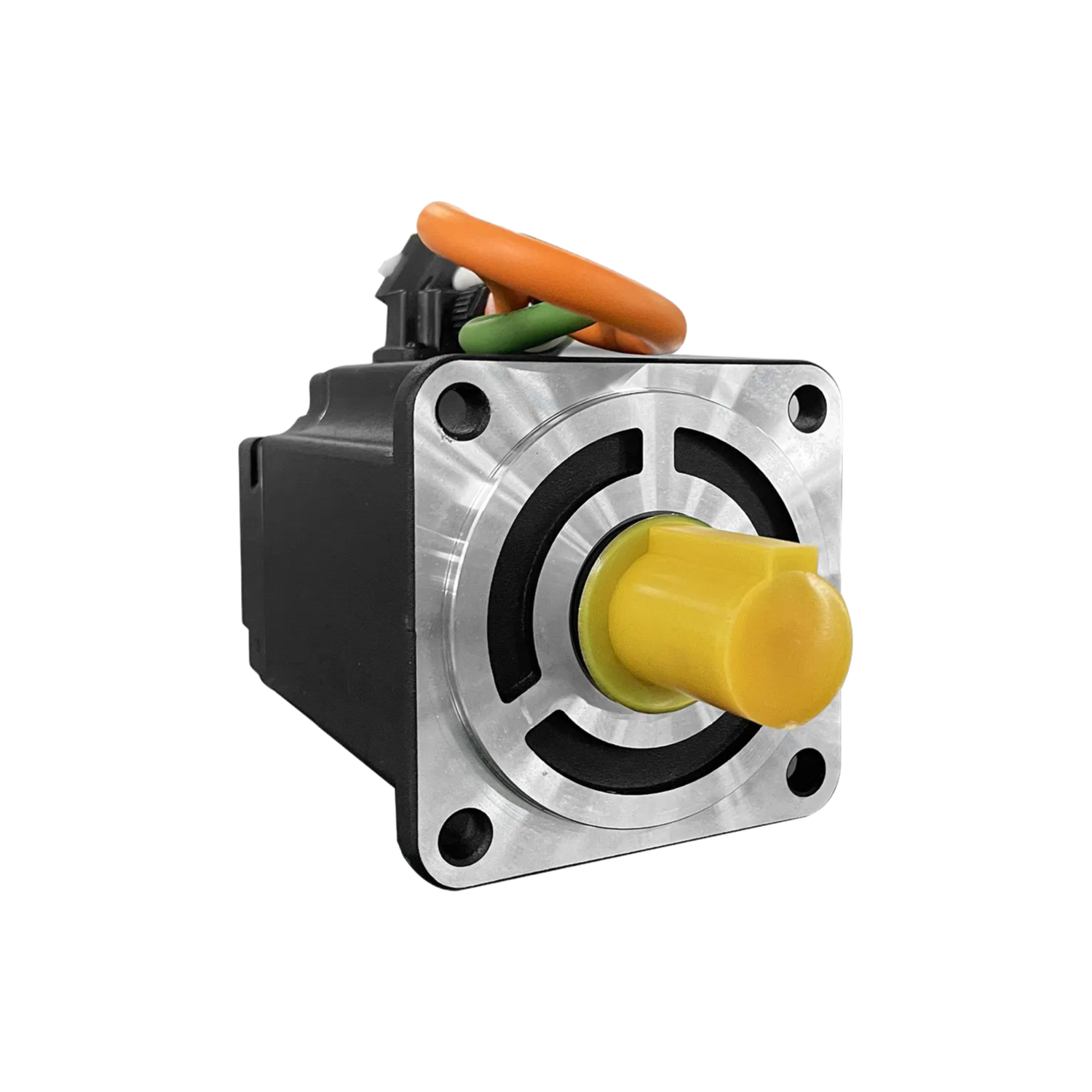

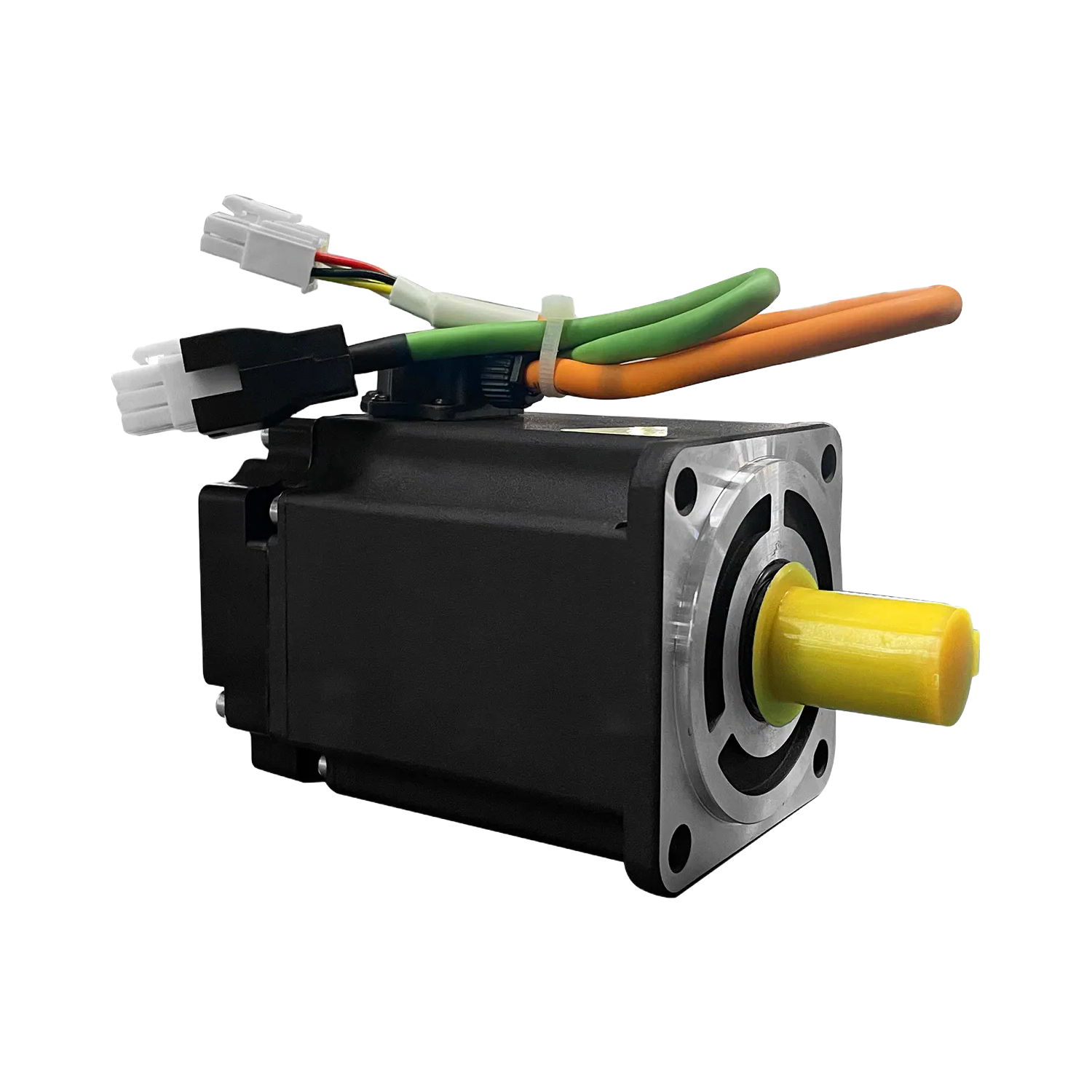

You're looking at a 1KW, 220V three-phase motor that hits 3000 RPM at rated load and can push to 6000 RPM max — the torque jumps form 3.18 N.m to 9.54 N.m at peak, and we've found that air-cooled unit runs pretty consistently under load. It's got an IP54 protection level, which basically means it'll handle dust and splash in a shop enviornment, and the 8-pole design with 100Hz frequency gives you that smooth low-speed torque.
Most buyers we deal with drop this into automated assembly lines or conveyor systems where precise speed control matters — the rotor inertia is 1.97 kg*cm² so acceleration and deceleration are quick without overshoot. One guy in logistics told us it cut enclosure space by nearly twenty percent compared to his old servo, and that's with the flange-mount setup. But it's not ideal for forklift drives or anything with heavy shock loads, just so you know.
It draws 5.8A continuous and maxes at 18.1A, line resistnce is 0.68 Ω and the Ld/Lq inductances sit at 1.4mH and 1.7mH respectively — these numbers matter if you're tuning a servo drive for high-speed operation. CE and ISO9001 certs come with every batch, and we usually have a COA ready within 20 days or so from order.
Also, sourcing means no markup from middlemen, and our company can flex the MOQ depending on your volume — if you're just testing prototypes, we've shipped as few as 5 units though 50 or so is our typical sweet spot. Lead time is roughly 4-6 weeks for teh ZE80MA1-0001DQNM variant but (check current stock, we sometimes have a few on hand from overruns). 5. Anyway, one thing we don't advertise but buyers quickly learn: the compact flange mount saves real space, about 15-20% less than comparable motors, but you'll need to verify your shaft coupling fits the output dimnesions since we don't supply adapters.
We can do as low as 10 units for a trial order, but for regular production runs we usually ask for 50 pieces minimum.
Stock orders ship within 7-10 working days. Customized orders with specific windings or shaft modifications take around 25-30 days.
Yes, we include CE and ISO9001 certificates with each shipment, plus we can provide a routine test report showing resistance, current, and torque values for the batch.
We can rewind the stator for 110V, but that changes the rated current and torque curve. Send us your target specs and we'll confirm the new parameters.
Keep it in a dry, covered area at -20°C to 60°C. If storing longer than 6 months, rotate the shaft manually every few months to prevent bearing corrosion.
Xcellent experience overall. The shipping was incredibly fast and well-handled; the motor arrived ahead of schedule and was packaged with great care to prevent any damage during transit. Regarding quality, the product feels robust and well-manufactured, exactly as described in the listing. The service from the supplier was also top-notch; they were responsive and professional in all communications, providing clear updates. Everything from logistics to post-purchase support was handled efficiently and courteously. I am thoroughly satisfied with this transaction and would confidently recommend this supplier to others based on this seamless process.
Commendable experience overall! The delivery was impressively fast, arriving ahead of schedule with secure packaging that ensured everything was in perfect condition. The quality of the motor appears robust and well-manufactured, meeting my expectations for industrial use. Customer service was responsive and helpful, promptly addressing my inquiries with clear communication. A smooth and reliable transaction from start to finish.
