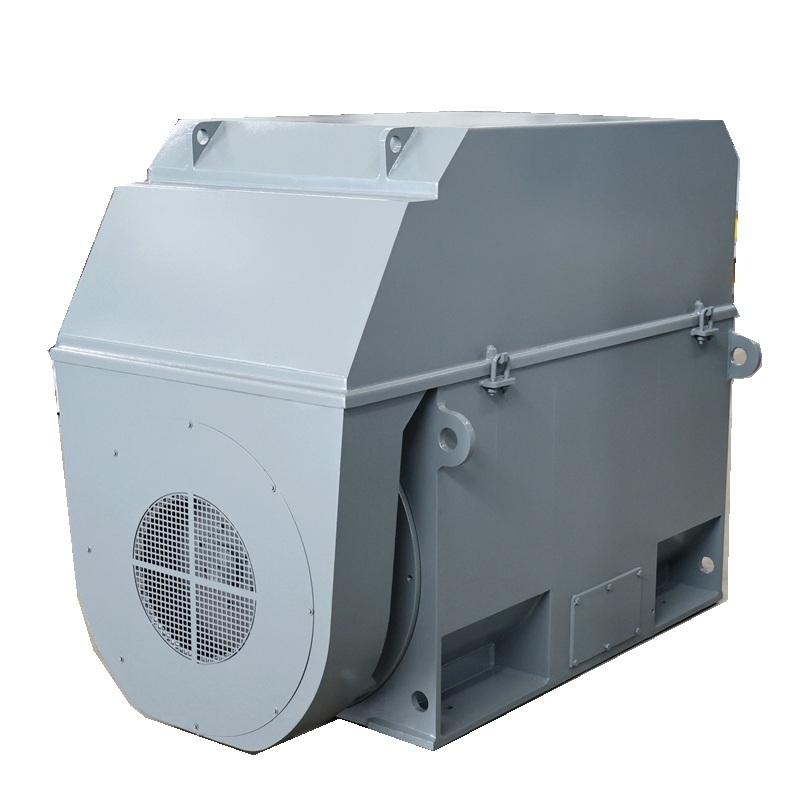

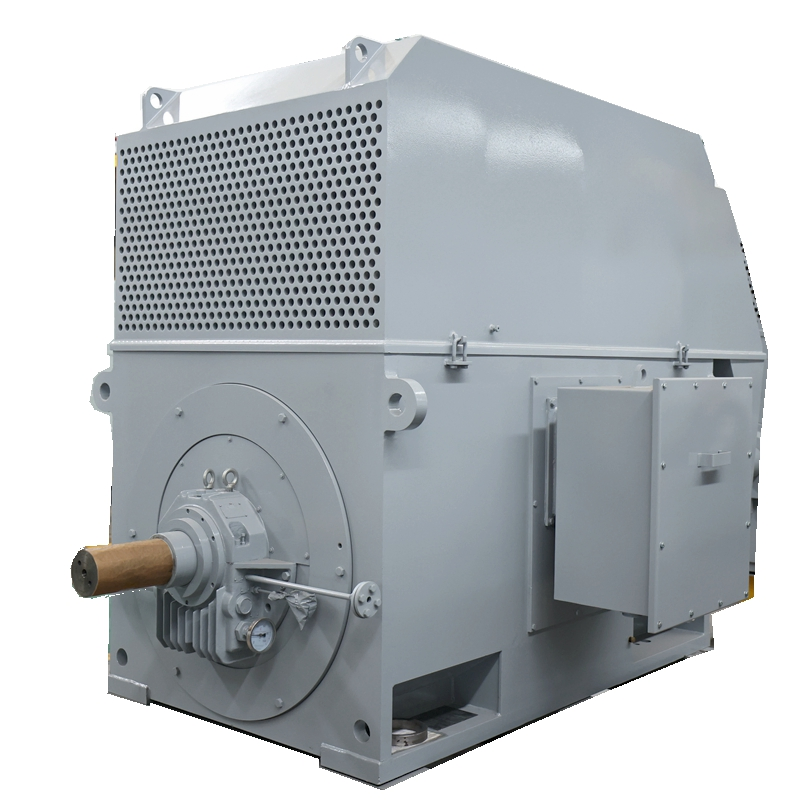

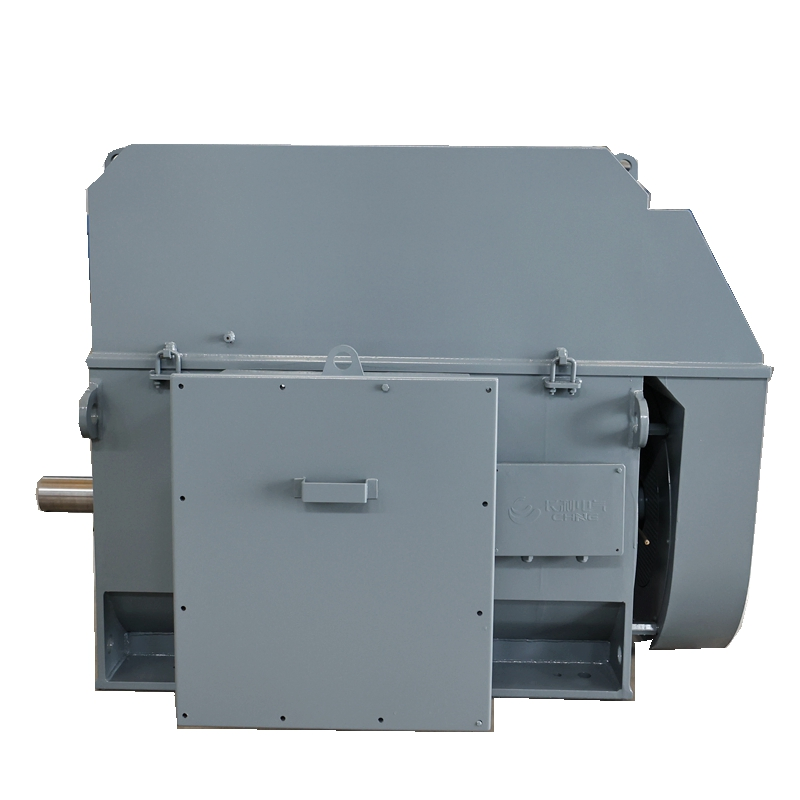

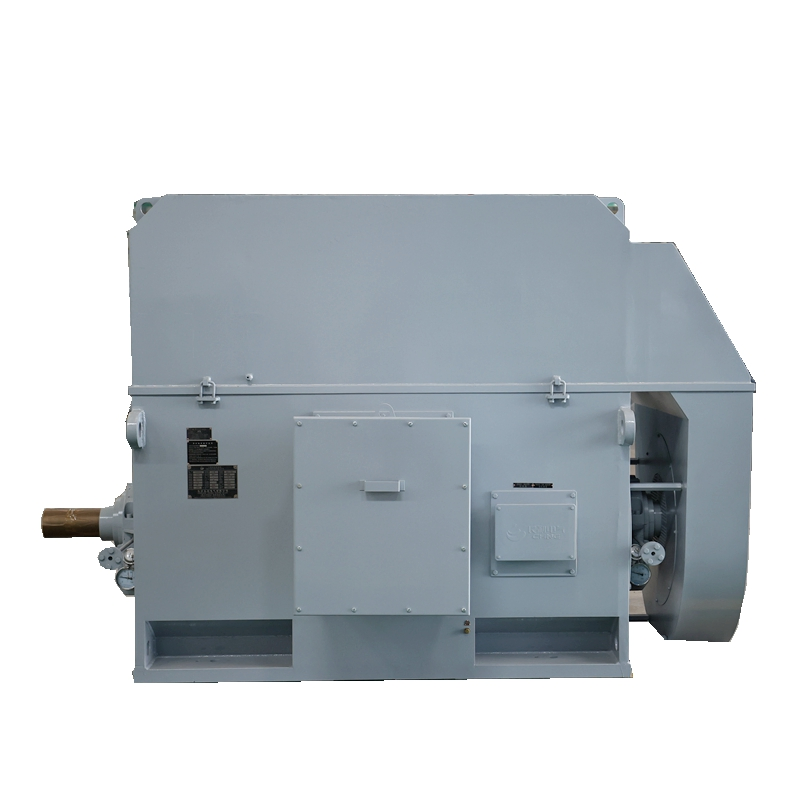

We've been running these YKK630-4 units for about eight months now, and they're handling the hammer mill loads just fine—the IC611 cooling system is actually a lifesaver in our dusty facility, keeps the winding temperature down even when we push them hard for 16-hour shifts.
It's basically a 2800KW beast, 6kV in our case, but you'll want to check your voltage options since they offer 3.3kV all the way up to 13.8kV depending on your site setup. Frame size is 630mm, mounts horizontally with the IMB3 footing, and the sound level sits at 85dBA which is pretty standard for this class (you won't be having conversations next to it anyway). They come with SKF bearings from the factory, which is a nice touch for reliability.
The typical appliction are compressors, ventilation fans, and water pumps for heavy industrial plants—our line runs directly on-line starting, no soft start nonsense, and the IP54 casing keeps debris out without needing extra enclosures. At 2800kW it's not for light duty, and we've seen buyers use these equally well for crushers and conveyor drives in mining ops.
Insulation class is F, so ambient tempearture range of -20°C to 40°C is fine for most environments, though we haven't tested them below freezing personally. The motor is wound rotor type with constant speed operation, and it's certified ISO9001, CCC, and CE—the compliance paperwork was straightforward for our project audit.
One thing we learned: the frequency options are 50Hz or 60Hz, so specify your grid standard upfront or you'll have to swap the terminal box connection (we had to reorder once because we assumed 50Hz and got 60Hz units). Lead time is typically 10-12 weeks for these, but that can stretch if you need specific voltge configurations.
Our procurement team dealt with about three different supliers before settling on this one—the motor's been running cooler than our older IC01 units, and the energy draw for a 2800kW motor at full load is actually within spec. Not perfect for outdoor installations without addtional weatherproofing, but indoors or sheltered it's solid.
Our MOQ for this model is typically 1 unit for stock sizes, but for bulk orders we can discuss volume discounts. Just let us know your quantity.
Lead time is usually around 30-45 days after order confirmation, depending on the quantity and voltage configuration. Custom voltages might take a bit longer.
Yes, we include ISO9001, CCC, and CE certification copies with every shipment. You'll get them in the packing list or via email before delivery.
Absolutely, the YKK630-4-2800KW supports 13.8kV as one of its voltage options. Just specify that when placing your order, and we'll adjust the winding accordingly.
Each motor is packed in a heavy-duty wooden crate for export, with rust-proofing and moisture protection. Store them indoors in a dry, ventilated area between -20°C and 40°C.
Commendable experience overall, particularly regarding the logistical handling of this substantial order. The motors arrived securely packaged and exactly within the projected delivery window, which for an international shipment of this size and value was a significant relief. Coordination from the shipping department was clear and proactive. Concerning the product quality, the initial inspection reveals robust construction consistent with the YKK reputation; the castings and finish appear excellent. Customer service interactions were consistently professional and helpful, providing timely responses to logistical inquiries. While the operational performance of the motors in our application remains to be fully assessed over time, the foundational aspects of the transaction—delivery, physical quality, and support—were executed very satisfactorily. This instills confidence for future procurement needs. The entire process, from order confirmation to the arrival at our facility, was managed with a high degree of competence. The palletization and documentation were in perfect order, simplifying our receiving process. Any minor questions we had during transit were addressed promptly by the support team. Based on this experience, the supplier has demonstrated strong capability in handling complex, high-value industrial supply chains.
