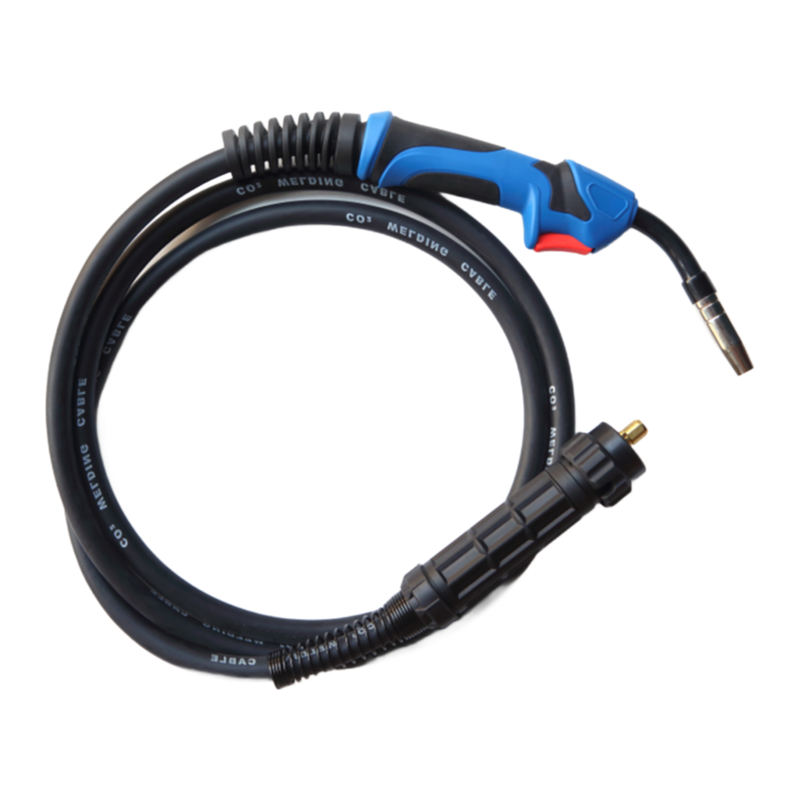

If you’re swapping heads mid-shift on a busy assembly line, the gas-cooled swan neck design here keeps heat manageable without dragging extra hose weight—it basically saves your wrist after the third hour of overhead work.
It runs a 60% duty cycle at 180A on CO2 or 150A on mixed gas so you’re not pushing it past that for thick plate; wire range is 0.6 to 1.0mm and lengths go from 3 to 4 meters—5 if you need the reach around a frame jig.
0.8mm contact tips (E-Cu/M6×25) come standerd and we usually have stock on teh Euro central adaptor, but the connector is the weak point on some imported benches—check the fit. Also, max thickness is roughly 10-15mm, so don’t expect it to handle a 20mm beam in a single pass.

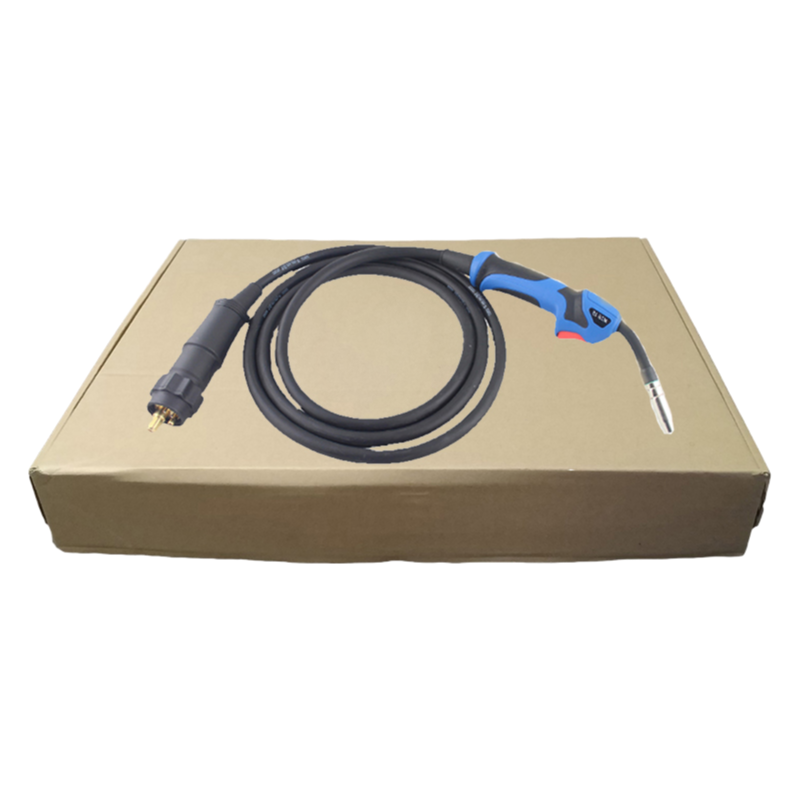

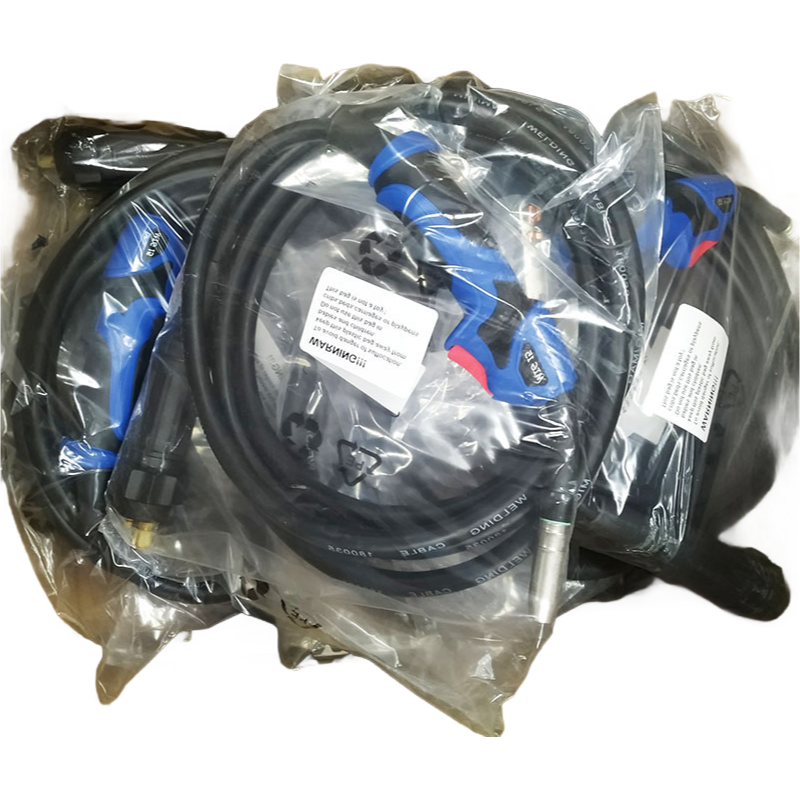

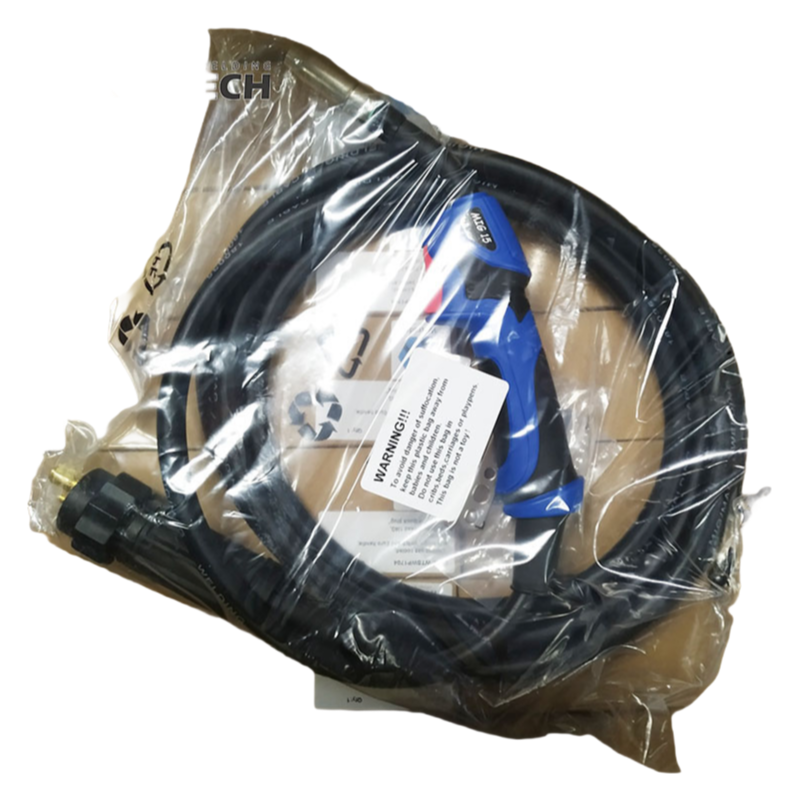

You’ll get 1 torch per box with COA and CE/ISO9001 docs; MOQ is 5 cartons or so if you want the 5-piece packing. Lead time is roughly 20 working days—confirm that before ordering, as we sometimes ship faster form the Shanghai warhouse.
It handles up to 10-15mm on a single pass, depending on your settings and material. That's for standard industrial welding with CO2 or mixed gas.
It comes with a Euro central adaptor already included in the package. You don't need to buy anything extra for that connection.
It's CE and ISO9001 certified, so you're covered on quality and safety standards for industrial use. We can provide the documents on request.
Yes, we offer it in 3m, 4m, and 5m lengths. Just let us know which one you need when you order.
Our standard MOQ is 1 piece for sample orders, but for bulk orders it's typically 5 pieces per carton. We can discuss larger quantities based on your needs.
