The YY-E30 Portable Color Doppler Ultrasound System is a high-performance medical diagnostic device designed for comprehensive clinical applications. This advanced ultrasound machine features a 15-inch LCD screen that delivers clear, high-resolution images for accurate diagnosis.

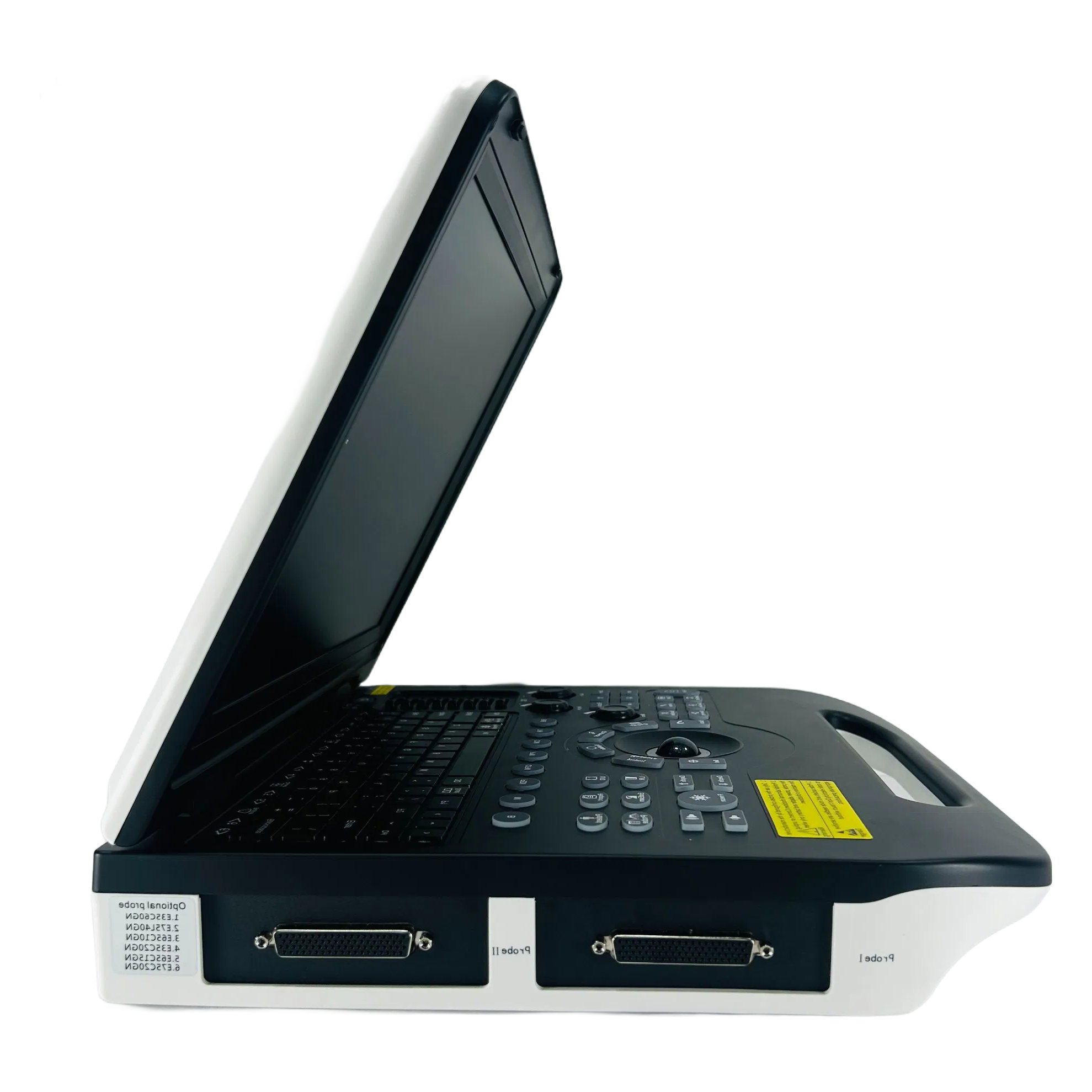

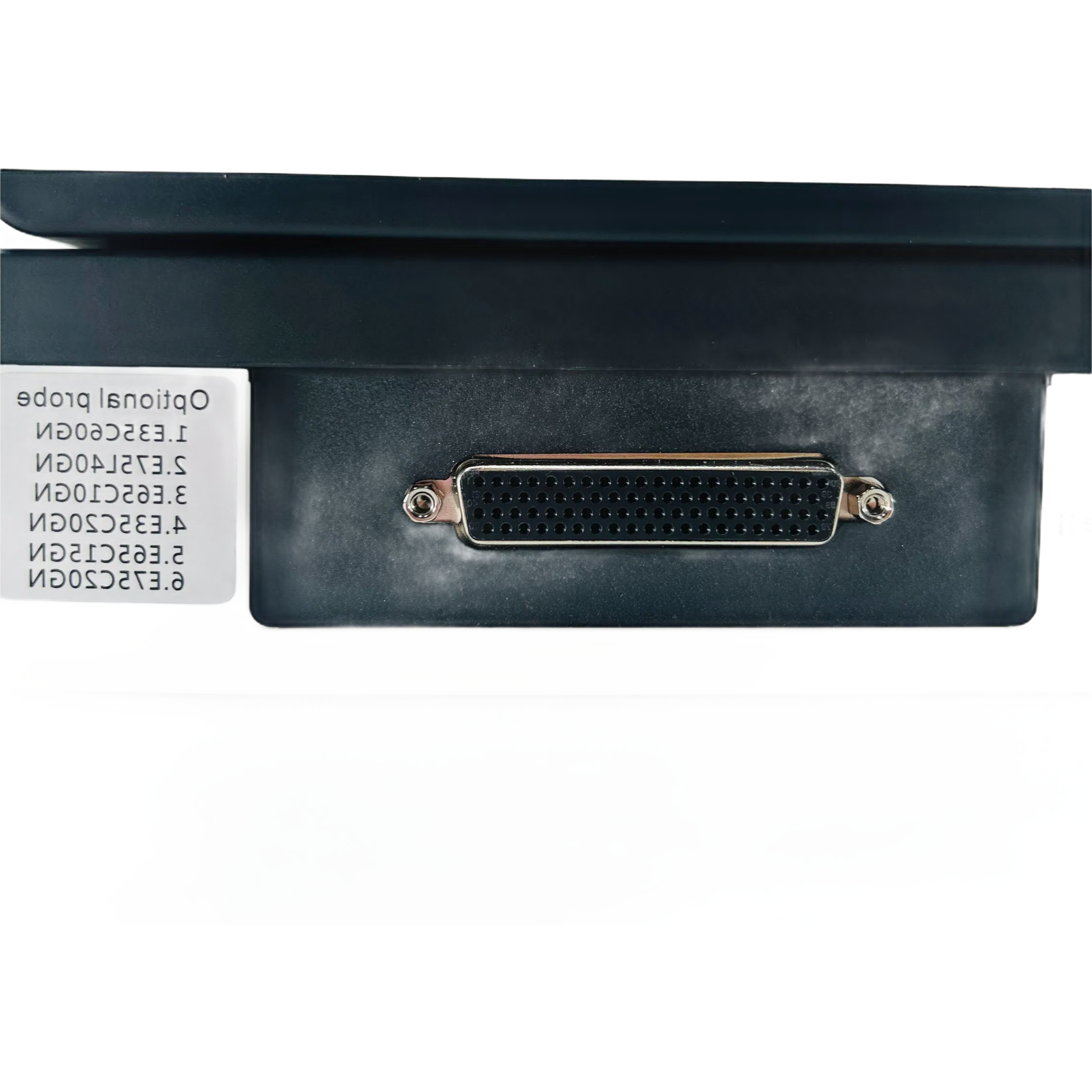

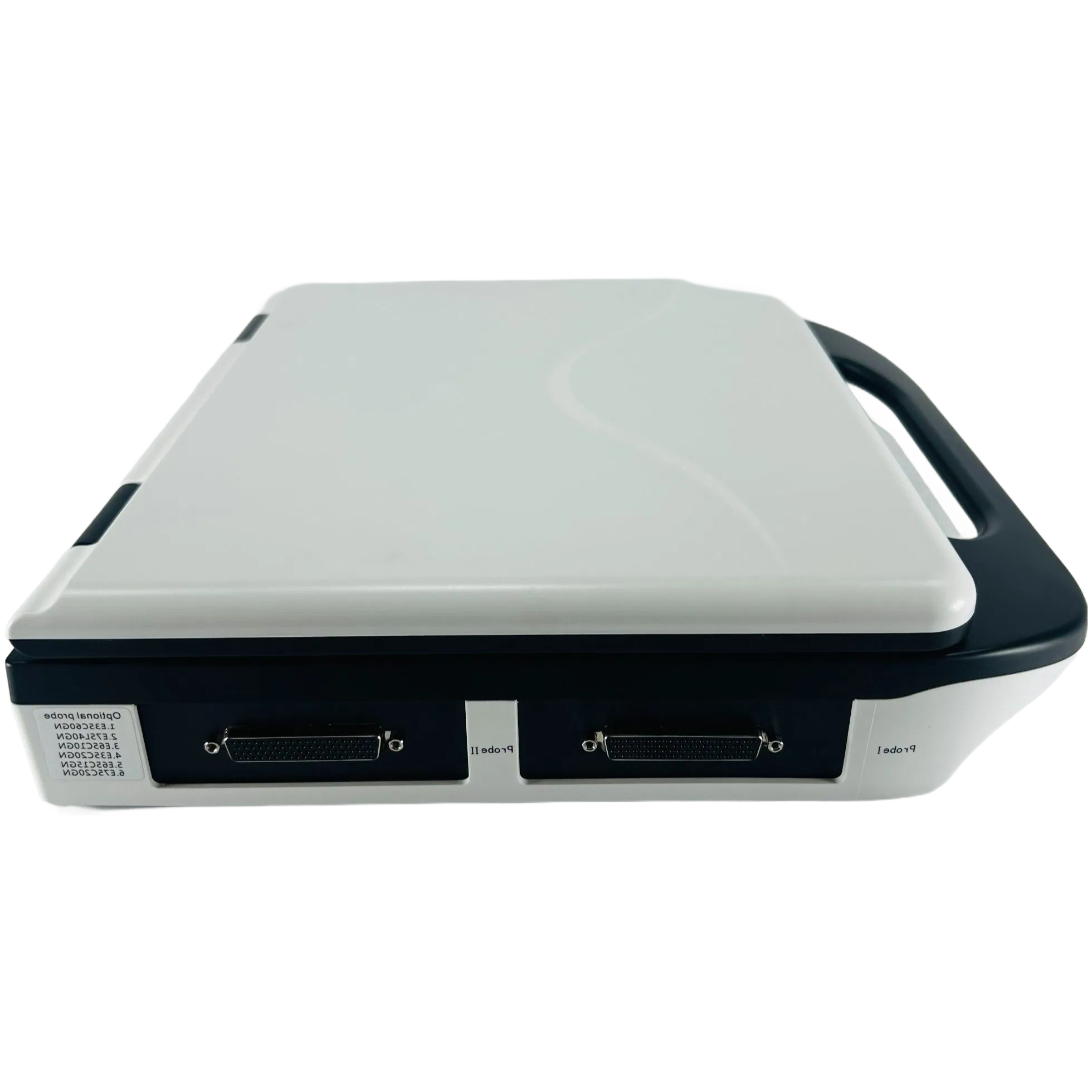

With multiple scanning modes including electron convex array, high frequency linear array, cavity, micro convex and rectum probes, this system offers exceptional versatility. The scanning depth ranges from 2mm to 280mm, accommodating various examination requirements across different medical specialties.
The system supports numerous imaging modes including B mode, B+B mode, 4B mode, M mode, CFM color blood flow, PDI energy mode, PW mode, and optional 3D imaging. The 256 gray levels and 16 pseudo-color processing options enhance image quality for better diagnostic accuracy.
Advanced features include 8-segment TGC adjustment, 5 levels of image optimization, edge enhancement, frame average, and noise suppression. The automatic optimization function presets the best image conditions for different examination types, simplifying operation.
Measurement capabilities include conventional B mode measurements, obstetrics measurements, cardiology measurements, urology measurements, and PW measurements. The system comes with comprehensive image annotation tools and patient data management features.

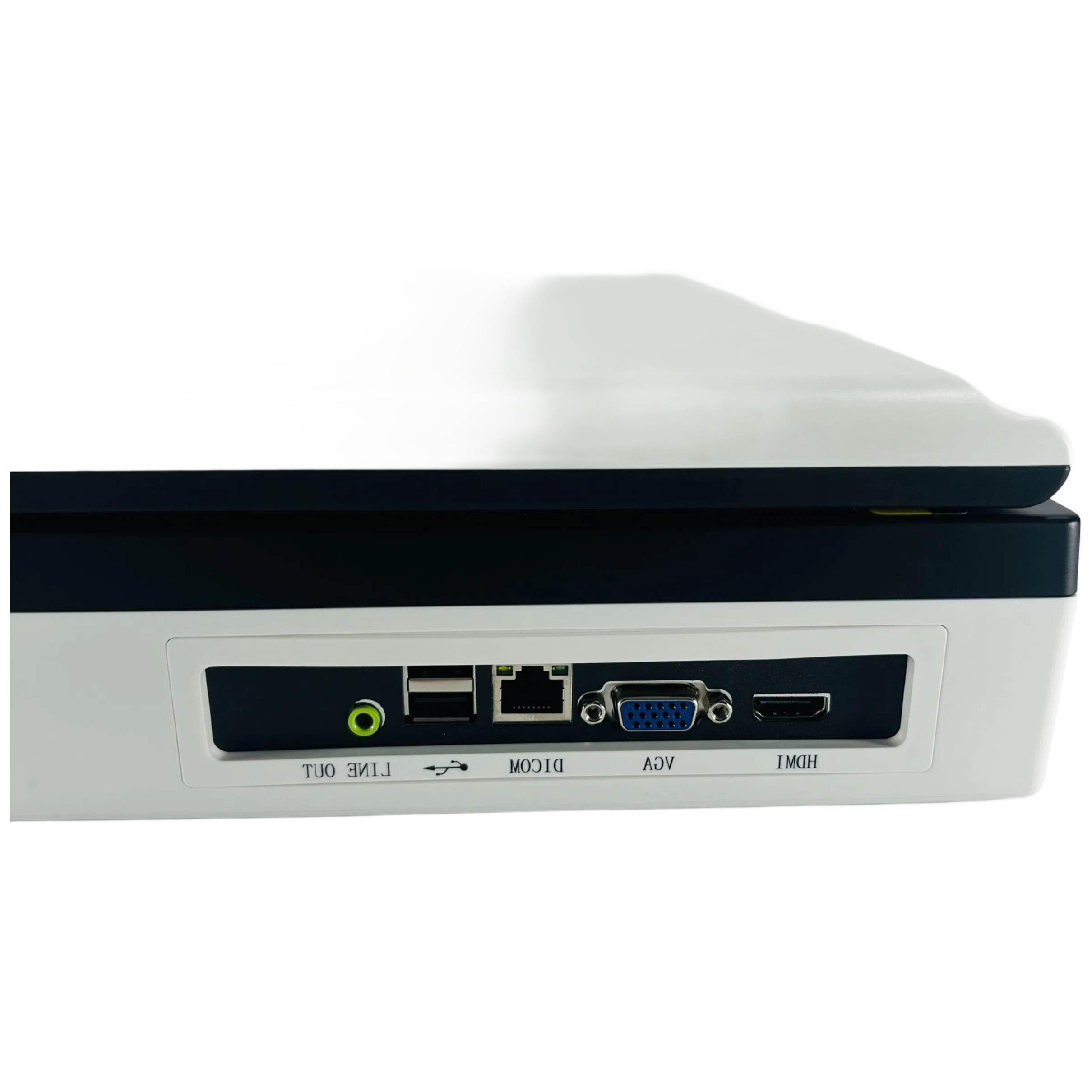

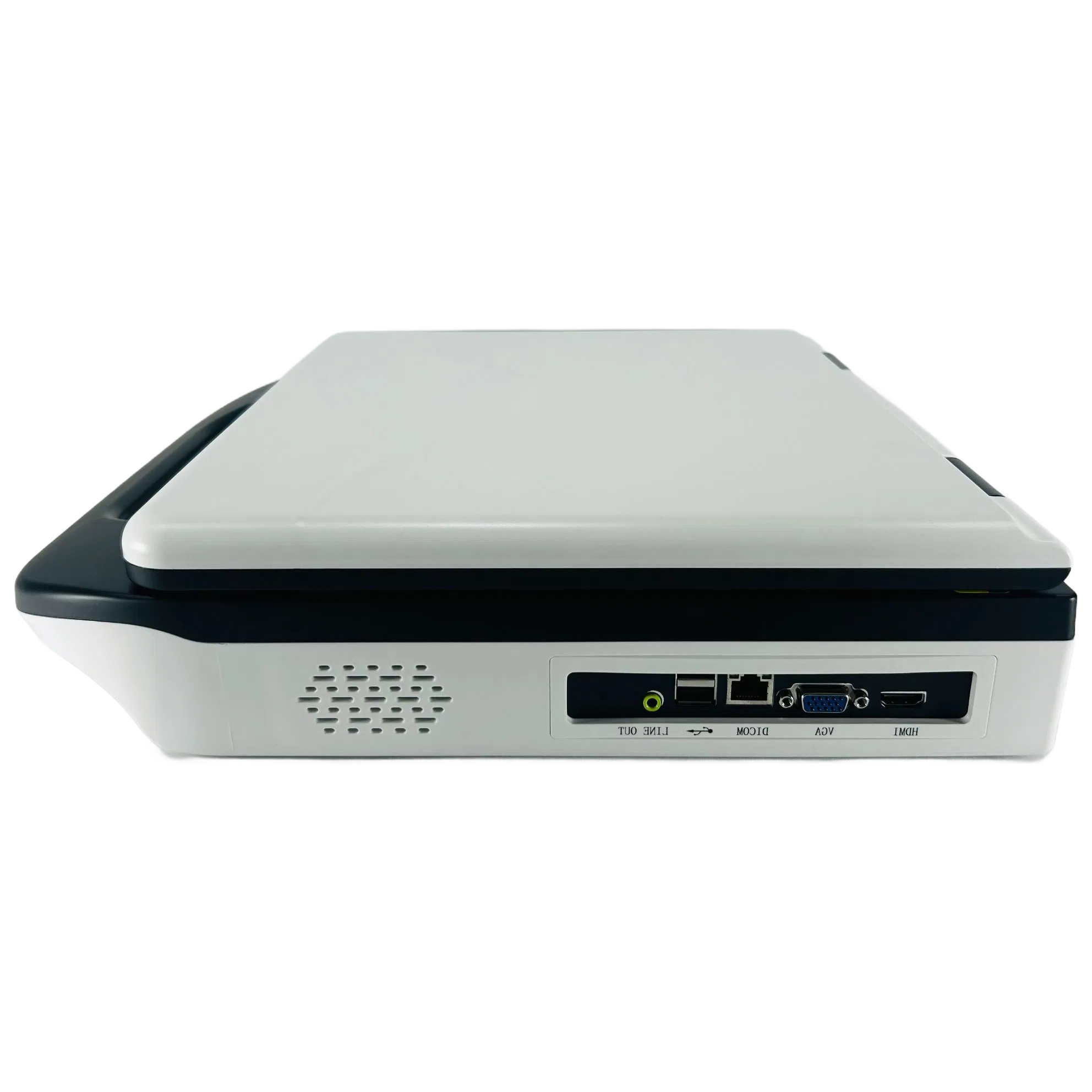

With HDMI, VGA, USB and DICOM interfaces, the YY-E30 supports seamless data transfer and integration with hospital information systems. The compact design (370×382×90mm) and lightweight construction (≤6.5kg) make it highly portable for various clinical settings.
