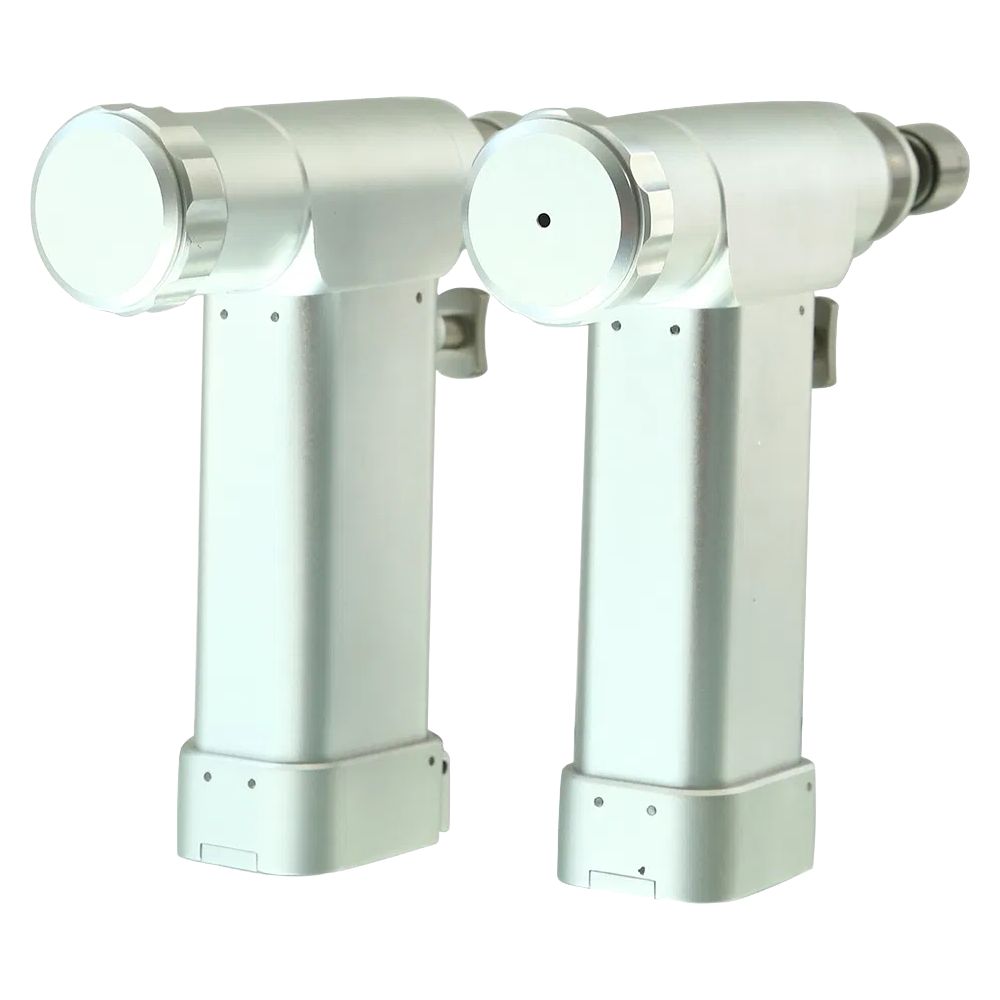

Introducing the RUIJIN Mini Orthopedic Cannulated Bone Drill for Veterinary, a specialized surgical instrument engineered to address the precise requirements of small - animal orthopedic procedures. This autoclavable device integrates innovation, durability, and user - friendly design, making it an indispensable tool for veterinary clinics and surgical practices that pursue reliable and high - performance equipment.
Key Features & Advantages
This veterinary bone drill provides a series of benefits customized to improve surgical efficiency:
- Autoclavable Design: It is fully autoclavable, enabling safe and repeated use in sterile environments and ensuring compliance with veterinary surgical hygiene standards.
- Discretionary Speed Control: The adjustable speed (0 - 1100 RPM) allows surgeons to adjust the drill’s performance according to specific procedures, whether it's delicate bone work or more robust tasks.
- Dual Battery System: Equipped with two Ni - MH batteries (7.2V) without memory effect, it ensures continuous operation with a 3 - hour charging time and minimal downtime.
- Precision Engineering: The axial run - out of concentricity is within 0.05mm and the radial run - out is 0.5mm, guaranteeing accurate drilling. Meanwhile, a rated torque of 3.3N/m provides sufficient power for bone manipulation.
- Comfort & Compatibility: The semi - luster surface treatment ensures a comfortable grip, and a multipurpose interface supports compatibility with brand - name surgical accessories, enhancing clinical versatility.
Technical Specifications
The drill’s solid engineering is supported by detailed technical parameters:
- Handpiece: It operates at 7.2V with an output power of 80W, and the temperature rise during use is ≤25°C, ensuring safety and comfort.
- Charger: With an input power of 110V/60Hz ~ 220V/50Hz (compatible with AC 220V, 50Hz), it outputs 7.2V/700mA and has an input power of 30VA for efficient battery charging.
- Performance: The non - loaded speed is 18,000 r/min, the noise level is 63dB (A) for a quiet operating environment, and it has a durable stainless steel construction (reusable) with CE and ISO13485 certification for quality assurance.
Standard Configuration
Each unit includes:
- 1 x Handpiece
- 1 x Charger
- 2 x Batteries
- 1 x Sterilizing Channel
- 1 x Drill Chuck
- 1 x Aluminum Alloy Storage Box
Application & Usability
Primarily designed for small - animal orthopedic surgery, this drill excels in procedures that require precise bone drilling, such as fracture repair, implant placement, and corrective osteotomies. Its compact and lightweight design (slivery color, ergonomic build) reduces operator fatigue during extended surgeries. At the same time, the discretionary speed control and compatible interfaces can adapt to various surgical techniques and accessory needs.
Quality & Certification
Manufactured from high - grade stainless steel, the drill is reusable and built to withstand rigorous sterilization and surgical demands. It holds CE and ISO13485 certifications, ensuring compliance with international medical device standards. The semi - luster surface treatment not only enhances the grip but also resists corrosion, extending the instrument’s lifespan.
Whether you are a veterinary clinic, a surgical center, or a distributor, this Mini Orthopedic Cannulated Bone Drill provides a cost - effective and customizable solution (MOQ 1 set) for your orthopedic equipment needs. Factory - direct supply and wholesale options are available, with immediate delivery after payment. For bespoke configurations or bulk orders, our team supports tailored solutions to meet your clinical requirements.
