The 380V three-phase is basically standard for these units, so you'll need to confirm your facility's power setup before ordering — we've had buyers forget that and had to delay instalation by 20 days or so.
We're running these with 304 stainlss steel chambers, and honestly most buyers go with the 280L since the footprint isn't that much bigger than the 150L but you get nearly double the capasity for roughly same drying cycle time (usually 0-99 minutes adjustable).
Over-temperture and over-pressure protection are standard, and the door won't open until it's safe — pretty critical when you're running at 0.22MPa and 134°C, so it's better than some older models that rely on manual checks.

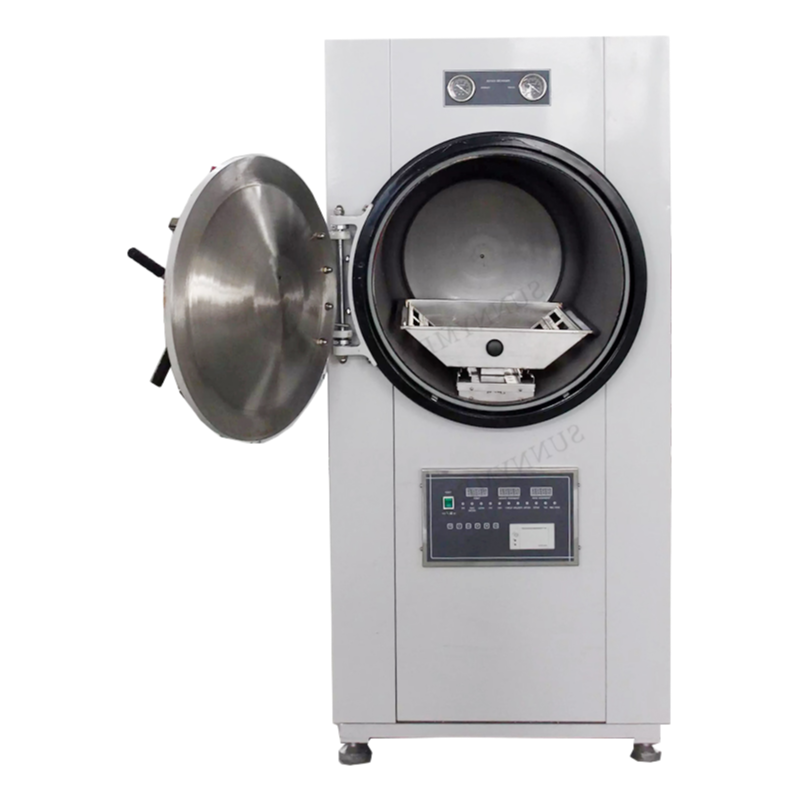

The 150L chamber is φ440×1000mm if you're tight on space, while the 280L runs φ600×1000mm, and both come with that LCD touch screen that shows real-time temp uniformity within ±2°C, so you're not guessing what's happening inside.
For dressings and instruments it handles both fine, but it's not really suited for liquid loads in sealed containers — you'd want a different cycle type for that, and also the automatic water refill helps when doing back-to-back batches.
Prices typically start around $8,500 for the 150L with the built-in printer and 9KW heater, then scale up to about $12,200 for the 280L with the 12KW version, though MOQ is just one unit usually but confirm lead time since we're often at 50 units or so per shipment.

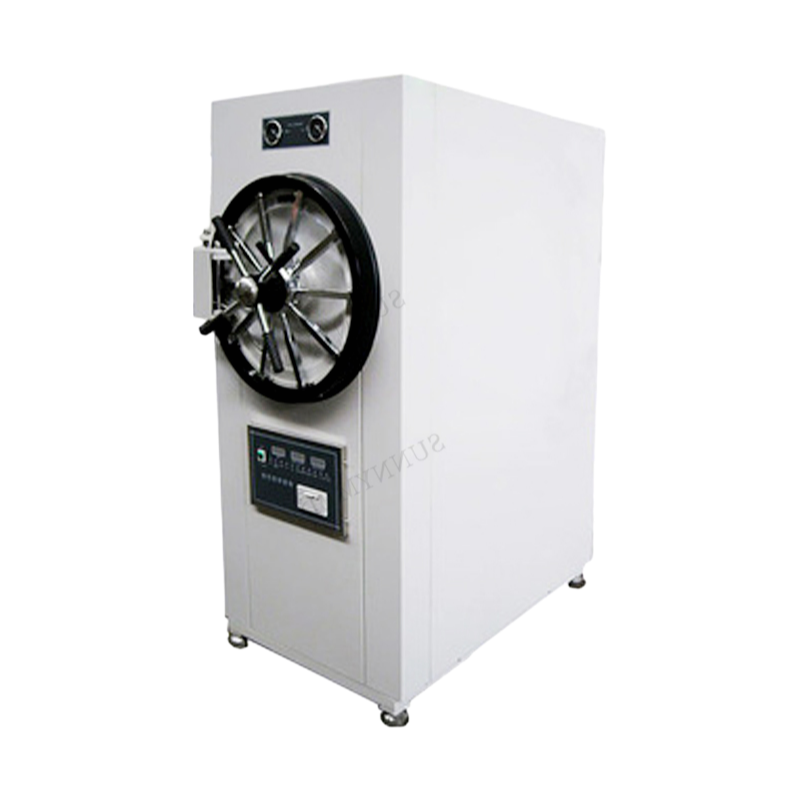

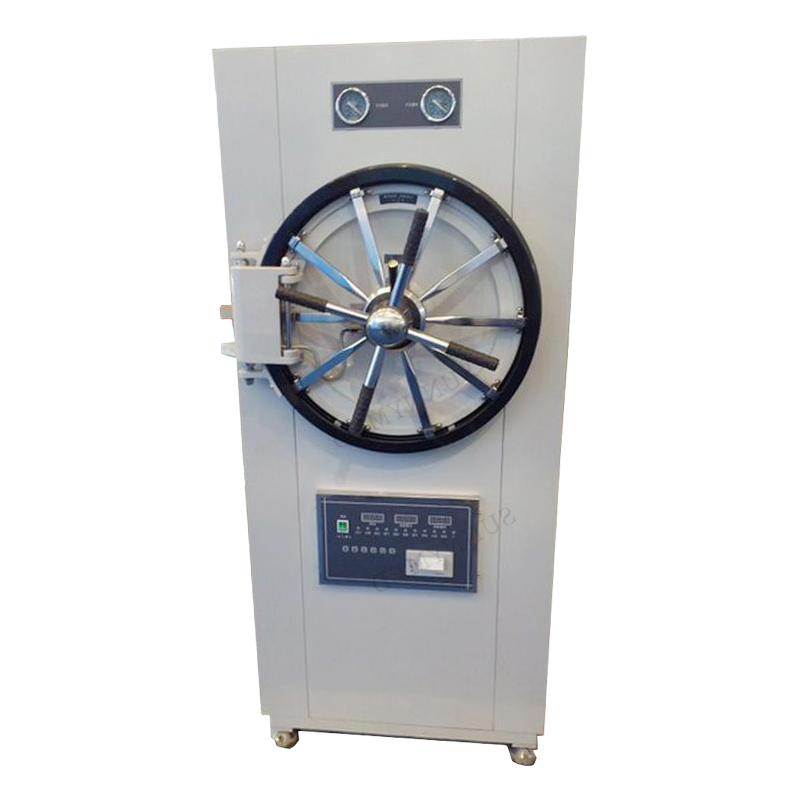

The SY-T022 comes in 150L, 200L, and 280L capacities. Chamber diameter increases with size—150L has a φ440mm chamber, 200L uses φ515mm, and 280L uses φ600mm—but all have the same 1000mm depth.
We typically require a minimum order of 1 unit for the SY-T022, so you can start with a single machine for testing or smaller facilities.
Yes, we include a copy of the ISO13485 certificate with each order. It covers the manufacturing process for this autoclave, so you have the documentation for audits or compliance checks.
The printer automatically records sterilization cycle data like time and temperature onto thermal paper. You can turn it off via the LCD touch screen if you prefer not to use it.
For the 280L SY-T022, lead time is usually 15-20 working days from order confirmation. It can vary slightly based on current production load, but we’ll confirm a precise estimate when you place the order.
