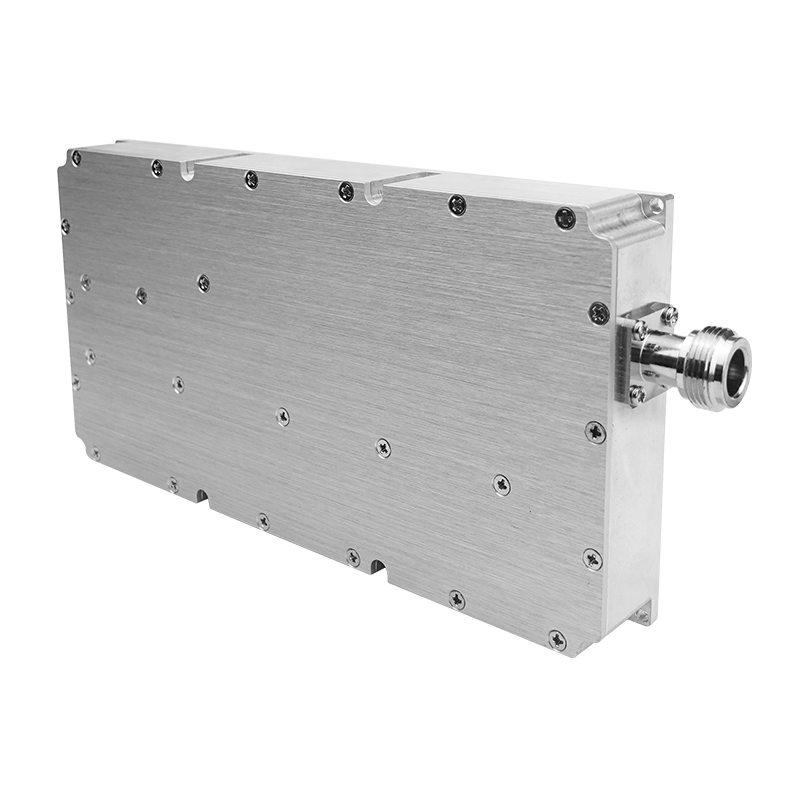

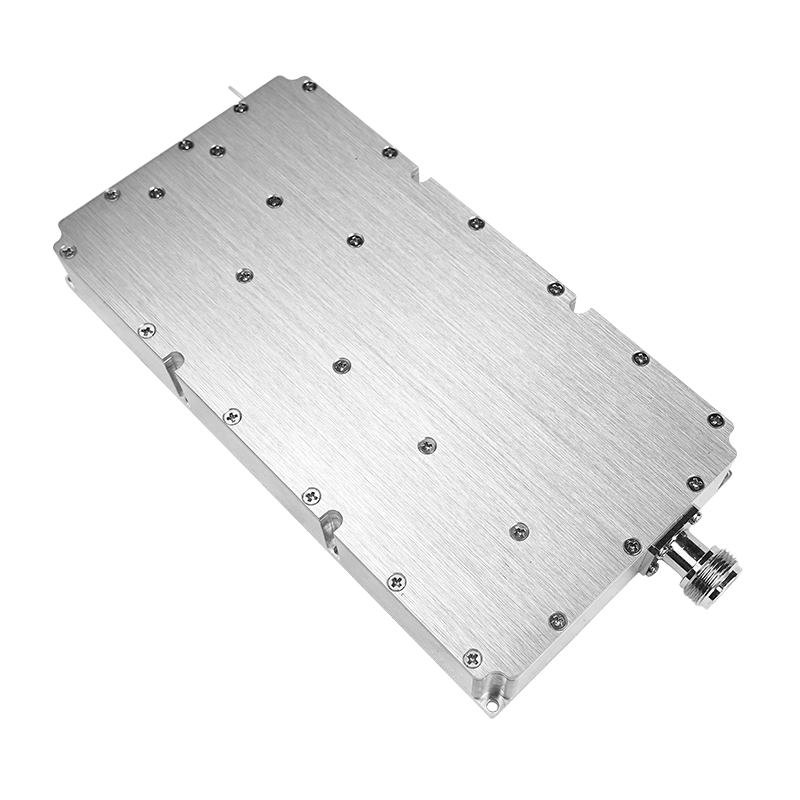

This high-performance 1.2GHz RF amplifier module delivers exceptional signal amplification for professional drone communication systems. The compact aluminum alloy housing measures just 170×94×26.5mm (excluding interfaces), making it ideal for space-constrained UAV applications.
The module features a robust 50dBm output power capability with excellent power flatness (±1.0dB) and minimal passband fluctuation (≤2.5dB). Its advanced design ensures low VSWR performance (input ≤1.35, output ≤1.3) for optimal signal integrity across the entire 1.2GHz band.

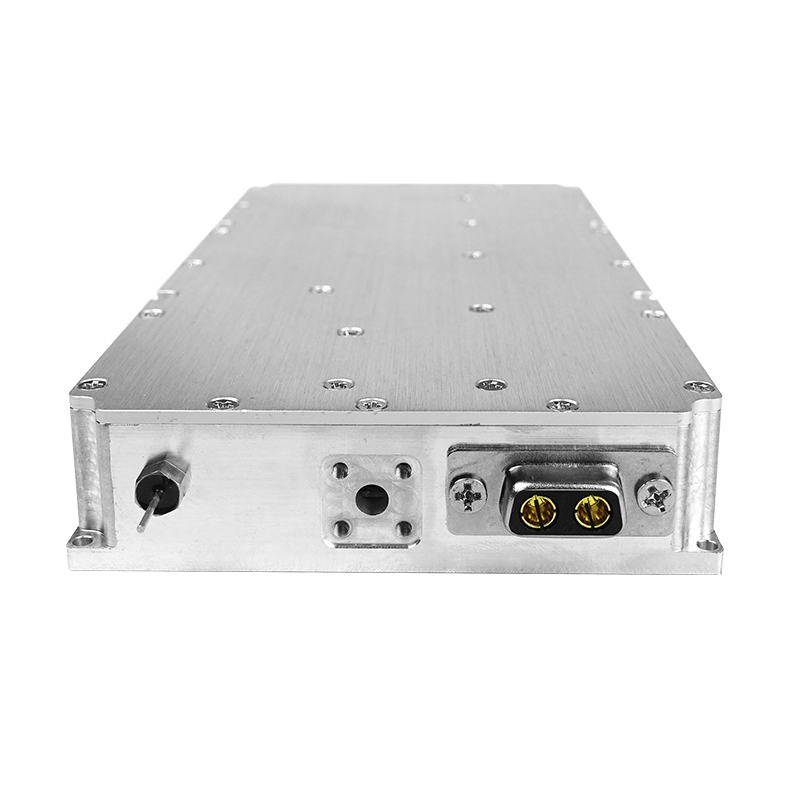

Key features include a built-in high-efficiency modulation scanning signal source with external source switching capability via 7W2 plug interface. The power management system accepts 24-36V DC input (standard +30V) with current consumption ≤6.5A at 100W output.
The N-50KFD output port provides reliable RF connectivity, while the logical control interface allows flexible operation mode selection: PA SW for amplifier enable/disable, SRC SW for internal source control, and PS SW for source selection (internal/external).
This module is particularly suitable for agricultural drones, delivery systems, and industrial wireless applications requiring stable, high-power RF amplification. The design meets stringent CE, ISO, and RoHS certification standards for reliable operation in demanding environments.
