HF F10 Agricultural Drone Frame 10L Tank Capacity Carbon Fiber Plant Protection UAV for Crop Spraying HF F10 Agricultural Drone Frame 10L Tank Capacity Carbon Fiber Plant Protection UAV for Crop Spraying
HF F10 Agricultural Drone Frame 10L Tank Capacity Carbon Fiber Plant Protection UAV for Crop Spraying HF F10 Agricultural Drone Frame 10L Tank Capacity Carbon Fiber Plant Protection UAV for Crop Spraying
HF F10 Agricultural Drone Frame 10L Tank Capacity Carbon Fiber Plant Protection UAV for Crop Spraying HF F10 Agricultural Drone Frame 10L Tank Capacity Carbon Fiber Plant Protection UAV for Crop Spraying

HF F10 Agricultural Drone Frame 10L Tank Capacity Carbon Fiber Plant Protection UAV for Crop Spraying

US$ 618.00 ~ 690.00
Min.Order: 1
Product origin: Nanjing, Jiangsu, China
Category: Electronics
Product Name: Electronics
Availability:In Stock
Product Review : 11 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : HF F10
  • Tank Capacity : 10L
  • Frame Material : Carbon Fiber
  • Unfolded Dimensions : 1216×1026×630mm
  • Folded Dimensions : 620×620×630mm
  • Wheelbase : 1216mm
  • Arm Size : 37×40mm Carbon Fiber Tube
  • Frame Weight : 5.6kg
  • Max Takeoff Weight : 25kg
  • Power System Options : E5000 Advanced / Hobbywing X8
  • Coverage Capacity : 0.5 hectares/10 minutes
  • Water Savings : Up to 90%
  • Pesticide Savings : 30-40%
  • Warranty : 1 Year Frame, 3 Months Core Components

5.6 kilos for the frame itself—carbon fiber arms at 37x40mm—and with a 10L tank fully loaded you're looking at 25kg max takeoff weight, which is pretty much standerd for this class.

Basically, it folds down to 620x620x630mm so it fits in the back of a pickup, then unfolds to a 1216mm wheelbase for stable spraying across about half a hectare every 10 minutes or so.

HF F10 Agricultural Drone Frame

We usually stock the Hobbywing X8 option and teh E5000 advanced system depending on what power you need, but expect roughly 3-4 weeks lead time if we don't have it (check before ordering).

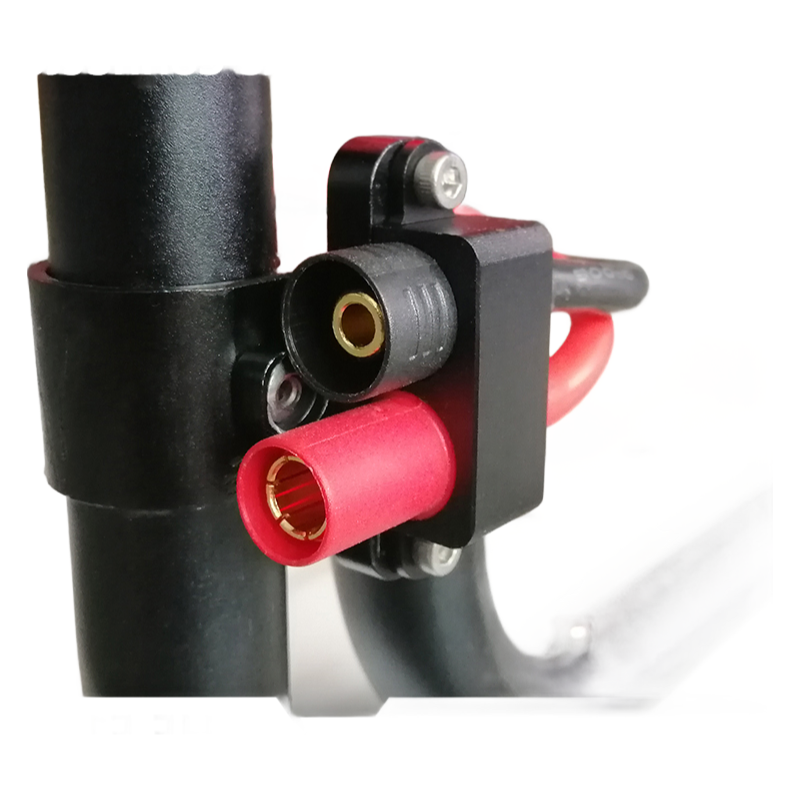

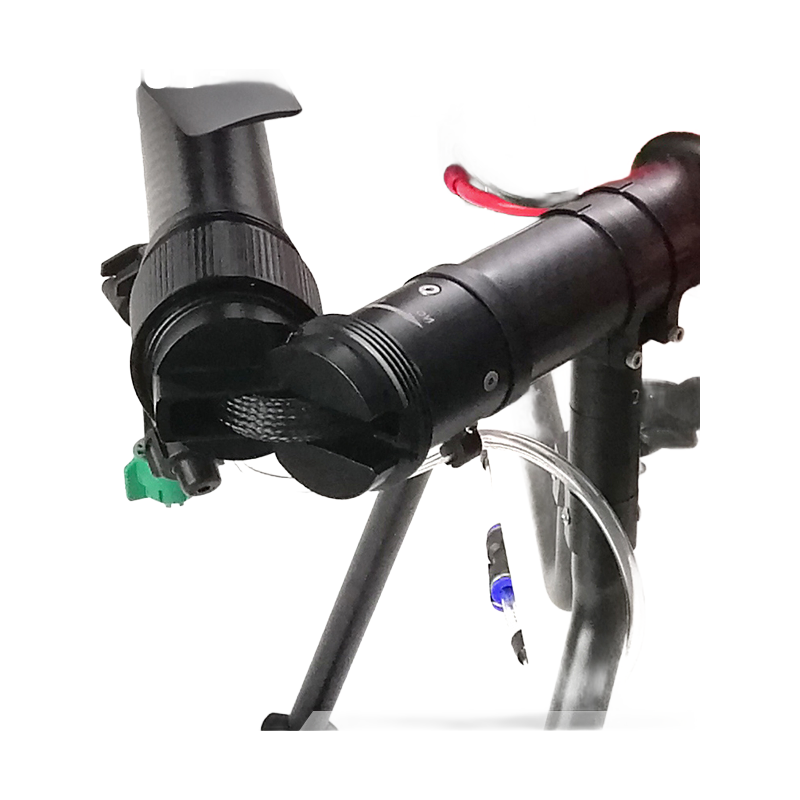

HF F10 Drone Components

One thing most buyers don't ask about—the downward pressrue spraying system means 30-40% less pesticide gets wasted in the air compared to standard nozzles, plus 90% water savings if you calibrate right.

HF F10 Drone in Operation

It's not great for tiny plots under a quarter hectare though, the 10L tank is overkill there and you'll spend more time refilling than spraying.

Anyway, frame carries a one-year warranty with three months on core components like power system what it does is protect against manufacturing defects not crash damage.

Frequently Asked Questions

What's the minimum order quantity for the HF F10 frame?

Our MOQ is 10 units for the HF F10 frame, but we can discuss smaller trial orders if you're just getting started.

What is the lead time for this carbon fiber drone frame?

Standard lead time is 15-20 working days after order confirmation, depending on the power system option you choose and current production load.

Do you provide certification documents like CE or FCC for the HF F10?

Yes, we can provide CE and FCC certifications for the frame and power system upon request. Just let your account manager know what you need.

Can I customize the color or add my brand logo to the frame?

Absolutely, we offer custom colors and logo printing on the carbon fiber arms and center plate. Minimum for custom branding is 50 units.

How is the HF F10 packaged for shipping, and what's the storage recommendation?

The frame comes in a reinforced cardboard box with foam inserts to protect the carbon fiber parts. Store it in a dry, cool place below 40°C to avoid resin degradation over time.
