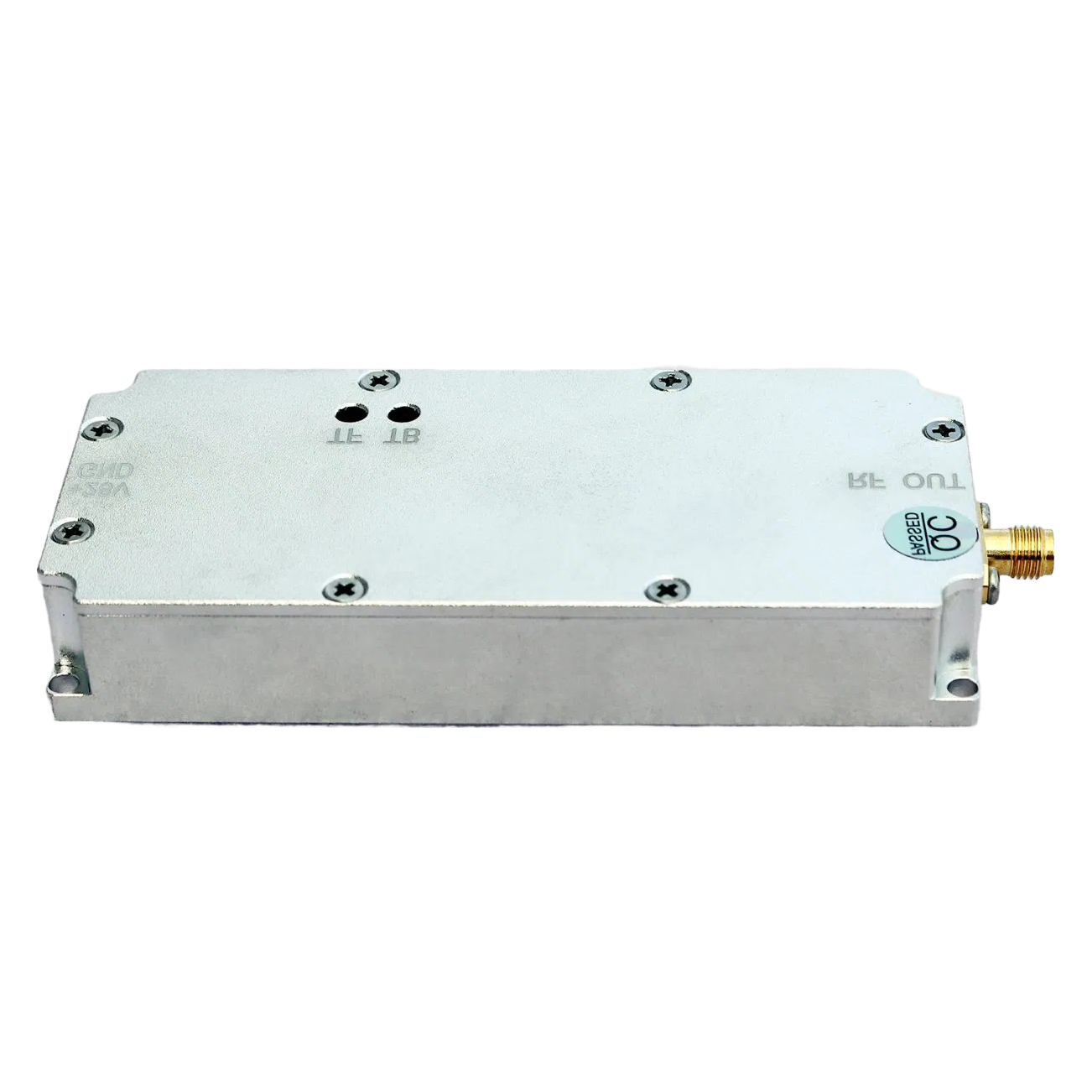

We've got a run of these 10W 1.2GHz modules coming through right now, roughly 200 units in stock, with typical lead time for custom orders around 18 days or so, and you're looking at dimensions of 101.8×46×17 mm for the sandblasted aluminun housing, though that surface treatment actually helps with the heat dissipation more than you'd expect.
So it runs on 28V DC, draws up to 2.5A under load, and what it does is amplify CW signals in the 1150-1300MHz band to at least 10 watts saturated output, which for drone countermeasure work gives you a pretty solid effective range while keeping clutter suppression above 65dBc, and the SMA-K female connector is pretty standerd for these setups.
Harmonic suppression sits at about -8dBc, which is actually a hard spec to hit cleanly at this power level, but the PA itself is built around a GaAs MMIC that handles voltage spikes reasonably well even up to 30V, though I'd recommend staying at 28V for longevity and your TDS data shows consistent performence across the full -40 to +60°C sweep.
Most of guys running signal blockers in gas stations or for mobile signal jamming go with the stock 10W version, but we've seen some buyers ask about frequency cuts for GPS L2 or specific jump channels—we usually have the flexibility to tweak the bandpass filters post-production, just confirm your exact tolerance window when ordering.
And the passband ripple is under 1.5dB, which is tighter than many comparable modules, but frankly if you're just using it for drone countermeasures you probably won't notice the difference, it's more critical for the positioning jamming where the output curve matters.
Anyway, latest pricing varies with volume, but for a 10-piece MOQ we're around $165 per module, packaging is individual anti-static bags with foam inserts, and we've got HPLC-grade validation data avaliable on request for each batch.
