We’ve got a client who’s been struggling with drone incursions over a large open field, and the standard 20W modules just weren’t it at range—so I ordered this 100W unit specifically to see if it can punch through the attenuation we’ve been seeing at 500 meters or so.

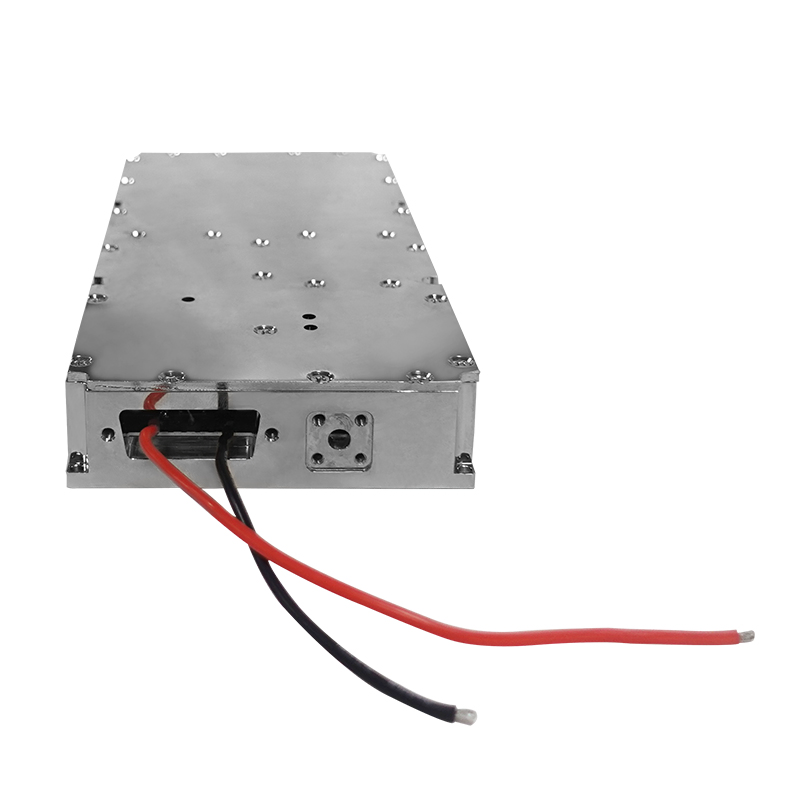

It’s a TX-PA58100 module, 5.8GHz band with customiezd frequency tuning, and it deliver 100W max output with 50dB gain and flatness of about ±3dB, which is tighter than most off-the-shelf units we’ve tested—output VSWR is ≤1.5, so it shouldn’t cause issues with teh antenna mismatch we’ve had before on other builds.
Operating votage is selectable between 24V, 28V, or 32V, and it draws up to 10A, so you’ll need a beefy supply, but it’s actually pretty compact at 189×82×21mm and only 0.7kg—small enough to fit in a weatherproof enclosure for field deployment.
We’re getting COAs form the suplier, and they’ve agreed to a retest if HPLC or gain measurements don’t match spec—usually takes 2-3 days for turnaround, but I’ve asked for a sample unit first to verify before we commit to a full MOQ.
Anyway, it’s not really suited for indoor use or close-range blocking since the power is overkill and could cause interference with legit gear—this is strictly a long-range counter-drone play for open areas where you need that 50dB to overcome line-of-sight fade.
Lead time is roughly 20 days or so, but they’ve got stock on the standard frequency modules, so custom tuning might add a week—I’ve already flagged it for expedited handling.
We can start with a small trial order of 10 units, but for bulk pricing we typically recommend 50+ pieces. Contact us for exact MOQ based on your customization needs.
Standard lead time is 15–20 working days after order confirmation and payment. Custom frequency tuning might add a few days, depending on the specs.
Yes, we include copies of CE, ISO, RoHS, GS, and SGS certificates with every order. Just let us know if you need originals or notarized versions.
The gain flatness is ±3dB across the band, so you'll get close to 50dB but with minor variation. If you need tighter flatness, we can adjust the design for an extra fee.
Each module comes in an anti-static bag inside a foam-lined box. Store them in a cool, dry place between -40°C and +65°C, and avoid high humidity. No special handling needed.
