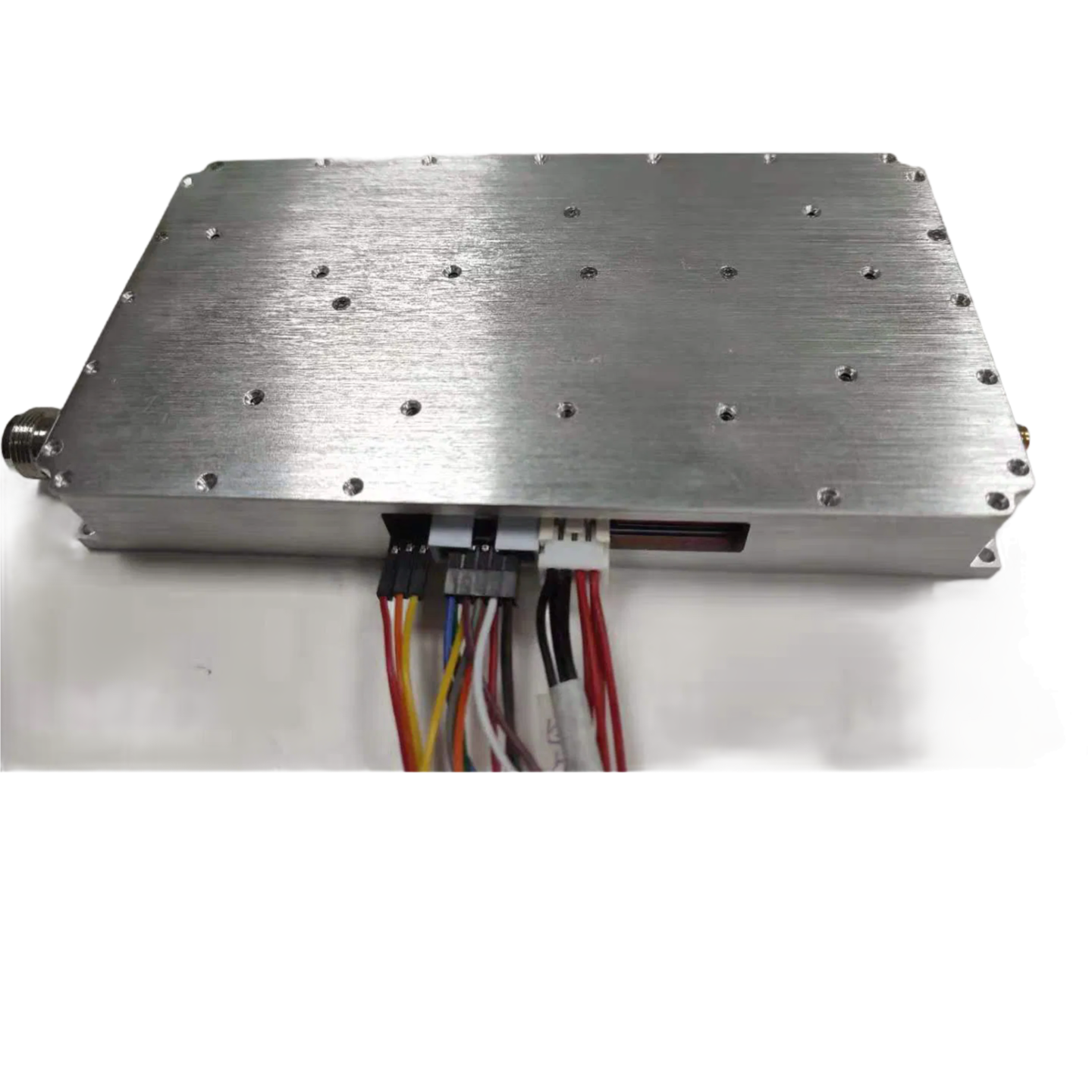

This 5.8G RF power amplifier module is engineered for robust performance in demanding applications such as anti-drone systems, phone shielding, base transceiver stations (BTS), and laboratory equipment. Operating within the 5700-5900MHz frequency range, it delivers an output power of 100W, with options for customization to meet specific requirements. The module supports both software and manual control modes, allowing flexible integration into various systems.

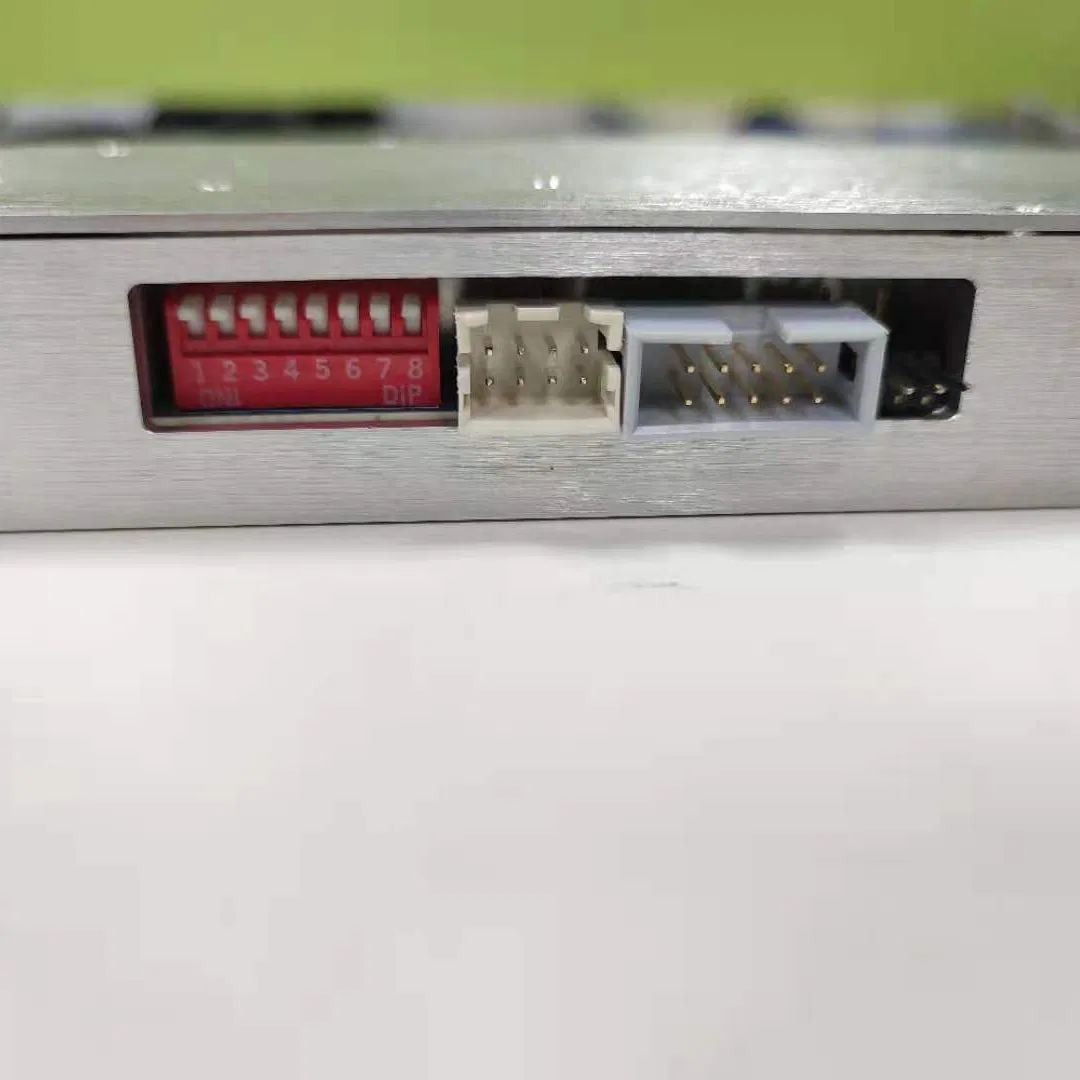

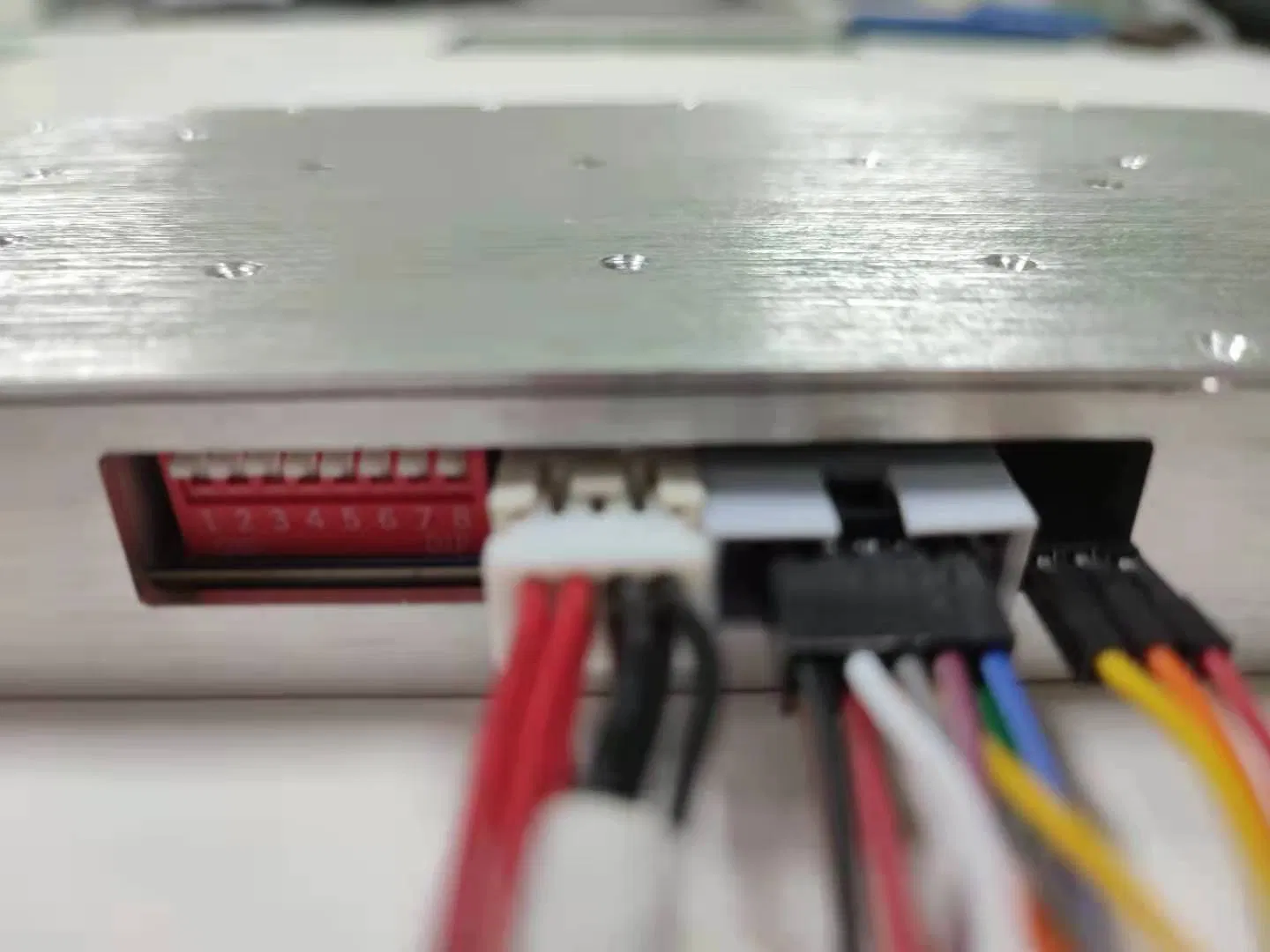

Key features include customizable frequency and output power, compatible software control connection, output power adjustment from 0 to maximum, and real-time monitoring of temperature and VSWR with protection and alarm functions. Additional custom functions can be incorporated based on user needs. The interface design includes attenuation control, power supply, control, and communication ports for seamless connectivity.
The attenuation control interface provides precise power management with multiple dB steps, while the power supply interface requires a +28V input. Control interfaces enable serial or parallel mode selection, RF PA performance control, and alarm indicators for temperature, output power, and VSWR. Communication interfaces support data transmission and reception for system integration.
This module is compatible with various frequency bands, including WiFi 2.4G, 5.2G, 5.4G, 5.8G, GPS, 3G, 4G LTE, and 5G, making it versatile for multi-band applications. It is ideal for professional use in security, telecommunications, and research environments, ensuring reliable signal amplification and jamming capabilities.
Designed with durability and efficiency in mind, the module includes protection mechanisms to prevent damage from overloads or faults. Its compact dimensions and neutral packaging facilitate easy handling and integration. This product is supplied for research and professional applications, emphasizing quality and performance.
