Customizable 110-190MHz Anti Drone RF Module with 50W Output Power for Various Applications

The 110-190MHz 50W anti drone jammer module is a high-performance RF interference device designed specifically for disrupting drone communication signals. This professional-grade module features an average output power of 47dBm (50W) with excellent in-band flatness and minimal sideband offset, making it highly effective against frequency-hopping drones.

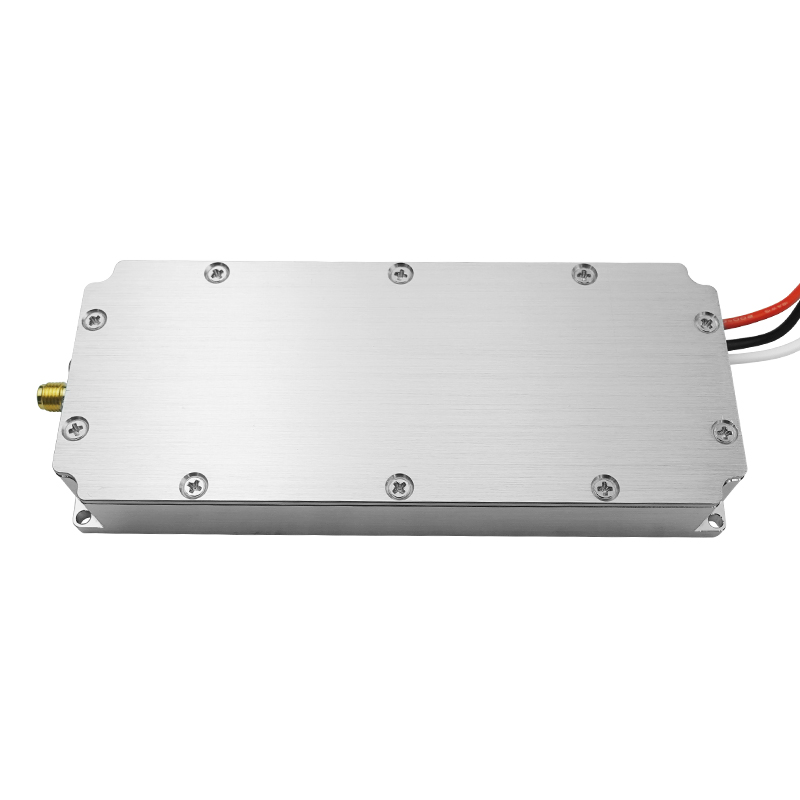

The module incorporates an efficient sweep interference source with minimal temperature drift, ensuring stable performance in various environmental conditions. Its compact design (130×53×19mm) and lightweight construction (0.26kg) make it suitable for integration into various security systems.

This anti drone solution finds applications in multiple security scenarios including VIP protection, law enforcement operations, stadium security for large events, and high-security facilities requiring privacy protection. The module is particularly effective against drone ground station communications.

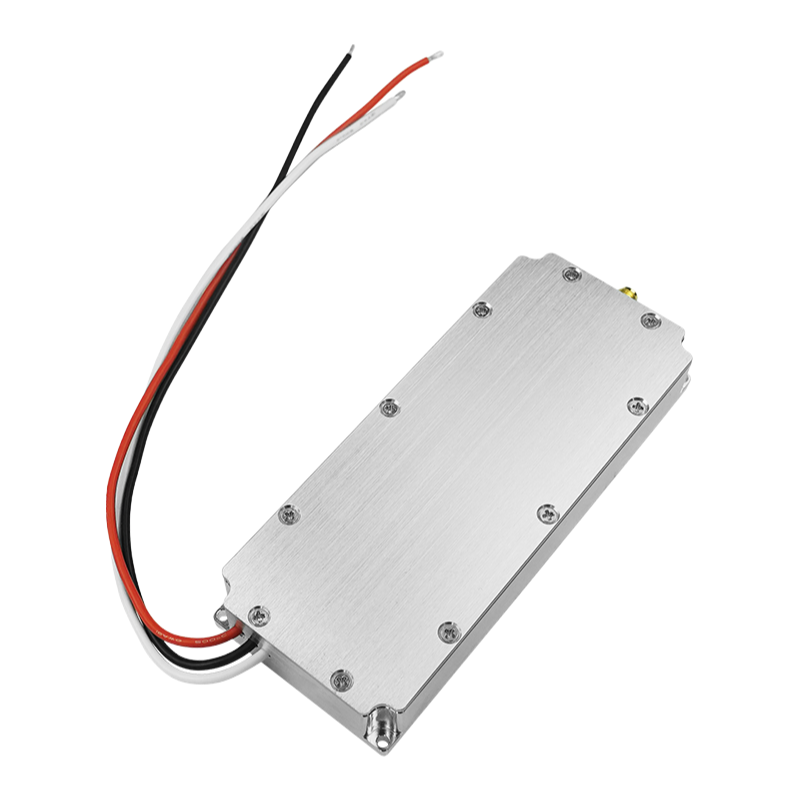

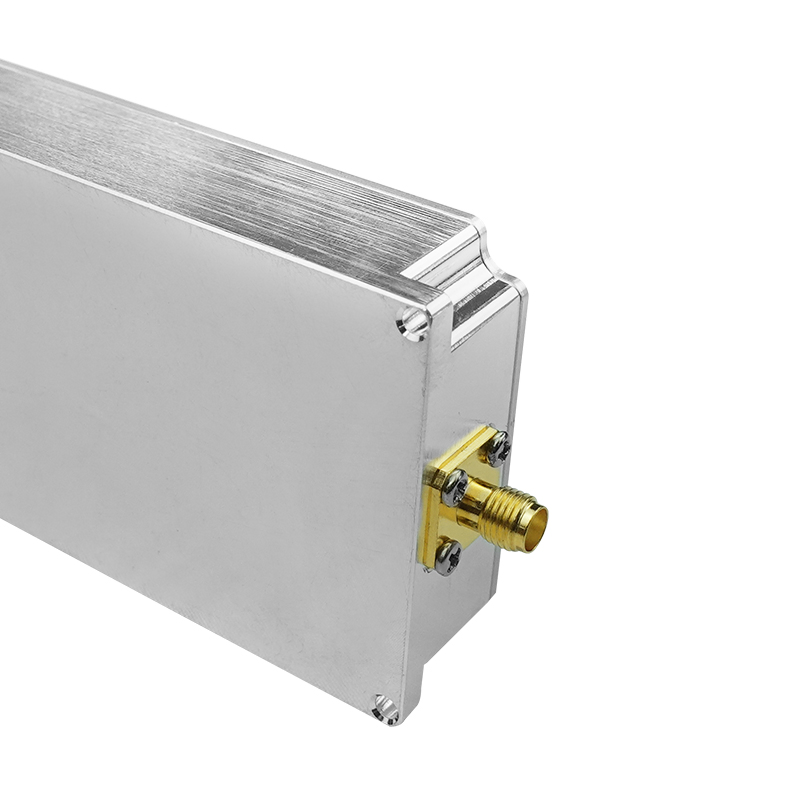

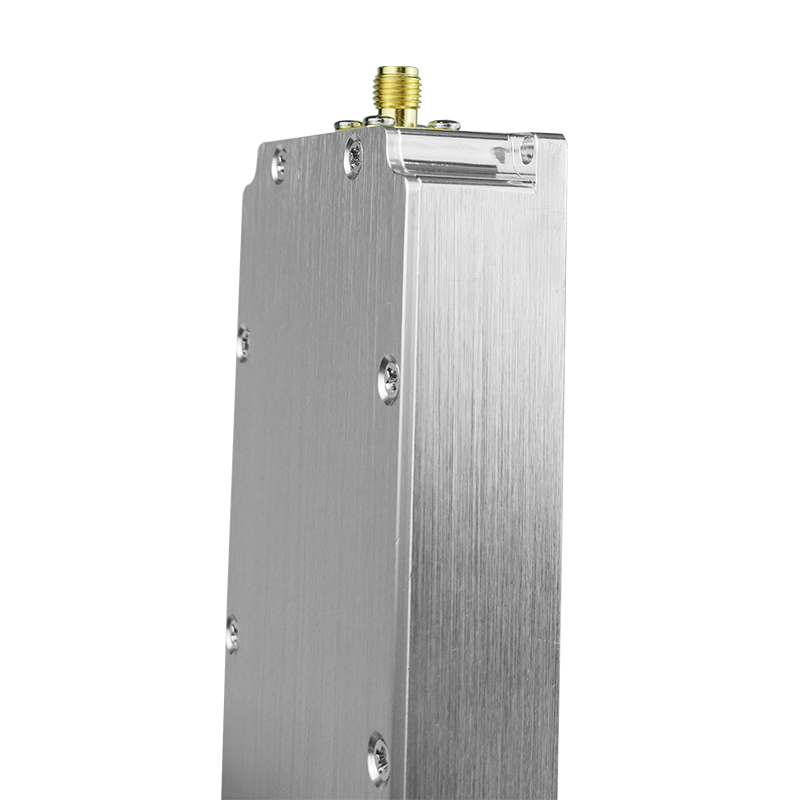

Important usage notes: The red wire indicates positive polarity, black wire for negative, and white wire for enable control. Always connect the antenna before powering the module to prevent damage, and verify power supply voltage remains within specified operating range.

The module features customizable frequency coverage from 100-2700MHz to meet specific operational requirements. Its robust design and high output power make it a reliable solution for professional drone countermeasure applications where signal disruption is required.
