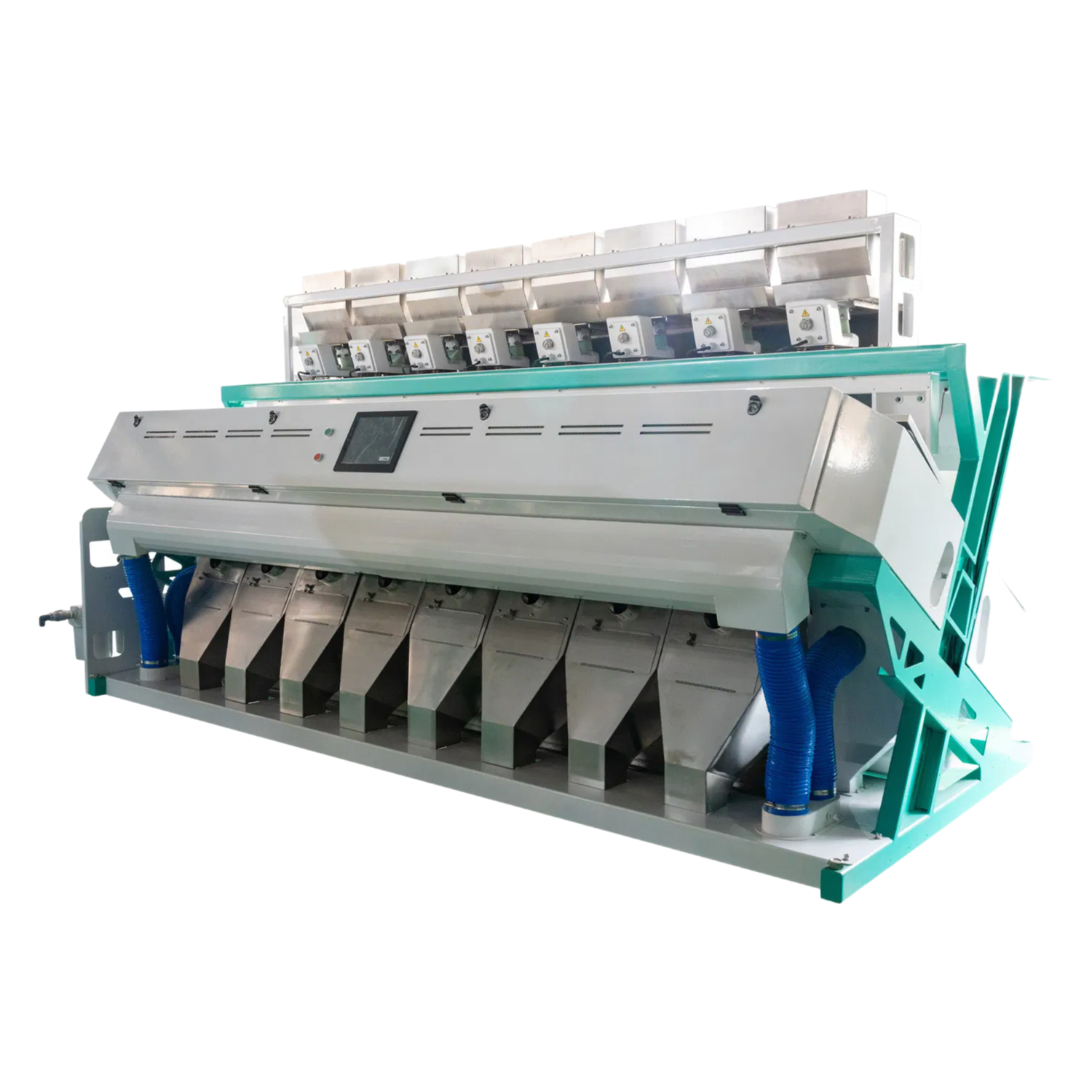

What it does is sort grains, beans, nuts, tea, and dehydrated veg by color — we’ve seen it handle rice, corn, wheat, and peanuts without complaint. The 512-channel waterfall design spreads material into a thin stream, and two 5400-pixel CCD cameras scan everything in real time, finding defects as small as 0.03mm. Sorting accuracy hits 99.9% or so, though that depends on feed quality and how you set the sensitivity.
Processing capasity runs about 3.0 to 6.5 tons per hour, which is decent for mid-size operations — you’re not going to feed a mega-mill with one unit. Power is AC220V/50Hz, and the control system uses a touch panel with multi-language support, so setup isn’t a headache. Teh ultra-high speed FPGA processor handles image analysis fast enough to keep up with the feed, and high-frequency solenoid valves kick out rejects almost instantly.
It’s better than a basic optical sorter for this because the 0.03mm minimum identification catches small discolored spots or broken bits that cheaper units miss. We usually have stock on hand, but confirm lead time — shipping a 870kg machine takes planning (typically 2-4 weeks). Dimensions are 3367 by 1536 by 1690mm, so you’ll need floor space and a forklift.
CE and ISO9001 cerification are standerd, and GS is listed too — COAs come with each machine, though we can’t always guarantee third-party lab results on shorter lead times. The high-intensity LED light source runs for thousands of hours without noticeable drift, so calibration stays consistent. One thing: it’s not suited for wet or sticky products like fresh fruit — the waterfall feed clogs pretty quickly with anything moist.
Anyway, ordering goes through our sales team — MOQ is one unit, and our company can do custom packaging for export if needed. Payment terms are negotiable, but for a first order they usually ask for 30% upfront. machine comes with a one-year warranty on electronics and valves, though the frame and vibratory feeder are built to last longer.
It can detect and sort particles as small as 0.03mm, which is about the size of a fine grain of sand.
Yes, we can adjust the packaging based on your shipping requirements, like using plywood cases or shrink wrap for export.
Usually it's around 15-20 working days after order confirmation, depending on current production load.
Absolutely, each unit comes with CE and ISO9001 certificates, and we can provide GS certification if needed.
We typically require a MOQ of 1 unit for the 6SXM-512, so you can start with just one machine.
