Automatic Check Weigher Machine with ±0.2g Accuracy for Food Packaging and Quality Control

The JD-520 Check Weigher is an advanced industrial weighing solution tailored for the food and toy sectors, offering high precision and reliability. Equipped with a 10.1-inch color TFT touch display, it supports multiple languages including Chinese and English, with options for further customization. The machine boasts a weighing range of 1-200g, a minimum scale of 0.07g, and sorting accuracy between ±0.2g to ±1g, ensuring meticulous quality checks.

Designed for versatility, the check weigher handles detection objects with dimensions up to 300mm in length, 150mm in width, and 100mm in height. The weighing section measures 300mm by 150mm, and the belt height from the ground is adjustable between 680mm to 750mm, with customization available. The conveyor belt operates at a fixed speed of 20m/min or an adjustable range of 15-30m/min, catering to various production line requirements.

Key features include a sorting method with two outputs, a polished 304 stainless steel surface for durability, and input voltage of single-phase AC220V 50Hz with a power consumption of 300W. The machine weighs 150kg and has overall dimensions of 1700mm in length, 635mm in width, and 1335mm in height. It incorporates intelligent functions such as dynamic zero tracking, automatic learning algorithms, and real-time statistical graphs for monitoring sorting dynamics.

Additional capabilities include preset memory for up to 100 product sorting parameters, USB interfaces for data export, and multiple removal options for overweight or underweight products. The photoelectric trigger method enhances accuracy, while variable frequency motor drives improve operational stability. This equipment is ideal for ensuring product safety and compliance in manufacturing environments.

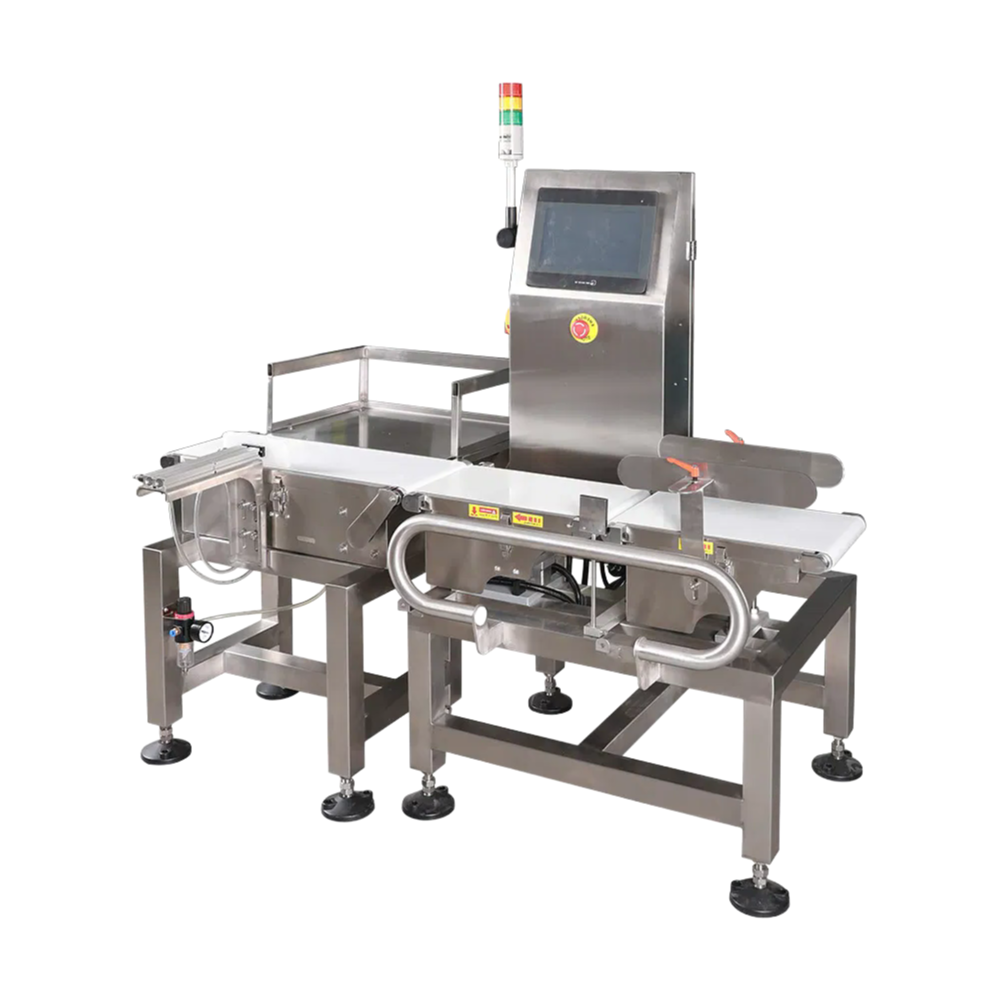

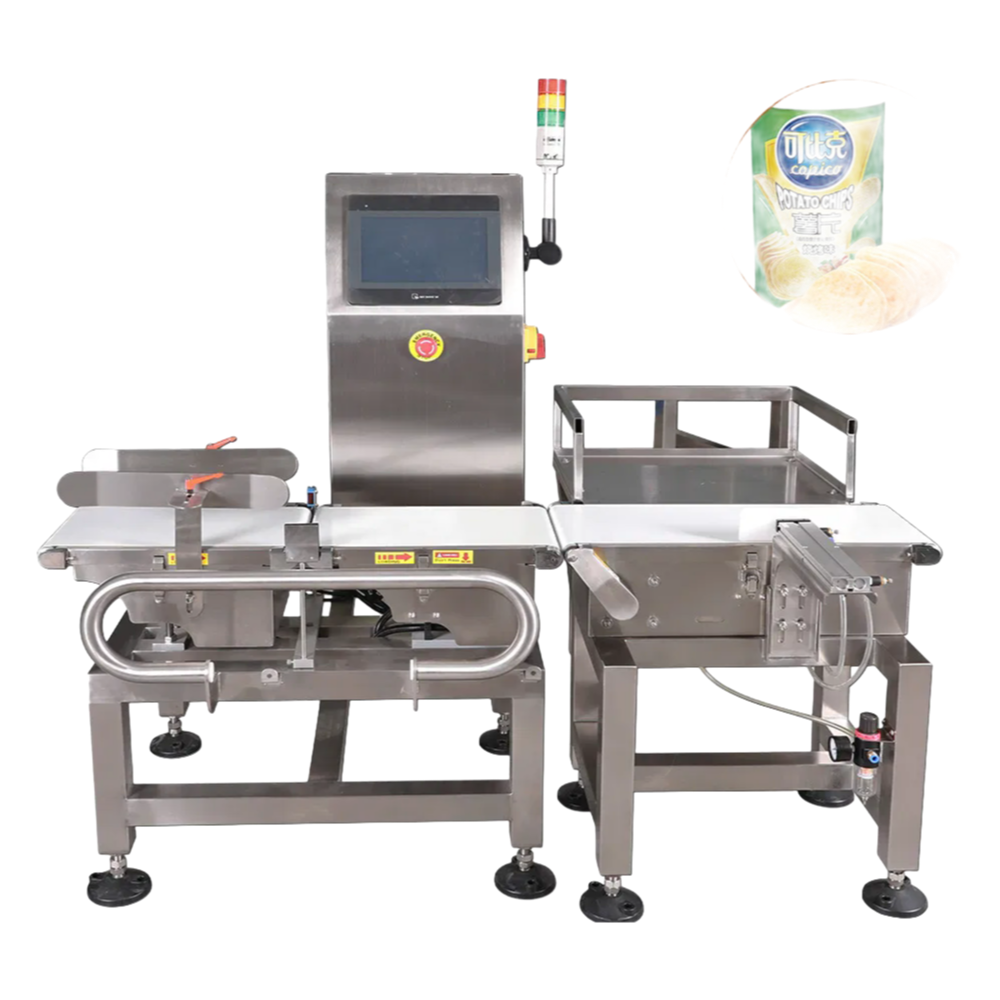

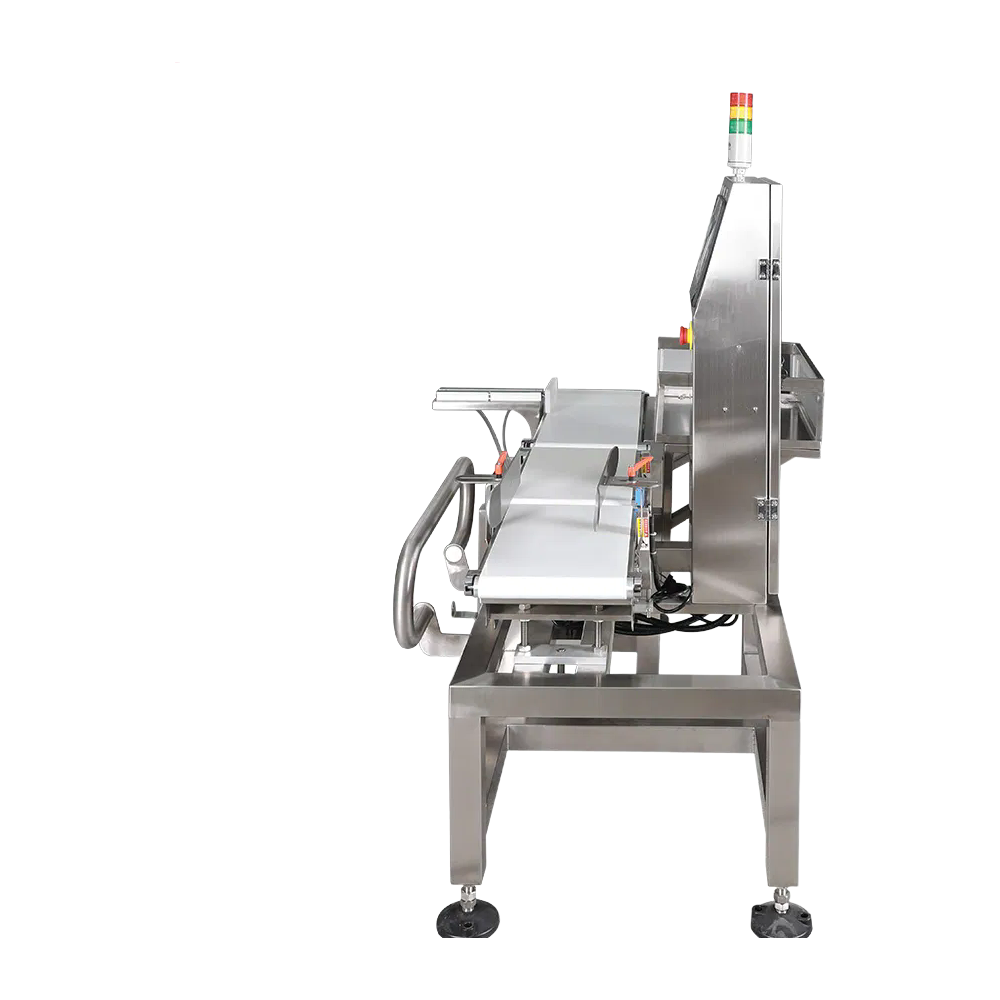

Images of the product:
