We're looking at roughly 10-12 weeks lead time on this one, give or take depending on current production load — the JD-520 runs about 150kg and dimnesions are 1700mm long by 635mm wide, so make sure your line has the floor space for it.

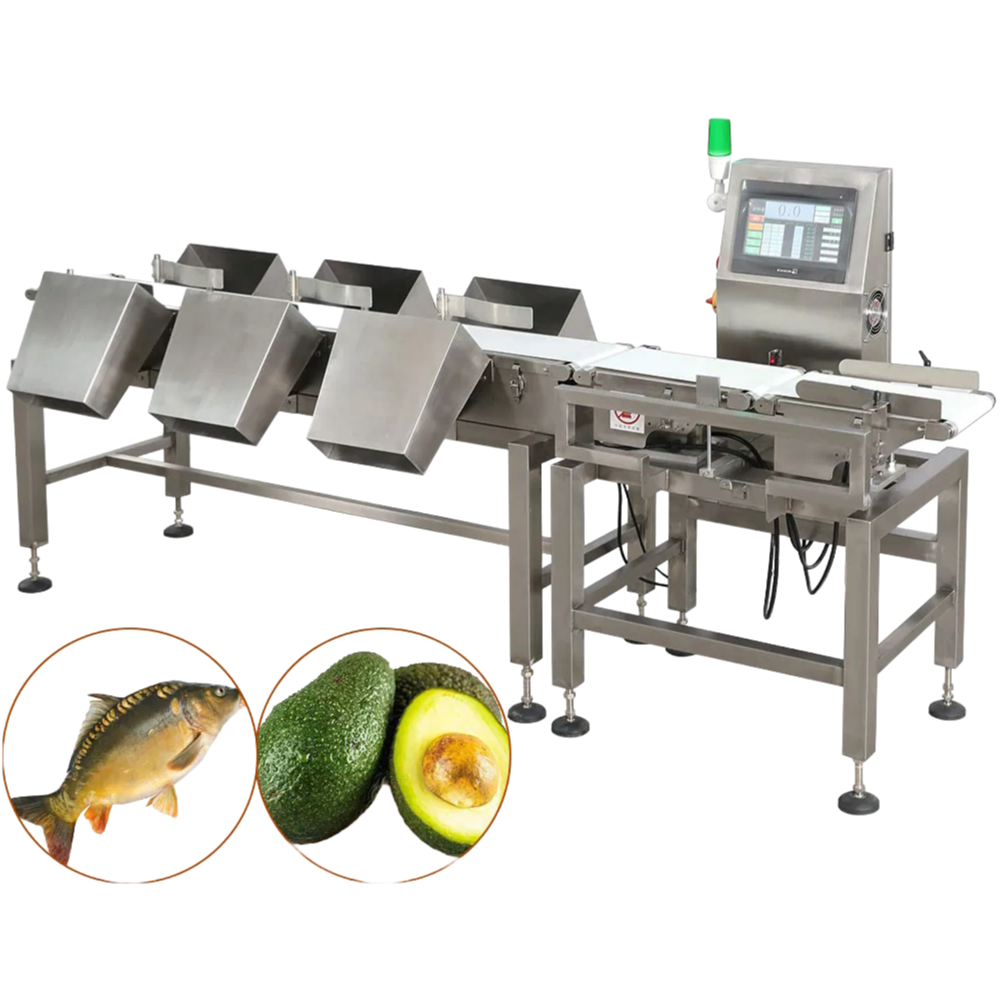

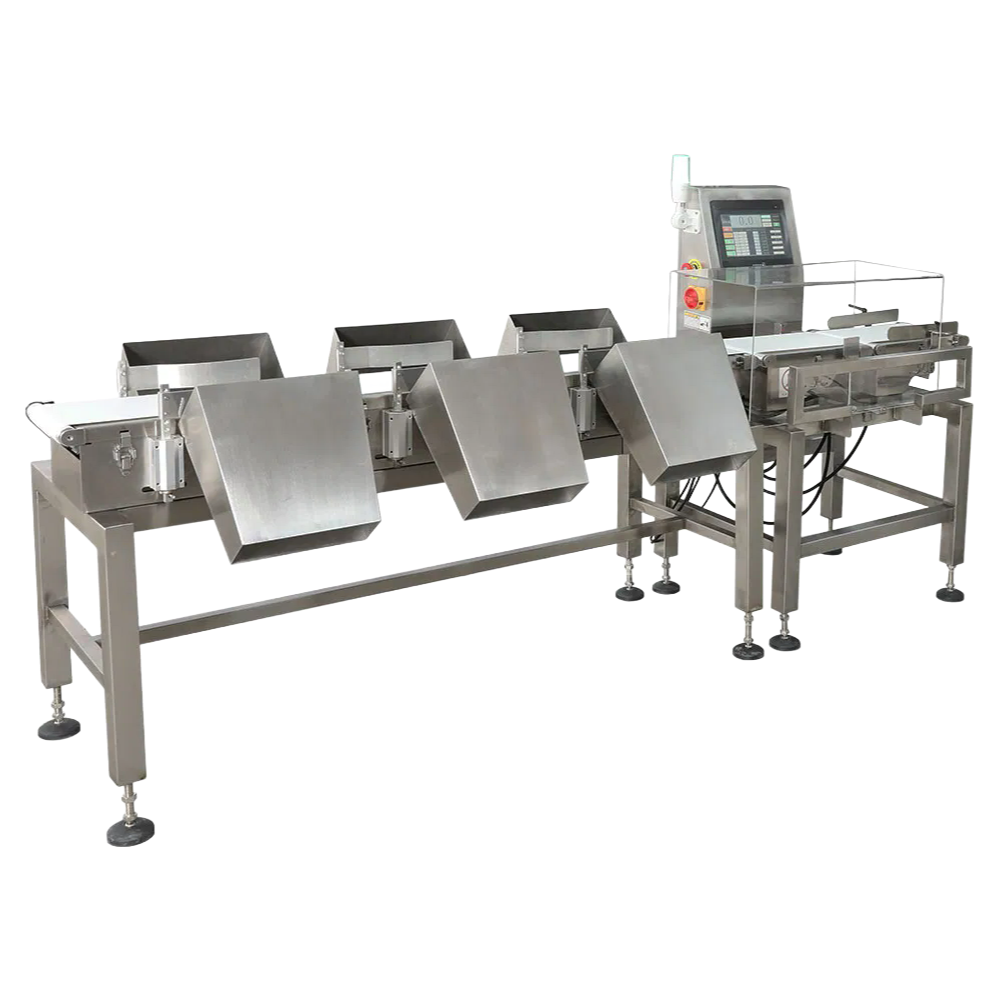

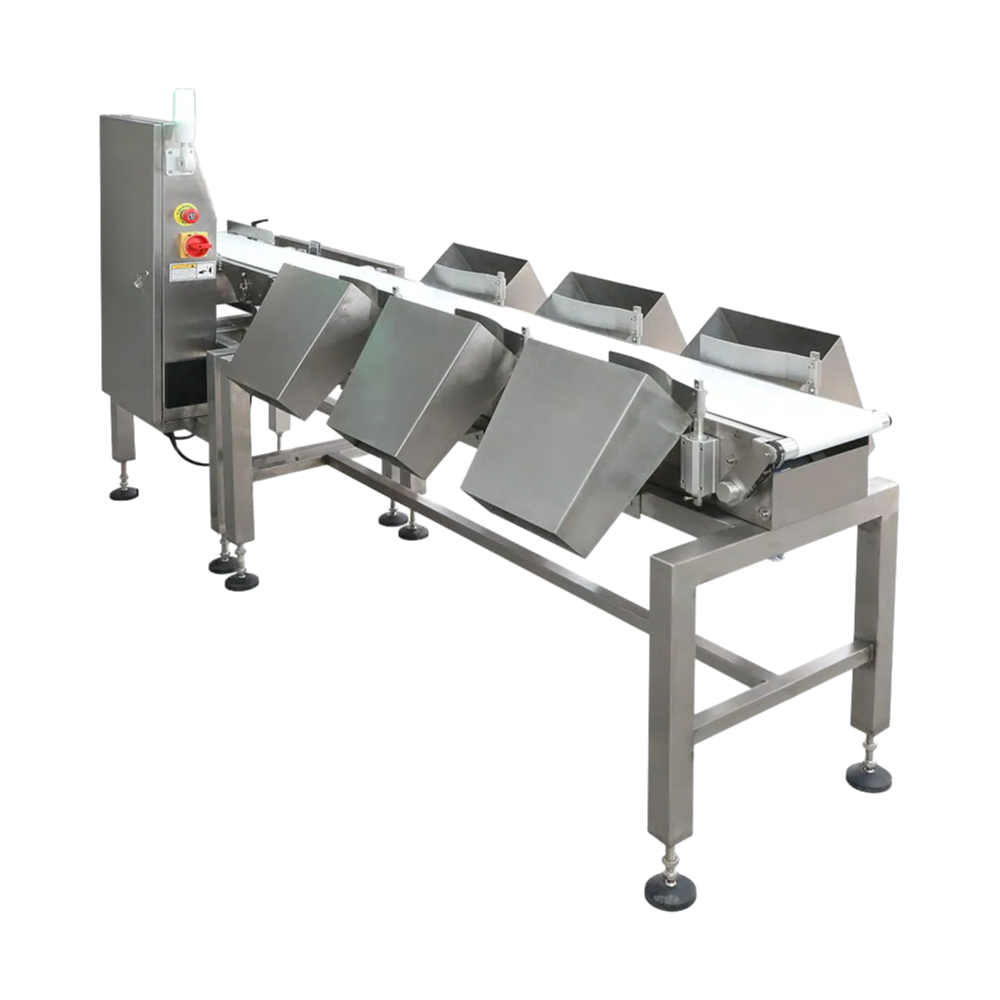

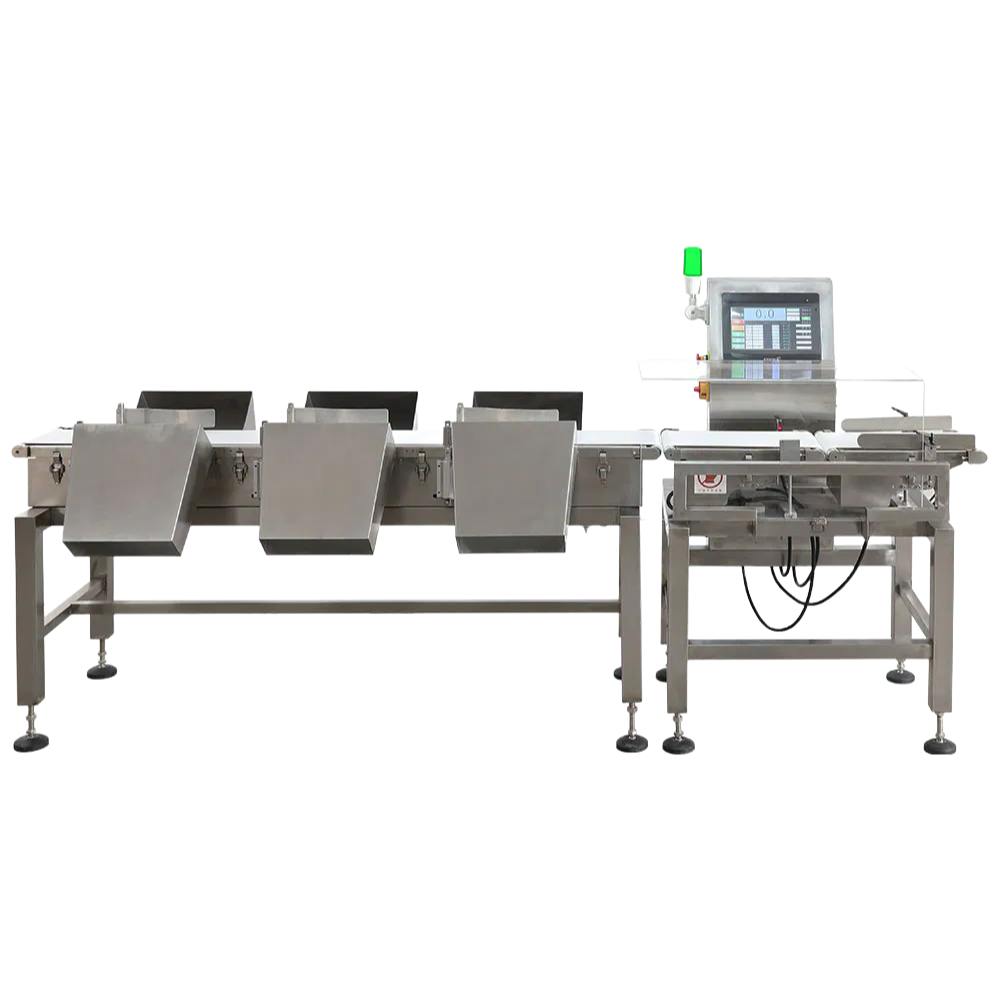

It's a pusher-bar system with two output lanes, basically sorting by weight down to ±0.1g accuracy, which is tighter than most off-the-shelf checkweighers in this class, and the 10.1-inch color TFT touch screen makes it pretty straightforward to set up and switch between product parameters.
The belt height is adjustable from 680mm to 750mm, and you can fix the conveyor speed at 20m/min or go adjustable between 15 and 30m/min depending on your product flow — most buyers in food and beverage go with the adjustable option for flexibility, though the fixed speed is fine if you're running one SKU.
We usually have stock of the 304 stainles steel models with surfce polishing, but confirm lead time if you need a specific language interface or a customized belt height outside the standdard range (check with us first).
One thing that catches people off guard is the minimum scale of 0.07g — it's not suited for anything below 1g total weight, so if you're running micro-packs that's a different machine entirely, and the sorting accuracy range of ±0.2g to ±1g depends heavily on how consistent your product shape is.
Power requrement is single phase AC220V at 50Hz, 300W draw, and the machine weighs 150kg so you'll want a pallet jack or forklift for positioning — we ship it crated with touch screen pre-installed and a basic COA included.
The minimum scale is 0.07g, so it can detect weights as low as that, with an accuracy of ±0.1g. For sorting, the accuracy ranges from ±0.2g to ±1g depending on the product.
Yes, the belt height is customizable between 680mm and 750mm. Just let us know your required height when ordering.
We provide a factory calibration certificate and can supply material certificates for the 304 stainless steel. If you need specific certifications like CE, we can arrange that for an extra fee.
The pusher-bar pushes accepted or rejected items into separate chutes. You set the weight thresholds on the touch screen, and it automatically activates the pusher for items outside the range.
Customization, including language options like Chinese or English, typically adds 2-3 weeks to the standard lead time. Standard models ship within 4-6 weeks.
