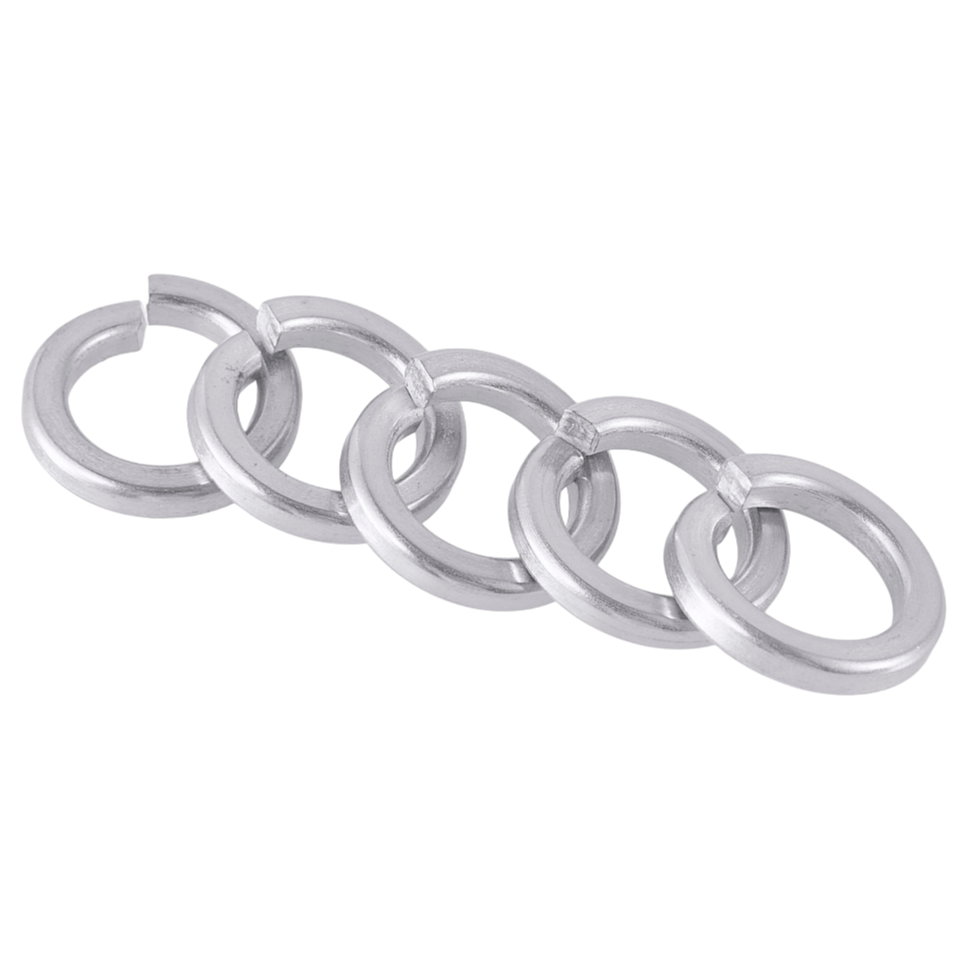

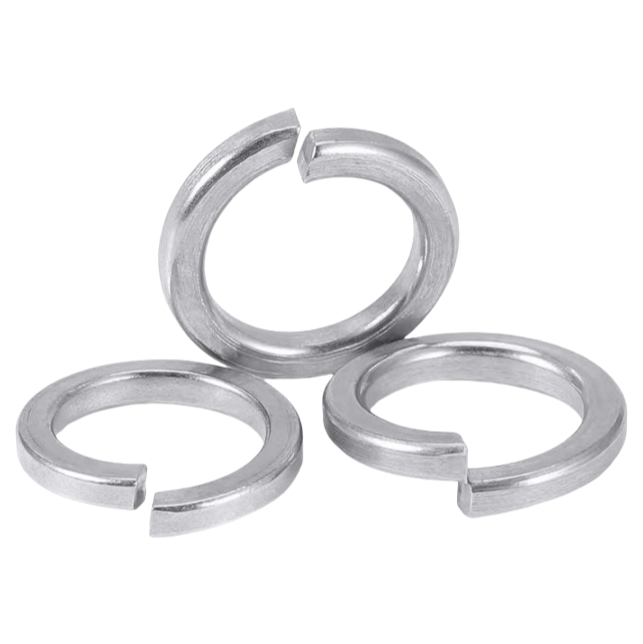

Basically, it's a spring lock washer that handles the kind of vibration that would shake a standard flat washer loose in no time, and we run them to both ASTM F436 and a whole stack of DIN standdard—DIN127, DIN125A, DIN125B, all the way through DIN9021—so you're covered for most industrial specs without having to chase multiple suppliers.
Most buyers go with the 10mm or 3/8 inch sizes for automotive and machinery assemblies, where thermal expansion cycles are a daily reality and a loose bolt means downtime. We've seen them used in construction rigging and electrical panel mounts too, though they're not ideal for applications requiring absolute zero-height clearance since the split adds thickness—usually about 1.5mm for the M8 size, give or take.
The size range runs form 1/4 inch up to 4 inches for the imperial crowd, and M5 all the way to M100 for metric (check lead time on anything over 2 inches or M48, as we typically stock the middle range). Carbon steel is the workhorse, but we also offer alloy steel for higher tensile needs, and stainless if you're worried about corrosion—plain, zinc plated in clear/blue/yellow/black, black oxide, nickel, hot dip galvanized, mechanical galvanized, Geomet, or zinc-nickel alloy finishes.
Salt spray testing is standard, and we usually have stock for the common sizes, but the MOQ sits at 300 kg for anything custom—sampling takes 3-5 workdays if you need to validate fit before committing to a full pallet. Packaing is bulk in 18kg or 25kg carton boxes, palletized for shippng, and our company can customize that if your warehouse has specific handling requirement.
One thing you might not think to ask: the split ends on these washers have a slight burr from teh stamping process (it's normal and actually helps grip), but if you're running automated feeding lines, you'll want to confirm the burr orientation isn't causing jams—we can adjust the deburring pass on request.
Typically 15–20 working days from order confirmation, depending on the exact spec and current production load. Sampling takes 3–5 workdays first.
Yes, we include salt spray test reports with every batch for that finish. We can also run additional test cycles if your project requires a specific corrosion resistance target.
Sure, we offer customized packaging. Just let us know the bag size and labeling requirements, and we’ll adjust the packing accordingly for your MOQ of 300 kg.
For 1-inch washers under ASTM F436, the hole diameter tolerance is +0.030 inch / -0.000 inch. We follow the standard exactly, so no surprises.
Not directly—DIN125A is chamfered and thinner, while DIN125B is thicker with a larger outer diameter. We can supply both, but you’d need to verify fit with your bolt grade and clearance.
