Medical Grade LK-U23 Dental Piezo Surgery Device with Adjustable Water Flow System

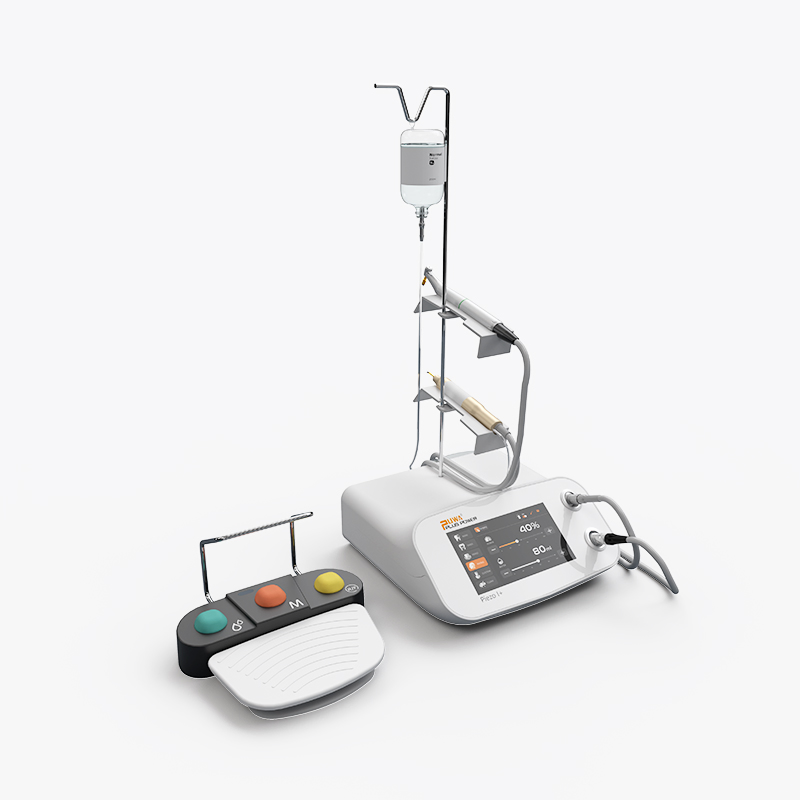

The LK-U23 Dental Ultrasonic Piezosurgery and Implant Motor System is a professional-grade medical device designed for oral surgery applications. This 2-in-1 system combines advanced piezosurgery technology with precise implant motor functions in a single compact unit.

Featuring a powerful motor with speed range of 100-40000 RPM (±10%) and torque range of 5-70 N·cm, the device provides exceptional control during dental implant procedures. The integrated piezosurgery function operates at 24kHz-36kHz frequency for precise bone cutting with minimal tissue damage.

The system includes a sophisticated water cooling system with 5 adjustable flow settings (0%, 25%, 50%, 75%, 100%) to maintain optimal temperature during procedures. The surgical mode delivers water flow of 60-100ml/min to both handpiece and piezo tips.

Built with durable metal housing, the device meets IPX1 protection standards and operates on 100-240V 50/60Hz power supply. The compact dimensions (300×280×128mm) and 5.4kg weight make it suitable for various clinical environments.

This medical device is CE and ISO certified, ensuring it meets international safety and performance standards for dental equipment. The S3 operation mode (3 minutes operation within 10 minutes cycle) provides reliable performance during extended procedures.
