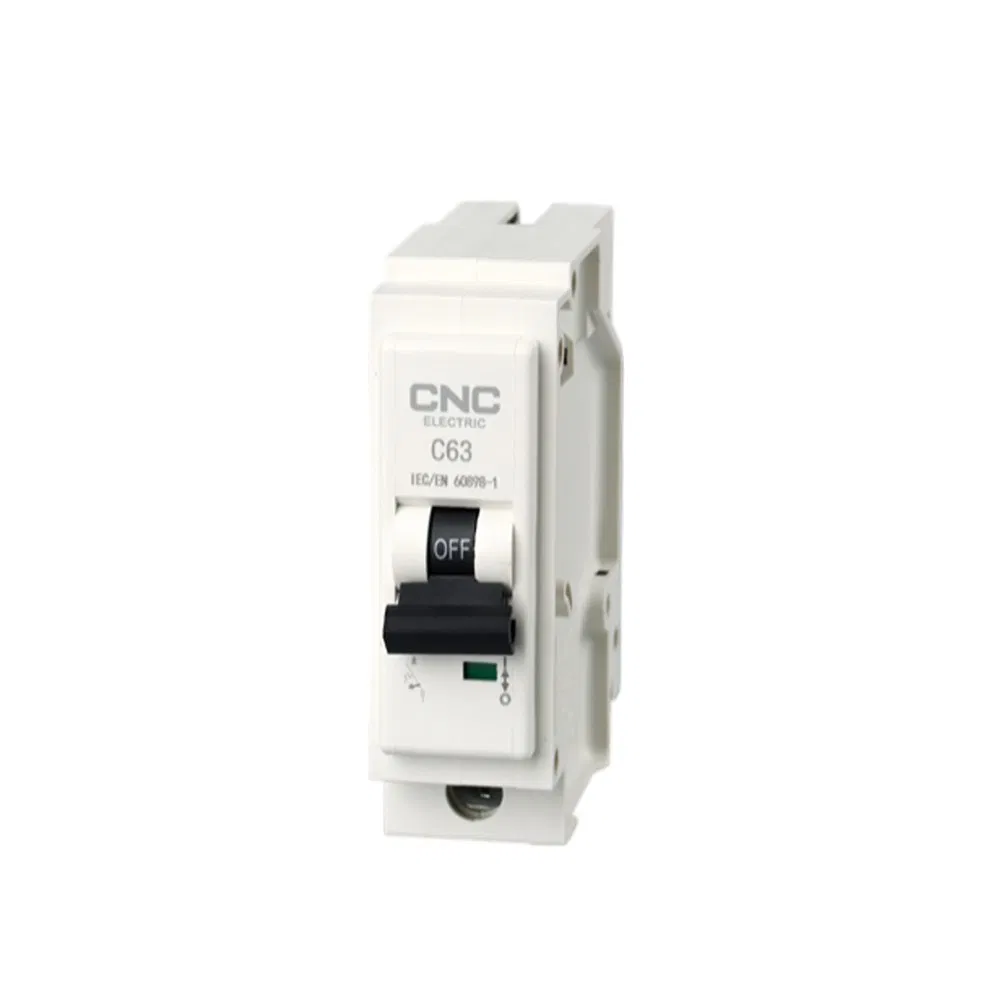

High Quality YCLP Air Circuit Breaker with Overload Short Circuit Protection Function

The YCLP series miniature circuit breaker is designed for reliable overload and short circuit protection in residential and industrial distribution systems. This MCB combines protection with isolation function, ensuring safe operation of electrical circuits.

With rated currents ranging from 6A to 63A, the YCLP breaker offers flexible protection options for various applications. The product features a compact design with resin enclosure, providing excellent insulation and durability.

Key technical specifications include a rated insulation voltage of 400V, impulse withstand voltage of 4000V, and rated working voltage of 230/400V. The breaker operates at both 50Hz and 60Hz frequencies, making it suitable for global applications.

The YCLP series demonstrates excellent performance with a mechanical life of 8500 operations and electrical life of 1500 operations. The plug-in installation design ensures easy maintenance and replacement.

Certified with ISO9001, CE, CB, and CCC standards, this circuit breaker meets international quality and safety requirements. The product is available in 1P, 2P, and 3P configurations to suit different circuit protection needs.

Applications include residential buildings, commercial complexes, industrial plants, and other electrical distribution systems requiring reliable circuit protection against overloads and short circuits.
