Rated up to 120A with a 10kA breaking capacity, it's built for 230/400V AC systems at 50 or 60Hz — we typically see these in lighting panels and motor circuits.

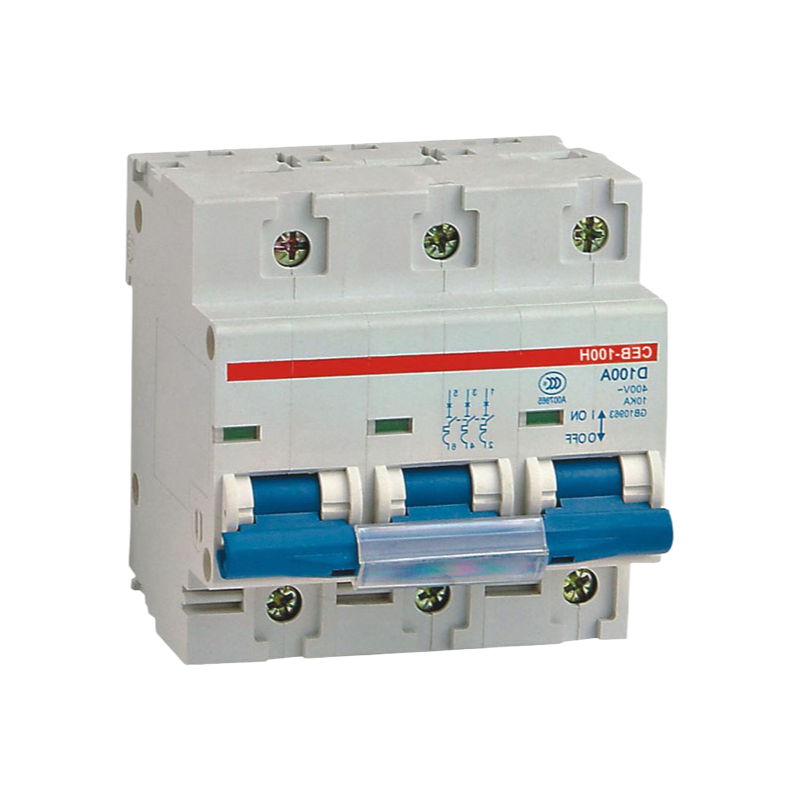

You get overload, short circuit, and overvoltage protection in one unit, and the H-type instantaneous trip handles those sudden spikes pretty well. Most buyers go with the 3P for three-phase setups.
It's not ideal for frequent switching under heavy load, electrical life is 6,000 cycles, but for normal distribution it holds up fine. Mechanicla life is 20,000 cycles or so.

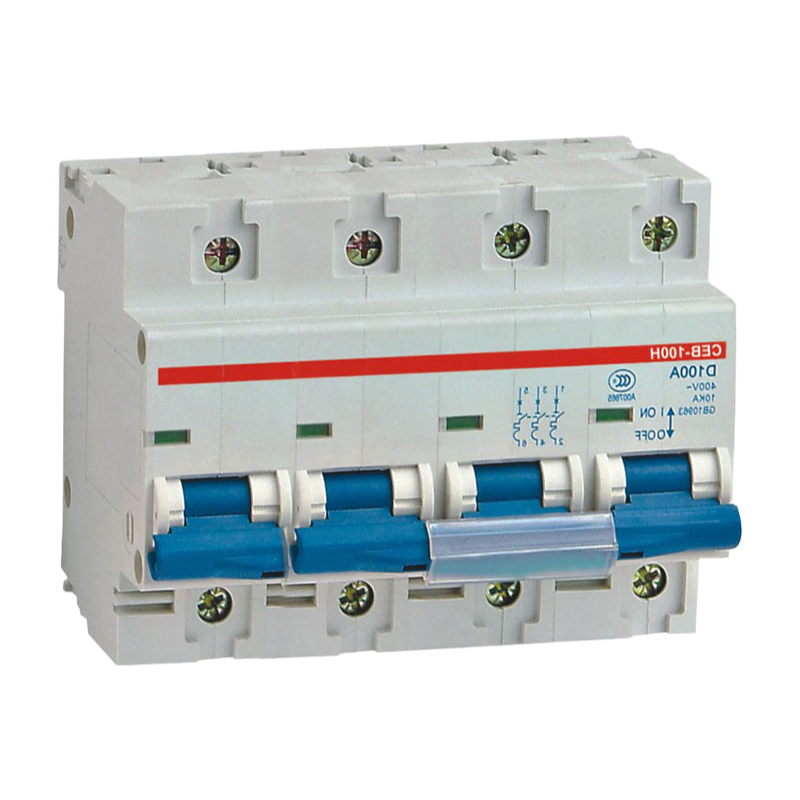

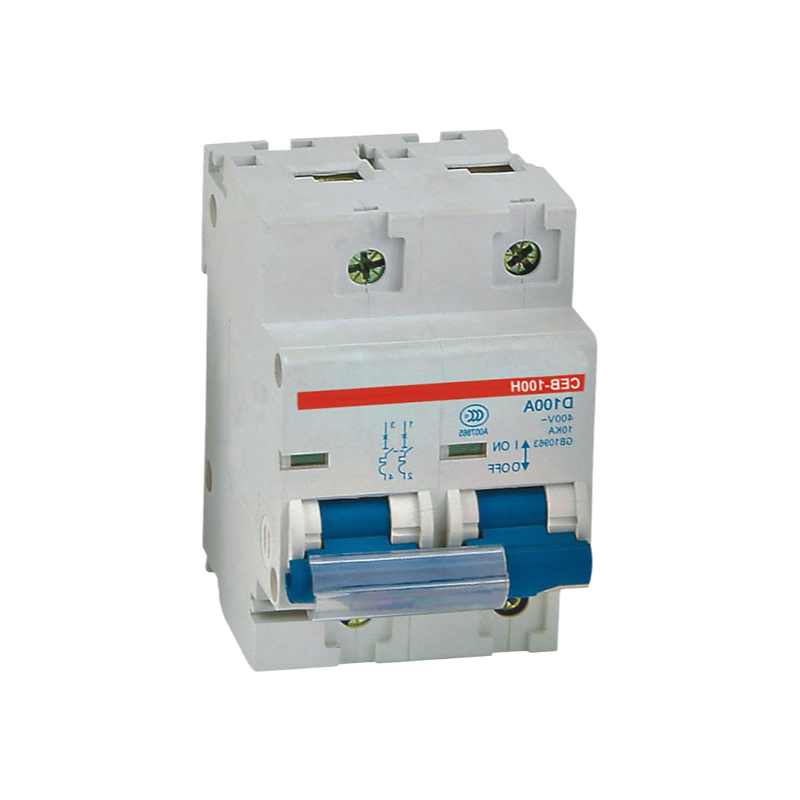

Avaliable in 1P through 4P, DIN rail mount, and we carry all teh common amp ratings from 6A to 120A. Certifications include VDE, CE, CB, and CCC — COA provided with each batch.
Weight runs about 180g per pole, so a 4P unit is roughly 720g. Usually in stock, but confirm lead time for large orders (2-3 weeks).
For the KGB-100H, our MOQ is typically 100 pieces per pole configuration, but we can be flexible for first-time orders. Just contact us with your desired quantity and we'll work something out.
Yes, we include copies of the VDE, CB, and CCC certificates with every shipment. If you need the full test reports, just let us know and we'll email them to you.
Right now the KGB-100H is only available with the H instantaneous trip type, which is designed for high inrush applications. If you need B or C curve, check out our KGB-100B or KGB-100C models instead.
We ship the KGB-100H in individual blister packs, 10 per inner box, and 100 per carton. For long-term storage, keep them in a dry, ventilated area at room temperature to avoid moisture damage.
The KGB-100H has a 10kA breaking capacity at 230/400V AC. That rating applies across both voltages, so you get the same high interruption performance whether it's single or three-phase.
