We’ve been shippng these modules for a while now, and what they do in practice is handle heavy cycling without the thermal runaway risk you’d see with NMC—the LiFePO4 chemistry stays stable even when you’re pushing 200A for those 30-second bursts, and the BMS keeps things like over-discharge or cell imbalance in check automatically.
Basically, you’re looking at 51.2V nominal with a 100Ah capasity, so that’s 5.12kWh per module, and the operating window runs form 44.8V to 58.4V—most buyers go with the 95% depth of discharge for cycle life, which typically hits 6000 cycles or so at 25°C, though we’ve had a few labs push it past 7000 in controlled bench tests (usually 2-4 weeks for those results).
It’s not suited for outdoor installations without extra weatherproofing, since the IP21 rating means it’s fine indoors but will struggle with direct moisture or dust—something a lot of people miss when they first spec it for telecom racks or solar banks, where the RS485 and CAN interfaces (plus RS232) let it talk to most inverters pretty much out of the box.

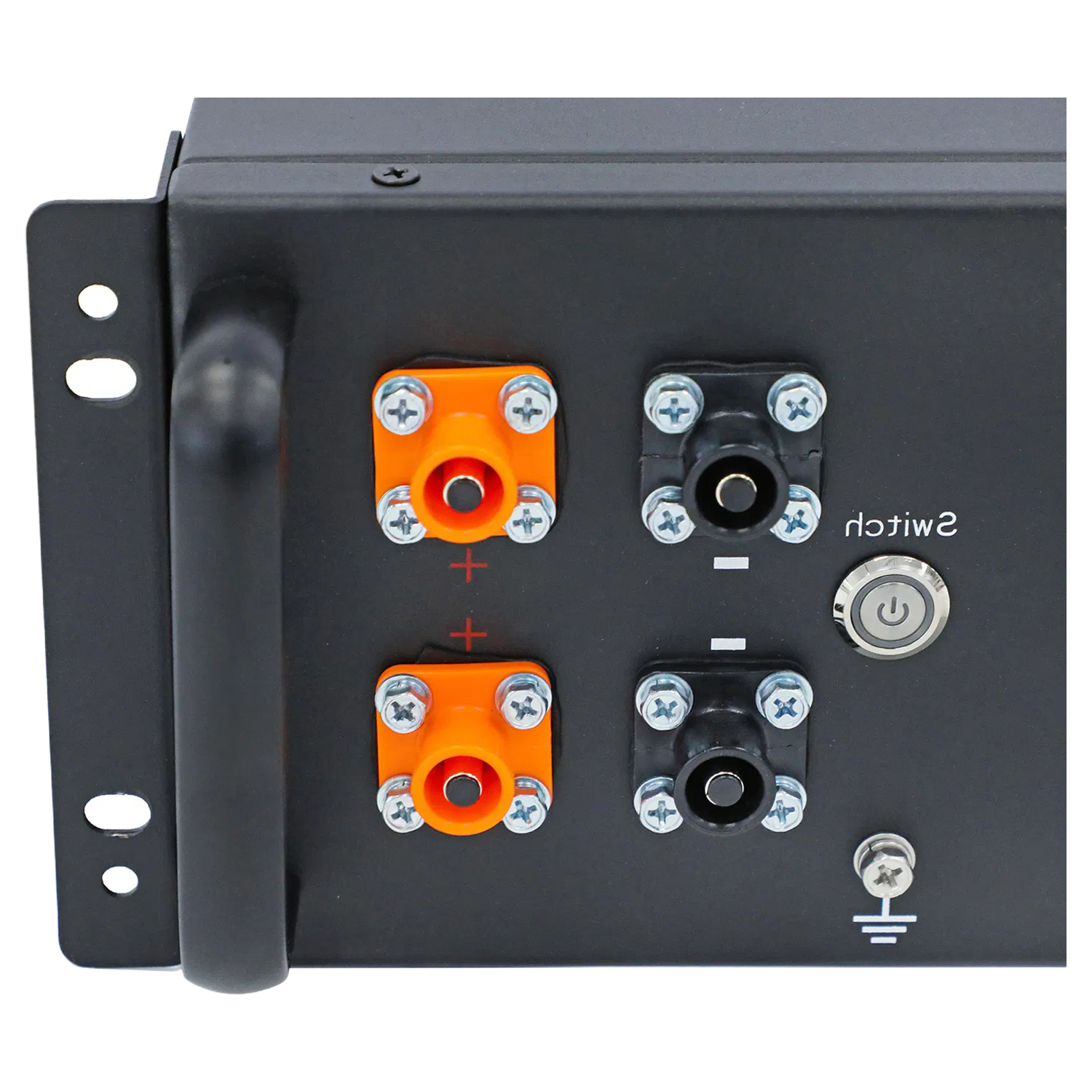

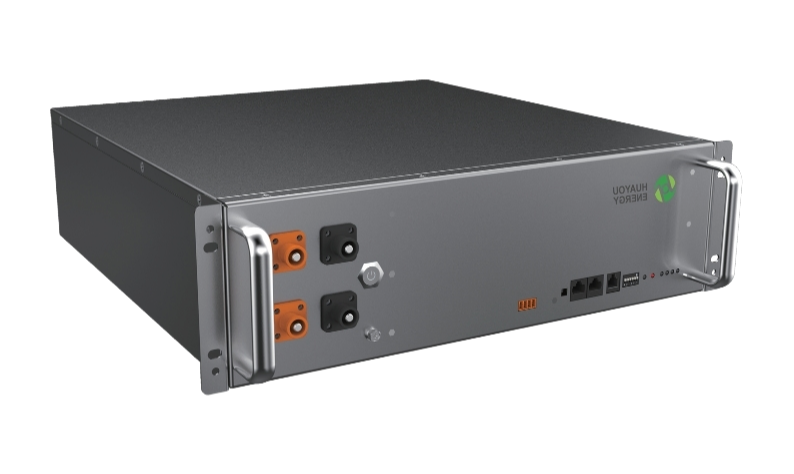

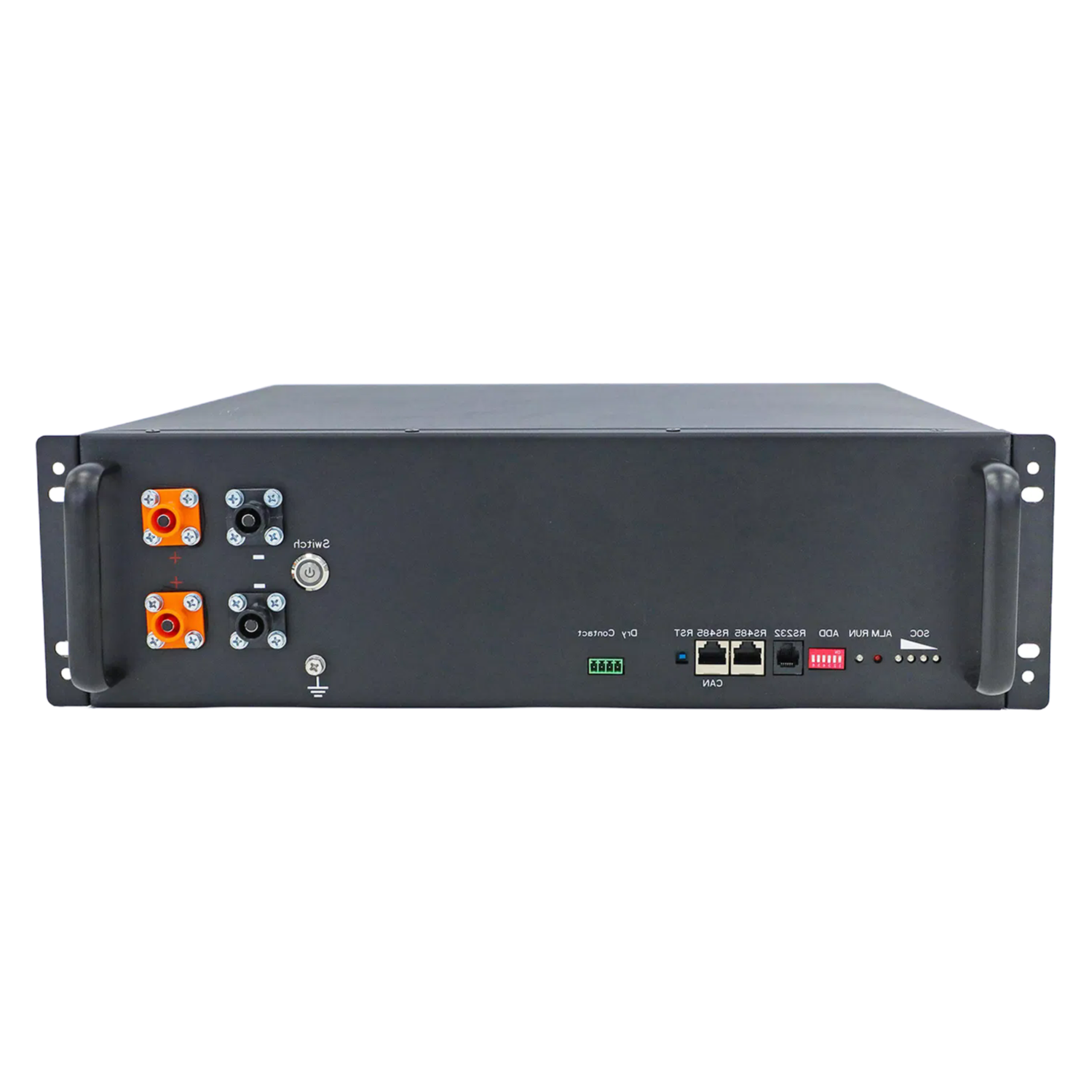

A concrete detail from handling these: the 42kg weight ±2kg is real, and the 482.6×500×132mm footprint fits standerd 19-inch racks, but you’ll want to confirm mounting rails have enough depth clearance because the front-panel connectors stick out about 30mm more than the spec sheet suggests.
We usually have stock on teh 5kWh modules, though the 10-year warranty option adds about 4-6 weeks to lead time since it involves an extra batch-level cycling test at the factory—anyway, the standard 5-year warranty ships within 10 business days or so, and the COA includes HPLC purity data on the electrolyte if you need it for validation.
