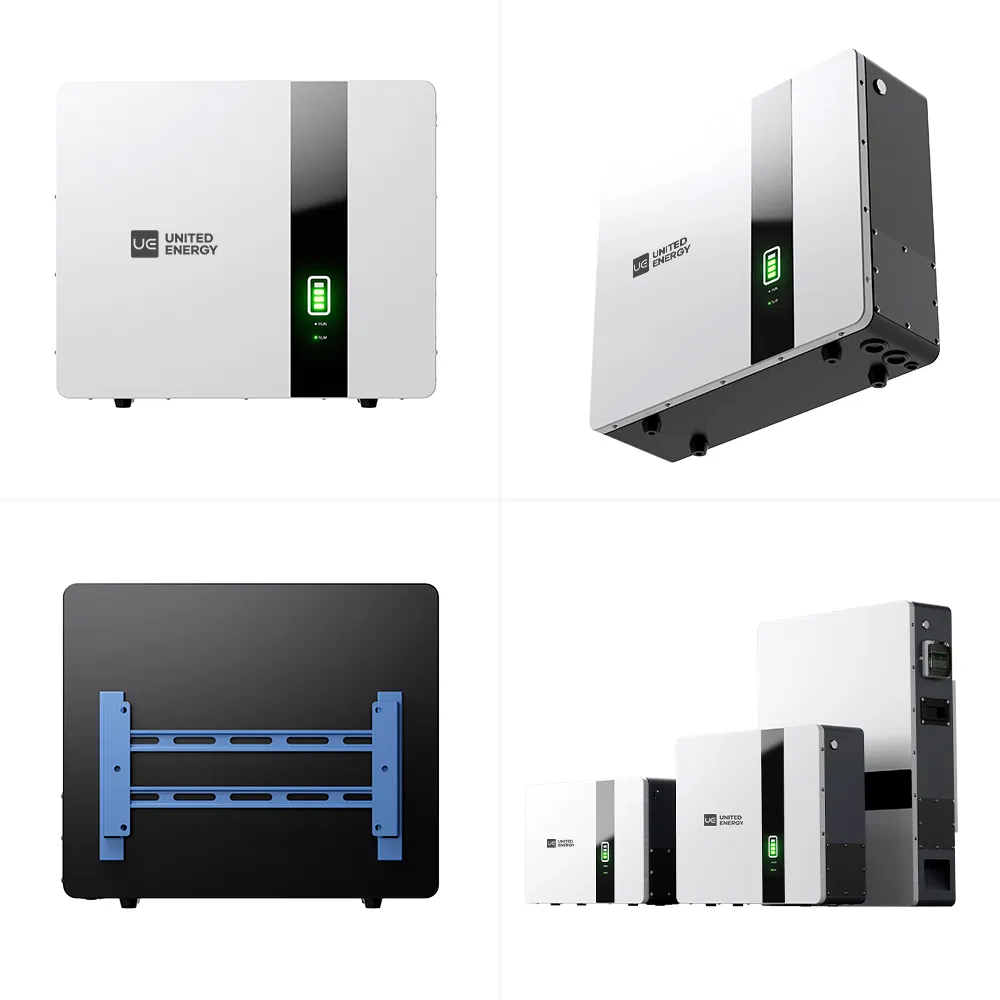

We've seen a lot of setups where someone's running a small off-grid cabin or a weekend workshop, and what they really need is something that can handle daily solar cycle without constant babysitting—that's where this WallArk series fits in, basically a 48V LiFePO4 pack that's built to stack.
You're looking at 2.56kWh up to 10.24kWh of usable capacity, so for a typical household backup or a medium-sized solar array, you'd probably go with the 5kWh or so version, and the cycle life is 6000 cycles at 0.5C, which is better than most lead-acid setups you'll find.
It's got a BMS that monitors multiple points, and we usually have stock on the 50Ah and 100Ah models, but the 200Ah might need a lead time of 20 days or so—check on that, as the parallel capability goes up to 15 packs, so you can scale it pretty much as needed.
The operating temperture range is -20 to 45°C for discharge, but if you're charging in freezing conditions, it'll cut off below 0°C, so that's a limitation to keep in mind for northern climates, though most buyers don't push it that far anyway.
Communication is RS232, RS485, and CAN, which covers most inverters out there, and the IP54 rating means it's fine for a garage or a utility room but not for outdoor exposure without some shelter.
10-year warranty is what they offer, and teh certifications include IEC62619 and UL, so you're covered for most regulatory requirment, but the 5L drum is easier to handle than the bigger packs if you're moving it around alone.
For the 50Ah model, nominal is 2.56kWh, but usable is 2.3kWh. The BMS reserves a small buffer to protect the cells and extend cycle life, so you won't drain it to zero.
We recommend using identical capacity packs for parallel setups. Mixing capacities can cause uneven load sharing and reduce BMS accuracy, so stick with the same Ah rating when connecting up to 15 units.
Lead time is typically 15-20 working days for a 50-unit order. Yes, MSDS, UN38.3, and all required transport docs come included with every shipment.
IP54 handles dust and water splashes, so it's fine for covered outdoor areas like a porch or garage. For direct rain or snow exposure, we suggest adding a weatherproof enclosure.
The 10-year warranty covers defects under normal use within specs. Running at max 200A discharge continuously will stress the battery and could reduce life, but occasional peak loads are fine. Just keep average discharge within the recommended range for full warranty coverage.
