YC Series Single Phase AC Electric Motors for Industrial Applications - High Efficiency & Low Noise

YC Series Single Phase AC Electric Motors for Industrial Applications - High Efficiency & Low Noise

US$ 65.00 ~ 40.00

Min.Order: 50

Product origin: Taizhou, Zhejiang, China

Category: Electrical Equipment & Supplies

Product Name: Electrical Equipment & Supplies

Availability:In Stock

Product Review : 0 Reviews

Infringement complaint:

* Please contact the supplier via whatsapp first before placing an order

YC Series Single Phase AC Electric Motors for Industrial Applications - High Efficiency & Low Noise

US$ 65.00 ~ 40.00

8 Pole Three Phase Electric Motor with Variable Frequency Starting for General Machinery

US$ 40.00 ~ 100.00

GV Type Industrial Three-Phase High Speed Motor for Driving Applications with ISO9001 Certification

US$ 69.50 ~ 151.70

High-Efficiency YE3 Series 380V/660V Industrial Electric Motor with IP54 Protection

US$ 1 ~ 7565

Wholesale WEG Industrial Motors with B3t Mounting and IP55 Protection Level

US$ 1 ~ 415.7

Application : Industrial
Motor Type : Single-Phase Asynchronous
Starting Method : Capacitive Start
Efficiency Class : Ie1/Ie2/Ie3/Ie4/Ie5
Protection Class : IP55
Insulation Class : F
Housing Material : Cast Iron
Winding Material : Copper
Pole Options : 2/4/6/8/10
Voltage Range : 220-760V

Mounting Types : B3/B5/B14/B34/B35
Cooling Method : IC411
Bearing Type : NSK
Certification : ISO9001
Terminal Box Position : Top or Side

The YC series single phase AC electric motor is a capacitive start asynchronous motor derived from YE2 series three-phase asynchronous motor. This energy-efficient motor features high starting torque, low vibration and reliable operation for various industrial applications.

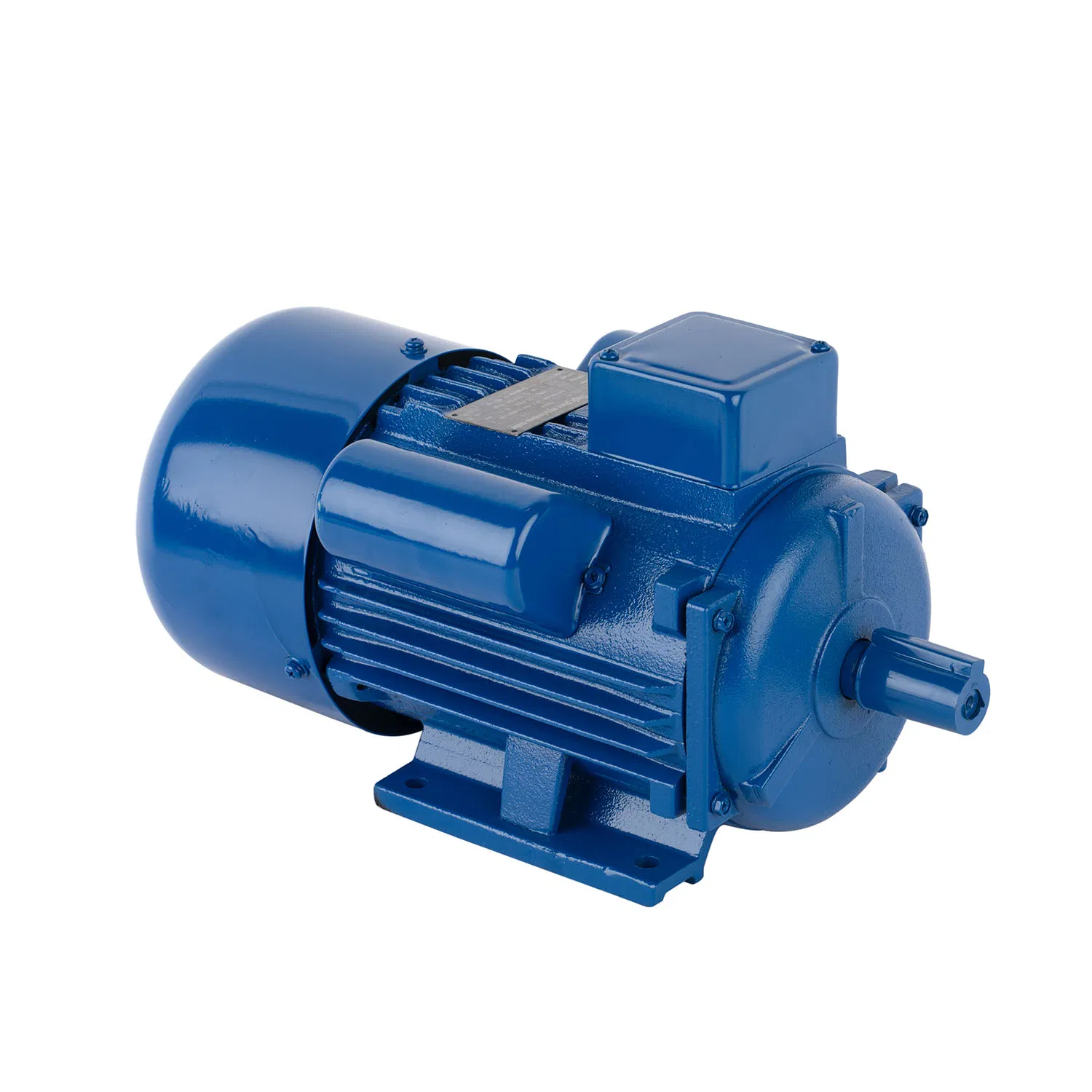

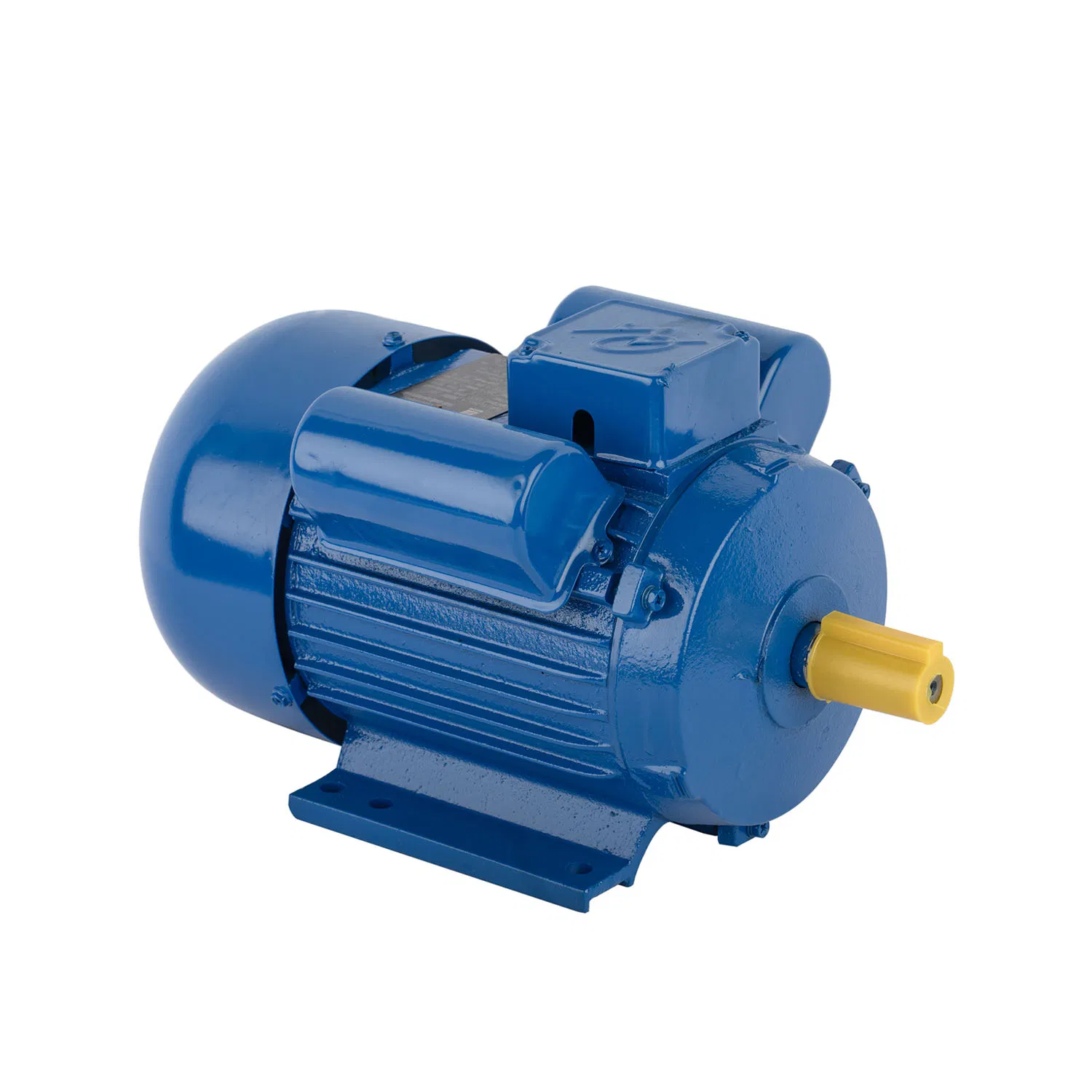

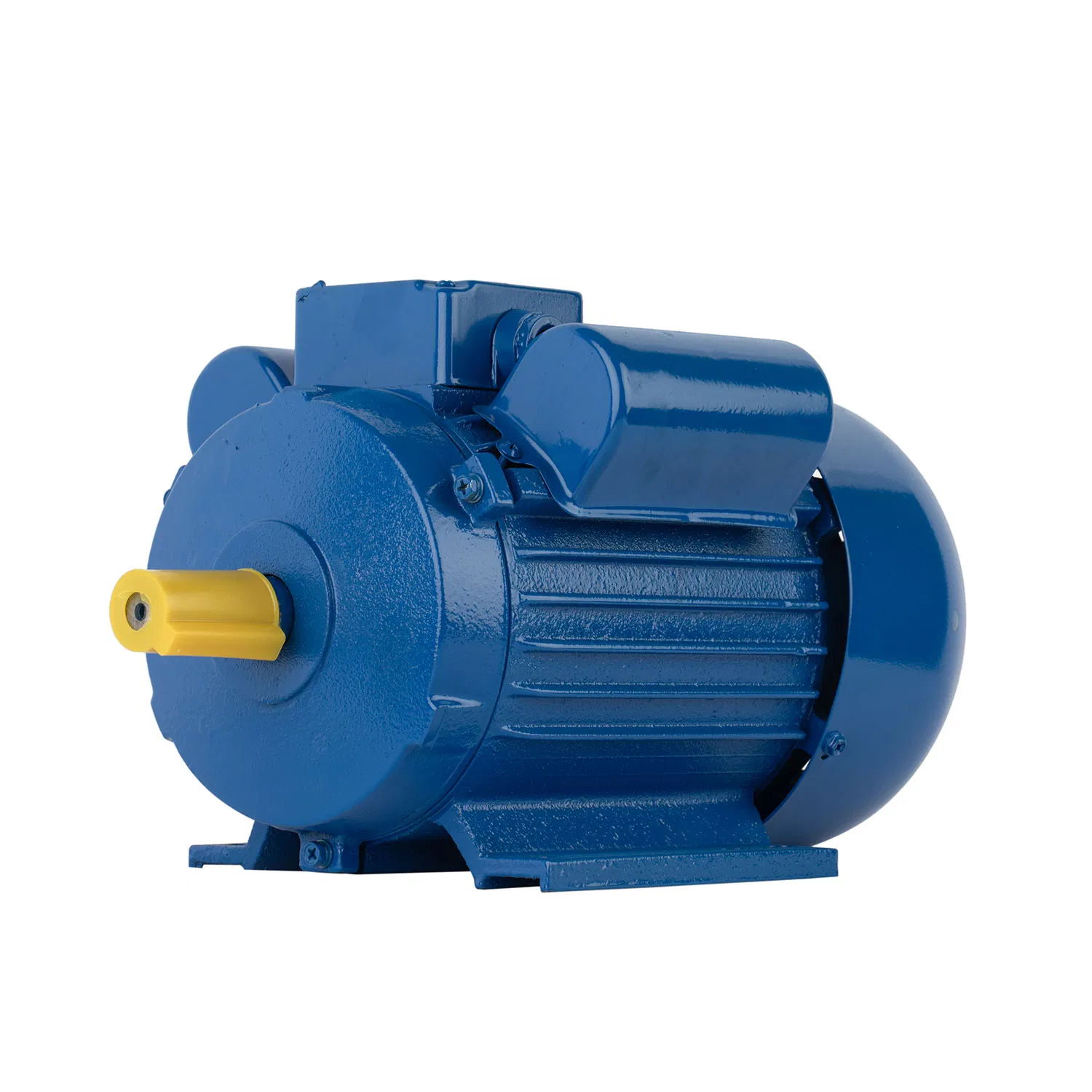

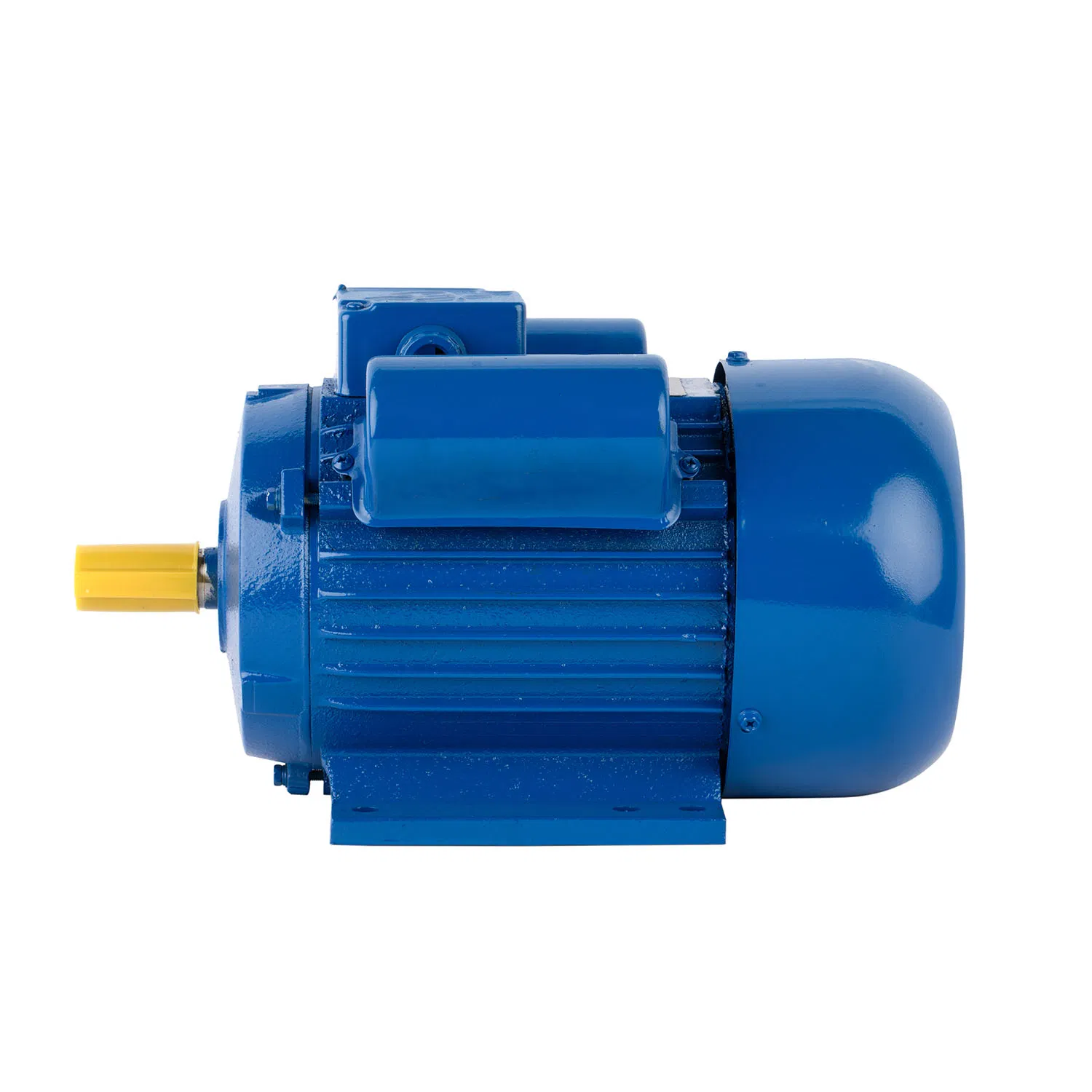

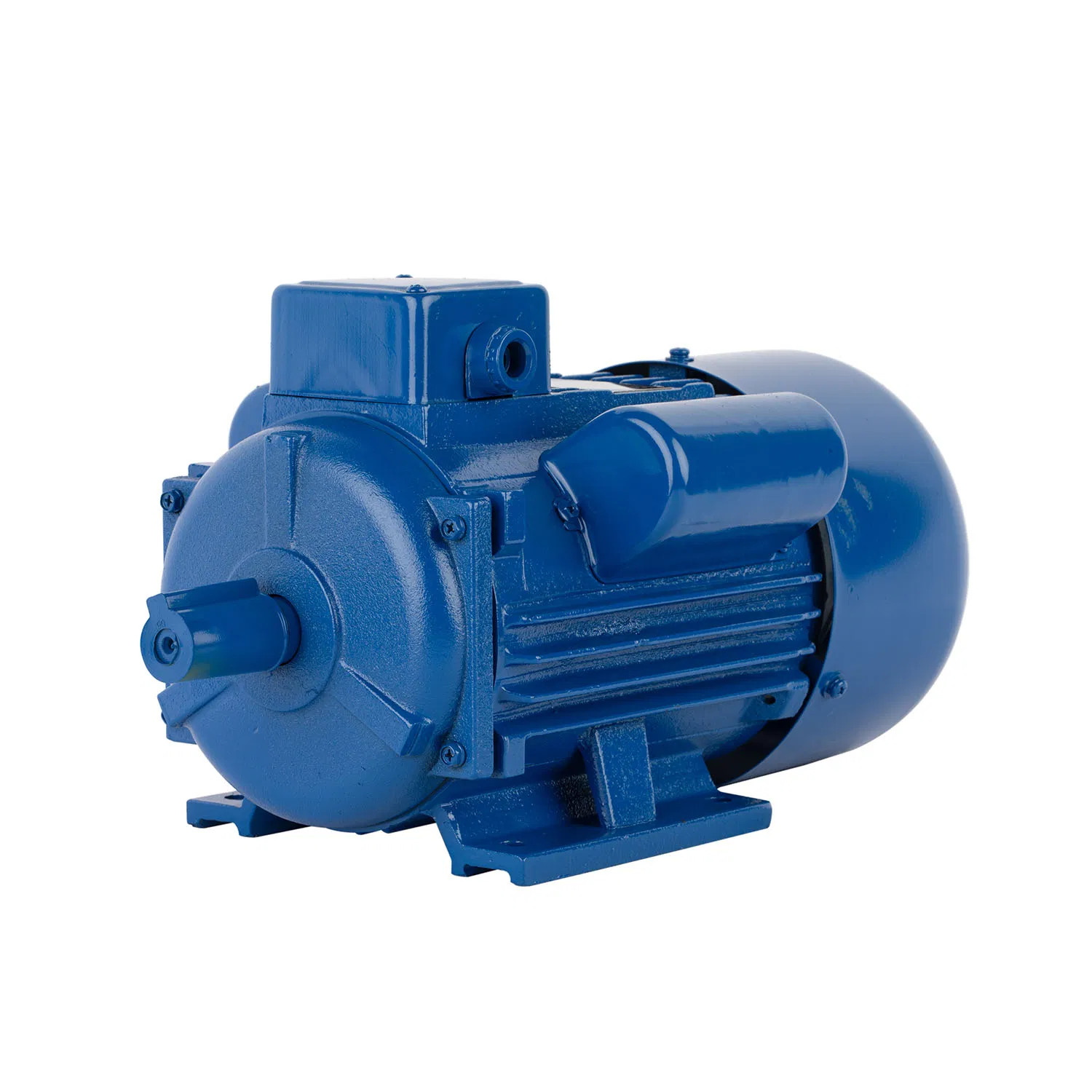

YC single phase motor

With frame sizes and installation dimensions matching the YE2 series three-phase motors, the YC series offers excellent compatibility. The motors are widely used in refrigeration systems, pumps, fans, small machine tools, agricultural processing equipment and household appliances.

YC motor application

Key features include cast iron housing for durability, copper winding for efficient power transmission, and multiple mounting options (B3/B5/B14/B34/B35) for flexible installation. The motors meet IP55 protection standards and feature F class insulation for reliable performance in various environments.

YC motor features

Available in 2/4/6/8/10 pole configurations, these motors support both 50Hz and 60Hz operation with voltage ranges from 220V to 760V. The y-δ starting mode ensures smooth operation while NSK bearings provide long service life.
