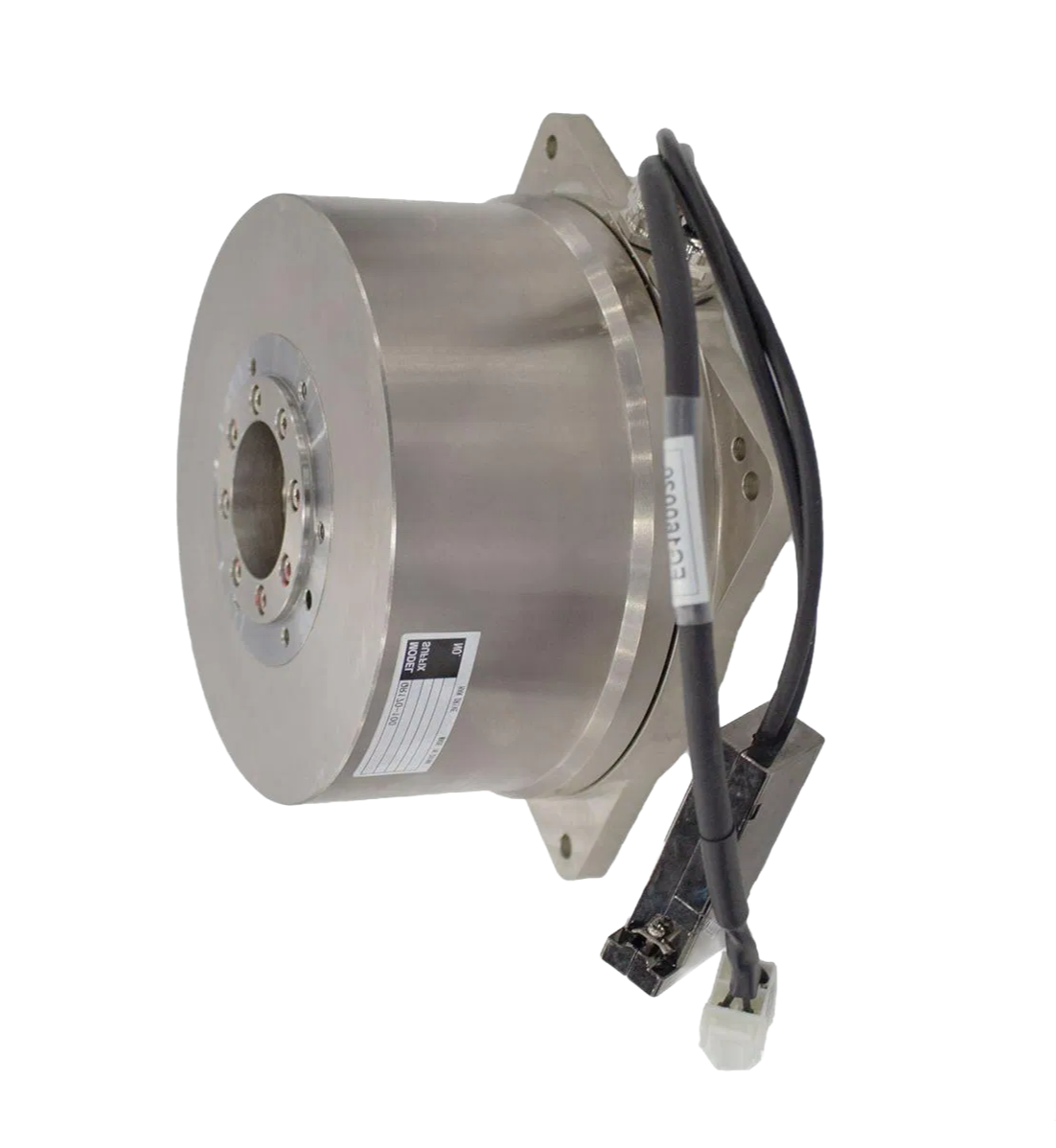

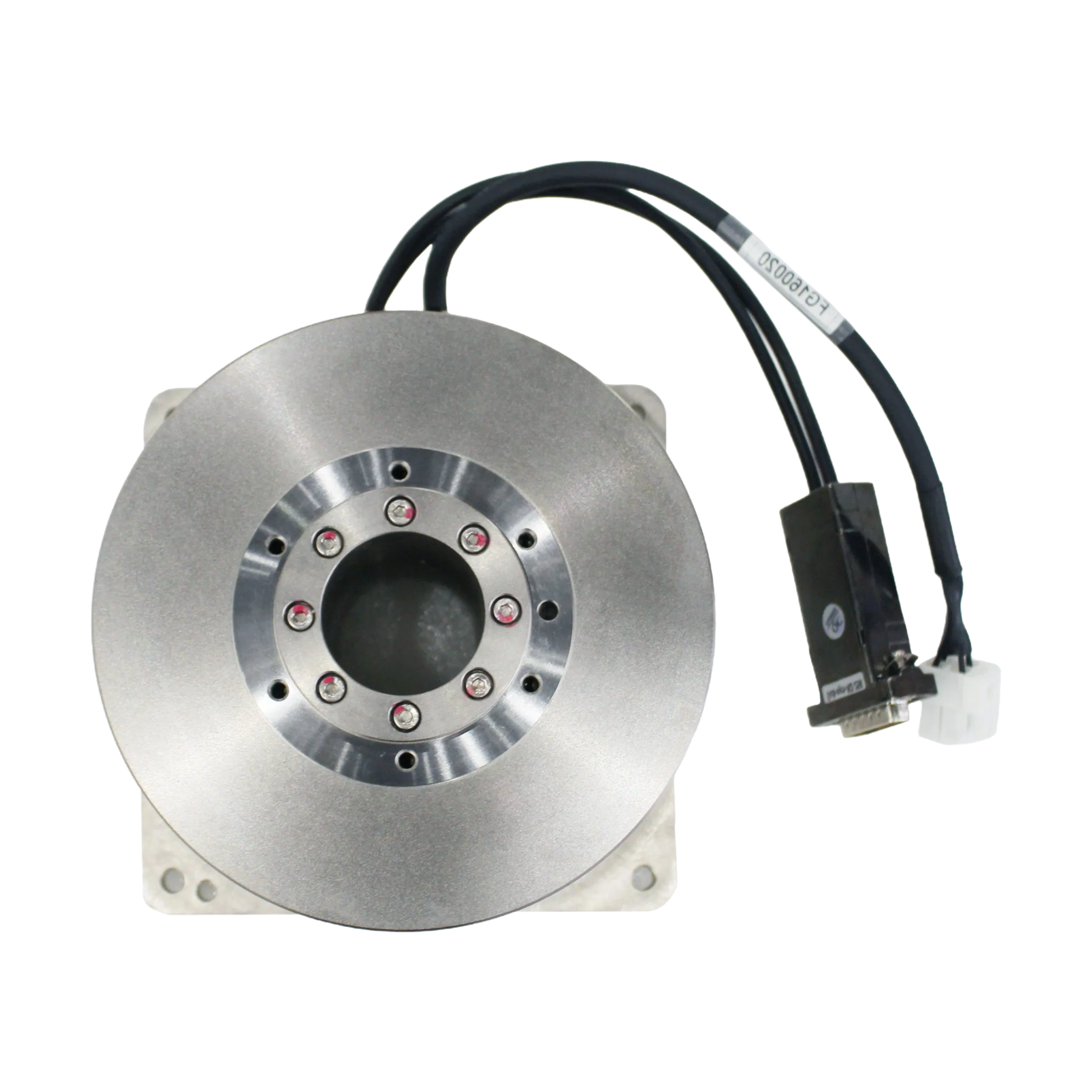

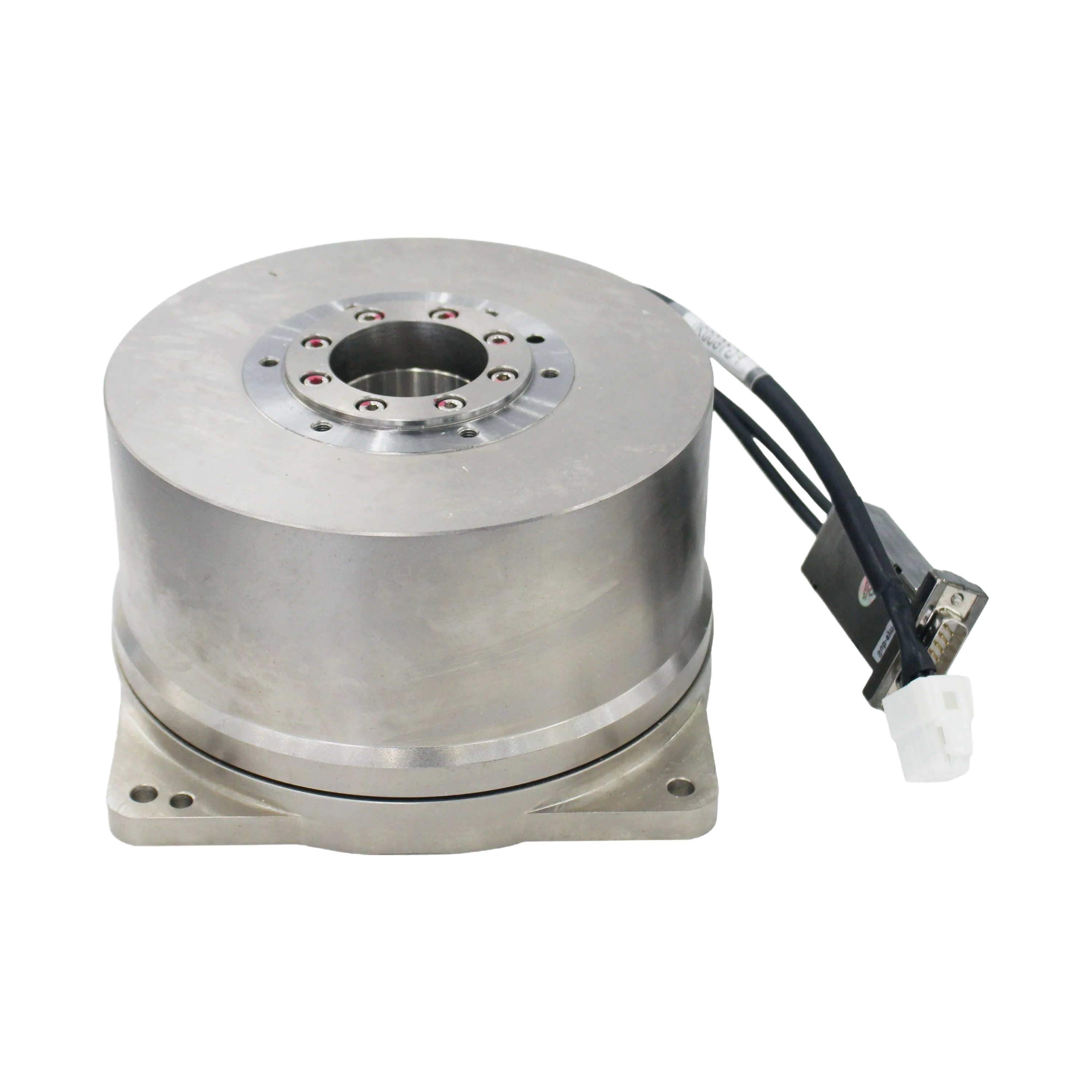

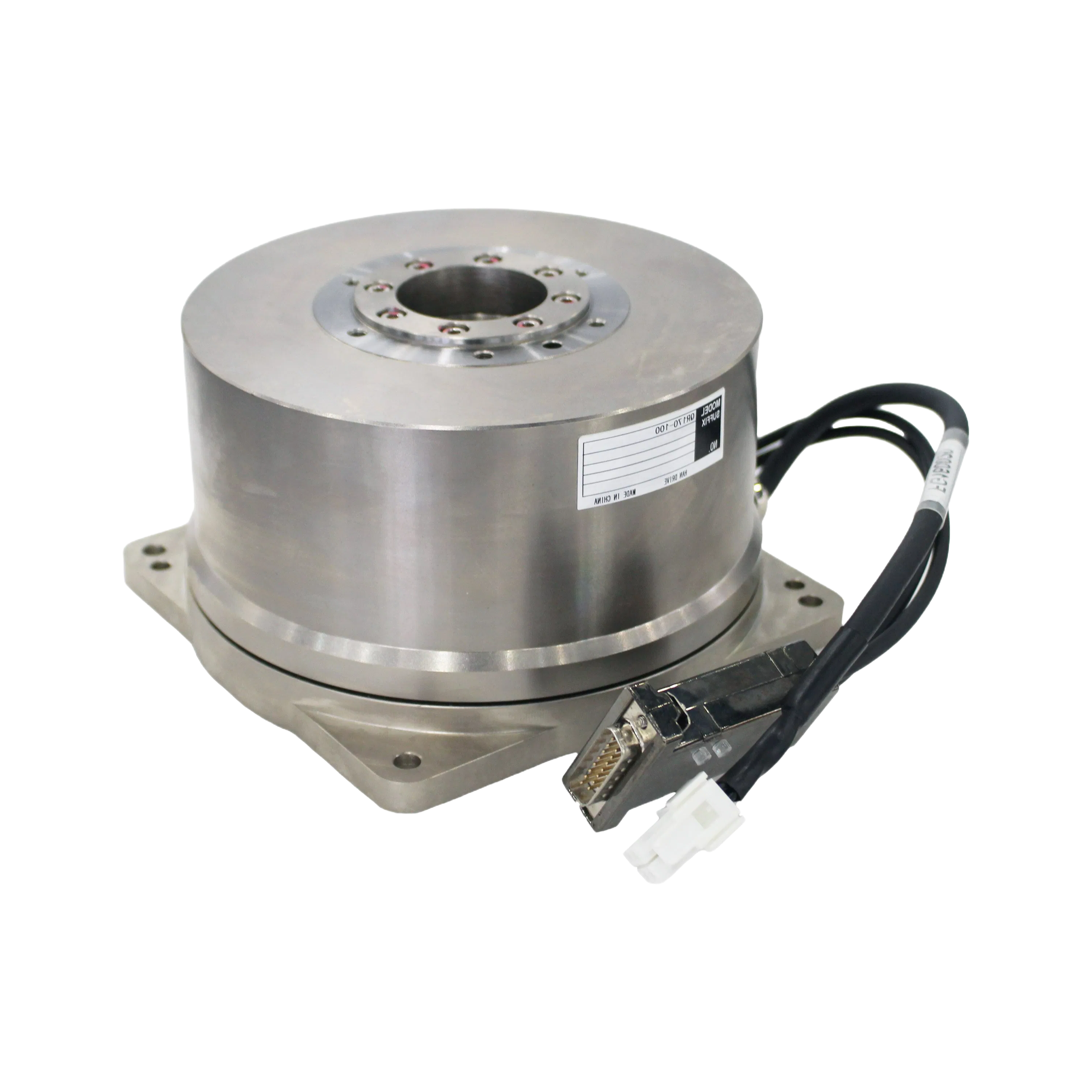

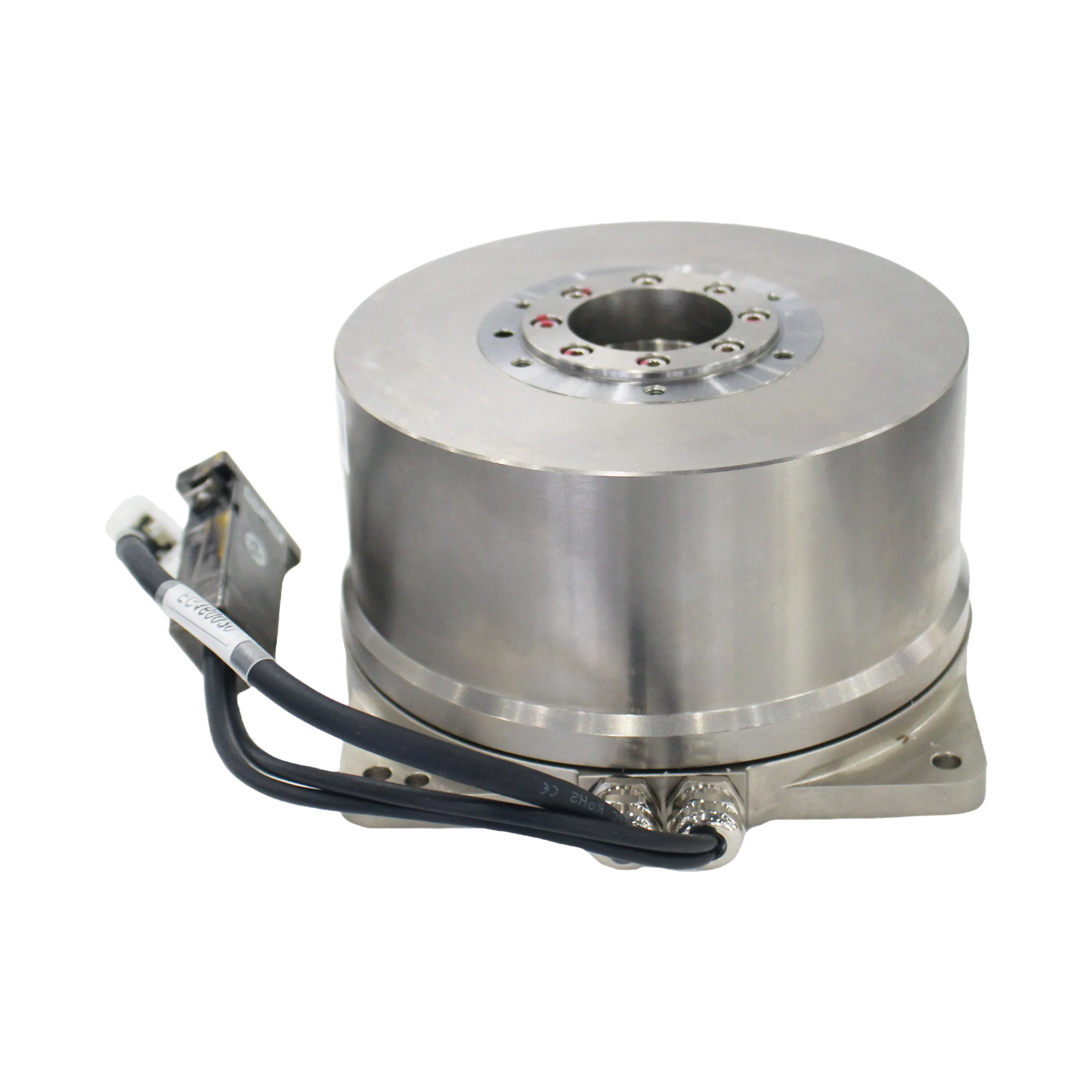

11.6 kilograms is what you're looking at with this direct drive motor, and that rotor inertia of 179 kgcm² tells you it's built for serious stability rather than rapid cycling.
What that high inertia means in practice is you get rock-solid positioning once it's locked in — teh repeatability is ±1.2 arc-sec, which is tighter than most servo-driven systems can manage without a gearbox.
We've seen these go into precision rotary tables and indexing stations mostly, but I wouldn't recommend it for high-speed pick-and-place because the max speed tops out at 4 rps and you'll lose torque fast above 2 rps anyway.
The torque constant is 6.7 Nm/Arms, so if you're running it at 10 amps continuous you'll get about 67 Nm at the shaft — well above the rated continuous 17 Nm — but that peak torque of 45 Nm is where it shines for short bursts.
Most buyers go with the 1536000 pulse/rev encoder for the absolute accuracy of ±10 arc-sec, though the standdard ±26 arc-sec option works fine for less demanding appliction, and we usually have stock on both (check lead time on the higher-grade one).
You'll need a three-phase drive capable of handling back-EMF constant of 572 Vp/(krpm) — that's a bit higher than some similar motors, so confirm your amplifier can take it before ordering, and the axial load capacty is 4200N in the positive direction but only 2200N negative, so mind your mounting orientation.
Our standard MOQ for the QR170-100 is 10 units, but we can go down to 5 for first-time orders or trial runs. Just reach out to us and we'll work something out.
Lead time is usually 4 to 6 weeks from order confirmation, depending on current stock levels. If you need it faster, let us know and we can check our inventory.
Yes, we can provide both ISO9001 and CE certificates upon request. Just ask your sales rep and we'll send them over.
Yes, the 100 Nm radial load capacity is the maximum allowed for reliable operation. Exceeding that may affect performance or cause damage, so we recommend staying within spec.
Store it in a clean, dry place between -20°C and +50°C, away from dust and moisture. Keep it in its original packaging to protect the encoder and bearings.
