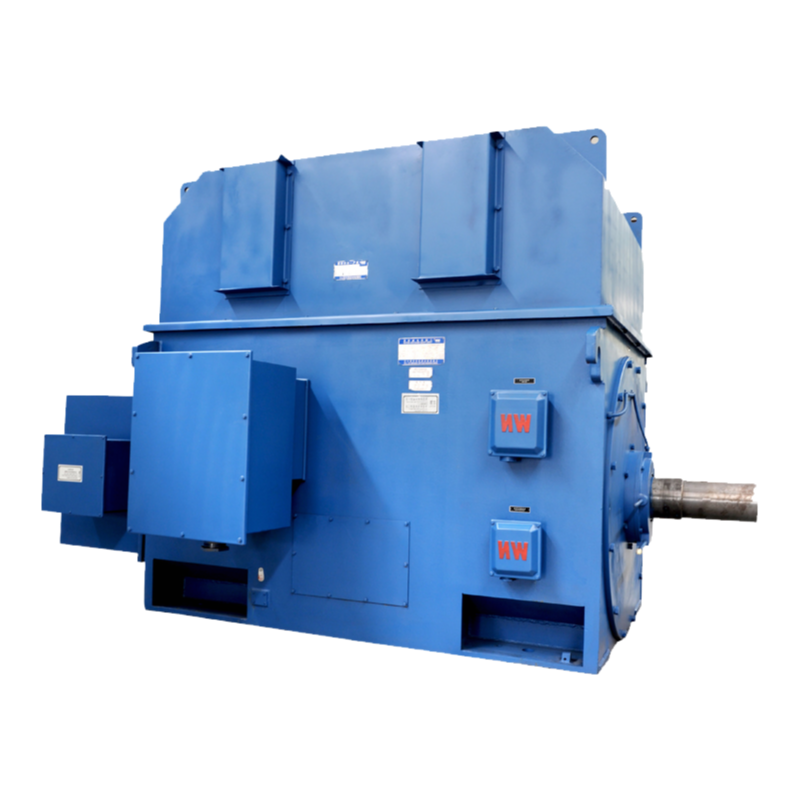

Heavy Duty Industrial AC Motors with IC611/IC81W Cooling for Power Plants

US$ 10000.00 ~ 200000.00
Min.Order: 1
Product origin: Xuancheng, Anhui, China
Category: Electrical Equipment & Supplies
Product Name: Electrical Equipment & Supplies
Availability:In Stock
Product Review : 39 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Series : YTM/YHP/YMPS
  • Application : Coal grinding in power stations
  • Rated Power : 160-1800kW
  • Voltage : 380V/3kV/6kV
  • Frequency : 50Hz/60Hz
  • Frame Size : 400-800mm
  • Insulation Class : F (H available)
  • Protection Degree : IP54
  • Cooling Method : IC611 (IC81W optional)
  • Mounting Type : IMB3
  • Rotor Type : Squirrel cage
  • Bearing Type : Rolling or sleeve bearing
  • Efficiency Level : IE1 to IE4
  • Duty Cycle : S1 (continuous)
  • Terminal Box : IP54 protected
  • Frame Material : Welded steel plate
  • Ambient Temperature : Up to 40°C
  • Altitude : 1000m a.s.l.
  • Certifications : ISO9001, CCC

The YTM/YHP/YMPS series three-phase asynchronous motors are specially designed for coal grinding applications in power stations. These motors comply with GB755, IEC34-1 and JB/T7128-93 standards, ensuring reliable performance in demanding industrial environments.

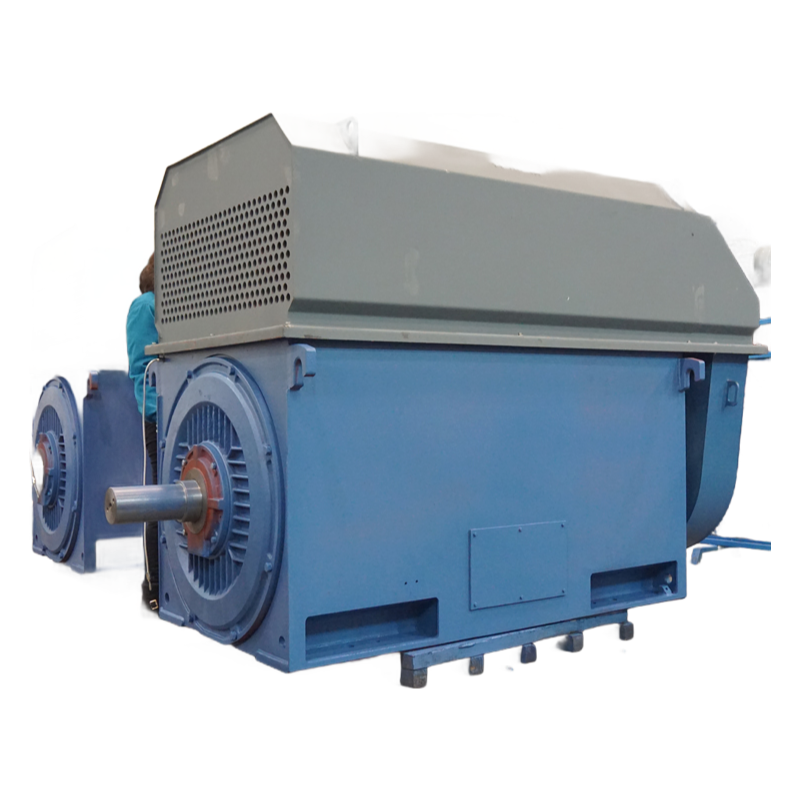

AC motor for coal mill

The motors feature a robust welded steel box structure with excellent rigidity and light weight. The stator adopts an external press-fit structure with Class F insulation and anti-corona materials. The winding ends are securely fixed using special lashing processes, and the entire stator undergoes vacuum pressure impregnation (VPI) treatment for superior insulation properties.

Motor internal structure

These motors offer multiple configuration options including different cooling methods (IC611 air-air cooling or IC81W air-water cooling), bearing types (rolling or friction bearings), and voltage ratings (380V, 3kV or 6kV). The squirrel cage rotor design ensures reliable operation, with copper strip rotors used for higher power specifications.

The main terminal box features IP54 protection and flexible mounting options. The cable entry can be oriented in multiple directions for convenient installation. These motors are characterized by high efficiency, energy saving, low vibration, and easy maintenance.

Motor terminal box

With frame sizes ranging from 400-800mm and power output from 160-1800kW, these motors are ideal for various coal grinding applications including tubular shape coal grinders (YTM series), bowl shape coal grinders (YHP series), and MPS bowl shape coal grinders (YMPS series).
