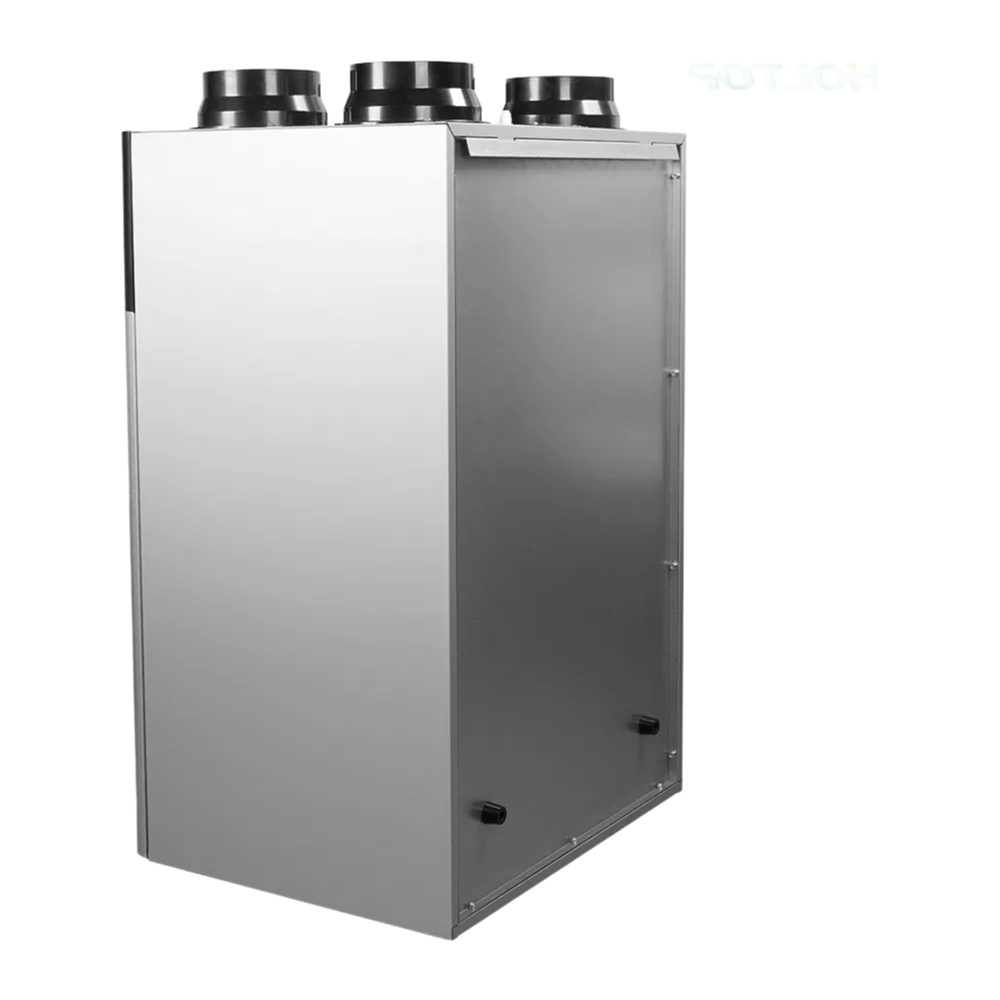

Top Ported Mechanical Ventilation HRV Unit with Washable Counterflow Heat Exchanger

So picture a builder putting an airtight renovation into a row house where every window is triple-glazed and the walls are wrapped tight, they need to keep teh air fresh without throwing all the heat out the window—this is exactly the box they'd call you about, the one that swaps stale indoor air for filtered outdoor air while capturing up to 95% of the indoor heat in the process.

We've been moving these units for a few years now, mostly to contractors who are sick of dealing with ductwork that's too big for tight ceiling spaces, and the top-ported design makes it pretty much a no-fuss fit for mechanicla rooms or even a hallway ceiling, though you'll want to check the floor-standing option if there's no overhead space at all.

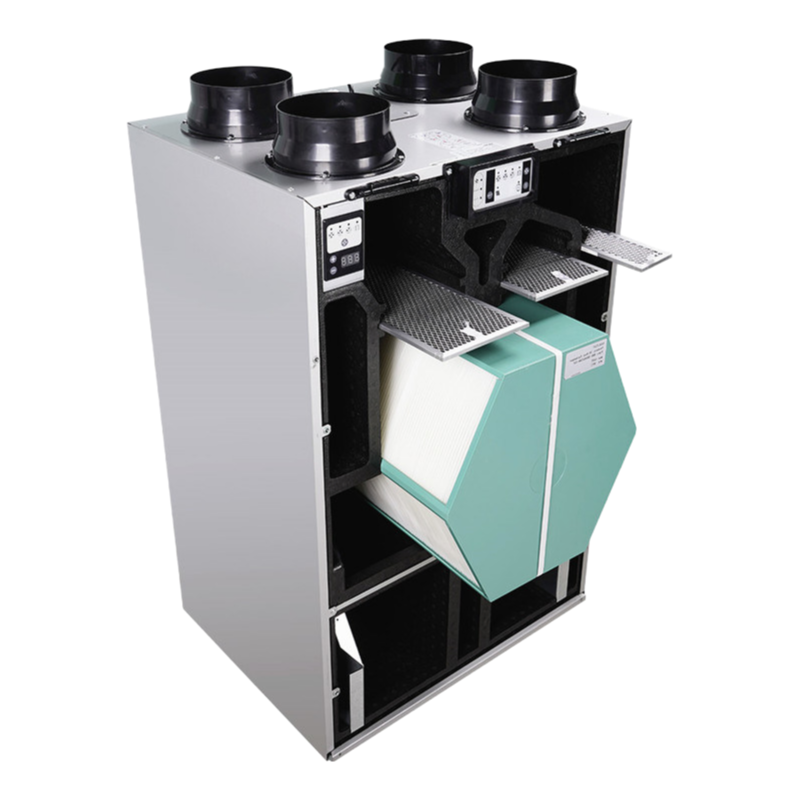

The washable counterflow exchanger is the real difference here—most buyers don't realize you can rinse it out under a hose every few months instead of replacing a paper-core unit every other year, and that alone saves them at least a couple hundred in parts over the life of a typical install, but the trade-off is you need to remember to actually do the cleaning or efficiency drops off noticeably.

350 cubic meters per hour is the standerd spec, but we've found that for a three-bedroom house with four people the 500CMH option handles peak loads better, and the EC fan keeps the noise down to about the level of a refrigerator hum so you can put it in a bedroom without complaints, though the auto-bypass function kicks in when outdoor temps are mild to save energy.

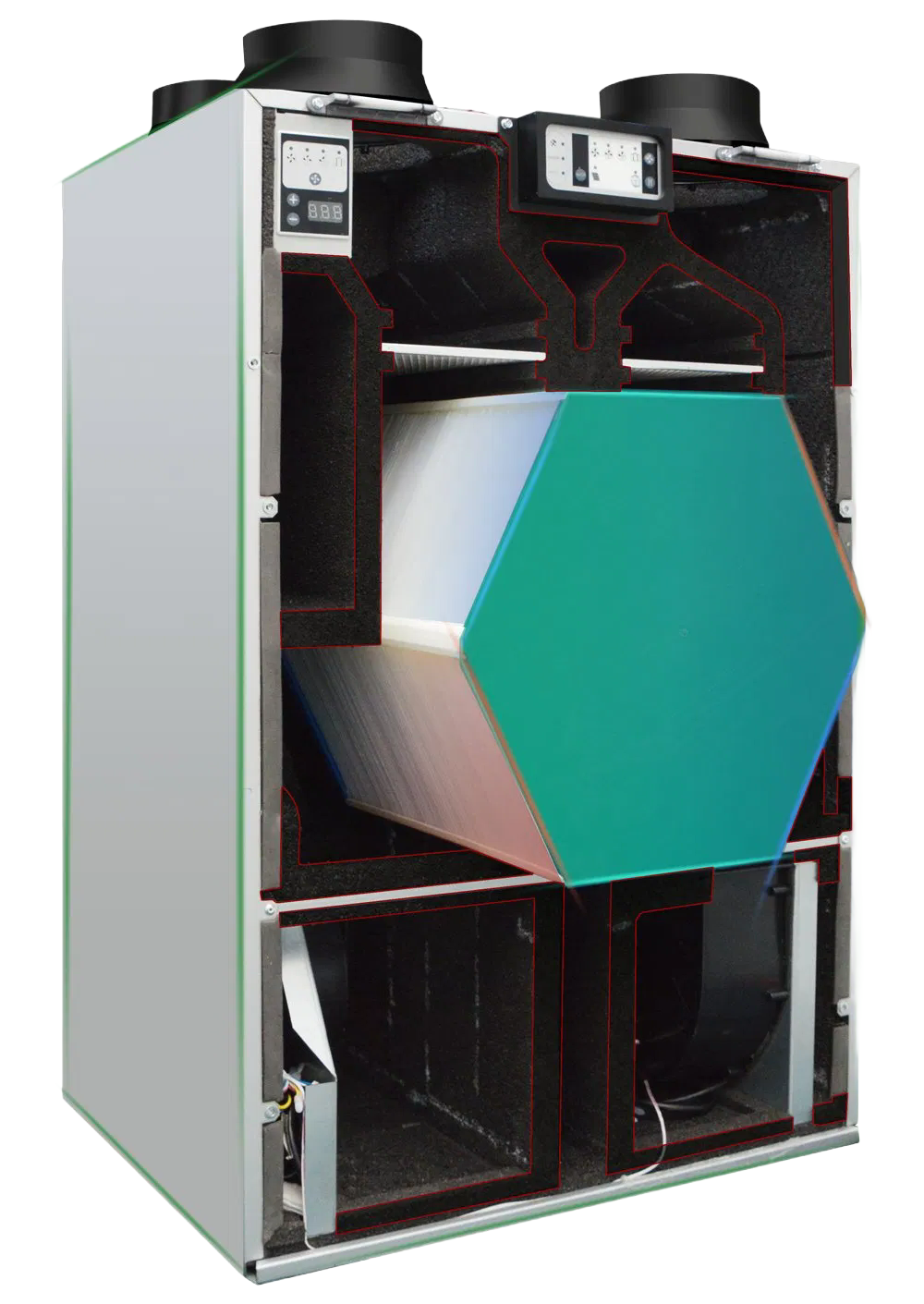

One thing that catches people off guard is the internal structure is all EPP foam, not metal, which actually dampens vibration better than steel and doesn't corrode over time—it's also lighter so you can wall-mount it without beefy brackets, but the downside is you can't stack anything on top of it if you're using the floor-standing kit, just something to note for tight utility closets.

The CO2 monitoring and constant airflow function are usually what more technically-minded buyers ask for after they've seen the basic specs, and while we stock the WiFi module separately (usually 2-4 weeks lead time), the double body panel gives you full control right on the unit itself without needing to pair anything, which most installers actually prefer for quick commissioning.
