PA-700B ICU Ventilator Medical Equipment for Hospital Respiratory Support with CE Certification

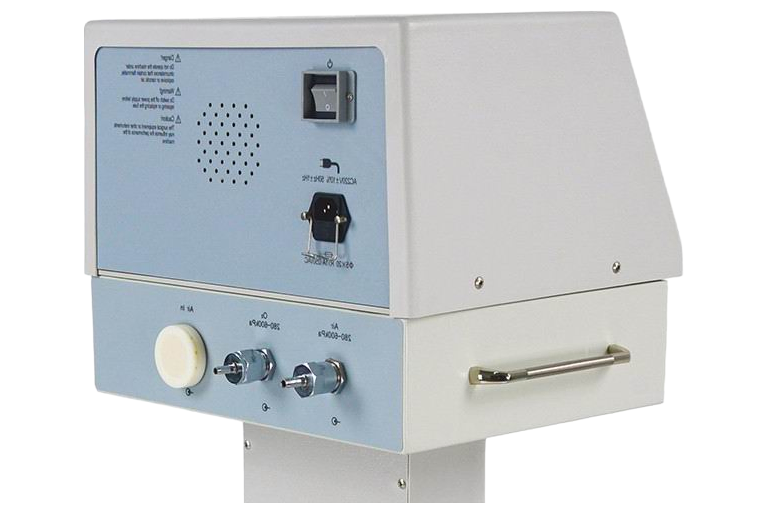

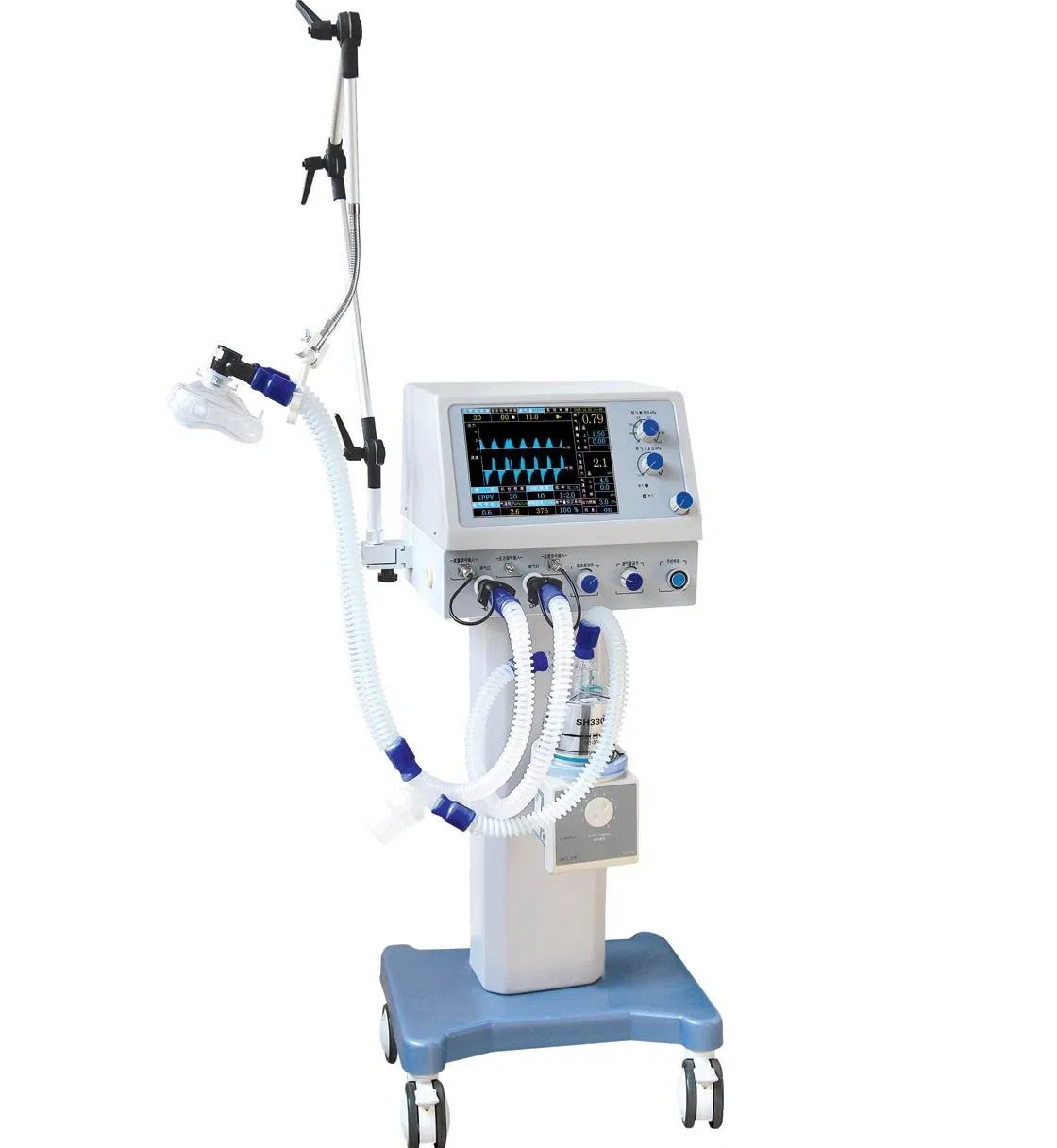

The PA-700B ICU Ventilator is a pneumatically driven, electronically controlled medical device designed for emergency clinical resuscitation and respiratory therapy in hospital settings. This ventilator features a non-hazardous, environmentally friendly frame with precise construction and elegant design.

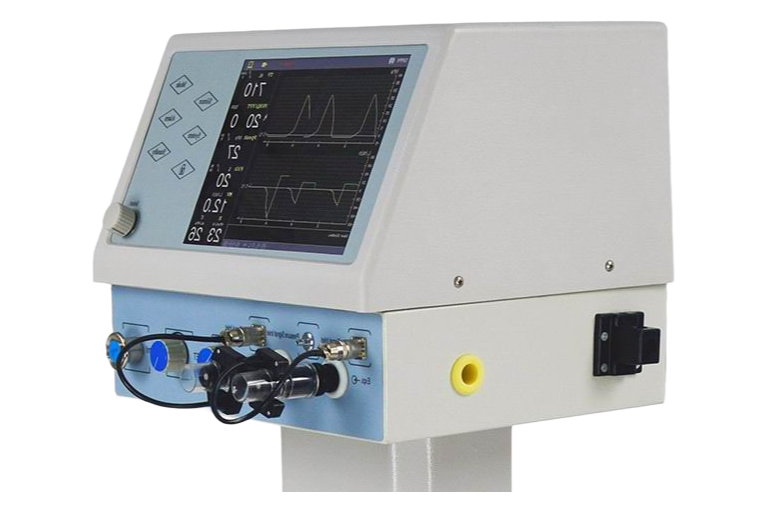

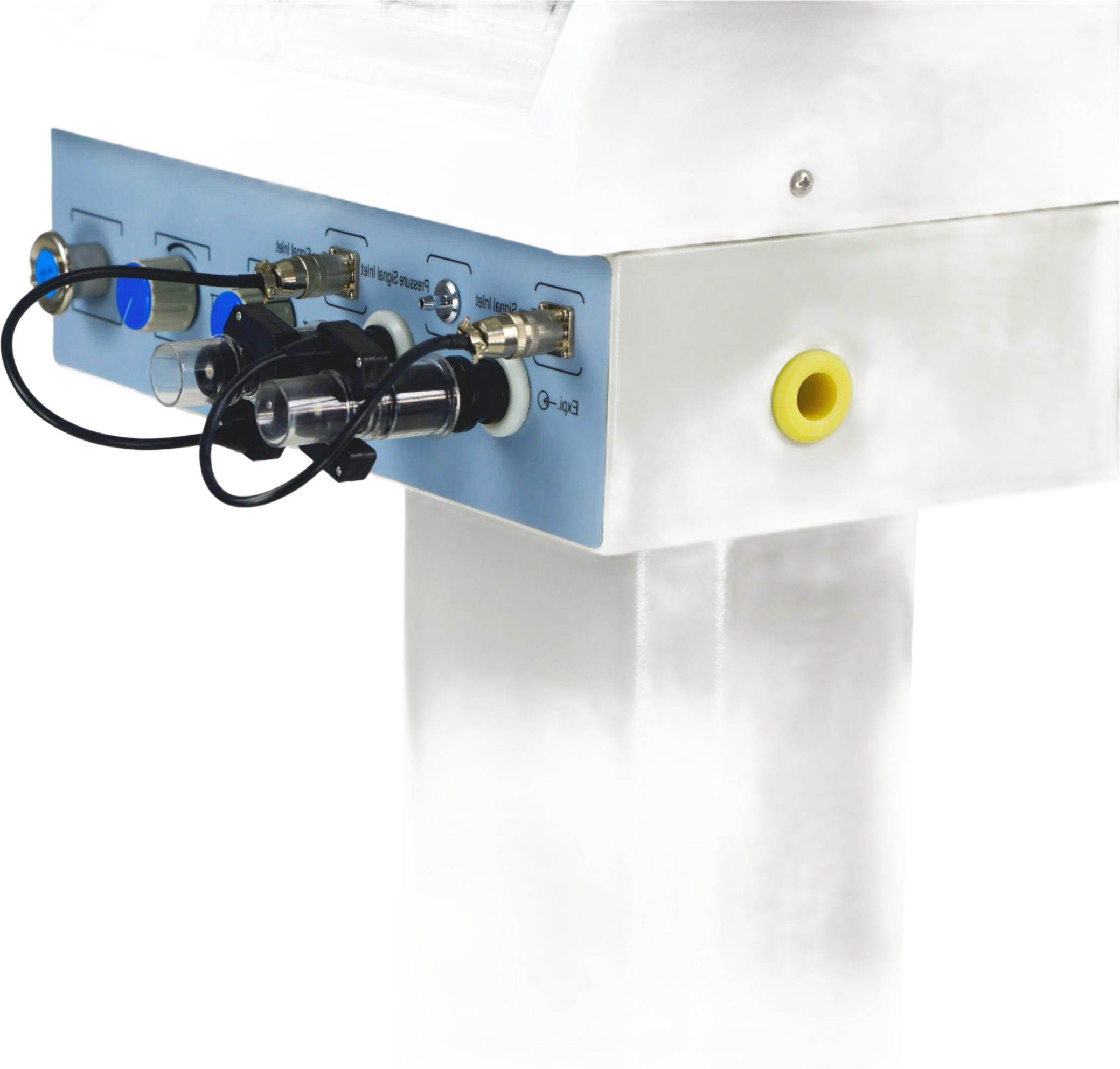

Equipped with a built-in 10.4 inch high visibility color TFT display, the ventilator can simultaneously display Pressure-Time and Frequency-Time waveforms in real time for accurate monitoring. The system includes an infrared turbine flow sensor for precise gas flow measurement and stable operation.

The ventilator offers multiple operating modes including A/C, SIPPV, IPPV, SIMV, PSIMV, PEEP, and SPONT MANUAL. It features adjustable tidal volume from 50-1500ml and respiratory rate from 1-99bpm, making it suitable for adult, child, and infant patients.

Advanced safety features include comprehensive alarms for ventilation volume, tidal volume, oxygen concentration, asphyxia, airway pressure, and power failure. The system also includes an alarm history query function for better patient monitoring.

The professional medical grade air compressor is designed for long clinical use with low noise operation. It provides continuous output gas flow ≥20L/min and instantaneous output gas flow ≥60L/min for reliable performance.

With power failure support functions, the ventilator automatically converts to standby mode during AC power outages, ensuring continuous respiratory support. The 9-level adjustable humidifier enhances patient comfort during treatment.
