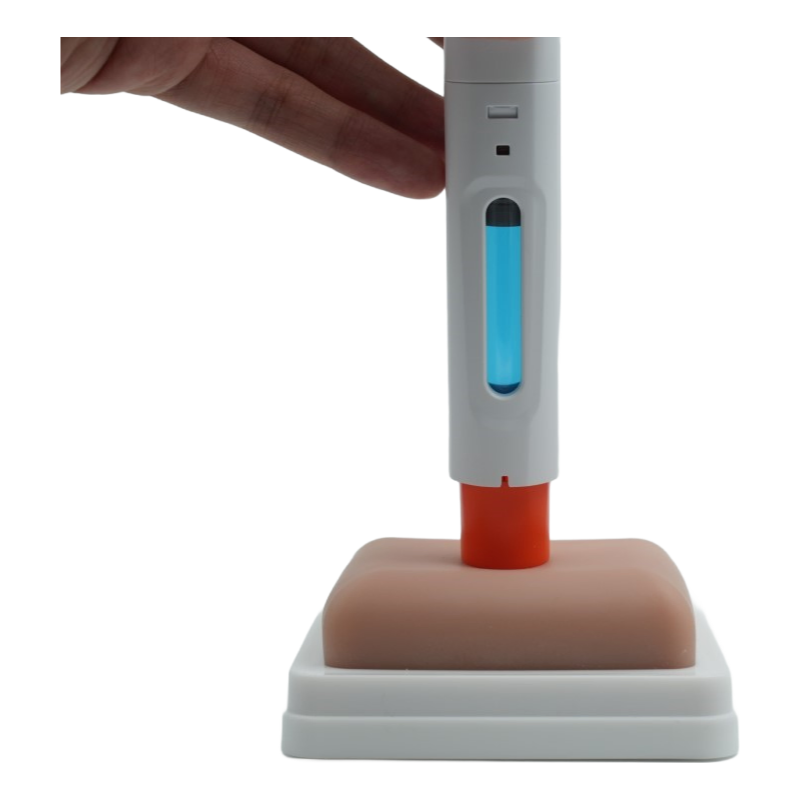

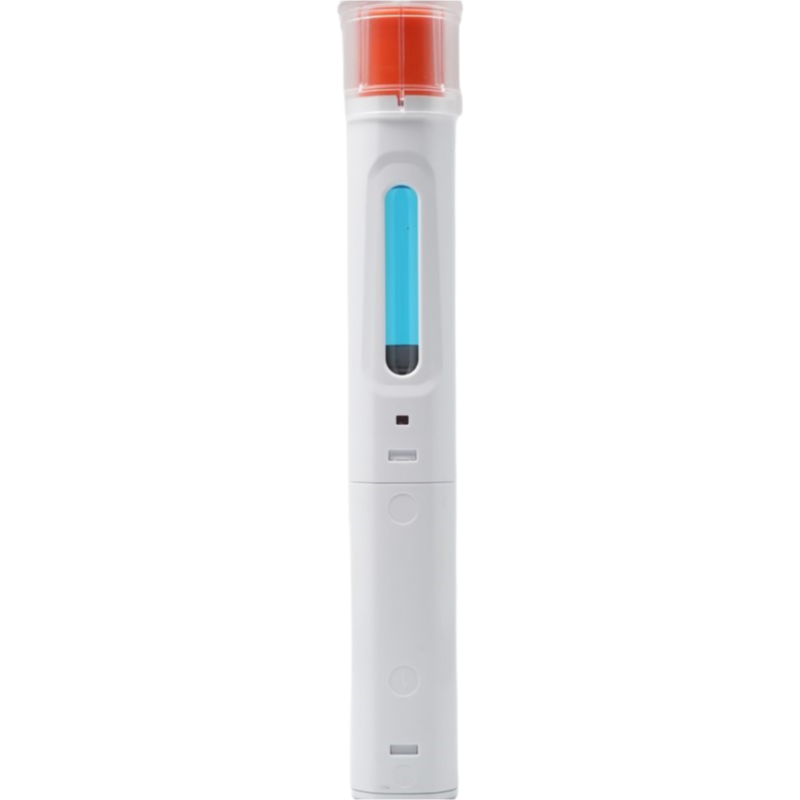

The Smart Eco-Friendly Multi-Dose Injection Pen is an innovative medical device designed for precise subcutaneous medication delivery. This disposable autoinjector features a permanently hidden needle system with passive locking needle cover for enhanced safety.
Key Features:
1. Simplified two-step activation process with needle cover activation mechanism
2. Multi-sensory feedback system (audible click, visual indicator, and tactile confirmation)
3. Ultra-compact ergonomic design for one-handed operation

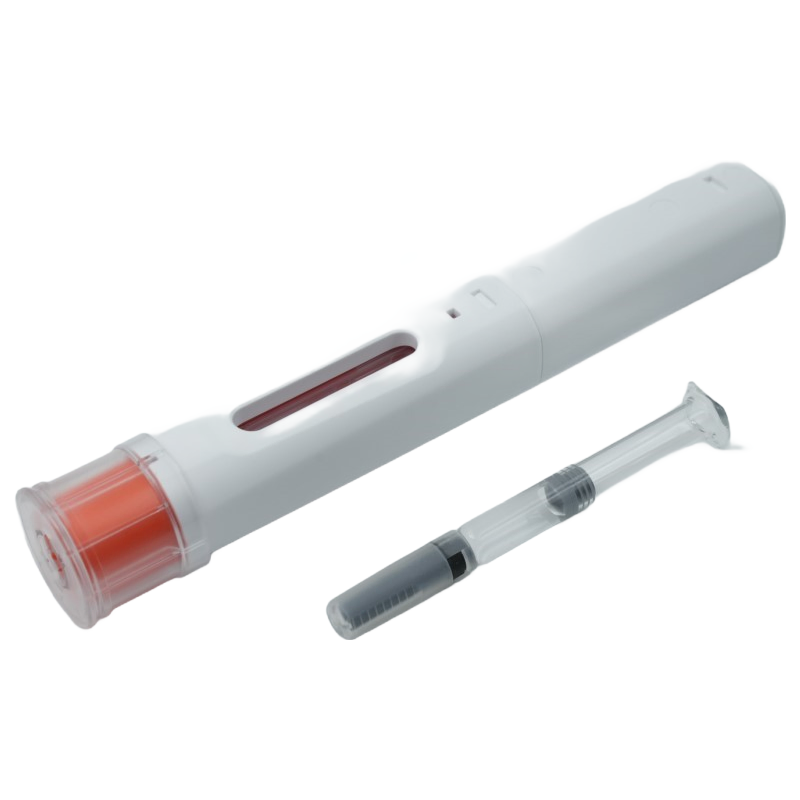

4. Compatible with standard 1ml and 2.25ml prefilled syringes
5. Customizable injection time and depth parameters (standard 6±2mm depth)
6. Supports medications with viscosity ≤20cP
7. Works with 27G-29G needle sizes or smaller
Clinical Applications:
This injection pen platform is suitable for various therapeutic areas including diabetes management (insulin and GLP-1 peptide delivery), growth hormone therapy, osteoporosis treatment, and autoimmune conditions. The device is particularly effective for medications requiring subcutaneous administration with precise dosing control.
Technical Specifications:
The injection pen features a durable plastic construction with customizable exterior dimensions. The compact design measures 18×18×145mm for the 1ml version and 18×18×159.2mm for the 2.25ml configuration. The device provides visual and auditory confirmation of complete dose administration.
