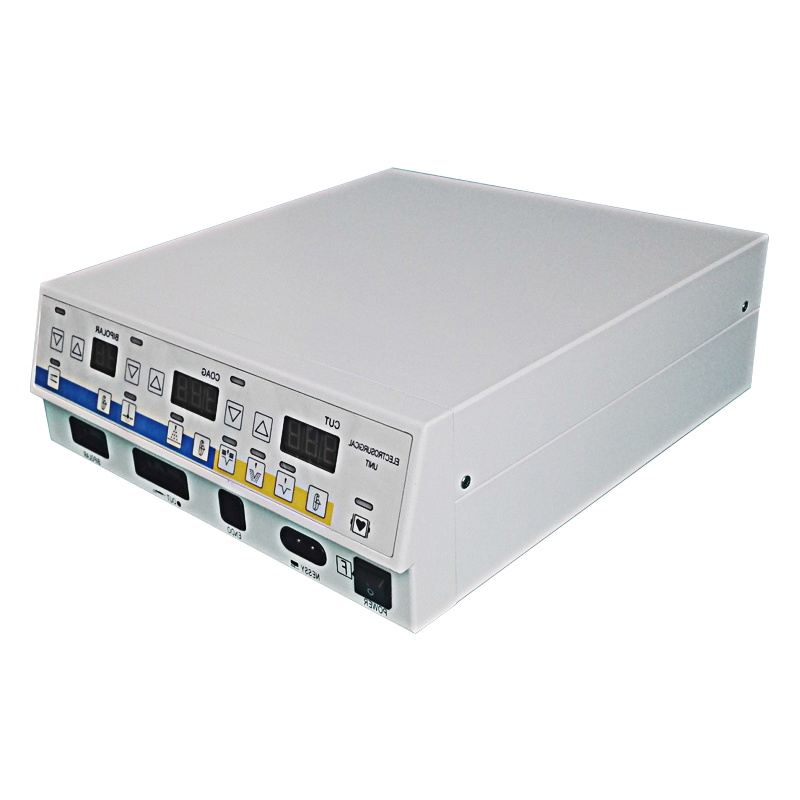

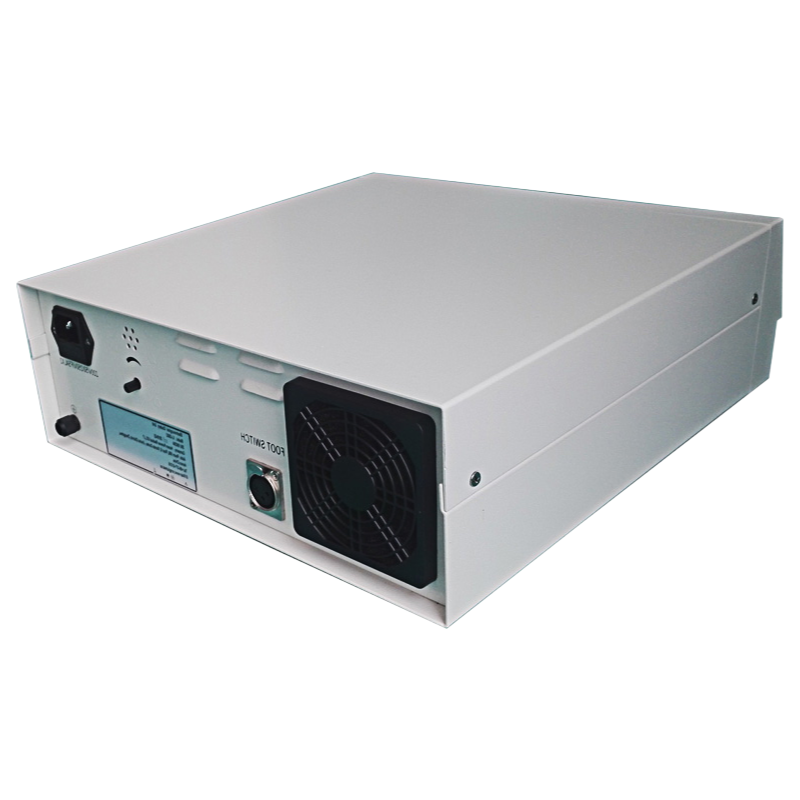

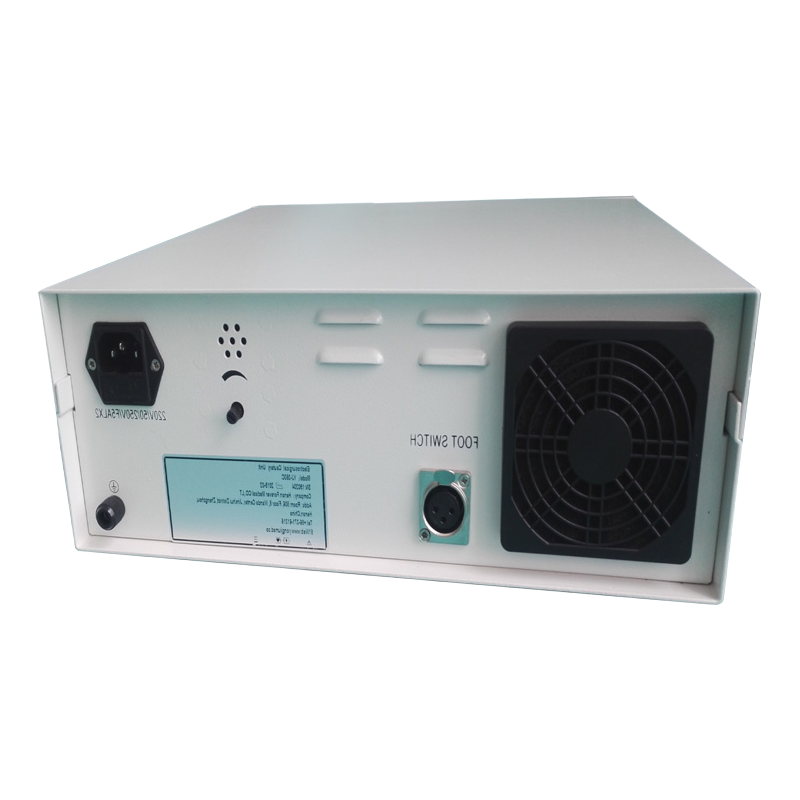

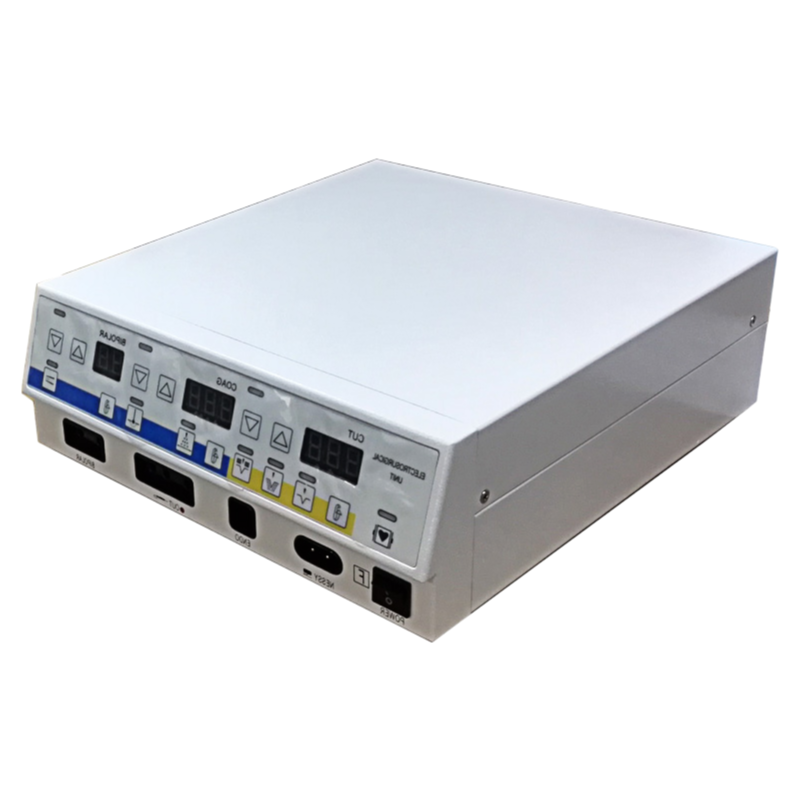

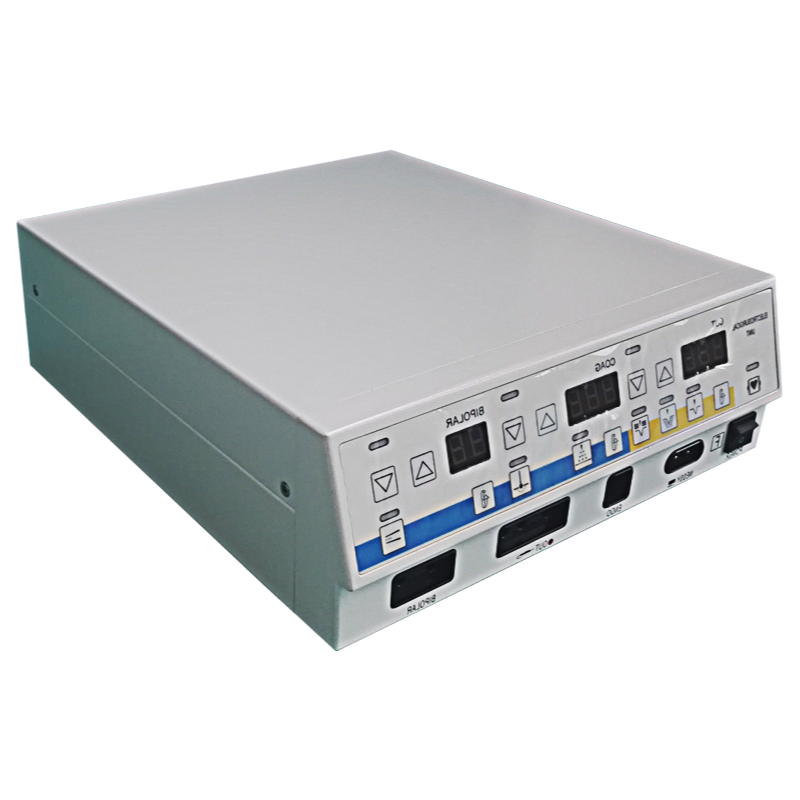

Medical Grade Electrosurgical Knife System with Bipolar Coagulation 50W Output

The high frequency electrosurgical knife system is designed for precision surgical procedures across multiple specialties. This advanced medical device features a sophisticated neutral electrode contact inspection system that continuously monitors the effective contact area between the electrode and patient's skin. When unsafe conditions are detected, the system automatically cuts power and provides both visual and audible alarms.

The unit offers six distinct output modes to accommodate various surgical requirements: Pure Cut (400W) for clean tissue division, Blend 1 (250W) for combined cutting and coagulation, Blend 2 (200W) for endoscopic procedures, Electro Coag 1 (100W) for deep coagulation, Electro Coag 2 (80W) for surface coagulation, and Bipolar Coag (50W) for rapid hemostasis.

Technical specifications include an operating frequency range of 330-460kHz, rated power of 880VA±10%, and power consumption under 1100VA during maximum cutting operation. The device operates within an ambient temperature range of 5°C to 40°C with relative humidity ≤80%.

The system comes complete with dual foot switches, ESU pencils, disposable electrodes, bipolar forceps with dedicated cable, electrode cable, power cord, and comprehensive documentation including user manual and guarantee card.

This electrosurgical generator is suitable for general surgery, thoracic procedures, orthopedic operations, OB/GYN interventions, urologic surgeries, neurosurgery, microsurgery, and ENT procedures. Its versatile output modes allow surgeons to select the optimal energy delivery for each specific tissue type and surgical objective.
