The Jinling-850 Advanced Anesthesia Machine represents the latest in medical anesthesia technology, designed for precision and reliability in surgical environments. This pneumatically driven and electronically controlled system offers multiple operating modes including closed, semi-closed and semi-open configurations to accommodate various clinical requirements.
Equipped with a built-in 10.4 inch color TFT display, the anesthesia ventilator provides comprehensive waveform monitoring including Pressure-Time, Frequency-Time, Pressure-Volume and Frequency-Volume displays. The intuitive interface allows medical professionals to cycle through displayed waveforms instantly with simple touch controls.
The system features a standard integrated metallic modular respiratory circuit that completely solves gas sealing problems during high temperature disinfection while maintaining easy cleaning and disinfection protocols. Advanced safety features include automatic conversion to backup power mode during AC power outages, ensuring continuous operation.
Precision gas delivery is achieved through an electronic pressure differential flow sensor and imported respiratory control valve, providing stable and reliable performance with rapid response times. The high precision five tube flowmeter includes interlocking oxygen-nitrous oxide supply to guarantee oxygen output never falls below 21%.
The anesthesia machine's environmentally friendly frame features precise construction and elegant design, with automated self-checking functions during startup and automatic self-calibrating sensors. Comprehensive alarm systems monitor tidal volume, airway pressure, oxygen concentration, asphyxia, power failure and oxygen failure conditions with both audible and visual alerts.

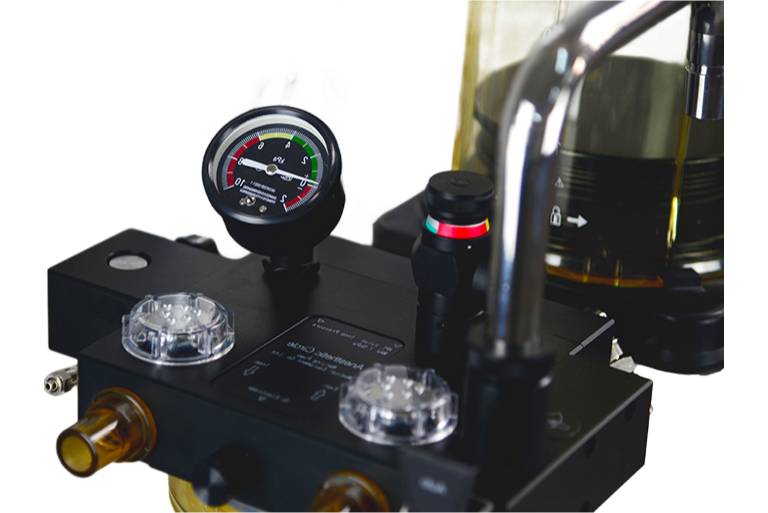

Vaporizer options include imported tank components assembled locally for Enflurane, Isoflurane and Sevoflurane (with Halothane optional), all featuring self-compensating functionality. The system's advanced Adjustable Pressure Limiting (APL) valve makes it suitable for both low and ultra low flow anesthesia applications.

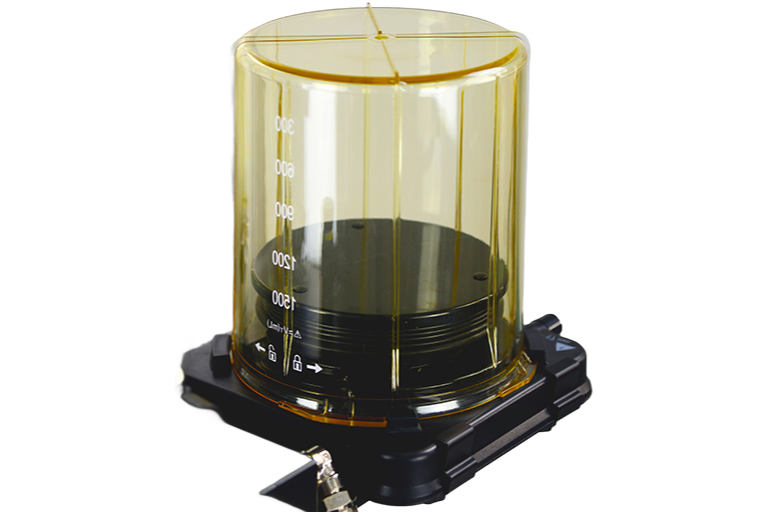

Operation is further enhanced by an international rotating Na-lime tank design that requires only one hand to operate, constructed from imported PPSU material resistant to temperatures up to 134°C. The machine supports optional multi-parameter patient monitoring for comprehensive clinical oversight.
