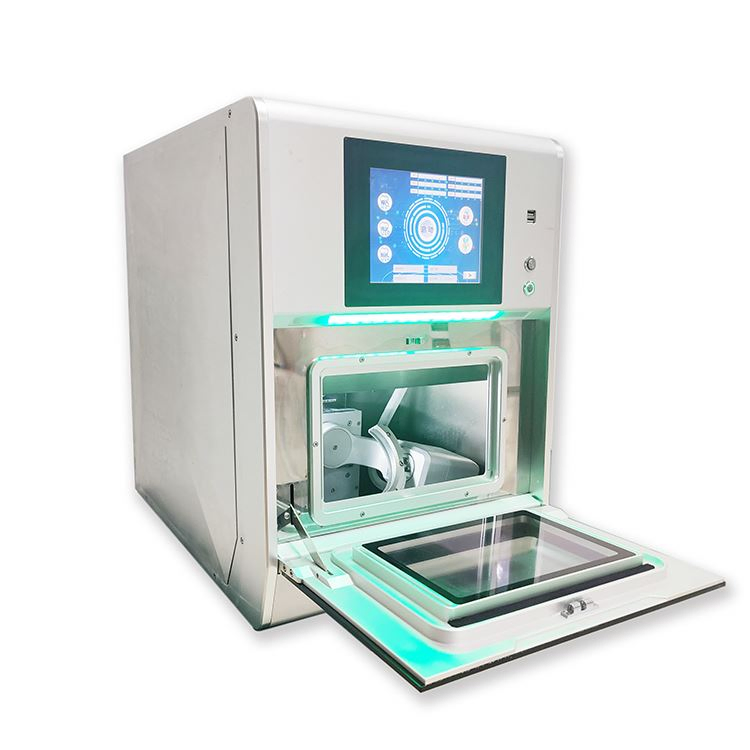

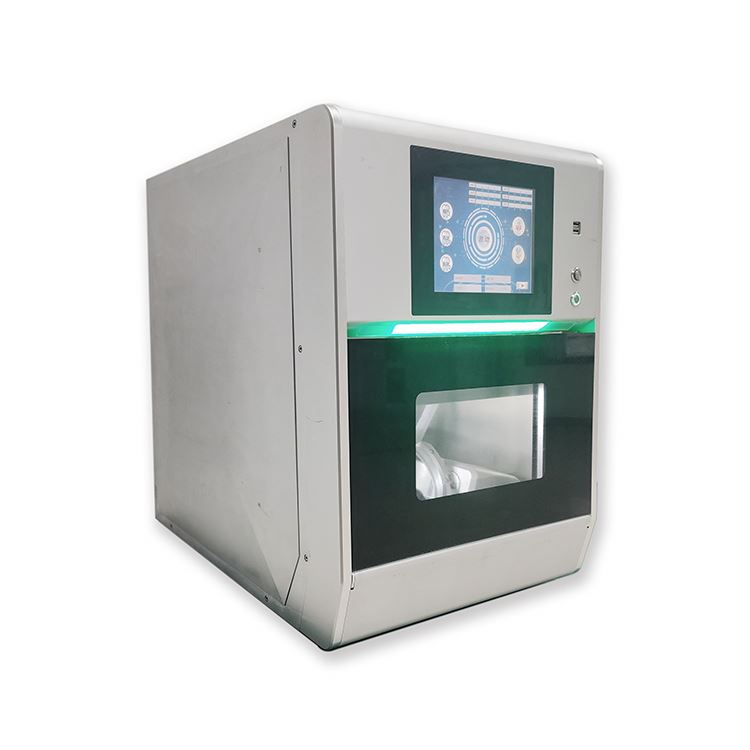

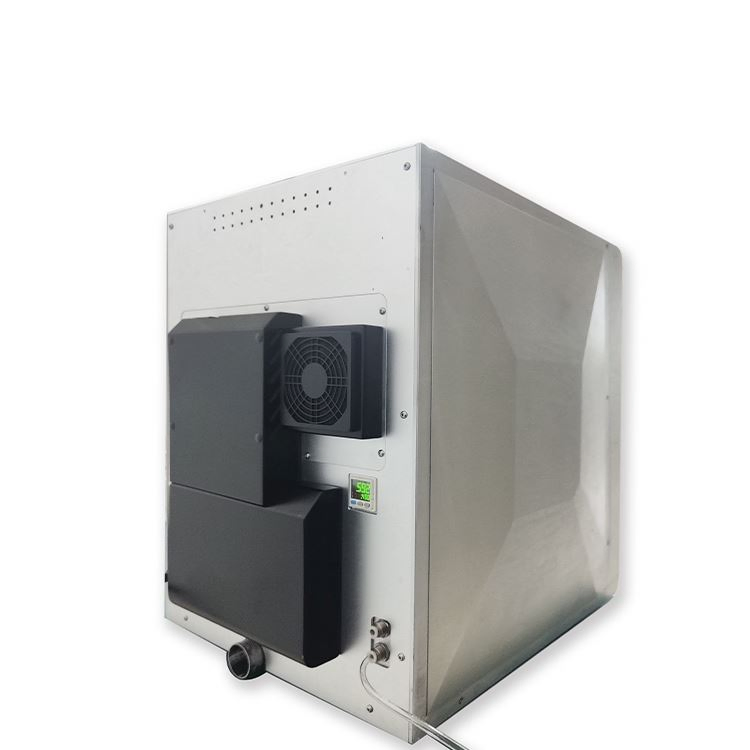

High-Precision 5-Axis Dental Milling Machine for Zirconia Ceramics and PMMA Materials

Labs keep running into teh same bottleneck — getting a consistent finish on zirconia without chipping or burning, especially with complex geometries like full-contour bridges. We’ve seen it a hundred times where a 4-axis just can’t hit undercuts or internal angles. What the DDM-5A does is let you mill those tricky spots in one setup, no flipping or repositioning, and the spindle ramps from 15,000 to 60,000 RPM depending on the matrial, so you’re not guessing feed rates.

Positioning accuracy is 3μm, which is tighter than most chairside units we’ve tested, and that matters when you’re seating a crown with marginal gaps under 50 microns. It handles wet and dry milling — wet for zirconia blocks to keep dust down and tool wear minimal, dry for PMMA or wax when you’re doing temp restorations. Bur sizes go from 0.3mm for fine detail work up to 2.0mm for bulk removal, and the automatic tool changer swaps them in about 3 seconds (pneumatic, no manual fiddling). The block changer is tool-free too, so you can switch form a 98mm zirconia puck to a PMMA disc without reaching for a wrench.

One thing most buyers don’t ask about is the air supply — it needs oil-free air at 4.5 to 6.0 bar, and if your compressor has any oil residue, it’ll gum up the spindle bearings within a few months. We usually recommend a dedicated dryer or filter if you’re running it in a busy lab. Also, the rotation angles are A:360° and B:25°, which gives you enough tilt for most implant cases but not for full-arch splints with extreme undercuts — that’s a different machine.

Power is standerd 220V, 50/60Hz, so it’ll work in most countries without a transformer, and data transmission can be wired, wireless, or USB — basically whatever your scanner or software prefers. It’s 95kg, which is heavy enough to absorb vibration but still fits on a benchtop if you’ve got the space (415×588×578mm). Operating temp is 20-40°C, so keep it out of direct sunlight or near a furnace.

Anyway, most labs our company supply go with the wet milling setup for zirconia and switch to dry for PMMA — the dual mode is pretty much essential if you’re doing both materials regularly. It’s not suited for titanium or cobalt-chrome though; those need a different spindle and coolant system.
