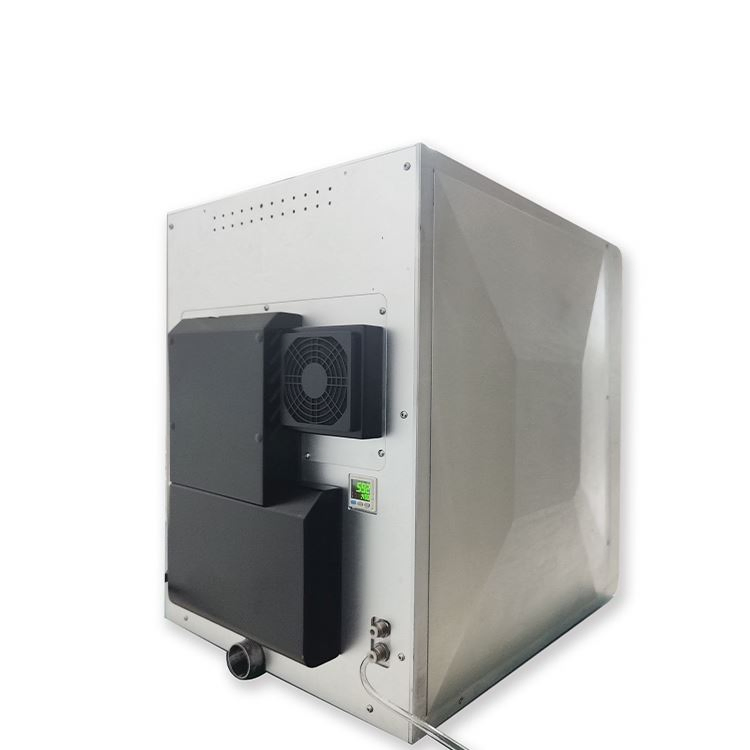

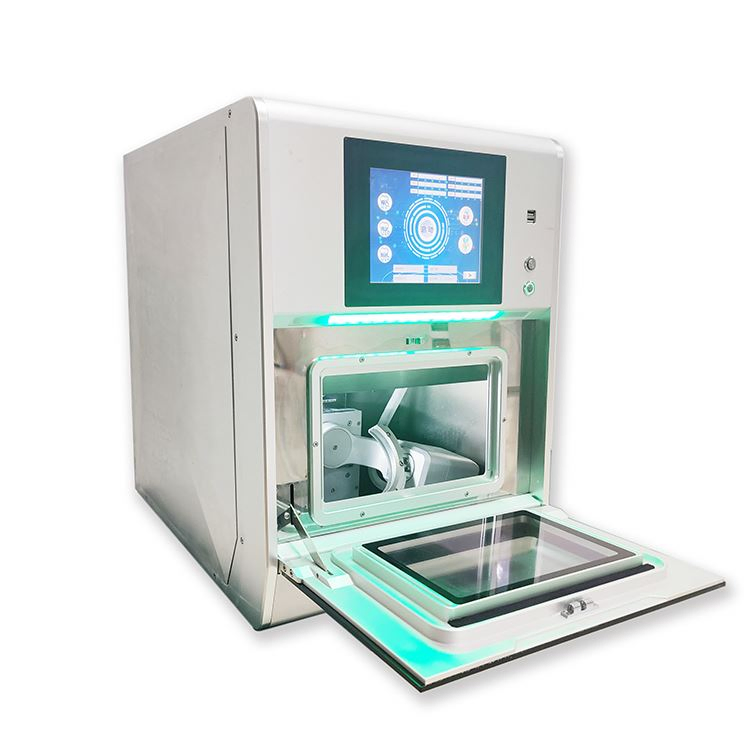

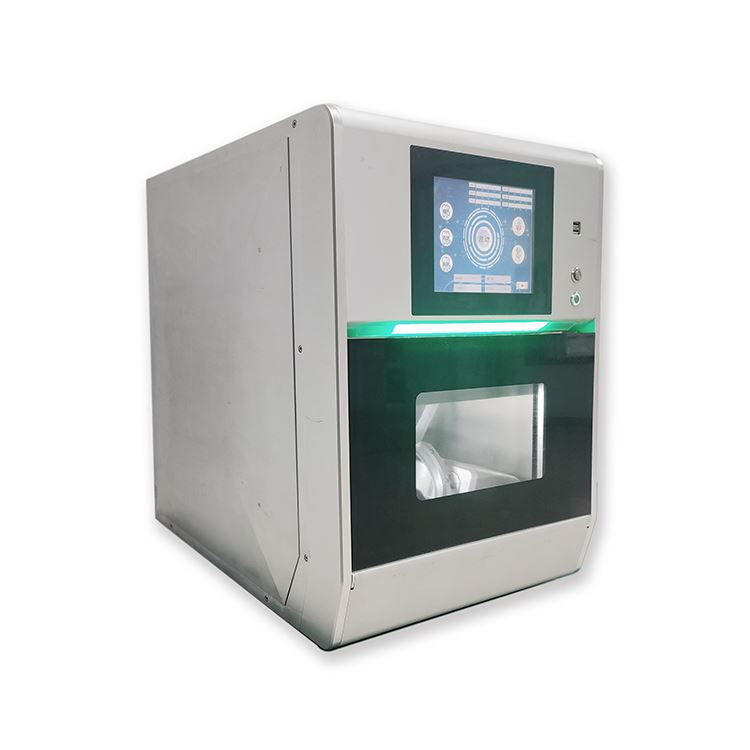

The DDM-5A dental milling machine represents advanced CAD/CAM technology for both dental clinics and laboratories. This 5-axis milling system delivers exceptional precision for fabricating crowns, bridges, veneers, inlays/onlays, and surgical guides with micron-level accuracy.
Equipped with a high-performance spindle reaching 60,000 RPM, the machine maintains stability through its substantial 95kg weight, minimizing vibration during operation. The dual wet/dry milling capability allows processing of diverse materials including zirconia, PMMA, wax, feldspar ceramics, and lithium-based ceramics.
Key features include 3μm repeatability, large-angle cutting capability, and automatic tool changing system. The machine supports multiple data transfer methods including wired, wireless, and USB connections for seamless workflow integration.
With its compact footprint (415×588×578mm) and 220V power requirement, the DDM-5A is suitable for both chairside and laboratory applications. The oil-free pneumatic system operates at 4.5-6.0 Bar pressure, while the temperature-controlled environment ensures consistent performance.
The milling system accommodates various bur sizes (0.3mm, 0.6mm, 1.0mm, 2.0mm) for detailed work including ultra-thin 0.3mm veneers. Its 360° rotation and 25° tilt capability enable complex geometries and undercuts in restorations.
