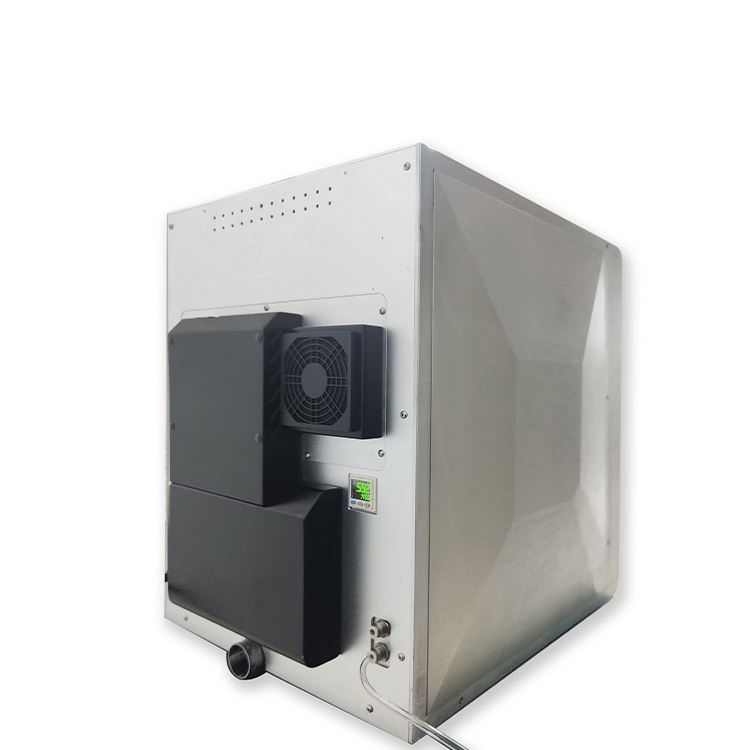

4-Axis Dental CAD/CAM Milling Machine for Zirconia PMMA Wax and Ceramics - DDM-5A Model

The 4-Axis Dental CAD/CAM Milling Machine (Model DDM-5A) is a professional-grade dental milling solution designed for both dental laboratories and chairside applications. This versatile machine combines high precision with flexible operation to meet various dental restoration needs.

Key Features:

1. Multi-Material Compatibility - Capable of milling zirconia, PMMA, wax, hybrid materials, feldspar-type ceramics, and lithium-based ceramics with exceptional precision.

2. Dual Milling Modes - Supports both wet and dry milling processes, making it suitable for different material requirements and clinical applications.

3. High-Speed Spindle - Powerful spindle with variable speed from 15,000 to 60,000 RPM ensures efficient material removal and smooth surface finishes.

4. Precision Engineering - Delivers 3μm repeatability and large angle cutting capability for complex dental restorations including crowns, bridges, veneers and implant components.

Technical Specifications:

- Spindle Speed: 15,000-60,000 RPM

- Repeatability: 3μm

- Rotation Angle: A-axis 360°, B-axis 25°

- Bur Diameters: 0.3mm, 0.6mm, 1.0mm, 2.0mm

- Power Requirements: 220V/50-60Hz

- Air Pressure: 4.5-6.0 Bar (oil-free & water-free)

- Dimensions: 415×588×578mm

- Weight: 95kg (heavy-duty construction minimizes vibration)

Applications:

This dental milling system is ideal for creating:

- Full crowns and inner crowns

- Bridges up to 3-4 units

- Veneers as thin as 0.3mm

- Inlays/onlays

- Implant restorations

- Surgical guides

Operation Features:

- Intelligent lighting warning system

- Multiple data transmission options (wired, wireless, USB)

- Automatic tool changing system

- Stable heavy-duty frame reduces vibration

The DDM-5A model represents an excellent balance of precision, versatility and reliability for dental professionals seeking to enhance their digital workflow with efficient chairside or lab-based milling capabilities.
