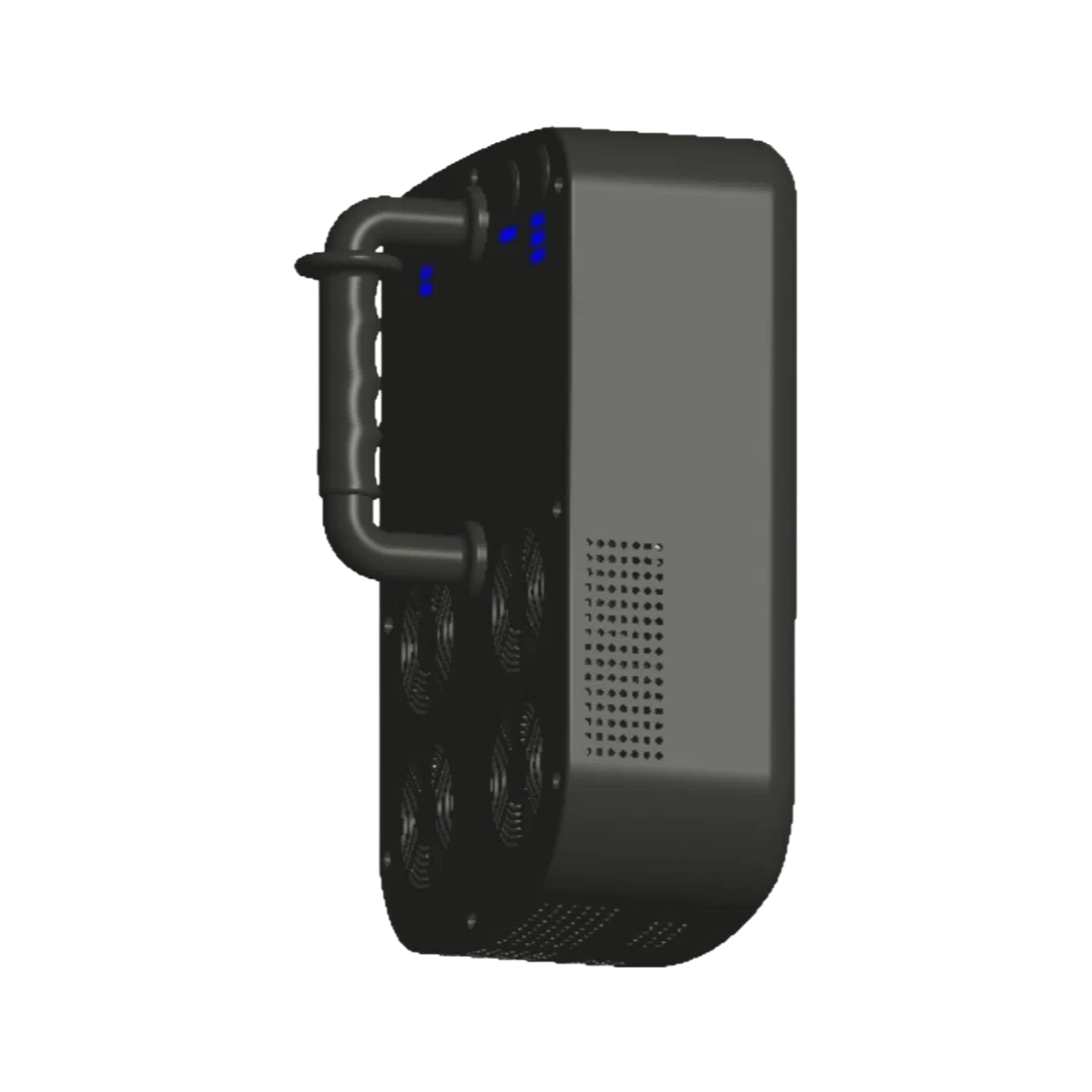

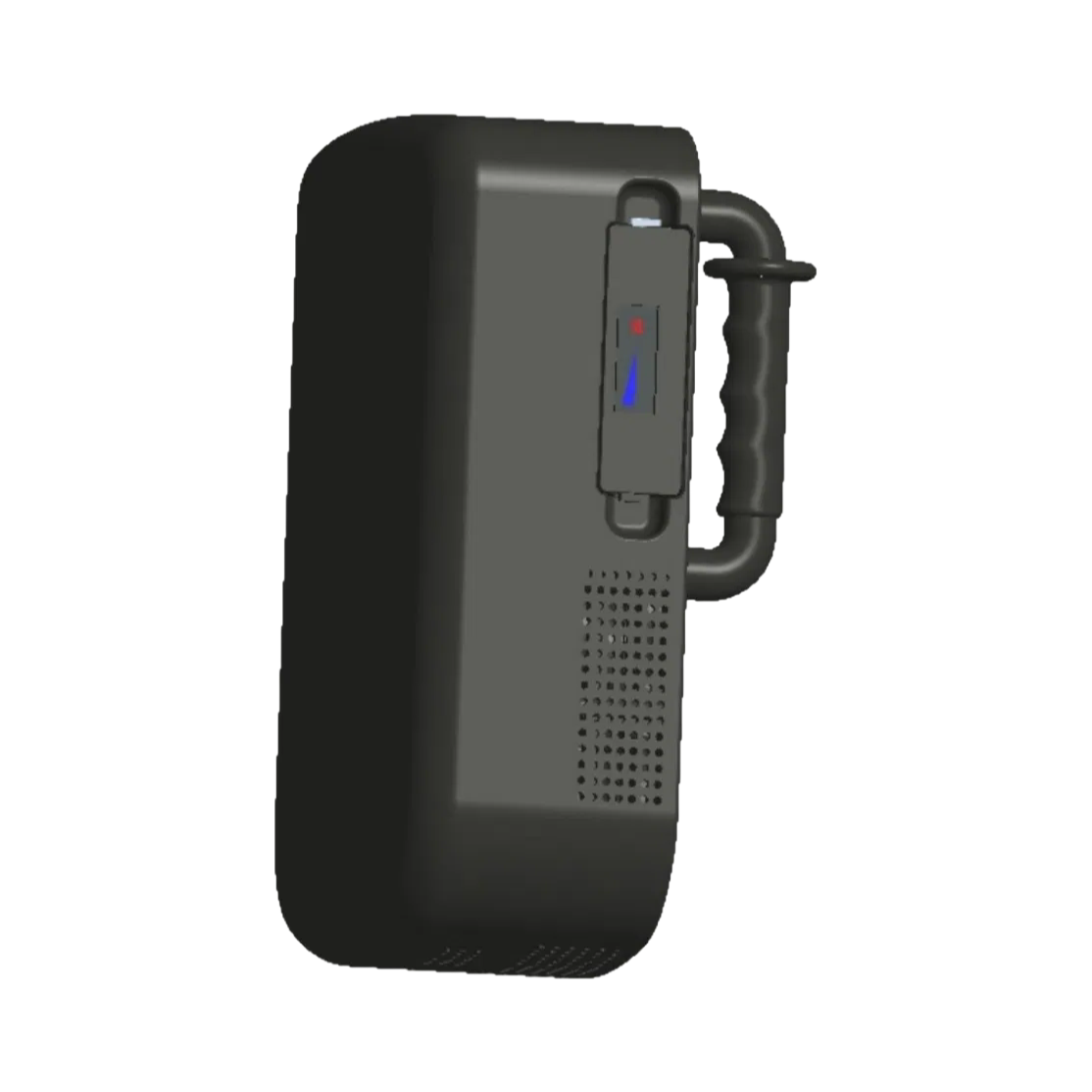

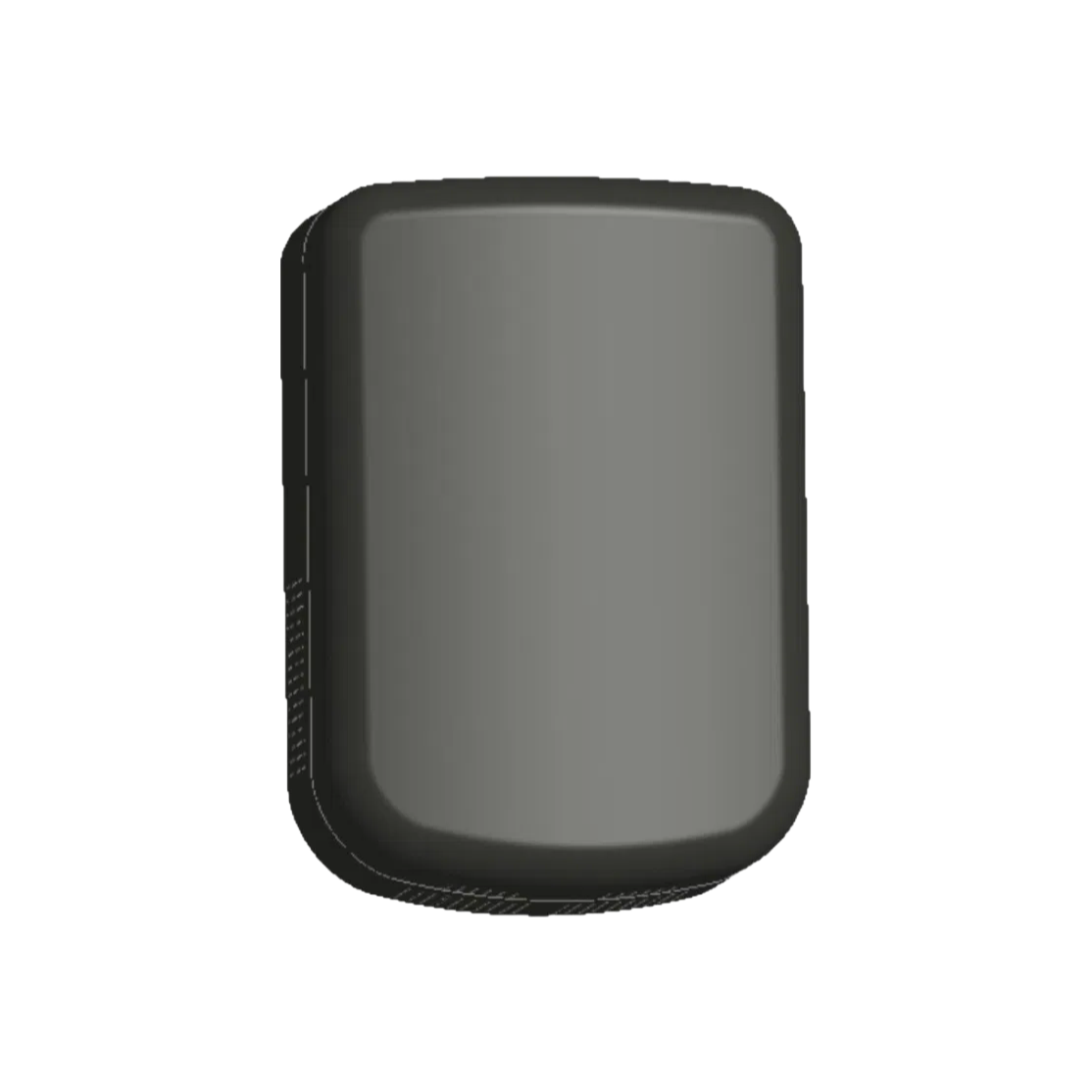

PTC-UAV-S7.0 Drone Signal Jammer with 100W Power and 1500m Range for UAV Defense

The PTC-UAV-S7.0 drone signal jammer is engineered to counteract the increasing use of commercial drones in unauthorized areas. By targeting and jamming both remote-control and GPS signals, this device forces drones to either land or return to their point of origin, ensuring security in sensitive locations.

With a robust output power of 100W and an effective jamming distance of up to 1500 meters, the jammer covers multiple frequency bands including 433-435MHz, 902-928MHz, 1160-1280MHz, 1550-1620MHz, 2400-2500MHz, and 5725-5850MHz. Each channel can be independently controlled, allowing for precise targeting based on operational requirements.

The device integrates a high-gain directional antenna, rechargeable lithium iron battery, and efficient power management systems. It supports both AC and DC power inputs, with a battery life of approximately 40 minutes per charge. Additional batteries can be added for extended operation. Weighing only 4kg and measuring 320x220x108mm, it is highly portable and user-friendly.

Advanced features include slow-start circuit design, imported chips for stability, and self-protection mechanisms against overheating and power faults. These ensure reliable performance in various environmental conditions, with an operating temperature range of -20 to +50°C and humidity tolerance of 5%-95%.

Applications include prisons, airports, military bases, research centers, and other secure facilities where drone intrusion poses a risk. The jammer is customizable for OEM/ODM orders, with options for frequency adjustment, branding, and technical enhancements.
