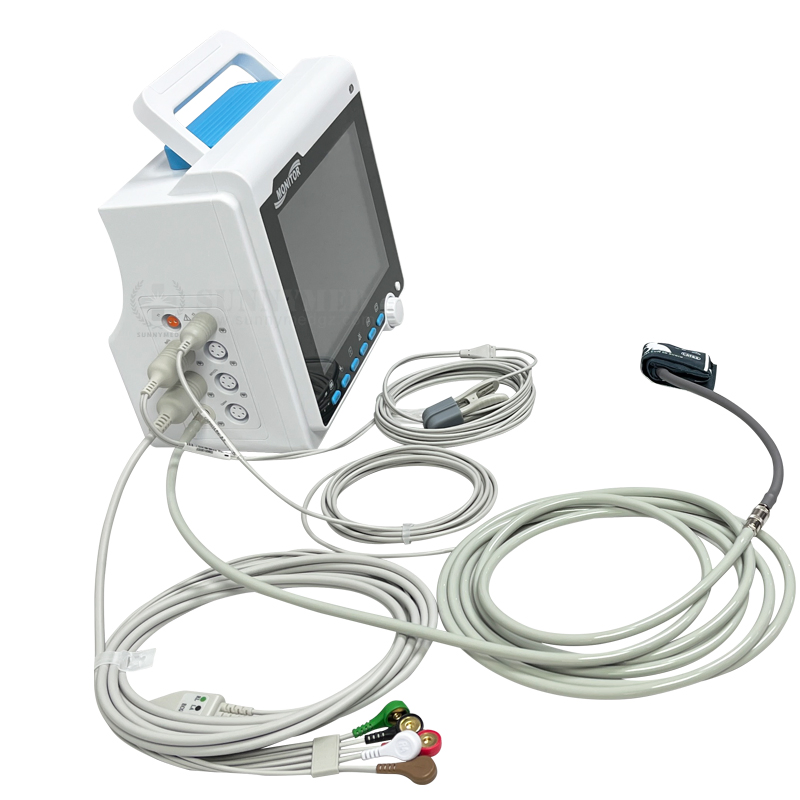

The veterinary patient monitor is a professional medical device designed specifically for animal healthcare facilities. This multi-parameter monitor provides comprehensive vital signs tracking for pets and other animals during surgical procedures, ICU monitoring, and routine examinations.
Featuring a 5-lead ECG system with advanced arrhythmia analysis and S-T segment detection, this monitor provides accurate cardiac monitoring for veterinary patients. The device includes defibrillation protection that can withstand 4000VAC/50Hz voltage, making it safe for use during emergency procedures.
The respiratory monitoring function utilizes RA-LL impedance method with adjustable alarm ranges for both adult and pediatric/neonatal animals (6-150rpm). The apnea alarm feature ensures immediate notification of respiratory distress.
Non-invasive blood pressure monitoring uses oscillometric method with three measurement modes: manual, auto, and STAT. The system includes over-pressure protection and displays systolic, diastolic, and mean arterial pressure in selectable mmHg or KPa units.
SpO2 monitoring covers the full 0-100% range with ±2% accuracy in the 70-100% range. The dual-channel temperature monitoring provides 0.1°C resolution with configurable alarm ranges from 0-50°C.

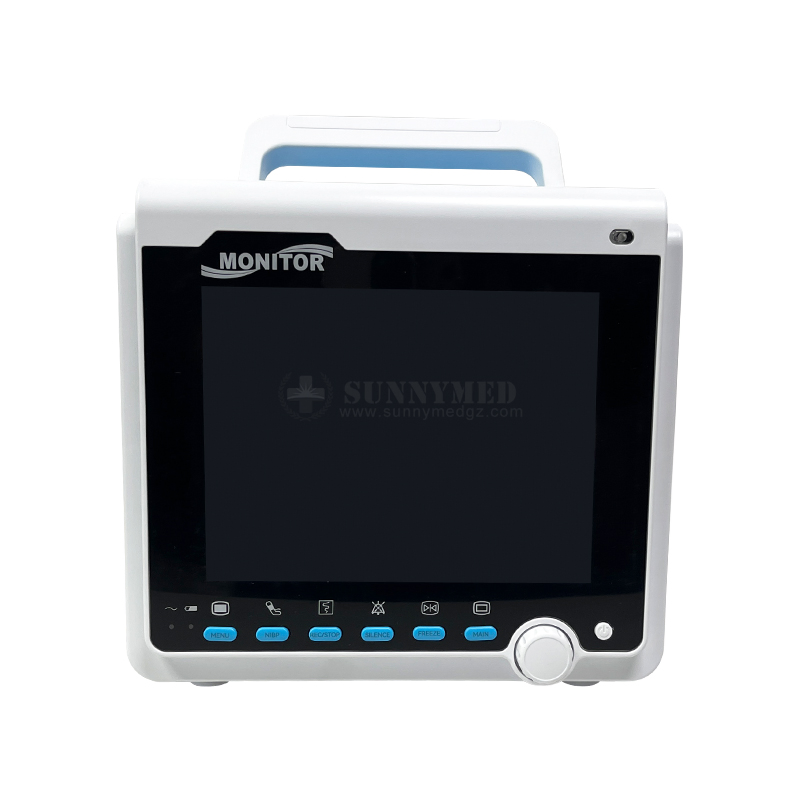

EtCO2 monitoring is available in both side-stream and mainstream configurations, measuring from 0-99mmHg with apnea detection capability. The 8.4'' color TFT display provides clear visualization of all parameters simultaneously.
The system features comprehensive alarm functions including visual and audible alerts with event recall capability. Designed for veterinary ICU and surgical applications, this monitor meets CE certification standards for medical equipment.
