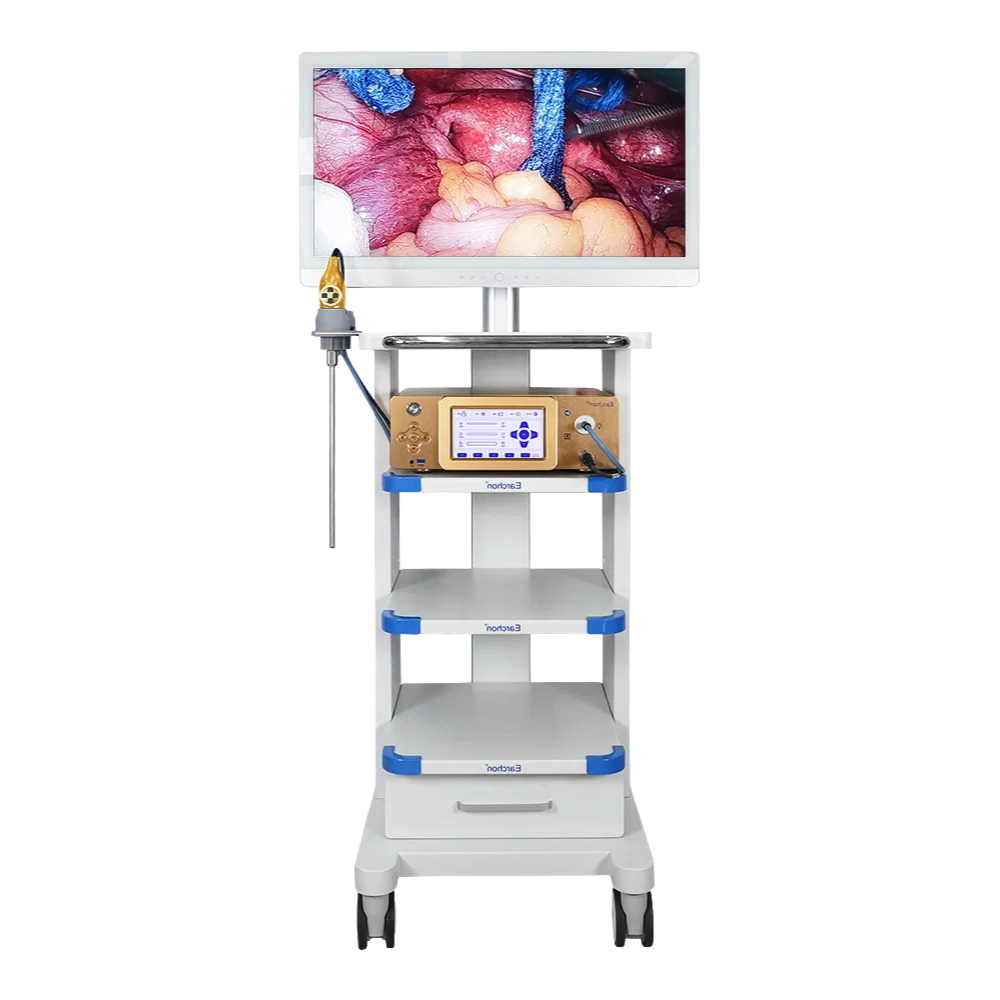

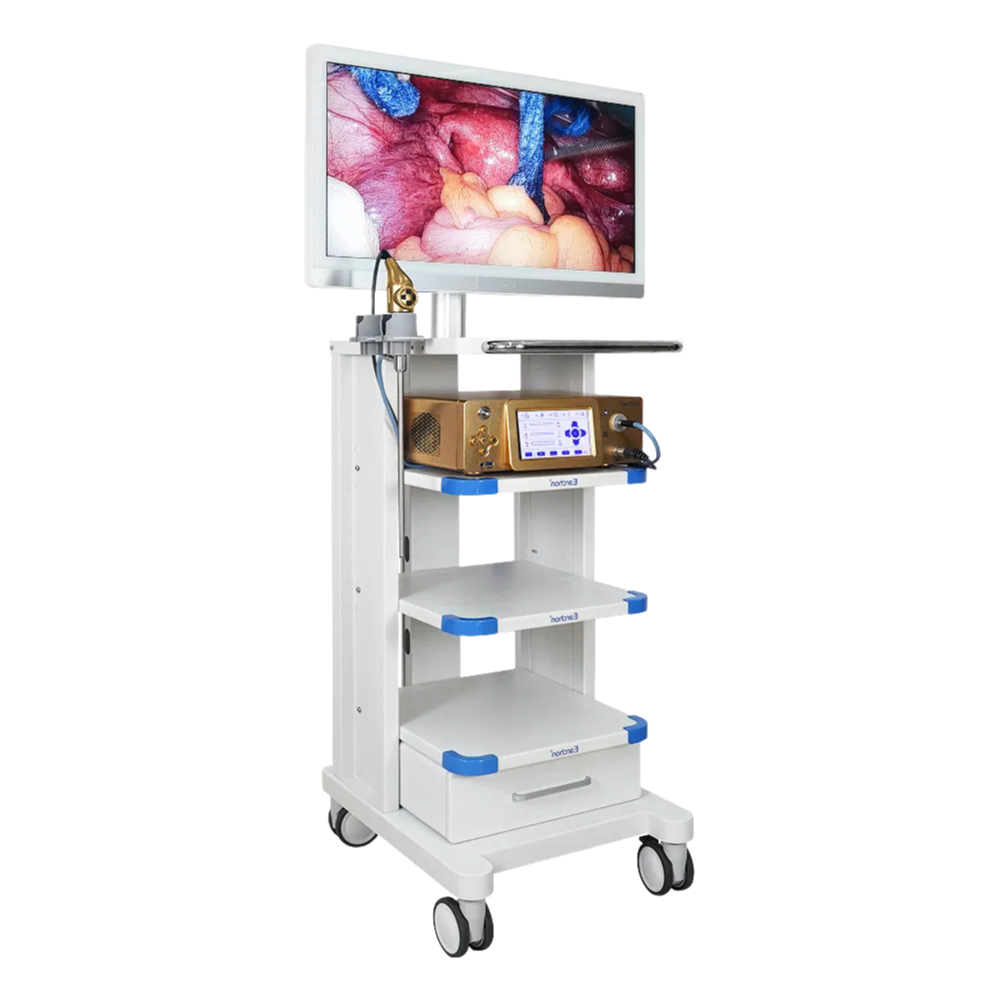

The YCSX-20 4K fluorescence endoscope camera system is engineered for superior medical imaging diagnostics, offering a seamless integration of 4K ultra-high-definition and fluorescence functionalities. This system allows free switching between modes, ensuring versatility in various medical procedures. With a resolution of 3840x2160P at 60 frames per second, it delivers crisp and detailed images, complemented by an 8-megapixel capability for high-quality JPEG photos.
Equipped with a 1/1.8" CMOS image sensor, the system achieves a resolution greater than or equal to 1600 lines, providing exceptional clarity. The color temperature ranges from 5000K to 7000K, ensuring accurate color representation. Video recording is supported in MP4 format at 3840x2160P resolution, with durations adjustable from 30 to 120 minutes, making it suitable for extended procedures.
The host unit features multiple output interfaces, including HDMI 2.0, DVI, SDI, three USB 3.0 ports, and a network interface, facilitating easy connectivity with various medical devices. Coding techniques support H264 and H265 for efficient data compression and transmission. Custom keys are available for functions such as white balance, freeze, record, photo, scene switch, zoom, color adjustment, and brightness control, enhancing user convenience.
Playback of videos and pictures is straightforward, with storage options via USB flash drives. The system supports remote control through mouse and keyboard inputs, foot step switches, and internet connectivity for remote operations. Language options include Chinese and English, catering to a global user base.

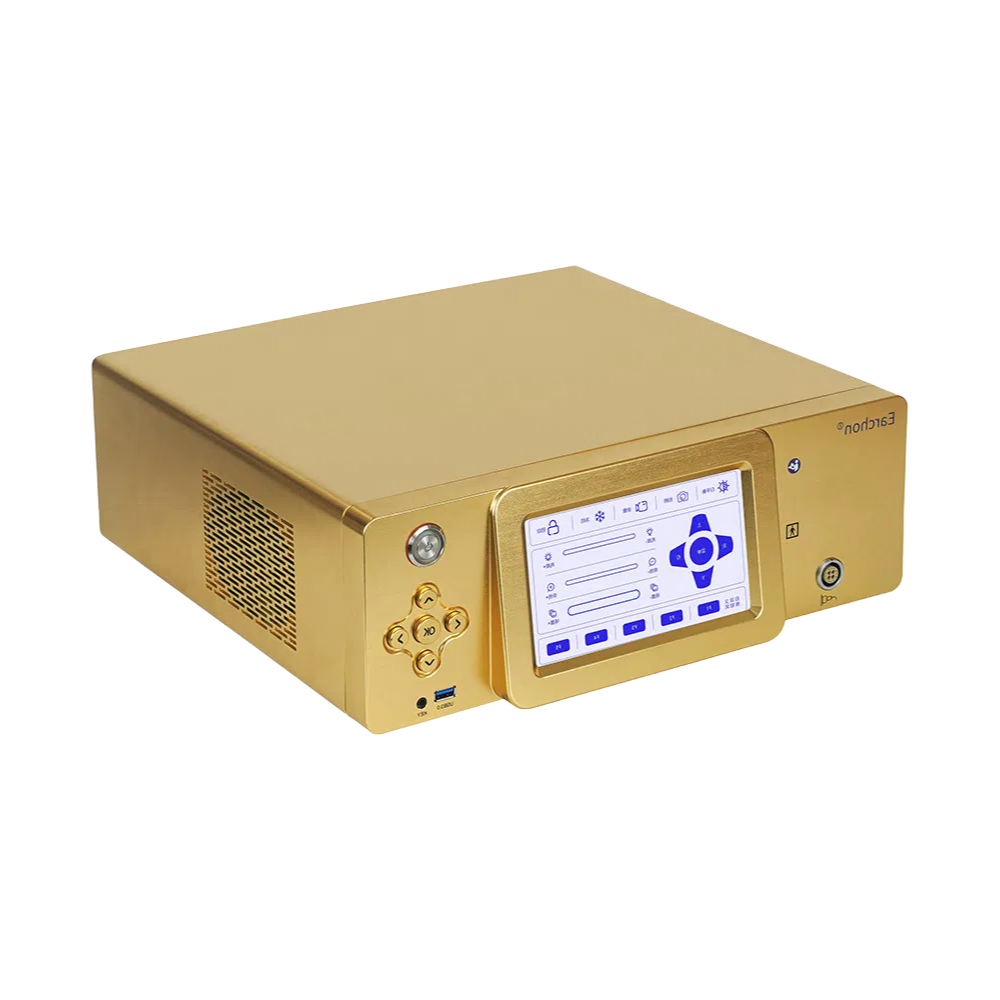

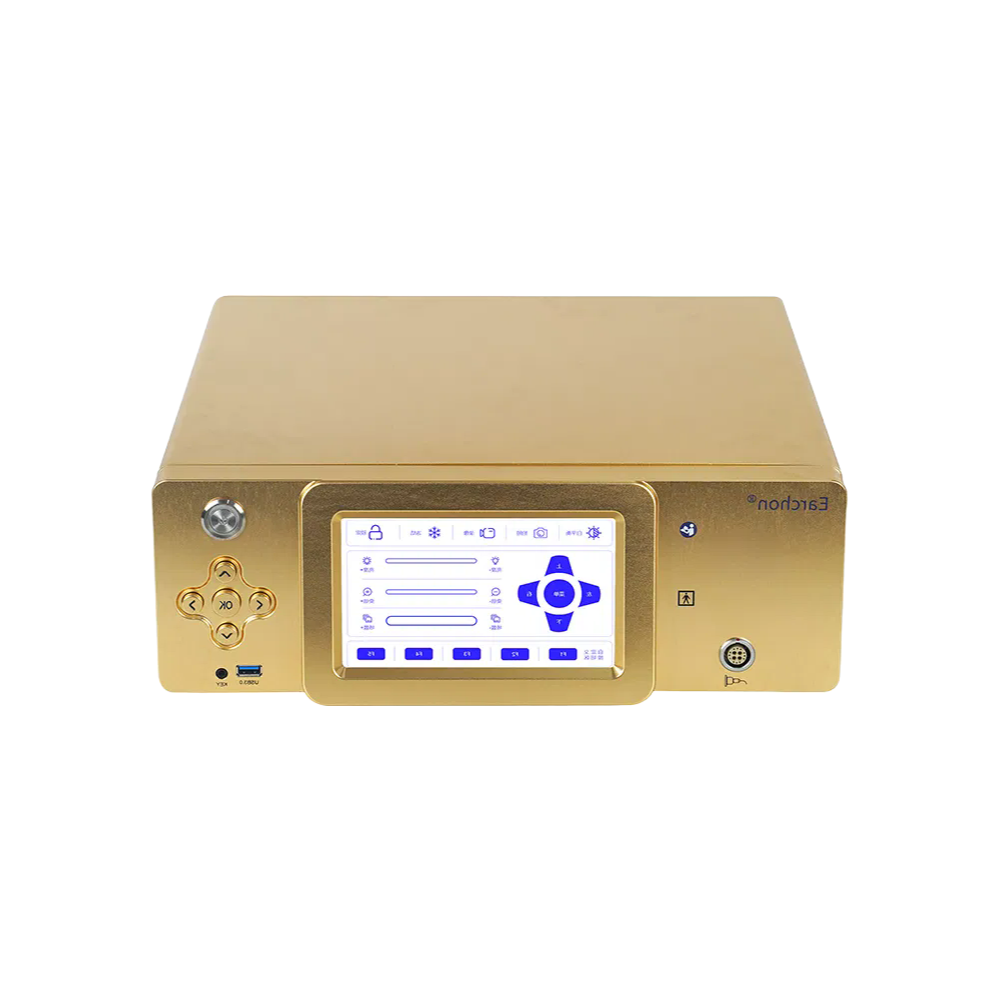

A standout feature is the 4K camera system host, which combines 4K and fluorescence functions in one unit. It includes a built-in USB image storage system for one-key switching between photo and video modes. The 7-inch touch screen, combined with mechanical double buttons, offers an intuitive user interface. The output interface utilizes a four-coaxial design, a first in domestic products, ensuring better stability and performance.
The system boasts a scene memory function, allowing users to save preferred settings for quick recall, and a service life of up to 50,000 hours. An energy-saving one-key sleep function helps reduce power consumption and extend the equipment's longevity. The LED cold light source features a color rendering index (CRI) of ≥200 and light source uniformity of ≥0.75, providing ultra-high brightness with adjustable levels from 0 to 100. Its split design ensures low power consumption, no heat generation, and enhanced stability with a low failure rate.
The camera handle is designed with an IPX8 waterproof grade, making it easy to sterilize and suitable for medical environments. It includes four function buttons for one-key operations like photo capture, video recording, white balance adjustment, and zoom control. The handle's watch-like appearance emphasizes key points with textured buttons for improved usability. Copper axis cable connections offer simplicity and strong shielding against interference.
Overall, the YCSX-20 system supports lossless amplification for detailed observation, output interfaces with four coaxial cables for superior stability, and is certified with CE and FDA standards. It is ideal for medical imaging applications, offering reliability and high performance. This product is供研究使用 and not intended for personal use.
