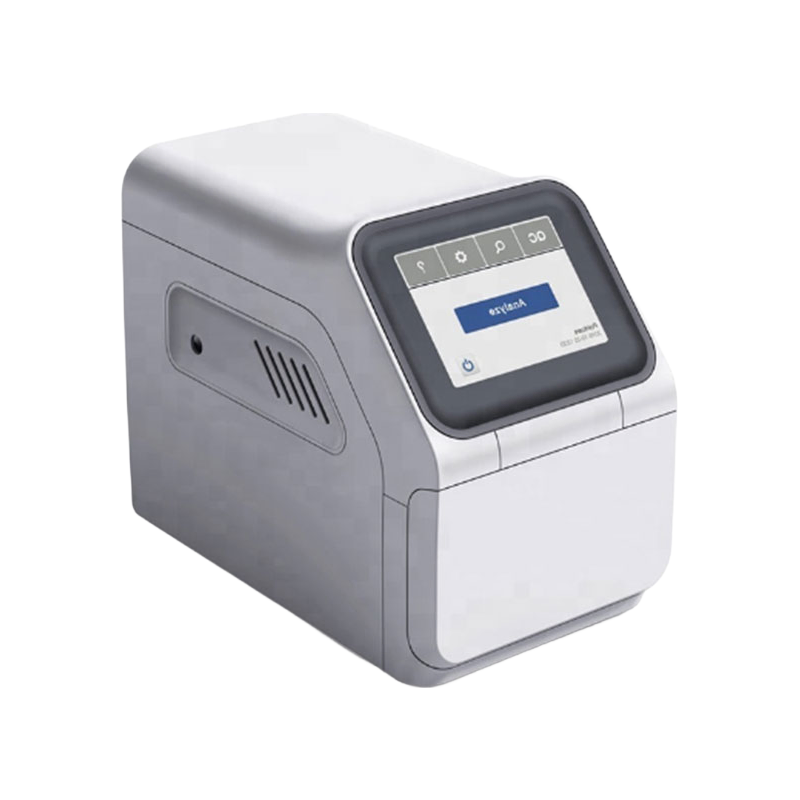

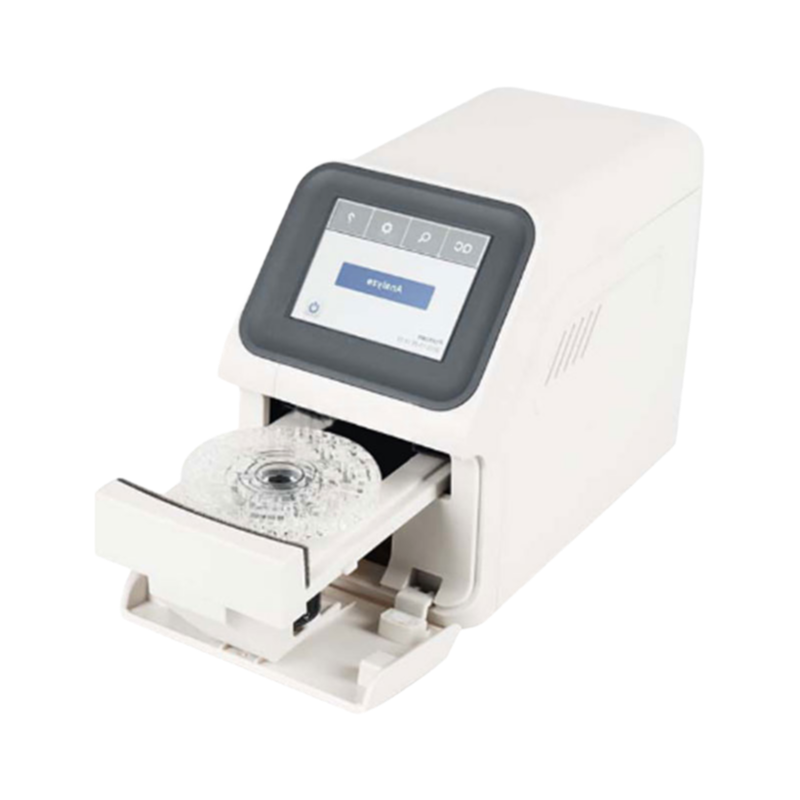

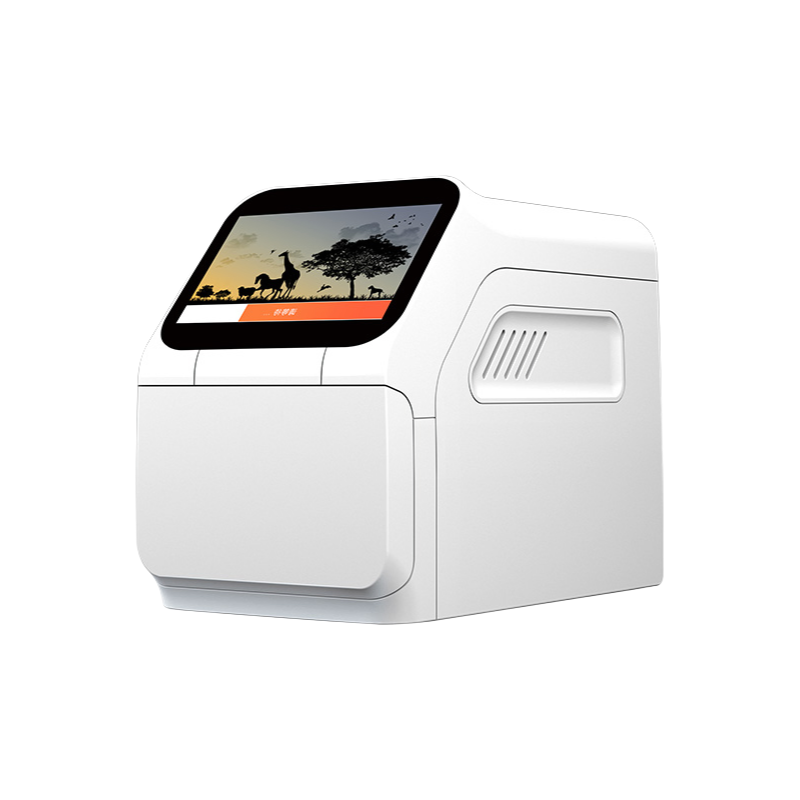

We've been shipping these for a while now, and the unit itself is compact at 175 by 125 by 210 millimeters — about 2.5 kilograms, so it's pretty easy to move around the lab or even take on-site if you need to. It runs on standard AC100-240V power, so no special wiring is needed, and the WLAN connectivity is actually decent for a machine this size. The test time is roughly 10 minutes give or take, which is typical for a clinical biochemistry analyzer in this class.
What it does is run human and veterinary clinical testing on whole blood, serum, or plasma, and the temperture control holds steady at 37±0.1°C, which matters for enzyme assays and kinetic reactions that are sensitive to drift. The touch screen is 3.5 inches and color LCD — small but functional, and you'll get used to the interface after a couple of runs. It also has USB and Ethernet ports, though most users just use the WLAN for data transfer.
It's not suited for high-throughput labs running hundreds of samples a day; the throughput is about one panel every 10 minutes or so, so it's better for smaller clinics or veterinary practices where you're doing maybe 20 to 50 samples daily. Actually, the QR code reagent identification is a nice touch that saves time on entering lot numbers manually. But if you're doing batch processing, you'll want something faster.
One thing we've noticed is the touch screen can be a bit slow to respond if you have sweaty or gloved fingers — a stylus works fine, but it's worth knowing. The tungsten-halogen lamp typically lasts about 2000 hours, and we usually have stock on replacement bulbs, but confirm lead time if you're ordering them seperately. COA is included with each unit, and our company can provide TDS upon request.
The MOQ is just one unit for most buyers, and we usually keep 10 or so in stock at the warehose. Packing is a single box with foam inserts, about 4.5kg shippng weight including the power cord and manual. Basically, if you order today, expect delivery within 15 to 20 working days, but check with us if you need it faster — we've had some delays lately.
We typically require a minimum order of 10 units for this model, but we can discuss smaller quantities depending on your needs.
Lead time is usually around 15-20 working days after order confirmation, but we can expedite for urgent orders if stock is available.
Yes, it comes with CE and ISO certifications, and we can provide a certificate of analysis and compliance documents upon request.
The 10-minute test time is fixed for standard protocols, but we can customize the settings for specific sample types if you coordinate with our technical team.
Store it in a clean, dry environment at room temperature, ideally between 10-30°C, and keep it away from direct sunlight and moisture.
