Customizable Urodynamic Testing Machine for Clinical Diagnosis

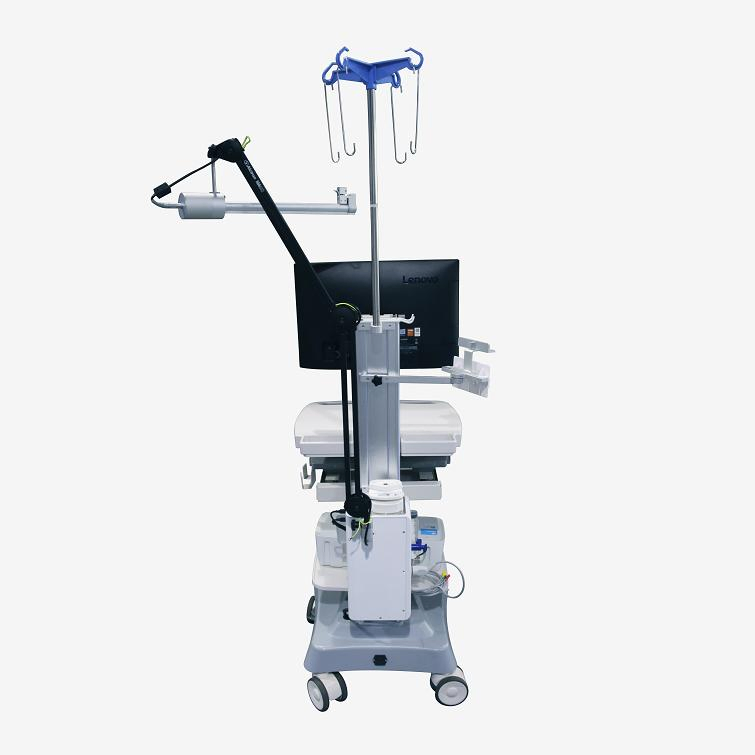

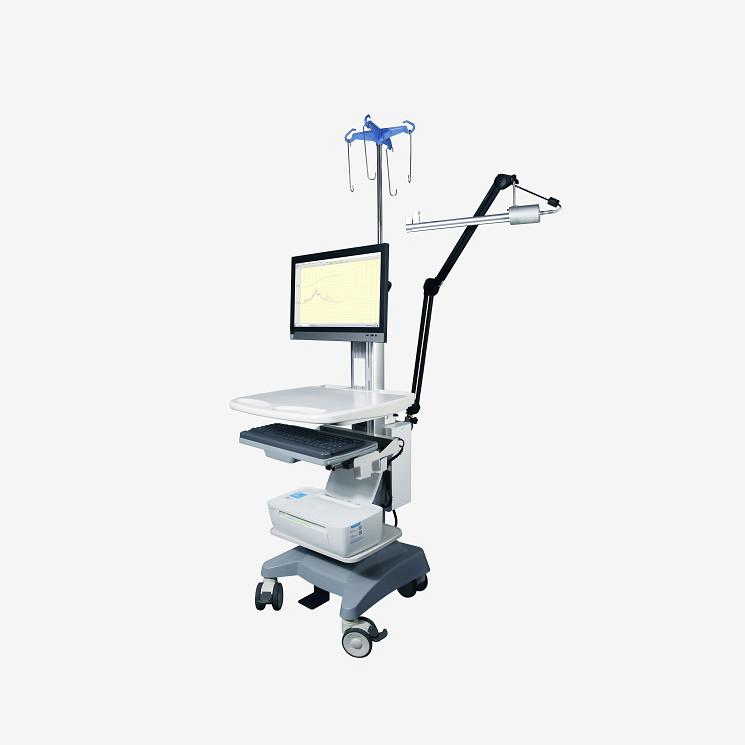

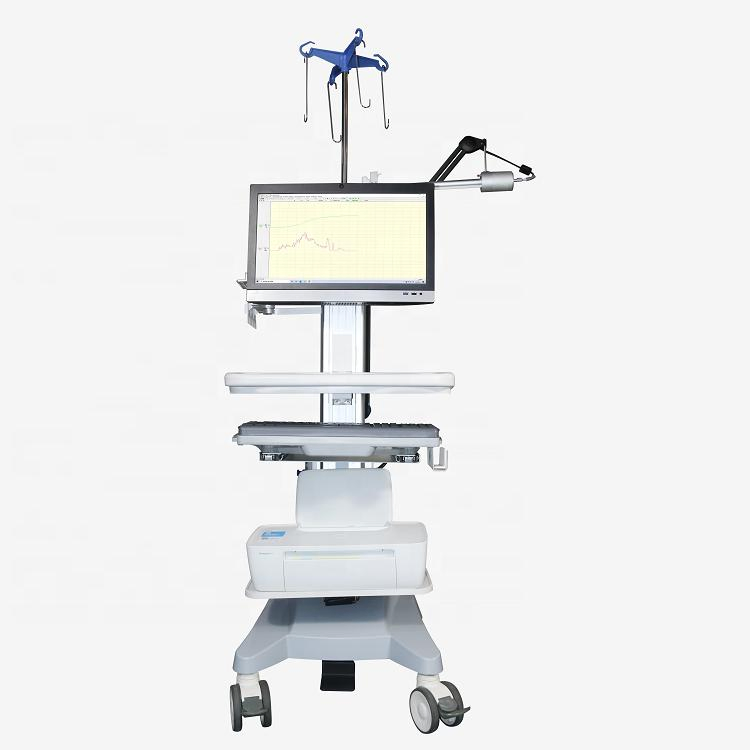

The Clinical Urodynamic Analyzer is a professional medical device designed for accurate urodynamic measurements in clinical settings. This system features precise pressure measurement capabilities and comprehensive EMG testing functions.

The analyzer offers a wide pressure measuring range from -50cmH2O (-4.9kPa) to 200cmH2O (19.6kPa) with an error range of ±3%. The dragger component comes with four adjustable speeds (0.5mm/s, 1.0mm/s, 2.0mm/s, 4.0mm/s) and maintains the same ±3% accuracy.

For EMG testing, the system provides a responsive range of 20μV to 1mV with electrode wires measuring at least 180cm in length. The syringe pump offers adjustable injection speeds from 2mL/min to 5mL/min in 1mL/min increments.

The equipment is constructed from high-tech materials and complies with international medical standards. Its compact design (84×61×136cm) makes it suitable for various clinical environments while maintaining robust performance.

This urodynamic system is ideal for comprehensive urological examinations, providing clinicians with reliable data for accurate diagnosis and treatment planning. The equipment has obtained ISO13485 certification, ensuring quality and safety for medical applications.
