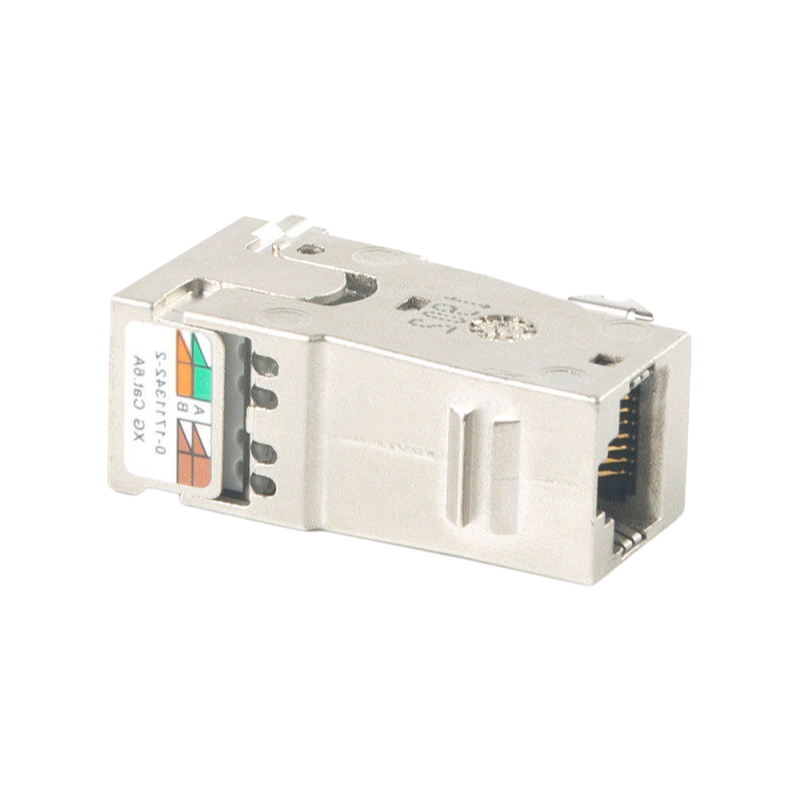

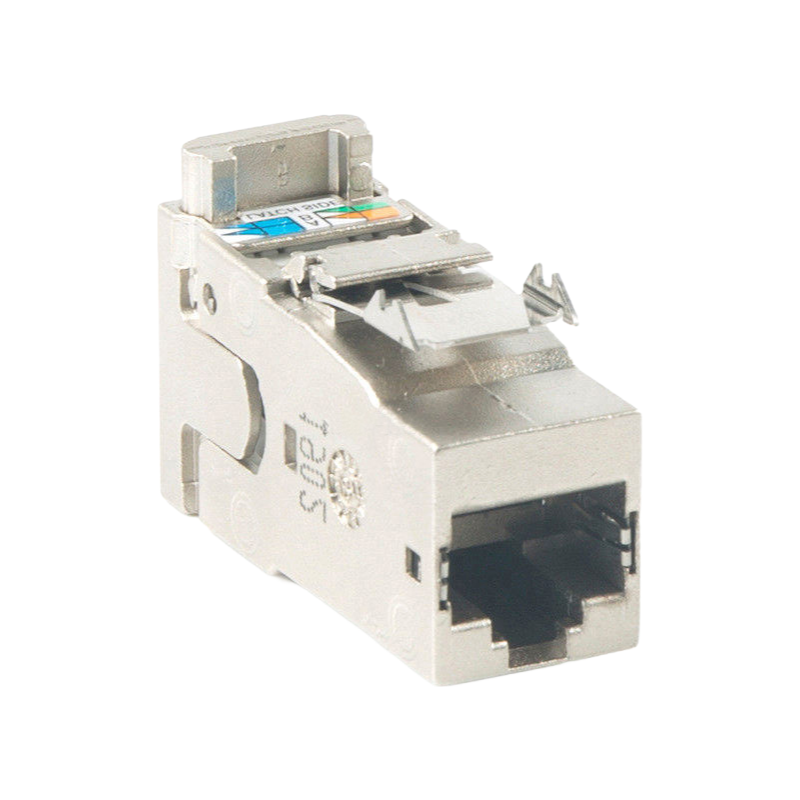

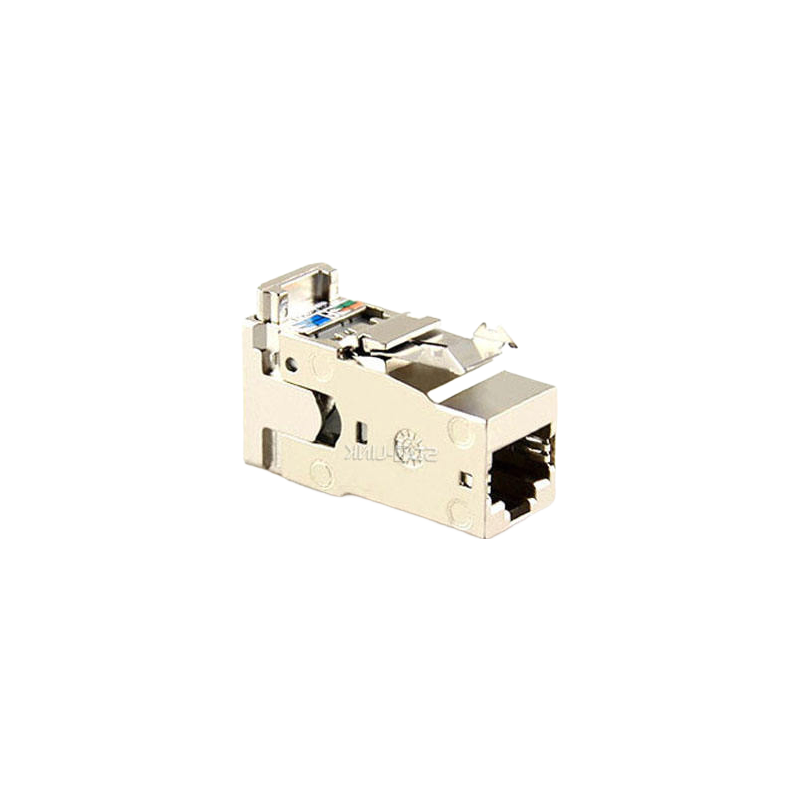

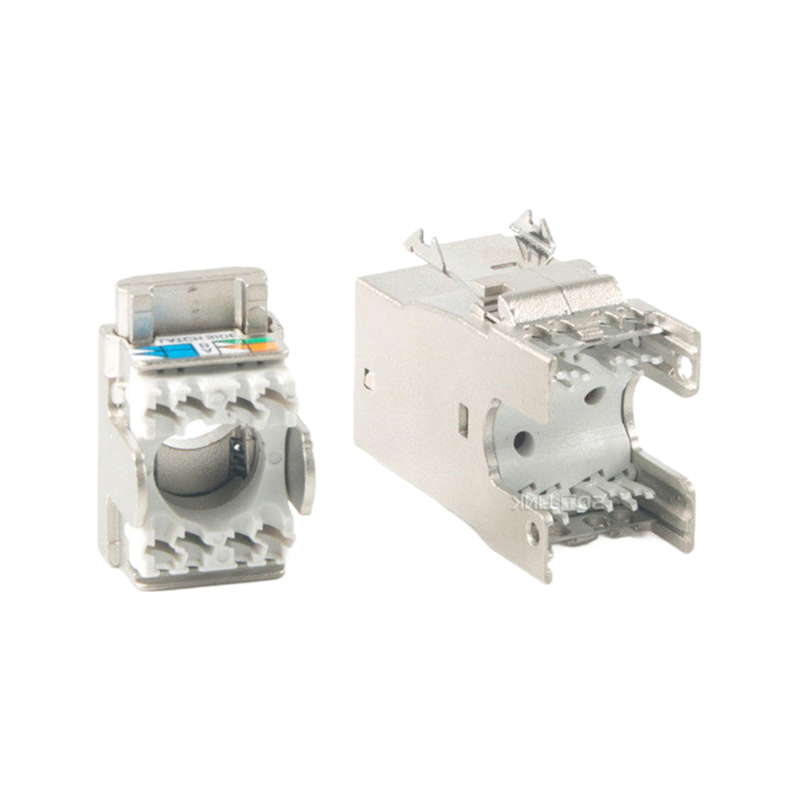

We're looking at roughly 37 by 24 by 11 millimeters of fully shielded Cat6a keystone jack here, built around beryllium copper contacts with gold plating for the conductivity — it's pretty much the standard for high-speed data transmission in enterprise setups. The housing is a polycarbonate and zinc alloy mix, which gives it that UL 94 V-0 flammability rating, and it handles up to 1.5 amps at 20°C or 150 volts if you need it.
it support both T568A and T568B wiring schemes through IDC termination, so you're covered for most installations without having to switch parts. Most buyers go with this for data centers or commercial networks where signal integrity matters — the shielding cuts down on interference from nearby power cables or other gear.
The contacts are contact resistance at ≤20mΩ and insulation resistnce at ≥500MΩ, which is better than some unshielded alternatives for keeping that signal clean over longer runs. It's not really suited for residential patch panels or low-speed application, but for enterprise drops it does what it needs to do.
We typically have stock on these, but confirm lead time if you're ordering over 500 units or so — the OEM option means our company can run your branding, but that adds 20 days or so to dilevery. Also check the operating temperature range of -10°C to +60°C, which is fine for most indoor environments but not for outdoor installs without addtional protection.
Our standard MOQ is 500 pieces for this model, but we can negotiate smaller quantities for sample orders or first-time buyers. Just reach out to our sales team.
Lead time is usually 15–20 working days for orders up to 10,000 pieces, depending on current production load. We can expedite if needed—just let us know your timeline.
Yes, we provide CE, RoHS, and ISO certificates with every shipment. We can also include a performance test report for the batch upon request.
Absolutely—OEM is available. We can change the housing color, add your logo, or adjust the packaging to your specs. Minimum for custom orders is typically 1,000 pieces.
Yes, beryllium copper offers excellent spring properties and durability, making it a solid choice for high-vibration or frequent plug/unplug scenarios. The gold plating also ensures reliable signal transfer over time.
