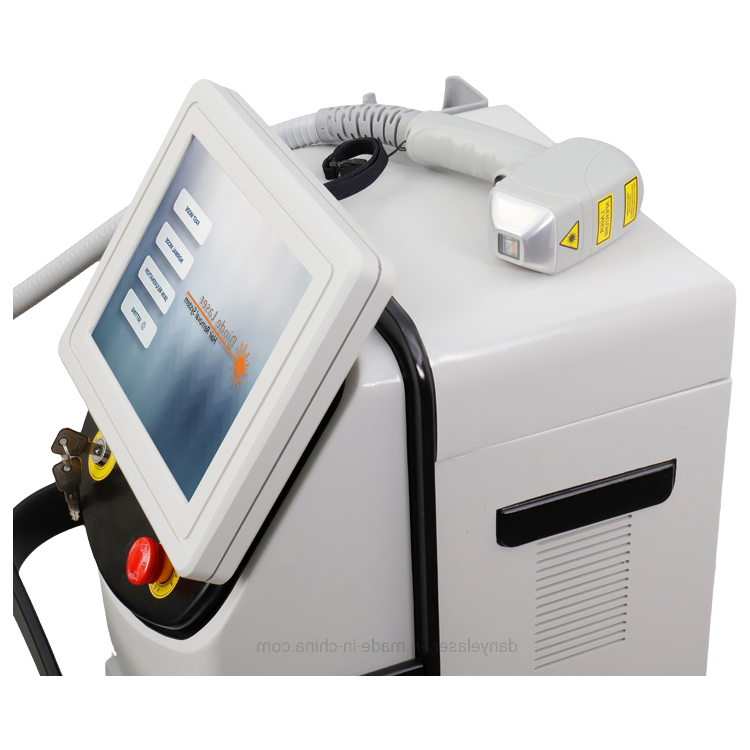

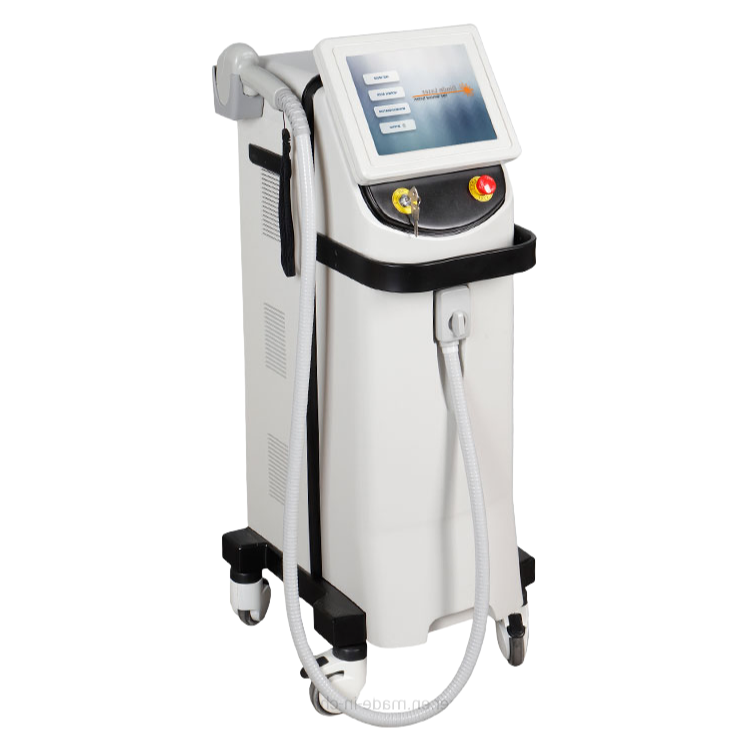

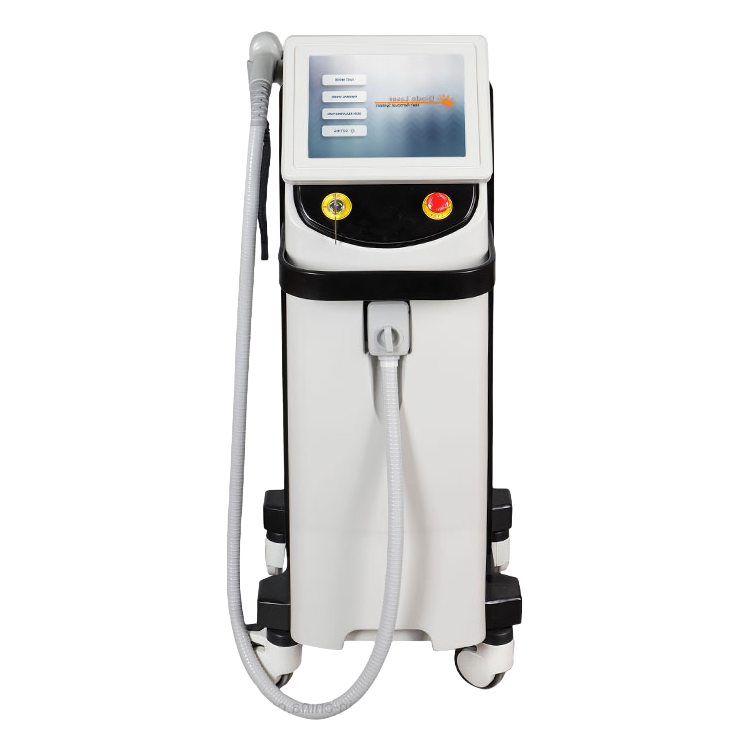

We received your RFQ and can ship the DY-DL4A 808nm diode laser system pretty much right now—we keep these in stock. It runs at 2200W with a 12×12mm spot size and power density adjustable from 5 to 50J/cm², or you can opt for the max 120J/cm² in some configurations, though that's not standard. The pulse width ranges 80-200ms with a 350ms option available, and repetition rate goes 1-10Hz.
Basically, it works on all Fitzpatrick skin types I through VI, so no need to worry about that, and it handles face, arms, legs, bikini, back, chest pretty much anywhere you'd need it. Teh triple cooling system—air, water, and semiconductor—keeps sapphire tip at 0-5°C for skin contact, which is better than reagent grade for patient comfort. One thing we've noticed handling these units: the 34kg weight means it's stable on a cart but not something you want to move daily without a dolly.
The 10.4-inch color LCD touch screen is straightforward, not some finicky interface. You get two operation modes: Fast Mode for quicker passes and Professionel Mode with more granular control over parameters like pulse width and energy density. Most buyers go with Professional Mode for consistent results across body areas, anyway.
Also, pulse width isn't just a number—at 80-200ms it targets follicles effectively without frying tissue, but the 350ms option is there if you need longer dwell time for deeper or thicker hair. Not suited for treating sunburned or irritated skin in the same session; that's a limitation worth noting upfront rather than spinning it positive. CE, RoHS, and SGS certs come with the unit, and warranty runs 20 months from delivrey.
We usually have stock, but confirm lead time if you need more than 5 units—MOQ is 1, and we ship via freight with packging that's survived a few rough handling incidents on our end. Voltage is switchable 110V/220V 50-60Hz, so it'll work wherever you're plugging it in. Dimnesions are 34×42×100cm, give or take, and weight is 34kg for shipping calculations.
Fast Mode fires pulses back-to-back for quick full-body sessions, while Professional Mode gives you more control over energy and frequency for precise treatments on sensitive areas like the face or bikini line.
Yes, it’s fully certified with CE, RoHS, and SGS documentation included. We can share copies with your order.
Absolutely—it’s designed for all Fitzpatrick skin types I to VI. The 808nm wavelength and adjustable energy from 5 to 50 J/cm² let you dial it down safely for darker skin tones.
We accept single-unit orders, so there’s no MOQ. You can buy just one machine for your clinic or start with a small batch.
It combines air, water, and semiconductor cooling to keep the laser head from overheating during long sessions. The sapphire tip stays at 0–5°C, so it cools the skin on contact and reduces pain significantly.
