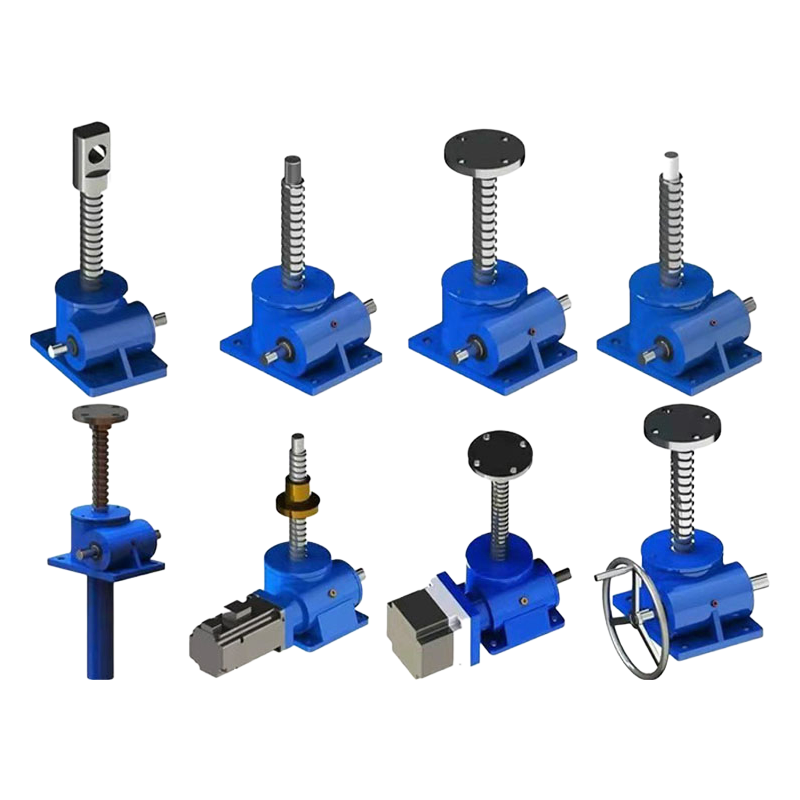

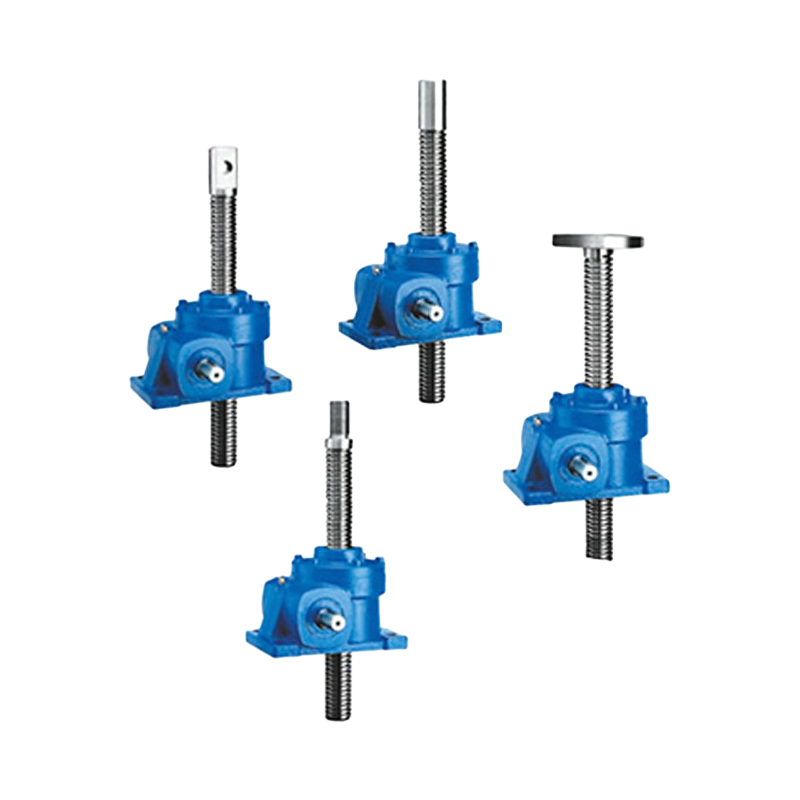

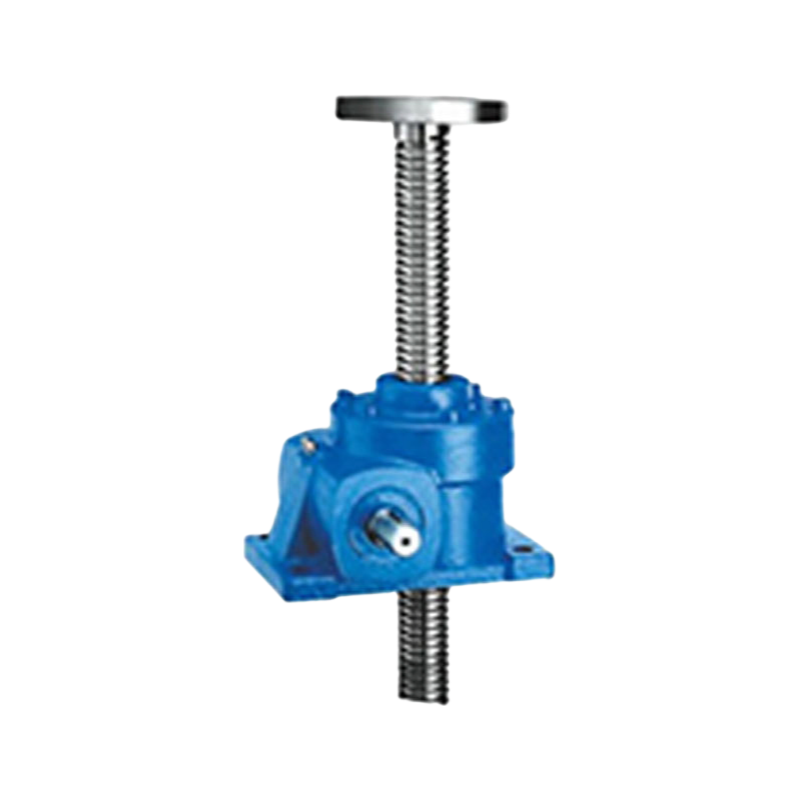

So you've got a load that needs precise vertical positioning and worrying about it drifting back down under load—this worm gear setup handles that with a standdard self-locking feature built right into the gearbox.
The SWL series covers from 2.5 up to 35 tons capacity depending on which model you pick, with lifting speeds ranging from 150mm/min all the way to 1800mm/min, and input power requirment vary from 0.5KW to 21.8KW base on your specific application.
What it does is deliver reliable mechancial lift through a combination of hardened steel gears and cast iron housing, and the efficiency for the plain worm (P type) runs between 16% and 33% while the friction-type (M type) sits lower at 11-13%—just something to keep in mind depending on whether you need faster travel or more load holding.

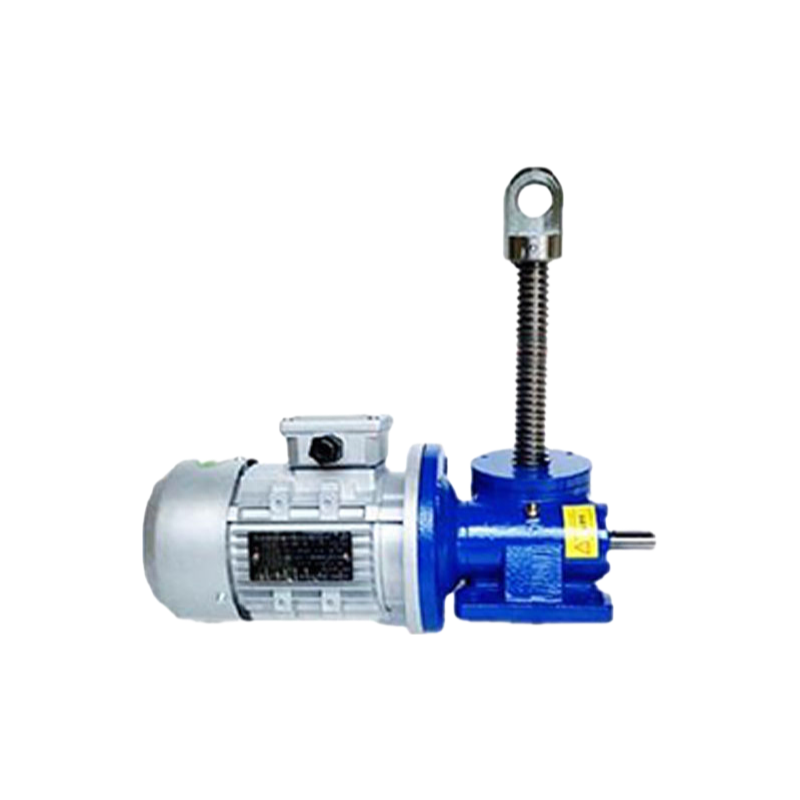

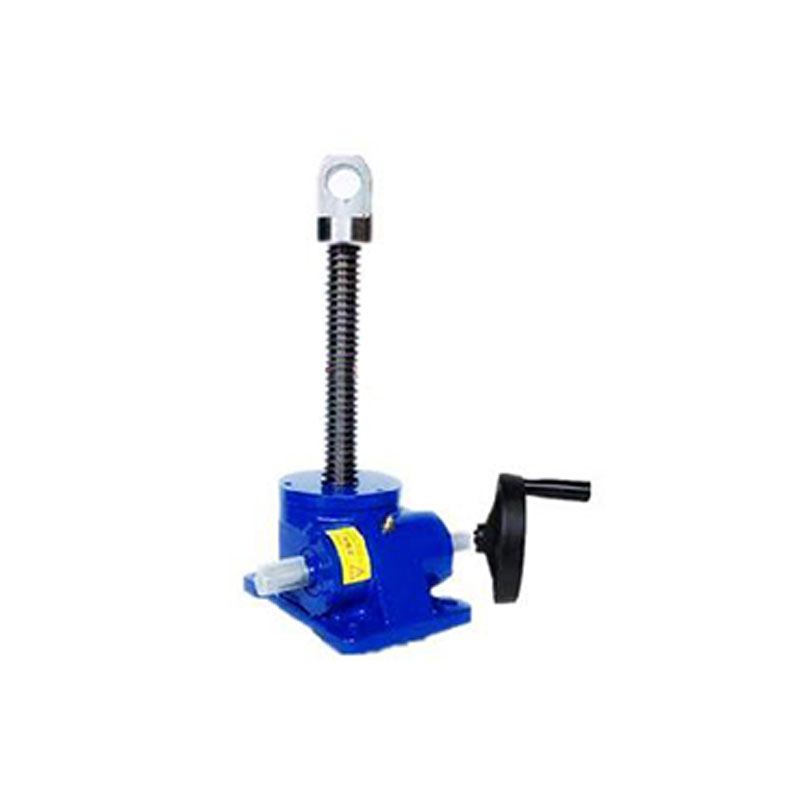

You can run these with either an electric motor or manually, and the screw options run from Tr30*6 up to Tr100*20 depending on the model you go with, though we usually have stock on more common sizes but confirm lead time for Tr100.
Basically the whole unit is grease-lubricated with ZGN-1 or ZGN-2, which handles temperatures from -20°C to +100°C, and you can mount it either foot or flange style, or link 2 to 8 jacks together for synchronized operation—most buyers go with 4 jacks for balanced loads.
When ordering, we'll need your load capacity, lift height, travel speed, and whether you want the plain or friction screw type, plus the linkage count if you're doing synchronized lifting, and we usually ship within 20 days or so after order confirmation.
We don't have strict MOQ—you can order just one unit for testing. For bulk orders, we typically start at around 10 pieces per model, but we can be flexible depending on stock and production schedule.
We provide a material certificate for the hardened steel gears and cast iron housing, plus a factory test report confirming load capacity and self-locking performance. If you need CE or ISO documentation, we can arrange that on request.
Yes, we can customize the screw length to your specification and supply either foot or flange mounting. Just give us the exact travel distance and mounting dimensions, and we'll adjust accordingly.
The standard ZGN-1/ZGN-2 grease works from -20°C to +100°C. If your environment exceeds that, we recommend switching to a high-temperature synthetic grease—just let us know the expected range, and we'll suggest a compatible option.
You can connect 2 to 8 units using a common drive shaft and coupling system—we supply the matching linkage components. All jacks will operate at the same speed and position, as long as the total load and torque don't exceed the motor's capacity.
