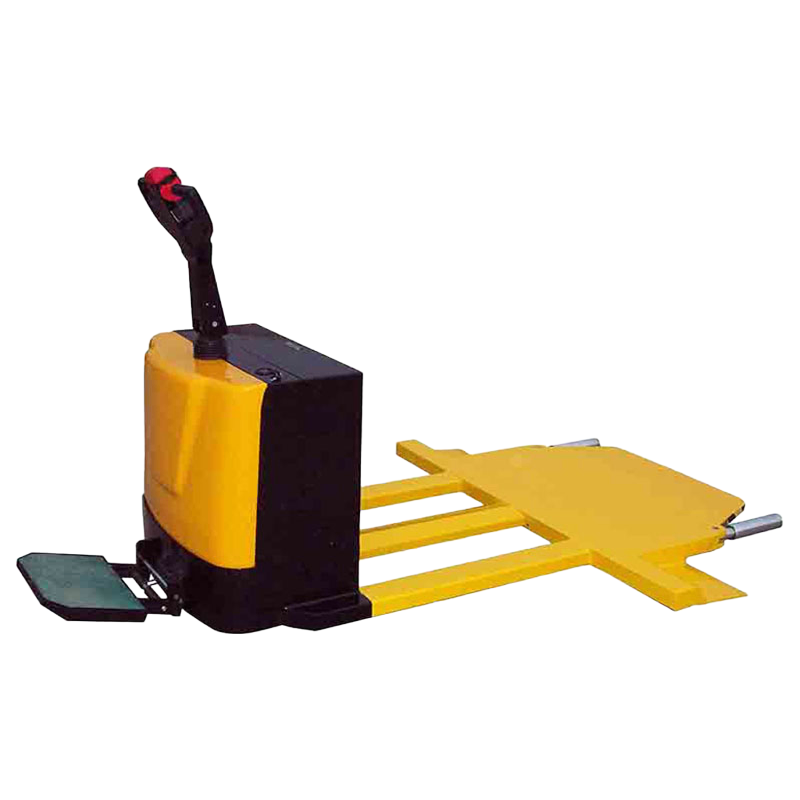

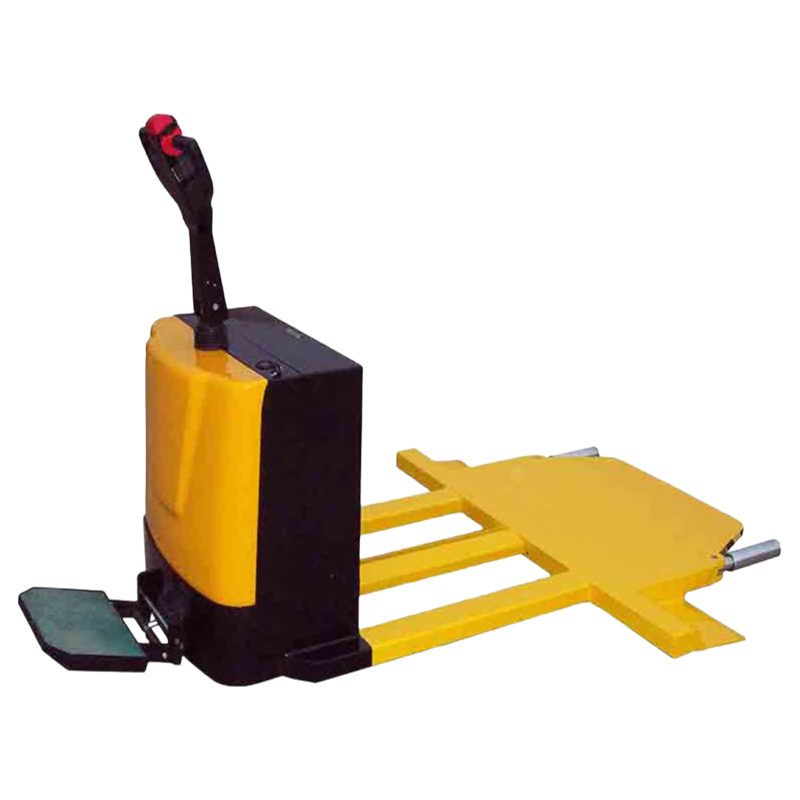

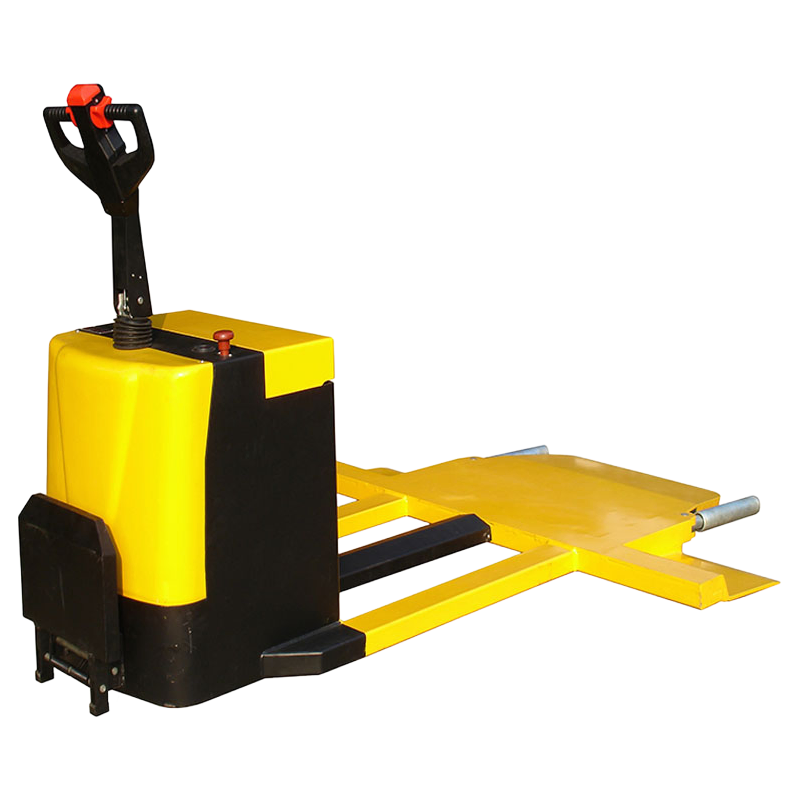

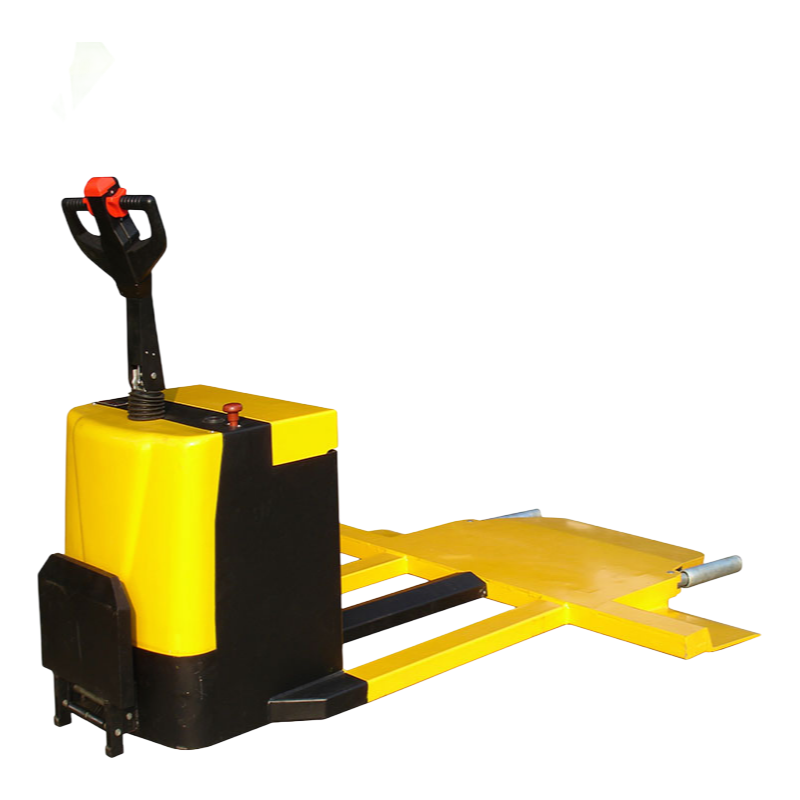

A customer pulls up to a tight underground garage slot and realizes they can't open the door wide enough to get out—that's where you'd use one of these, basically just sliding the car into place without ever starting the engine, and it works for both commercail lots and residential villas or whatever packed space you're dealing with.
The ECM-2500 handles up to 2500kg while the 3500 model goes to 3500kg, so most buyers go with the bigger one for SUVs and vans, and both run on twin 12V/210AH batteries with a 24V/30A charger that's pretty much set-and-forget—the driving motor is 1200W on lighter unit or 1500W on the heavy, with a lifting motor at 2000W for that 115mm lift, and you get electromagnetic braking which is more relaible than mechanical on slopes.
Climbing capasity is about 10% unloaded and 5% loaded, so don't expect it to handle steep ramps with a full car, but it's fine for flat lots and gentle inclines, and you need a 2000mm street clearance for forward and backward movement (check lead time if your aisle is narrower than that).
Driving speed hits 0 to 6.5 km/h with E-CVT that's stepless, and the wheels are PU which is better than solid rubber for grip on polished concrete without marking the floor up, and the 6mm steel panel frame is what it is—not lightweight but tough enough to take daily abuse in a dealership or auto plant.
We usually have stock on both models, roughly 50 units or so for standard specs, but customiaztion takes 20 days or so depending on whether you need paint colors or logo branding, and each unit comes with COA, TDS, and SDS documents for EPA, CE, and RoHS compliance.
The warranty is one year, same for after-sales support, and the HS code is 8428909090 which helps with customs clearance since it's from China—one thing people don't ask about is the chrome or matte finish option for teh steel panels, but it's worth mentioning because oxidized trim on a mover in a hot parking lot degrades faster than matte.
The ECM-2500 handles up to 2500 kg, while the ECM-3500 can carry up to 3500 kg. That's the main spec difference between the two.
With the 24V/30A charger, a full charge from empty usually takes around 8-10 hours. The batteries are two 12V/210AH units.
Yes, we can customize certain features like the color, branding, or add accessories. Just let us know your specific requirements when you order.
They come with EPA, CS, CE, RoHS, ISO 9001:2000, and ISO 9001:2008 certifications. So you're covered for quality and safety standards.
MOQ is typically 1 unit for samples, but larger orders start at 10 units. Lead time is usually 15-20 days after order confirmation.
