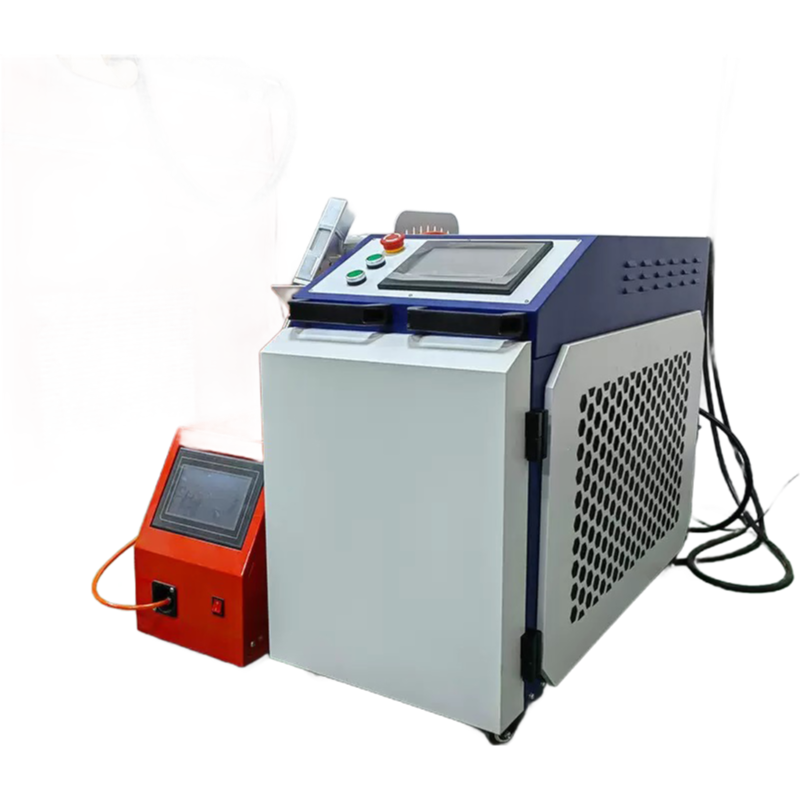

Picks up where a 1000W or 2000W leaves off, and it basically handles thicker materail without needing to pre-heat or make multiple passes—0.5mm to 8mm is teh range you can work with, and that covers most sheet metal and light plate you'll see in a shop.
Runs continuously as a deep fusion welder, which is a different beast form pulsed machines that stitch welds together; you get a smooth, sealed bead that's better for biomedical housings or automotive battery trays where you don't want weak points.
Weighs 115kg, so it's not something two guys are going to carry up stairs easily—it's on a frame about 1280 by 770 by 1180mm, and the fiber cable is 10 meters long, which gives you decent reach around a workcell or a bench.
It's pretty much built for manual operation, not an automated cell out of the box—you're holding the gun yourself (usually with a shielding gas setup), but the cooling system is your choice of water or air, and that matters because water is quieter but adds maintenance.
Custom logo and color are options our company can do, and the warranty is 1 year standerd, though the laser source itself gets 2 years—we usually have these in stock, but confirm lead time if you need one in under 20 days or so.
What it's not great for is thin foil or sub-millimeter stuff under 0.5mm—the continuous wave just blows through it, so you'd want a pulsed machine for that kind of work, and we'll tell you that up front rather than ship something that doesn't fit your job.
We typically start at 1 unit for this model, but we can discuss volume discounts if you're ordering more than 5 pieces at a time.
We include a CE certificate and a detailed test report for each unit. If you need specific compliance docs for biomedical use, just let us know and we can arrange them.
Yes, both water and air cooling options are available. We recommend water cooling for continuous high-power operation, especially in manufacturing settings.
Custom logo and color add about 10-15 working days to the standard production time. Standard lead time is 20-25 days, so expect roughly 35 days total with customization.
The laser source itself is covered for 2 years, while the rest of the system has a 1-year warranty. If the laser fails due to manufacturing defects, we'll repair or replace it at no cost within that period.
