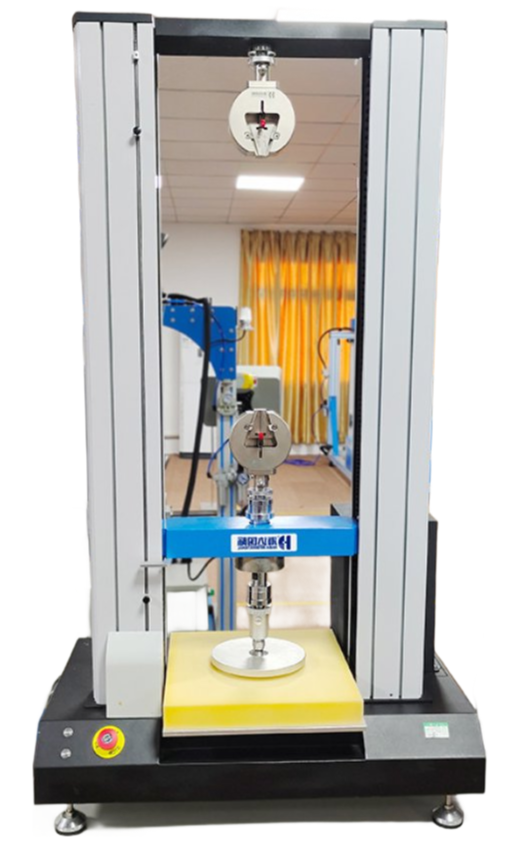

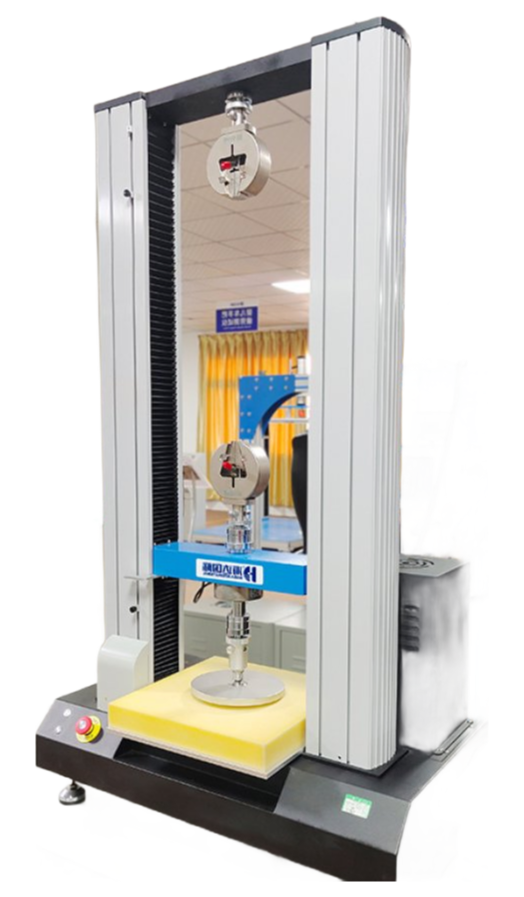

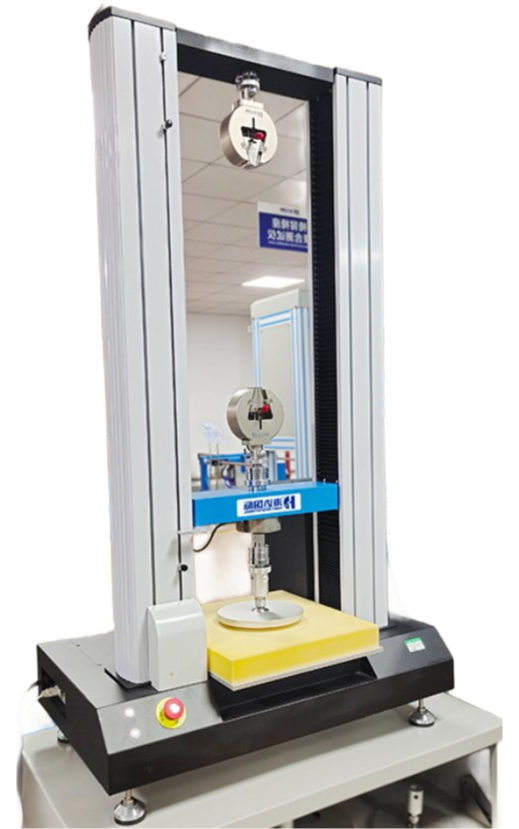

The 1200mm stroke on this unit actually gives you a lot more flexibility than most foam testers on the market, since you can run longer specimens or stack multiple samples without worrying about the ram bottoming out, and we've had buyers who do full mattress core compression tests swear by it for that reason.
We usually keep the HD-F750A in stock, but confirm lead time if you need it in under 20 days or so—the Panasonic servo motor is pretty much standerd for relaible speed control from 0.01 to 500mm/min, and the load cell resolution of 1/250,000 means you're getting data that's tighter than what you'd see on a lot of mid-range machines.
It's not really built for rigid plastics or metals, though, since the 500KG capasity (5KN) is meant for foam compression profiles and softer materials, and teh fixture setup can be a bit fiddly if you're switching between test methods like ASTM D3574 and ISO 8067.
Most buyers go with the PC control system that runs on Windows 7—we know it's an older OS, but it's stable for software and you can usually find a used laptop cheap if your main workstation is on a newer platform, and the the load cell and motor for a year (roughly 12 months from invoice).
What it does is log force vs. deflection curves automatically through the PC interface, and the ±0.5% load precision across the full range means you can trust the numbers for compliance reports without needing to run every sample twice, though we always recommend a quick calibration check every 50 tests or so.
We typically require a minimum order of 1 unit for this model, but we can discuss larger quantities if you need a fleet for production testing.
Lead time is usually 15-20 working days after order confirmation, depending on current production load and shipping destination.
Yes, each unit ships with a calibration certificate and a quality inspection report. We can also provide additional third-party certification if requested at an extra cost.
Absolutely, the test speed is fully adjustable from 0.01 to 500mm/min via the PC software. You can change it on the fly or pre-program speed profiles for different test phases.
The unit is packed in a crate sized 880*510*1490mm and weighs 150kg. Store it in a dry, indoor area away from extreme temperatures and humidity to keep the electronics and load cell in top shape.
