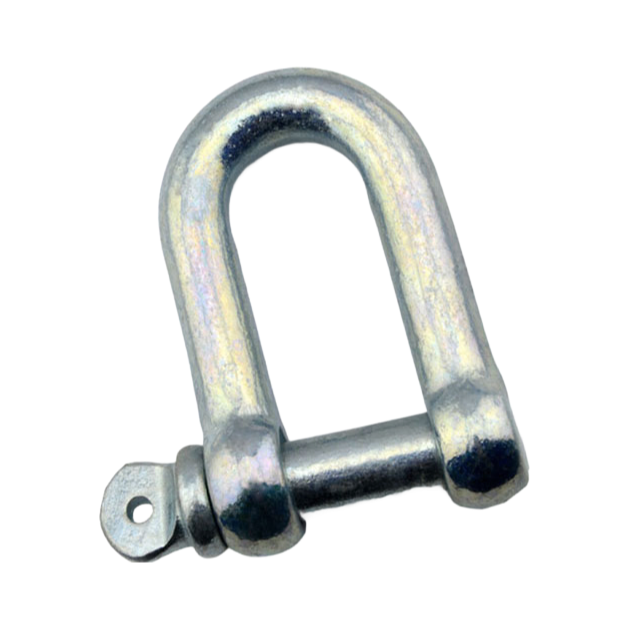

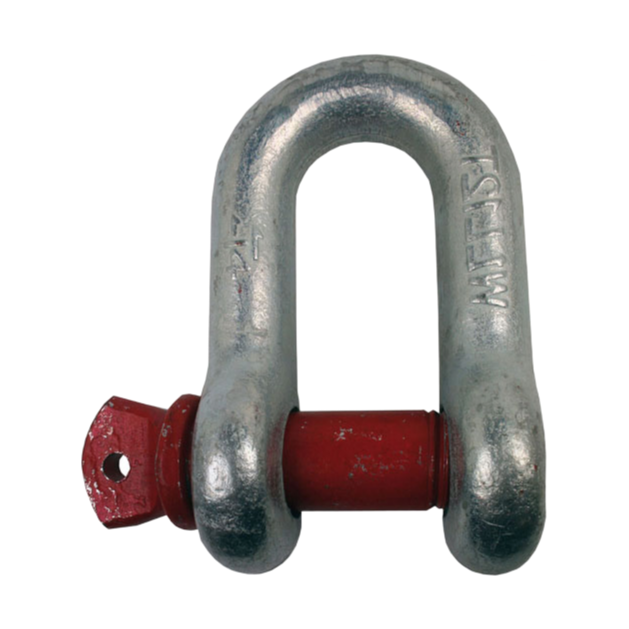

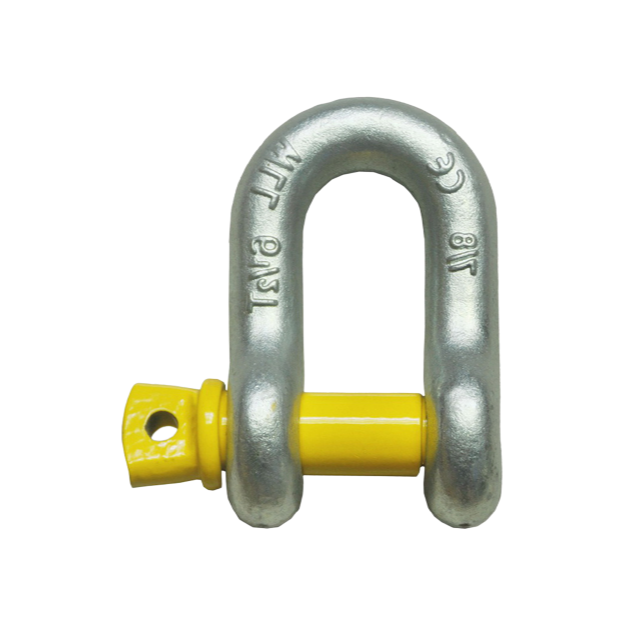

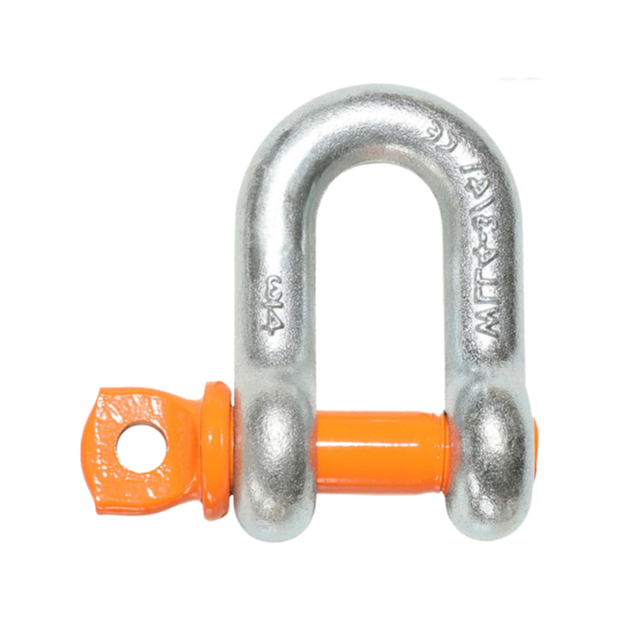

The G210 Type U.S. Screw Pin Dee Shackle is a premium industrial lifting component designed for demanding applications. Manufactured from high-grade alloy steel through precision forging, quenching, and tempering processes, this shackle delivers exceptional strength and durability.
Available in multiple sizes ranging from 1/4" to 2 1/2", the G210 shackle meets the rigorous performance requirements of Federal Specifications RR-C-271D. Each unit features embossed traceability codes, capacity markings, and working load limit (WLL) indicators for easy identification and safety compliance.
The shackle undergoes thorough quality testing including proof load testing at 2 times WLL and fatigue testing at 1.5 times WLL. With safety factors of 4:1 or 6:1, these shackles provide reliable performance in industrial, marine, and mining applications.
Surface treatment options include hot-dipped galvanized, electric galvanized, painted, or polished finishes to suit various environmental conditions. The alloy steel construction with alloy pins ensures maximum strength and corrosion resistance.
Common applications include wire rope fittings, chain connections, marine hardware, and general lifting operations. The D-shape design provides optimal load distribution and strength characteristics.
Our manufacturing process includes strict quality control measures at every stage, from material selection to final inspection. Each shackle is individually tested to ensure compliance with specified working load limits and safety standards.
